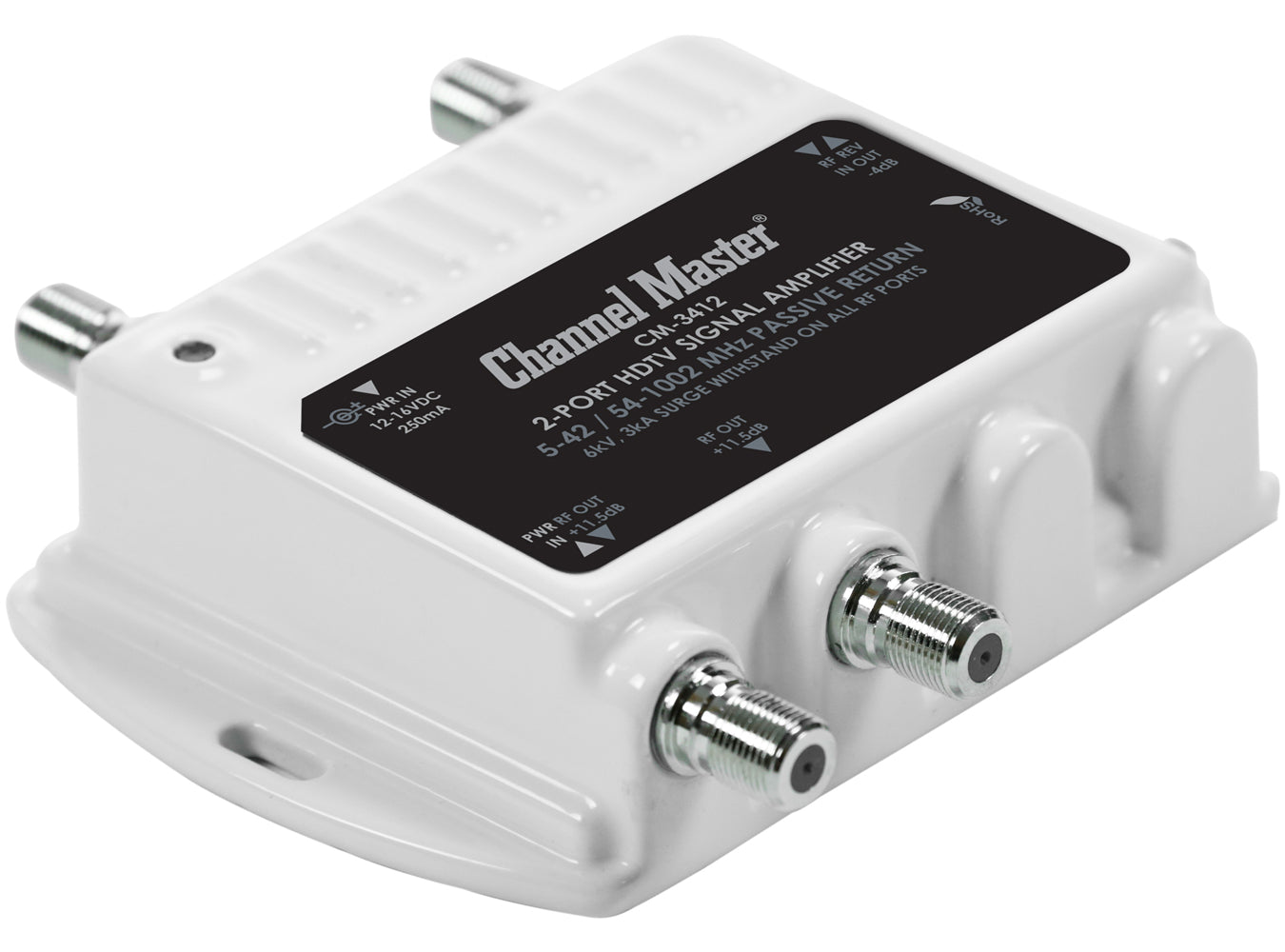

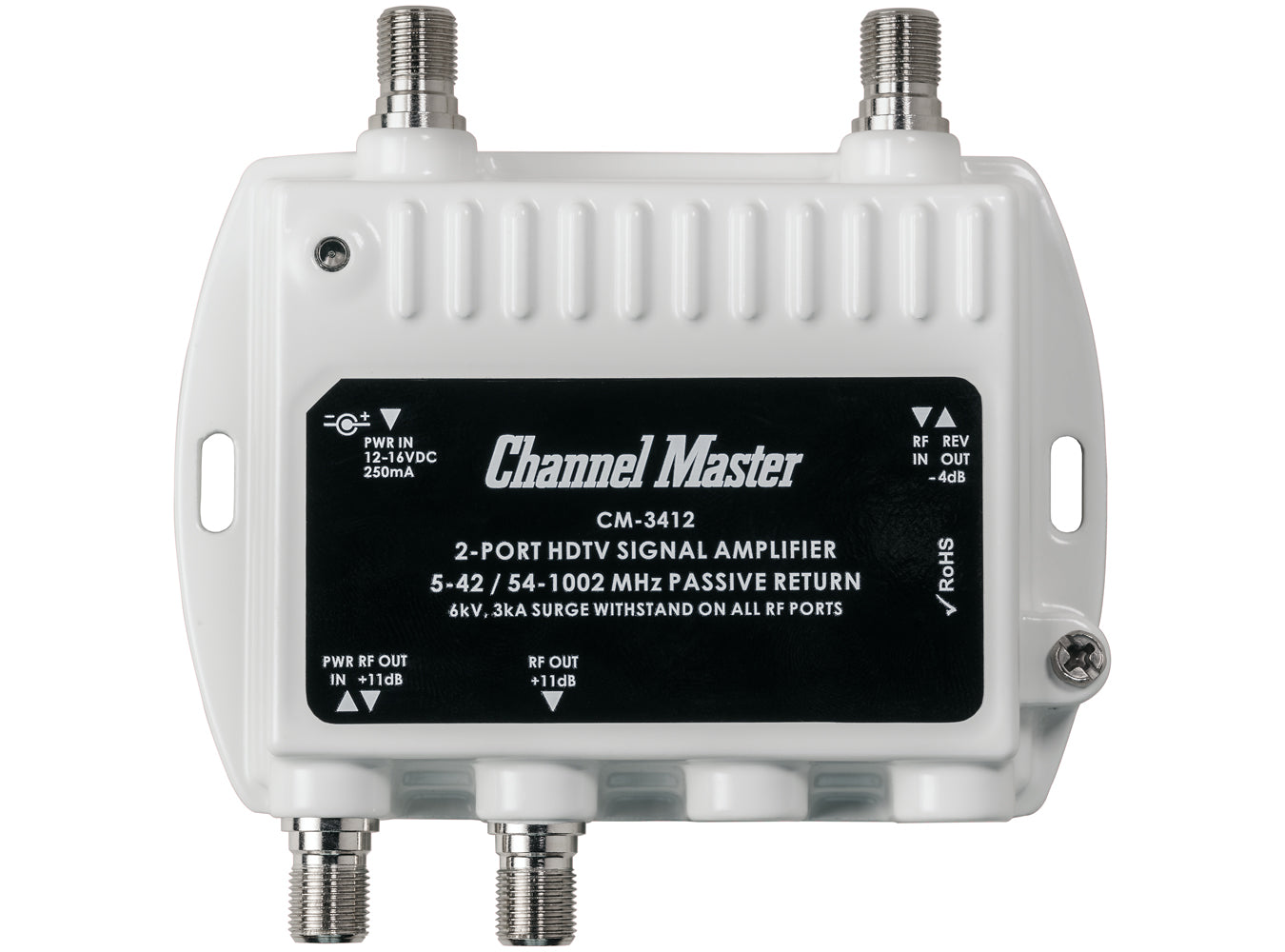

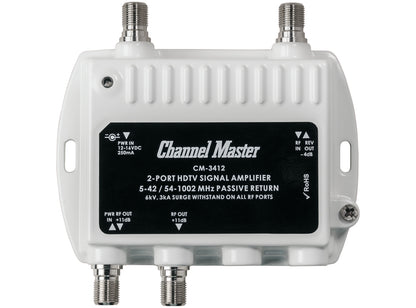

The Ultra Mini 2 distribution amplifier will boost TV signals, increasing the overall signal strength for distribution throughout the home. The Ultra Mini 2 has two output ports and can be used in HDTV, CATV, off-air, analog and digital RF distribution applications where high performance and reliability are required.
What’s Included
Ultra Mini 2 Distribution Amplifier

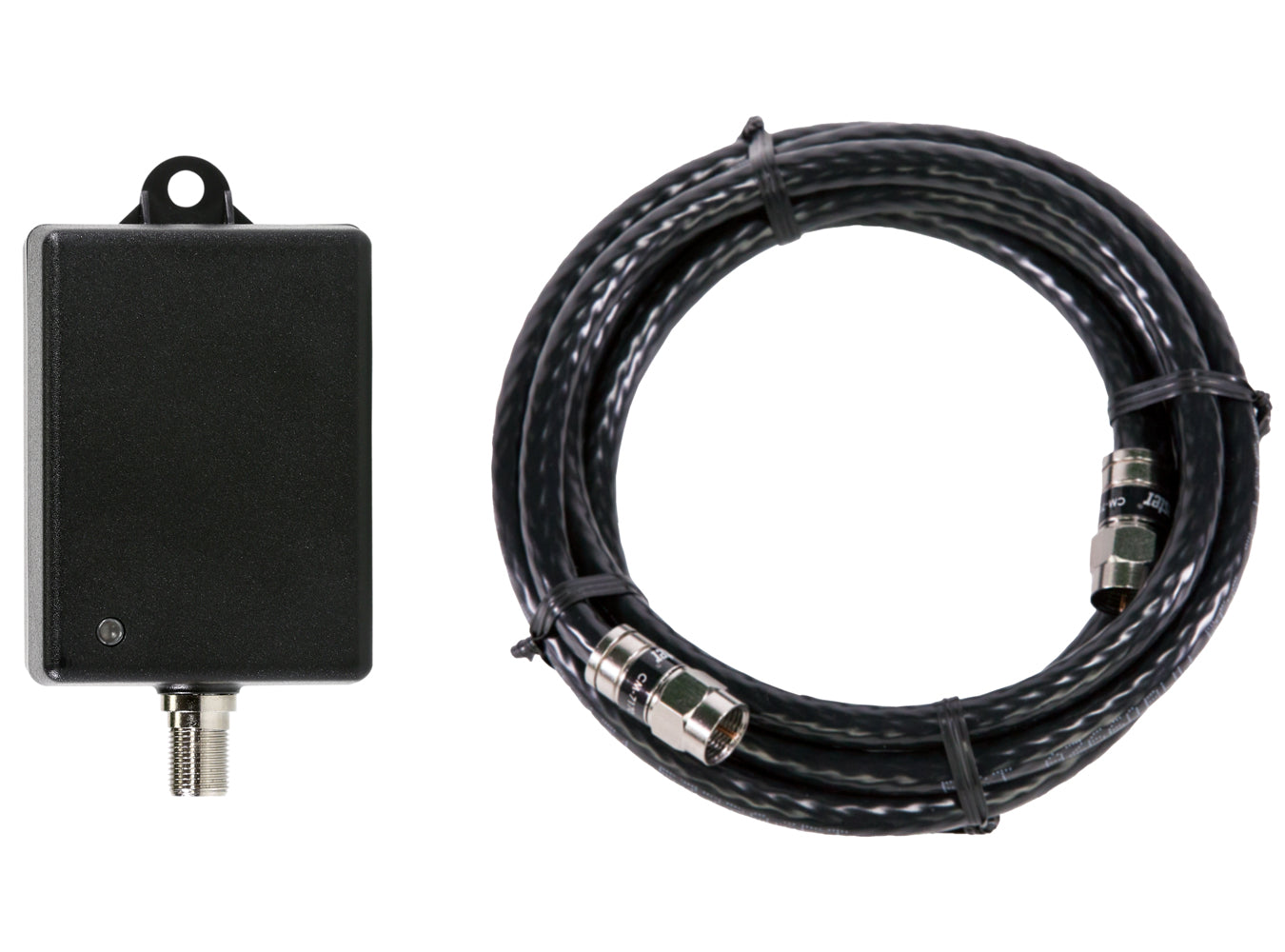

Power Adapter
Coaxial Cable
User Guide
1-Year Limited Warranty

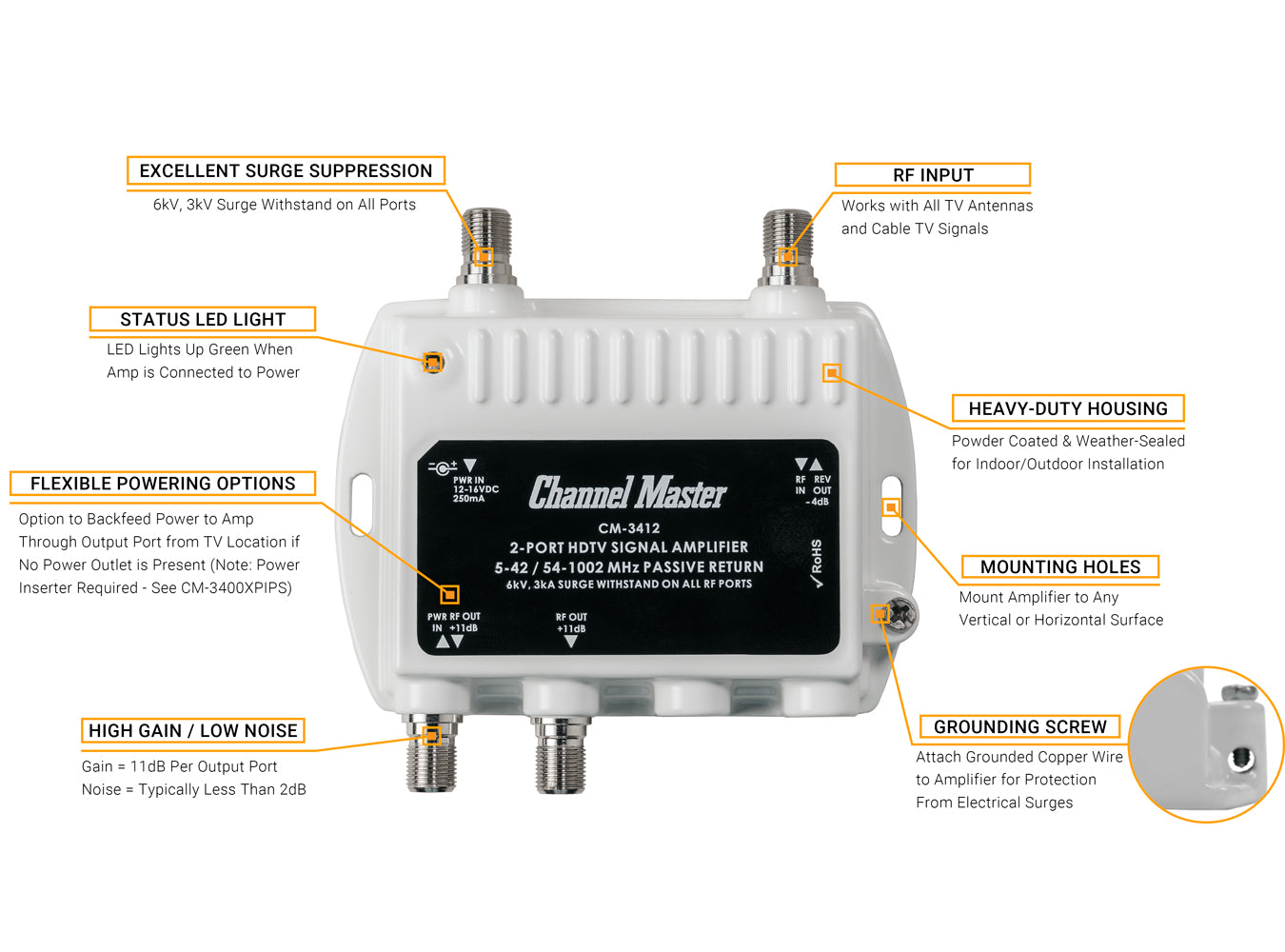

Features
Miniature Size for Space-Saving Installations
Two Output Ports
Compatible with All TV Antennas
Will Support ATSC 3.0, NextGen TV and 4K Broadcast when Available
Professional Grade Performance
Powder Coated and Weather-Sealed Housing for Superior Corrosion Protection
Excellent Surge Withstand Capability
Offers Return Path for Cable Modem Applications
Supports Both Analog and Digital Broadcast Signals
Patented Digital Seizure Mechanism (DSM) for Superior Center Conductor Retention, Surface Area Contact and Electrical Performance
Tech Specs
Power Supply Input Voltage
110-240v, AC ~ 50/60Hz, 200mA (Max)
Power Supply Output Voltage
+13.2v DC, 500mA, 6.6W (Max)
Forward Frequency Range
54 to 1002 MHz
Return Path Frequency Range
5 to 42 MHz
Gain
+11.5dB per Output
Noise Figure
Typically Less than 2dB
Isolation
24 dB
Max Output Level
21.5 dBmV
Max Input Level
10 dBmV
Passive Return
-4.6 dB
Operating Temperature
-40 C to +60 C
Connector
F-Type
UPC
020572034128
Size (Product)
4.25 x 4.5 x 1 in
Size (Packaging)
5.75 x 8.5 x 2.25 in
Weight (Product)
11 oz
Weight (Packaging)
1.7 lb
CM-3412, cm3412, cm 3412, Channel master 3412, channel master cm 3412, channel master cm3412, channel master cm-3412, antenna booster, mast mounted amplifier, antenna amplifier, tv antenna amplifier, hdtv amplifier, antenna signal amplifier, hd antenna amplifier, tv antenna signal amplifier, outdoor antenna amplifier, digital tv antenna amplifier, uhf antenna amplifier, channel master antenna amplifier, digital antenna amplifier, dtv antenna amplifier, tv booster, tv signal booster, tv antenna booster, cable amplifier, cable tv amplifier, cable signal amplifier, digital cable amplifier, cable splitter amplifier, bidirectional cable amplifier, cable modem amplifier, coaxial cable amplifier, cable tv splitter amplifier, bidirectional cable tv amplifier, coax cable amplifier, digital cable signal amplifier, best cable amplifier, cable video amplifier, cable rf amplifier, broadband cable amplifier, antenna amp, television antenna booster, hdtv antenna booster, digital antenna booster, antenna signal booster, power amplifier, signal booster, antenna boosters, channel master amplifier, channel master distribution amplifier, channel master amp, channel master antenna booster, tv amplifier, amplifier, dist amp, dist amplifier, splitter amplifier, amplifier splitter, distribution amp, channel master amp, channel master amplifier, best distribution amp CM-3412, CM3412, HDTV Signal Amplifier, 2-Port, CATV, Cable, OTA, TV Antenna, Booster, Amp, Splitter, Amplified
I use a Mini 2 as replacement for the drop amplifier my cable provider originally installed, that had failed. I use another Mini 2 to boost the signal on a HD antenna and have doubled the number of stations I receive. These are quality made products. Highly recommended!
R
R.L.
Amazing device!
I'm in the Silver Lake neighborhood of Los Angeles which is between Hollywood and Glendale. The transmitters are on Mt. Wilson about 21 miles away. The antenna to the living room TV is about 50 feet of RG6 coax cable and antenna to my loft is about 30 feet where I have the splitter. With my omnidirectional antenna and NO amplifier, I got 115 channels. With this amplified dual splitter, I get 164 channels to each output! Going to Channel Master's web page antenna map, I get just about all the channels and more not listed. There's only about 10 channels with some pixelation (weak signal/weak transmitter). Very happy with my purchase. Great value.
F
F.T.
Great Little Amp.
I live in a radio signal shadow of our water tower. My neighbors, a hundred yards away, have good reception with the equivalent of rabbit ear antennas. I have a Antennas Direct long range antenna on a 35 foot mast and the signal is still iffy. I added the amplifier to the output of the antenna and now I have great signal reception. I used to receive 26 stations clearly now I have 62 stations that are acceptable.
T
Tim French
Problem solved
2nd TV is now receiving the same amount of channels as the other TV. Both have a sharper picture. Good quality product. Thanks
R
R. Peter DeLong
Reliable Strong Signals
I don't like to write reviews soon after purchase. We have used our Mini-2 for a few months now, and it works like a champ, providing strong signals to our two widely-separated TVs in spite of the long cable from our attic yagi antenna to our basement Mini-2. It uses the traditional funky power-thru-cable connection to its power supply, and the power supply has a bright green LED when connected to 120V AC. I found other splitter/amplifiers to be unusable, so am very happy to have one that works.
