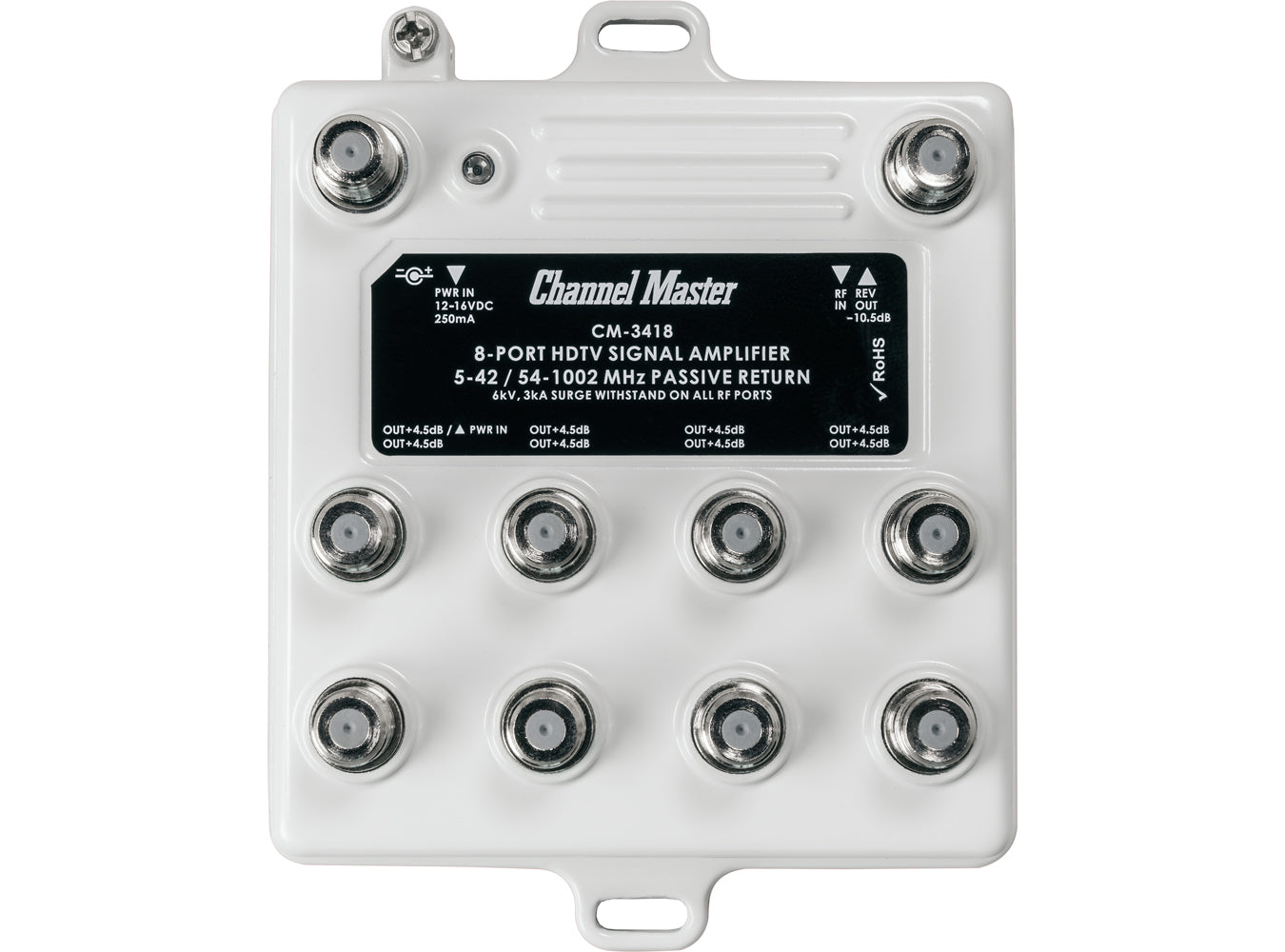

• Channel Master Ultra Mini 8, Part Number: CM-3418

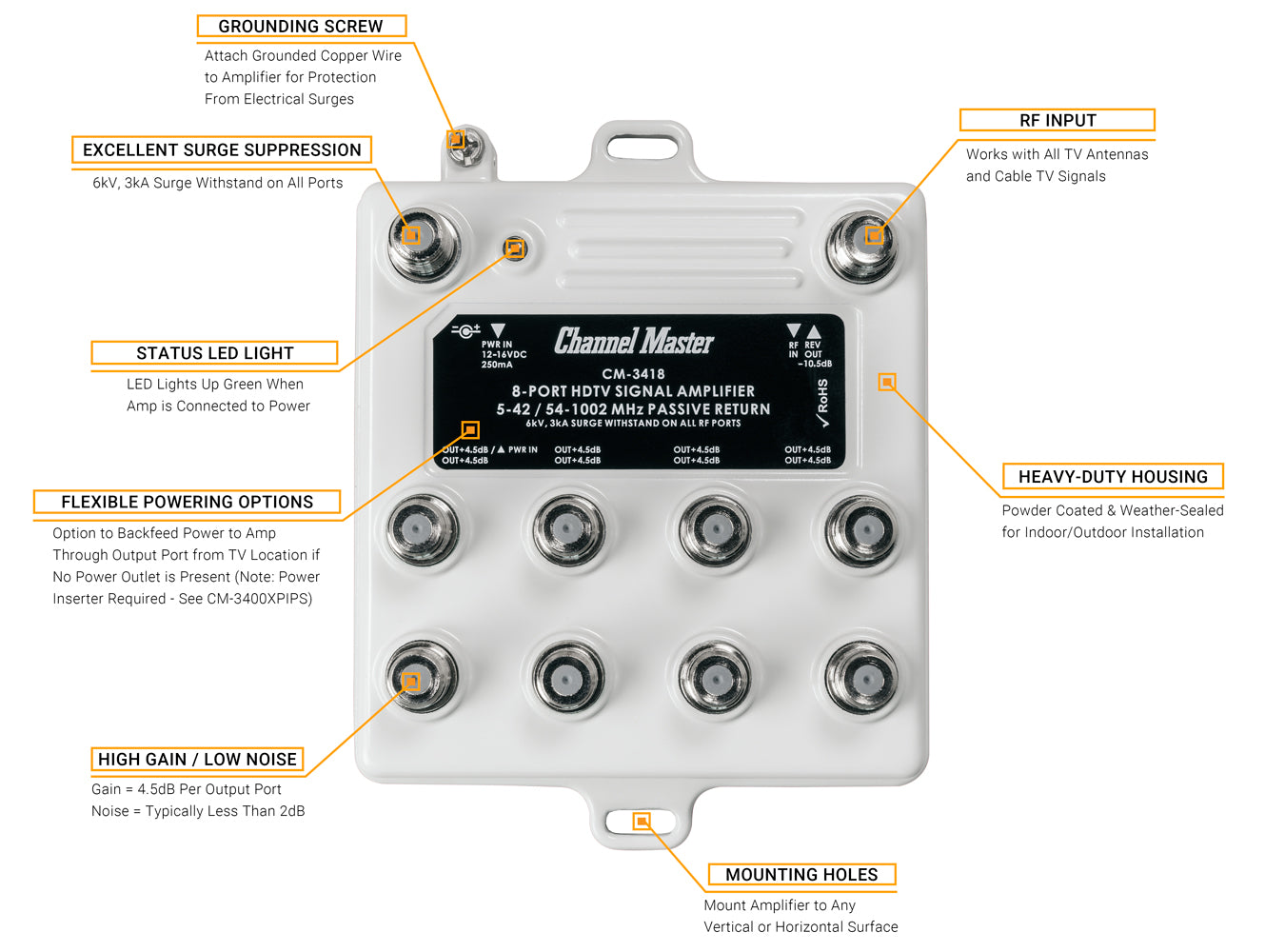

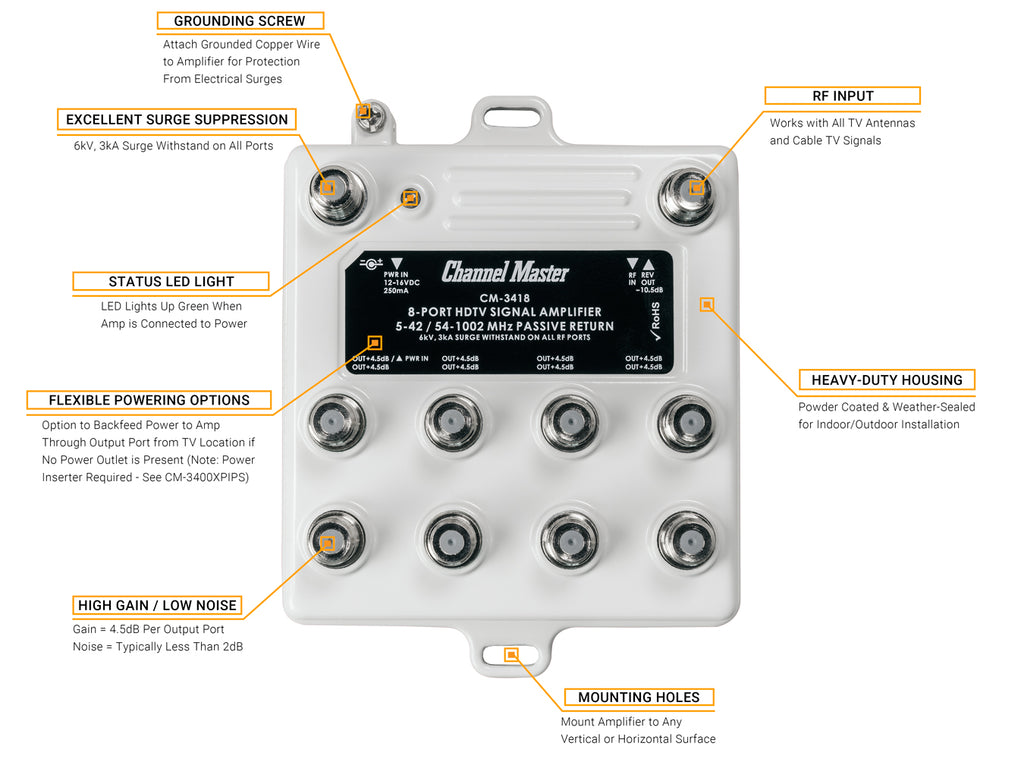

  • Channel Master Ultra Mini 8 Features, Part Number: CM-3418

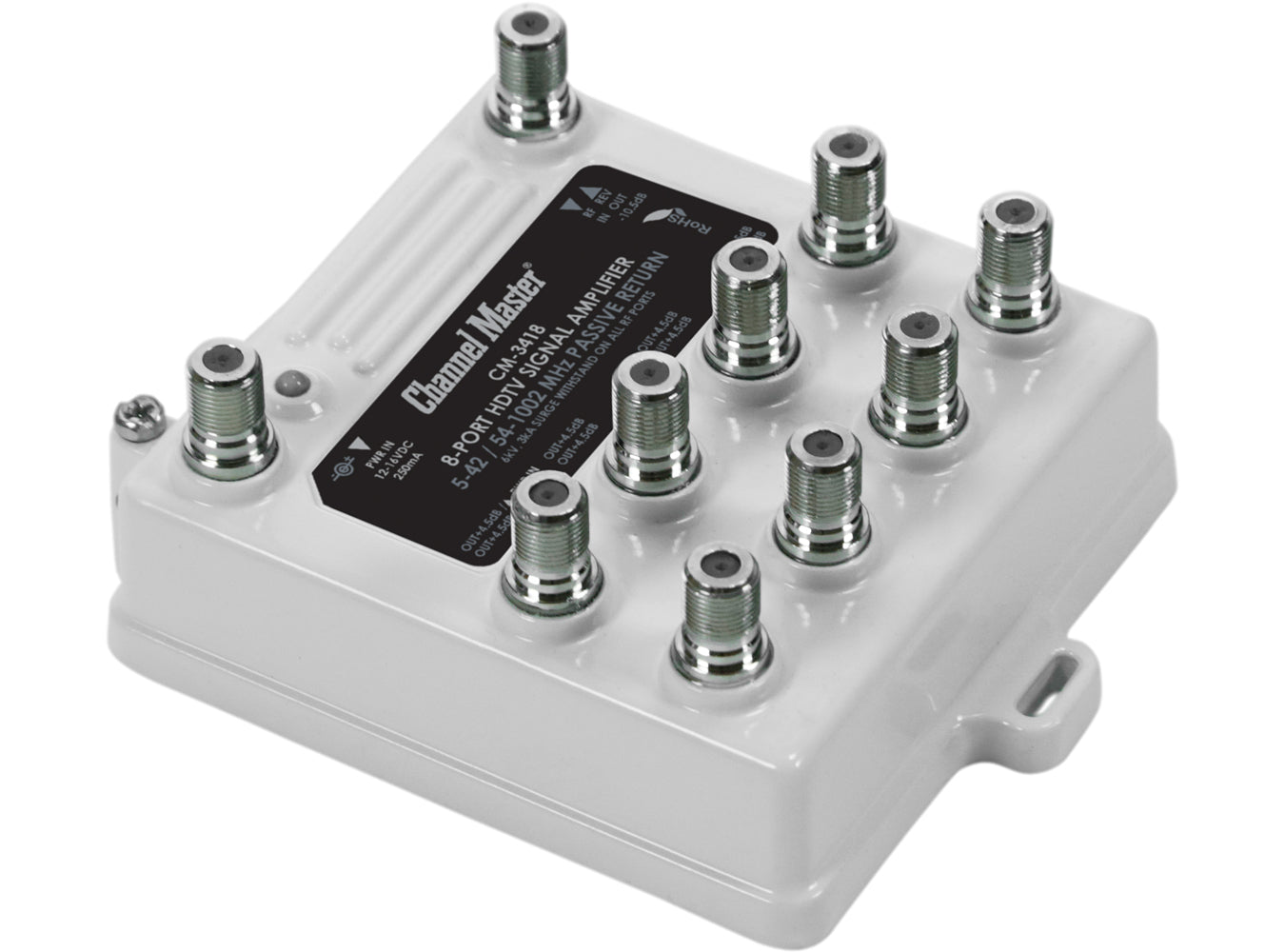

  • Channel Master Ultra Mini 8 Angle, Part Number: CM-3418

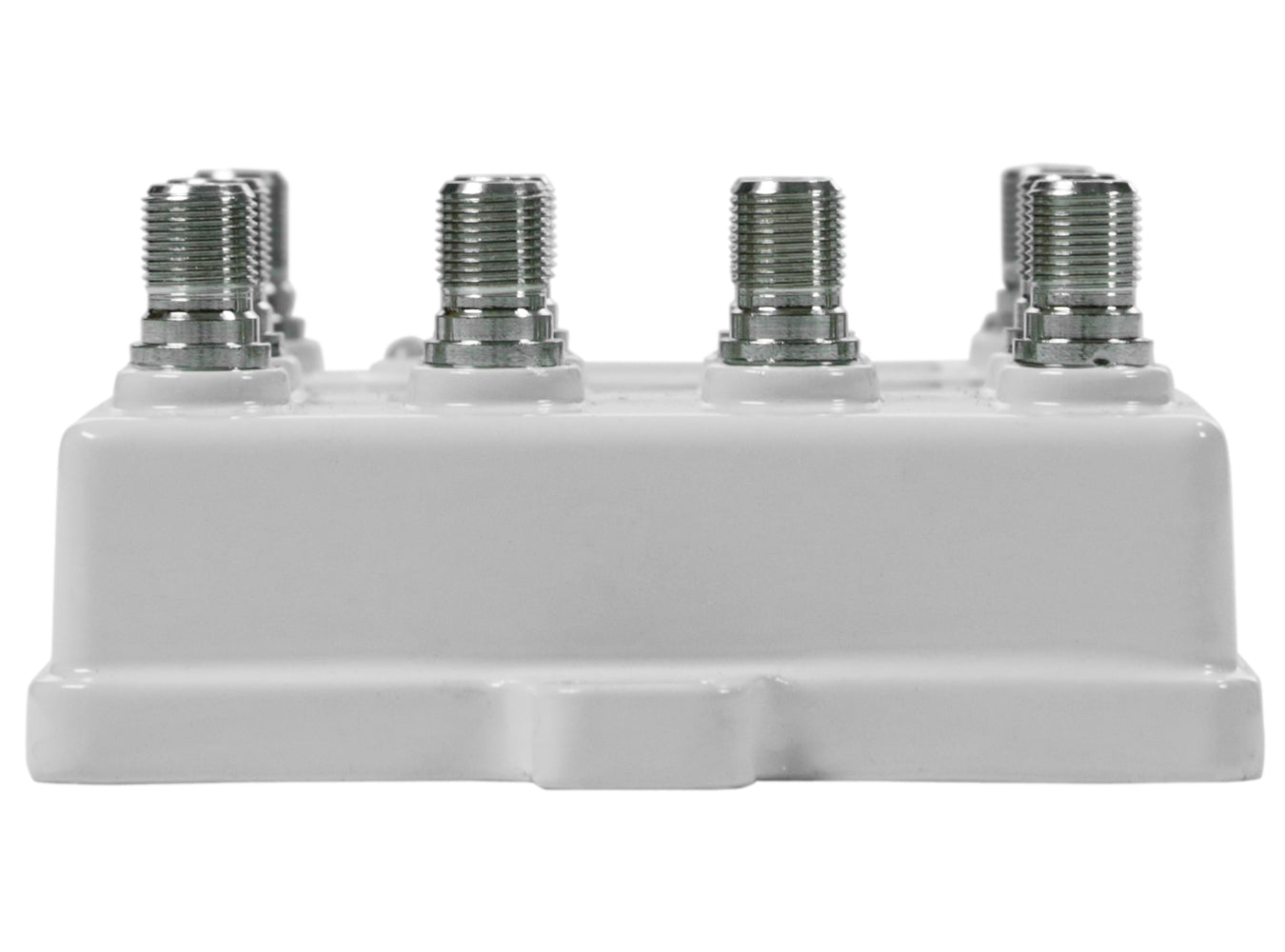

  • Channel Master Ultra Mini 8 Side, Part Number: CM-3418

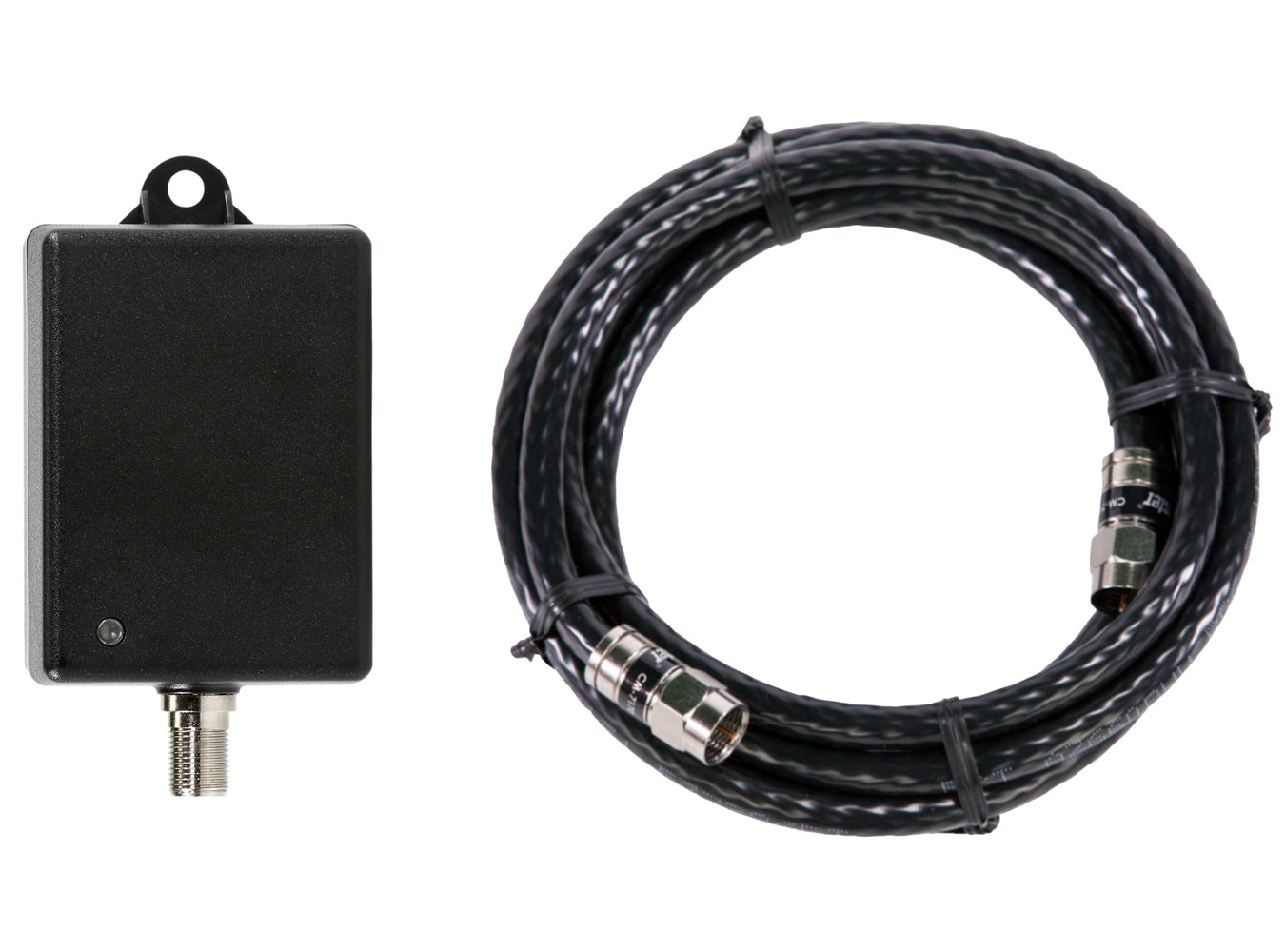

  • Channel Master Ultra Mini 8 Accessories, Part Number: CM-3418
  • Channel Master Ultra Mini 8 Video, Part Number: CM-3418
1 6

Ultra Mini 8

Ultra Mini 8

8-port Signal Distribution Amplifier

About This Item

CM-3418
  • Eight Amplified Output Ports: Provides 4.5 dB gain per port, enhancing TV signal strength for up to eight devices.
  • Versatile Compatibility: Works with all TV antennas and CATV installations (not compatible with satellite systems).
  • Enhanced Signal Quality: Improves signal strength, reduces pixelation, and may increase the number of channels received.
  • Compact Design: Miniature size allows for space-saving installations in tight spaces.
  • Indoor/Outdoor Use: Powder-coated and weather-sealed housing enables installation in any climate, both indoors and outdoors.
  • High Performance: Ideal for HDTV, CATV, off-air, analog, and digital RF distribution applications, ensuring reliable and consistent performance.
  • Efficient Signal Distribution: Perfect for splitting and amplifying signals to eight different TVs or devices from a single antenna or cable source.
$65.00
$65.00
Sale Sold out
View full details

Product Information

Overview

The Ultra Mini 8 distribution amplifier will boost TV signals, increasing the overall signal strength for distribution throughout the home. The Ultra Mini 8 has eight output ports and can be used in HDTV, CATV, off-air, analog and digital RF distribution applications where high performance and reliability are required.

Specifications

What’s Included
Ultra Mini 8 Distribution Amplifier, Power Adapter, Coaxial Cable, User Guide
Warranty
1-Year
Power Supply Input Voltage
110-240v, AC ~ 50/60Hz, 200mA (Max)
Power Supply Output Voltage
+13.2v DC, 500mA, 6.6W (Max)
Forward Frequency Range
54 to 1002 MHz
Return Path Frequency Range
5 to 42 MHz
Gain
+4.5dB per Output
Noise Figure
Typically Less than 2dB
Isolation
24 dB
Max Output Level
14 dBmV
Passive Return
-11.5 dB
Max Input Level
10 dBmV
Operating Temperature
-40 C to +60 C
Connector
F-Type
Size (Product)
3.75" x 3.75" x 2"
Size (Packaging)
5.75" x 8.5" x 2.25"
Weight (Product)
14 oz
Weight (Packaging)
1.8 lb
