Channel Master Advantage 100, Part Number: CM-3020

Advantage 100

Name: Advantage 100
Brand: Channel Master
SKU: CM-3020
Price: 179.0 USD
Availability: InStock

Channel Master Advantage 100 Video, Part Number: CM-3020

Overview

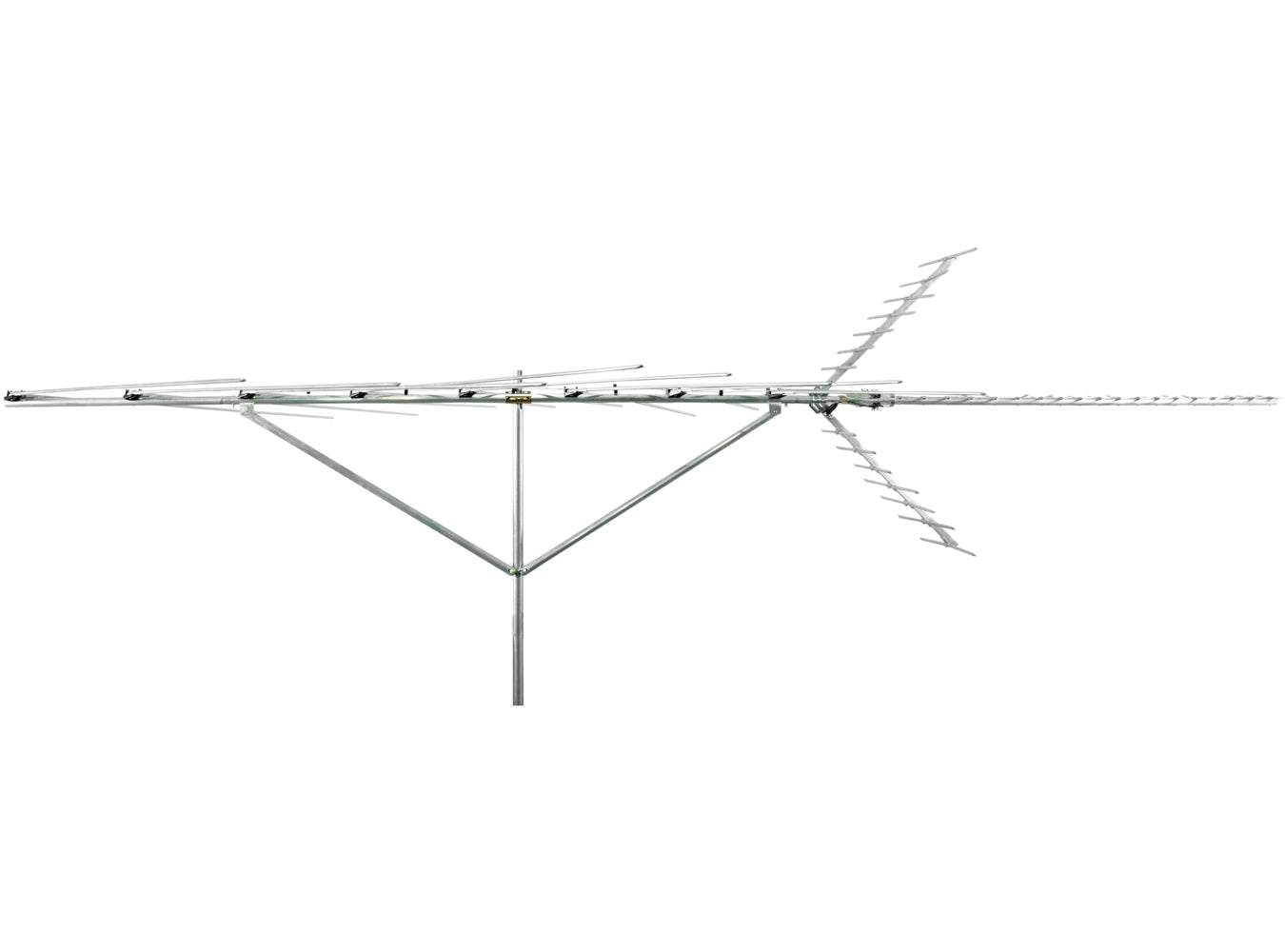

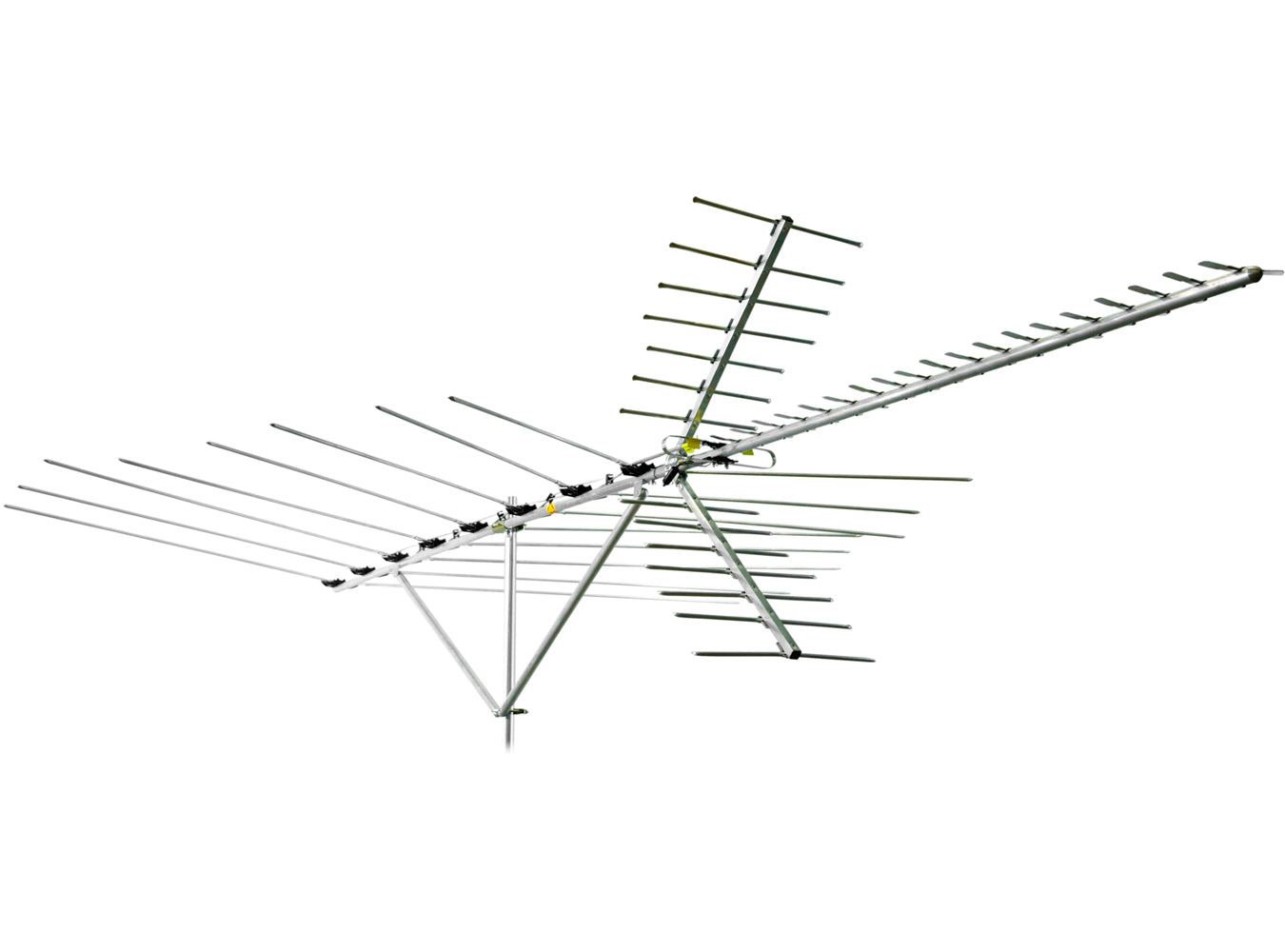

The Advantage 100 is a directional (log periodic), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 100 miles.

Long range directional (line of sight) outdoor antenna up to 100 miles

What’s Included

Advantage 100

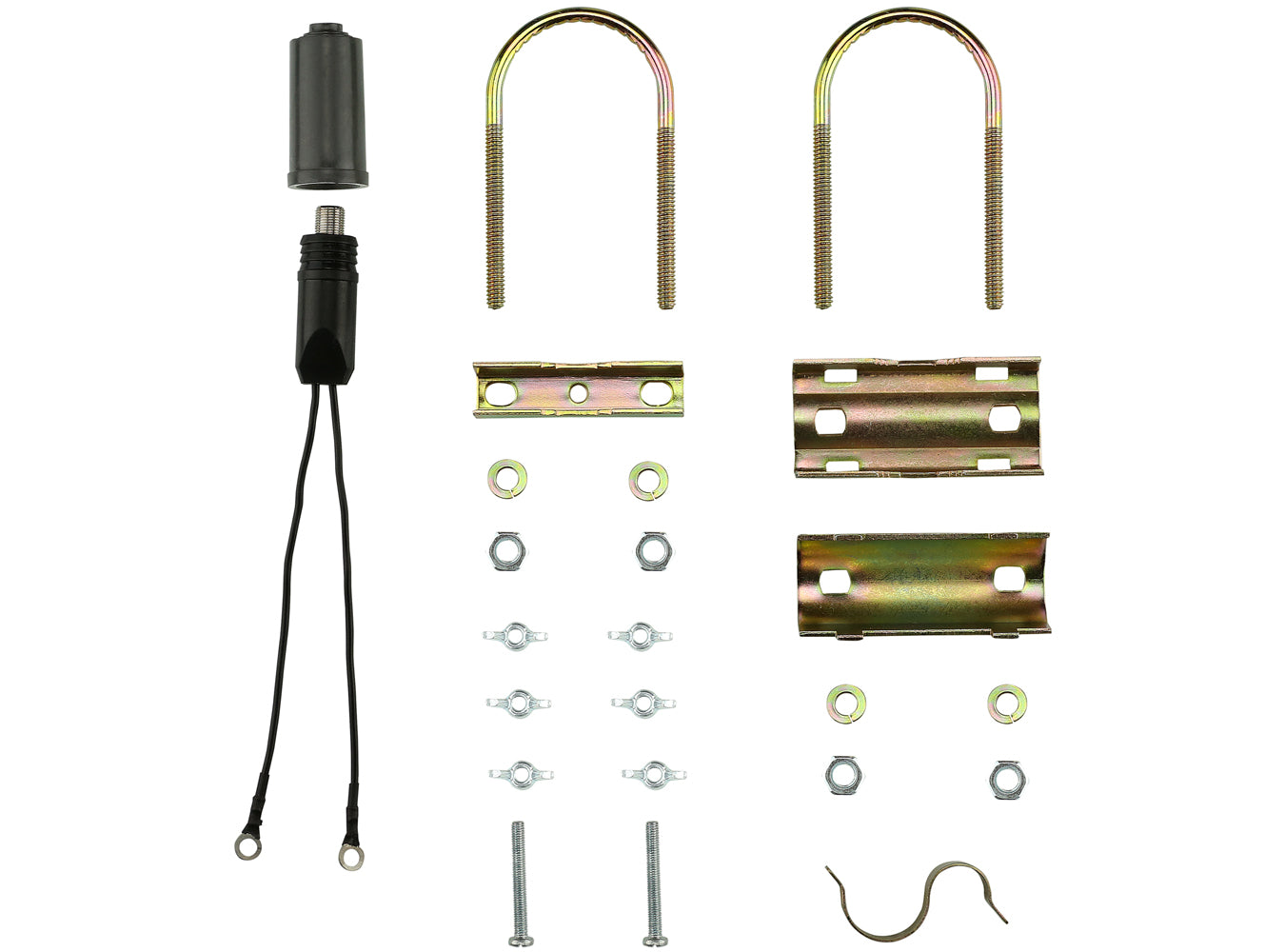

Hardware (Mast, Amplifier and Coax Cable Not Included)

Installation Guide

1-Year Limited Warranty

Features

Reception Range	100 Miles
Type	Outdoor
Reception Pattern	Directional
Built-In Amplifier	No
Installation	Roof, Mast, Eave, Chimney

Tech Specs

Electrical Specifications

Bandwith	54 to 216 and 470 to 700 MHz
VHF Gain	8.6dB
UHF Gain	9.5dB
Front to Back Ratio	16dB
Return Loss	N/A
Impedance	300 Ohm (75 Ohm balun included)

Mechanical Specifications

Boom Length	152"
Number of Elements	50
Max Element Width	95"
Mounting Clamp	U bolt up to 1.75"
Turning Radius	8 ft.
Output Connector	F-type

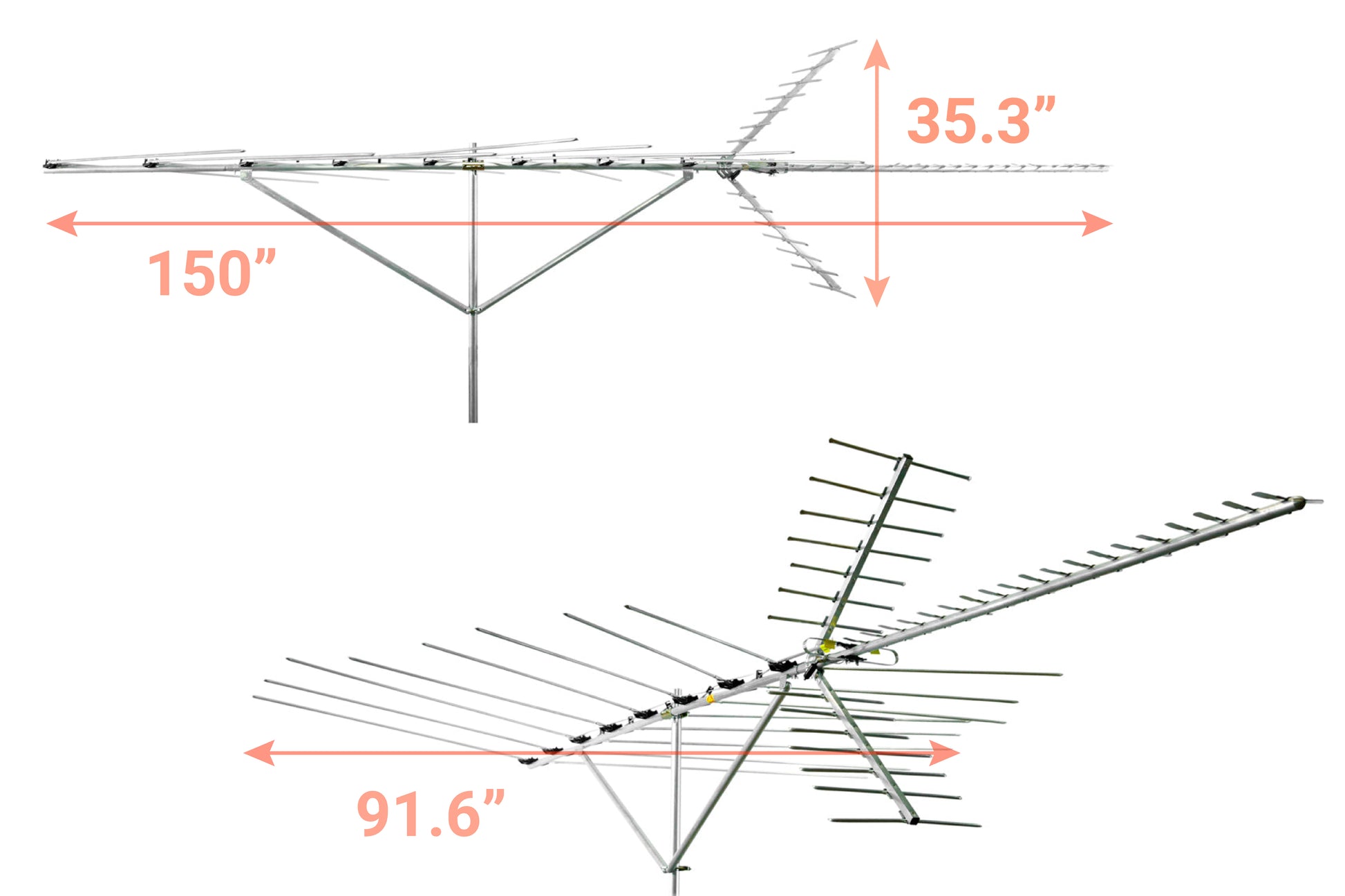

Size (product)	152 x 95 x 22 in
Size (packaging)	69 x 7.25 x 7.25 in
Weight (product)	7 lb
Weight (packaging)	11.25 lb
Wind Resistance	(at 100 mph, no ice) – 37 lb
