Product Information
Specifications
What's Included

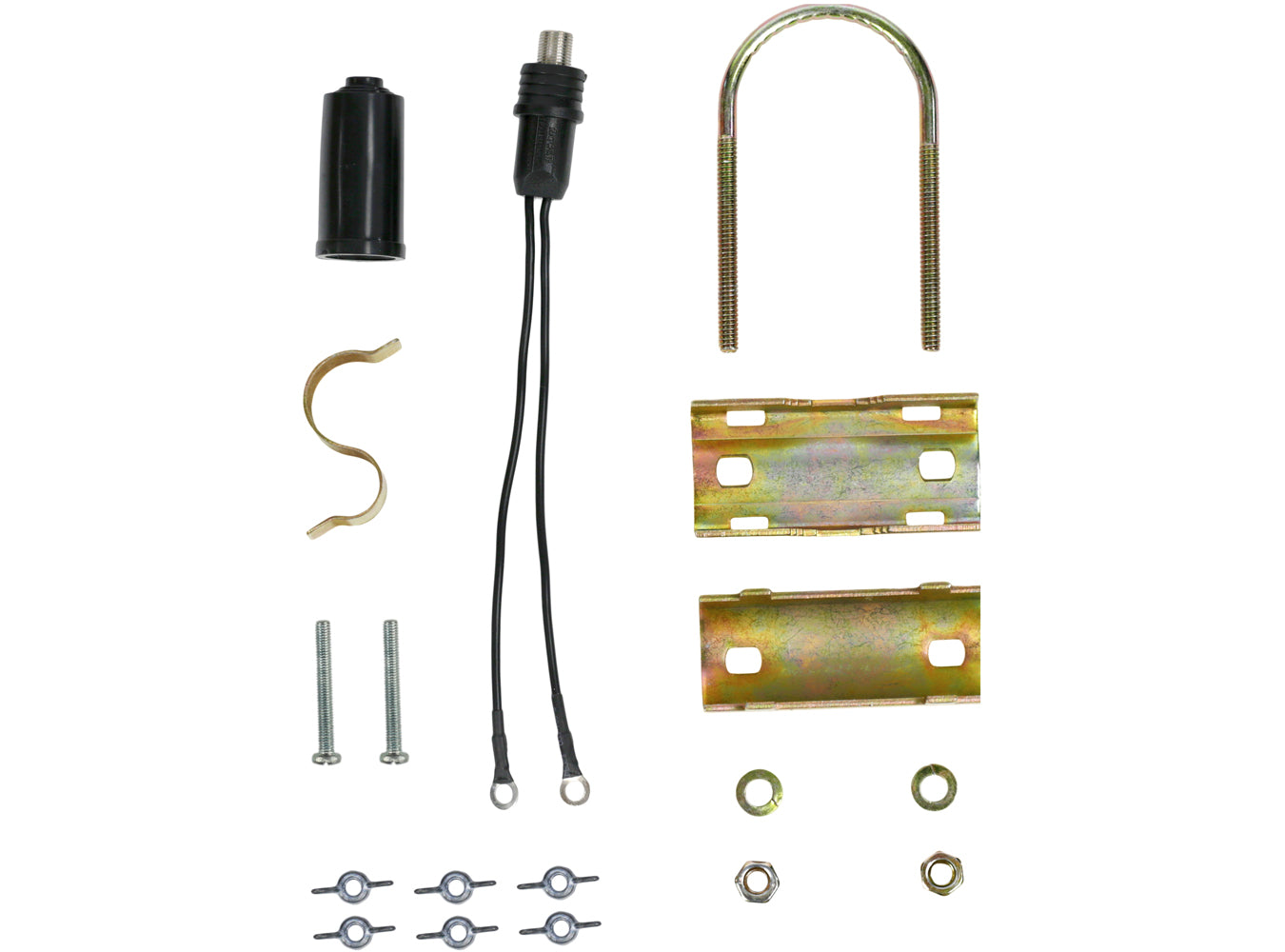

Advantage 60, Hardware (Mast, Amplifier and Coax Cable Not Included), Installation Guide
Warranty
1-Year Limited Warranty
Bandwidth
54 to 216 and 470 to 700 MHz
VHF Gain
8.2dB
UHF Gain
8.4dB
Front to Back Ratio
15dB
Impedance
300 Ohm (75 Ohm balun included)
Boom Length
113"
Number of Elements
30
Max Element Width
95"
Mounting Clamp
U bolt up to 1.75"
Turning Radius
5 ft
Output Connector
F-type

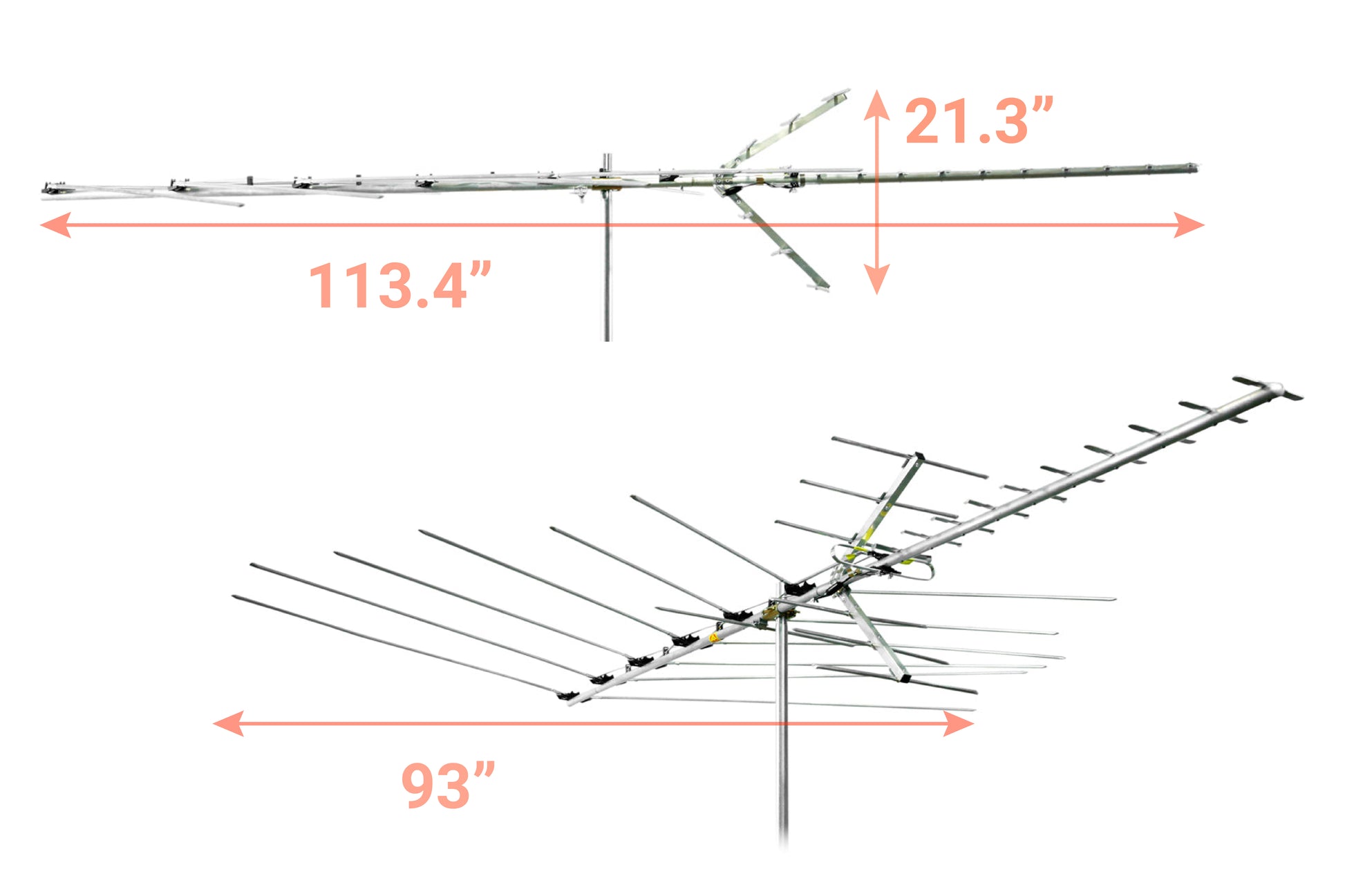

Size (product)
113" x 95" x 22"
Size (packaging)
69.25" x 7" x 7.25"
Weight (product)
5 lb
Weight (packaging)
8.25 lb
Wind Resistance
(at 100 mph, no ice) – 25 lb
