Channel Master Masterpiece 45, Part Number: CM-5016

Channel Master Masterpiece 45 Side, Part Number: CM-5016

Channel Master Masterpiece 45 Angle, Part Number: CM-5016

Channel Master Masterpiece 45 Built In Balun, Part Number: CM-5016

Masterpiece 45

Name: Masterpiece 45
Brand: Channel Master
SKU: CM-5016
Price: 169.0 USD
Availability: InStock

Channel Master Masterpiece 45 Assembly Video, Part Number: CM-5016

$169.00

SKU: CM-5016

Free Standard Shipping

Risk Free Trial 30 Day Money Back Guarantee

Manufacturer Direct Warranty 1-Year Warranty

Overview

The Masterpiece 45 is a directional (log periodic), line-of-sight outdoor TV antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 45 miles and is designed to withstand extreme outdoor conditions.

Short range directional (line of sight), rugged outdoor TV antenna up to 45 miles.

What’s Included

Masterpiece 45

Hardware (Mast, Amplifier and Coax Cable Not Included)

Installation Guide

1-Year Limited Warranty

Features

Reception Range	45 Miles
Type	Outdoor
Reception Pattern	Directional
Built-In Amplifier	No
Installation	Roof, Attic, Mast, Eave, Chimney

Tech Specs

Electrical Specifications

Bandwidth	54 to 216 and 470 to 700 MHz
VHF Gain	7.0 dB
UHF Gain	12.0 dB
Front to Back Ratio	12.0 dB
Return Loss	N/A
Impedance	300 Ohm (75 Ohm balun included)

Mechanical Specifications

Boom Length	48"
Number of Elements	15
Max Element Width	100.5"
Mounting Clamp	U-bolt up to 2.5"
Turning Radius	60"
Output Connector	F-type
UPC	020572050166

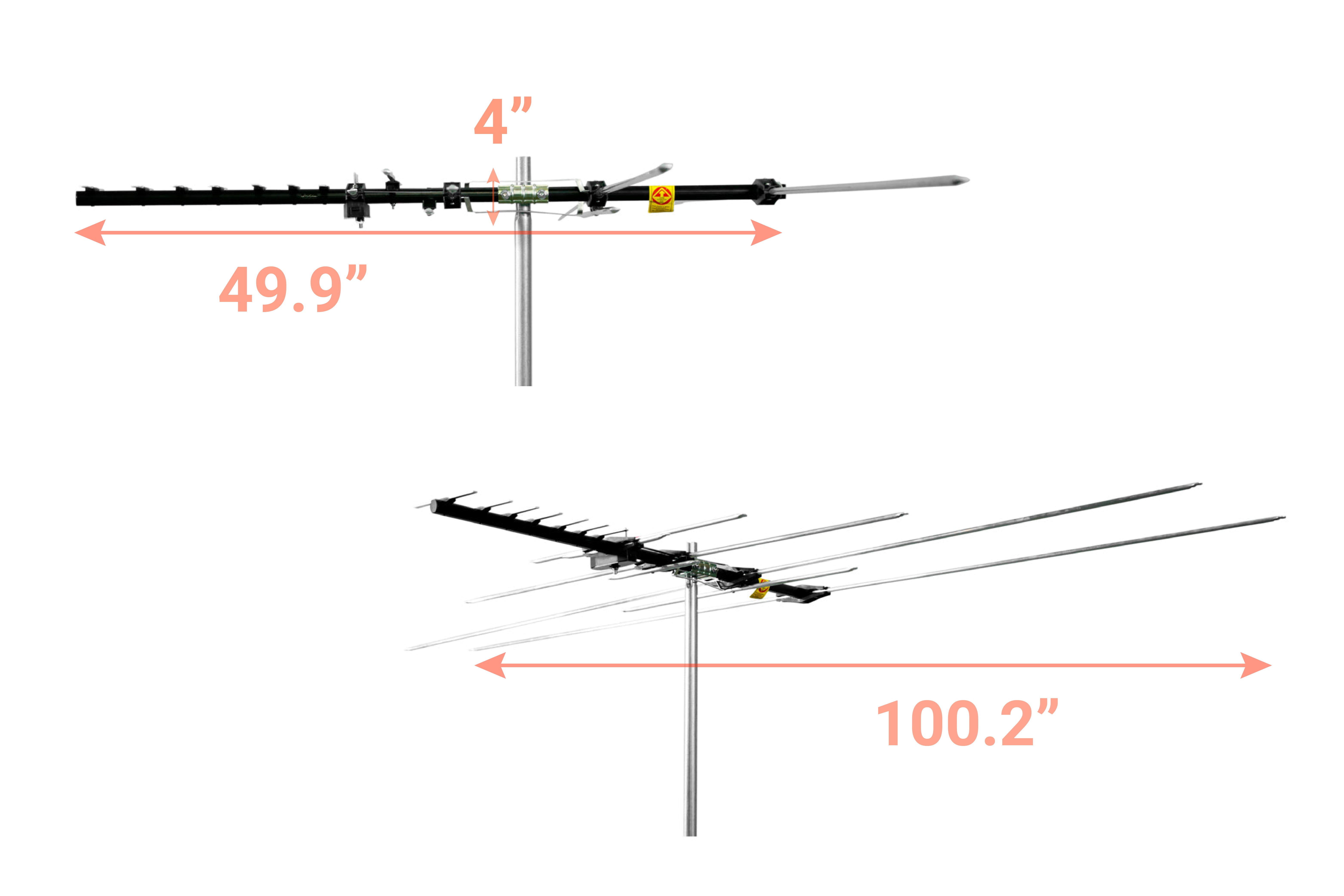

Size (product)	100" x 50" x 4"
Weight (product)	6 lb
Wind Resistance	(at 100 mph, no ice) – 20 lb

Choose a Model

45 MI Range Antenna

60 MI Range Antenna 100 MI Range Antenna
