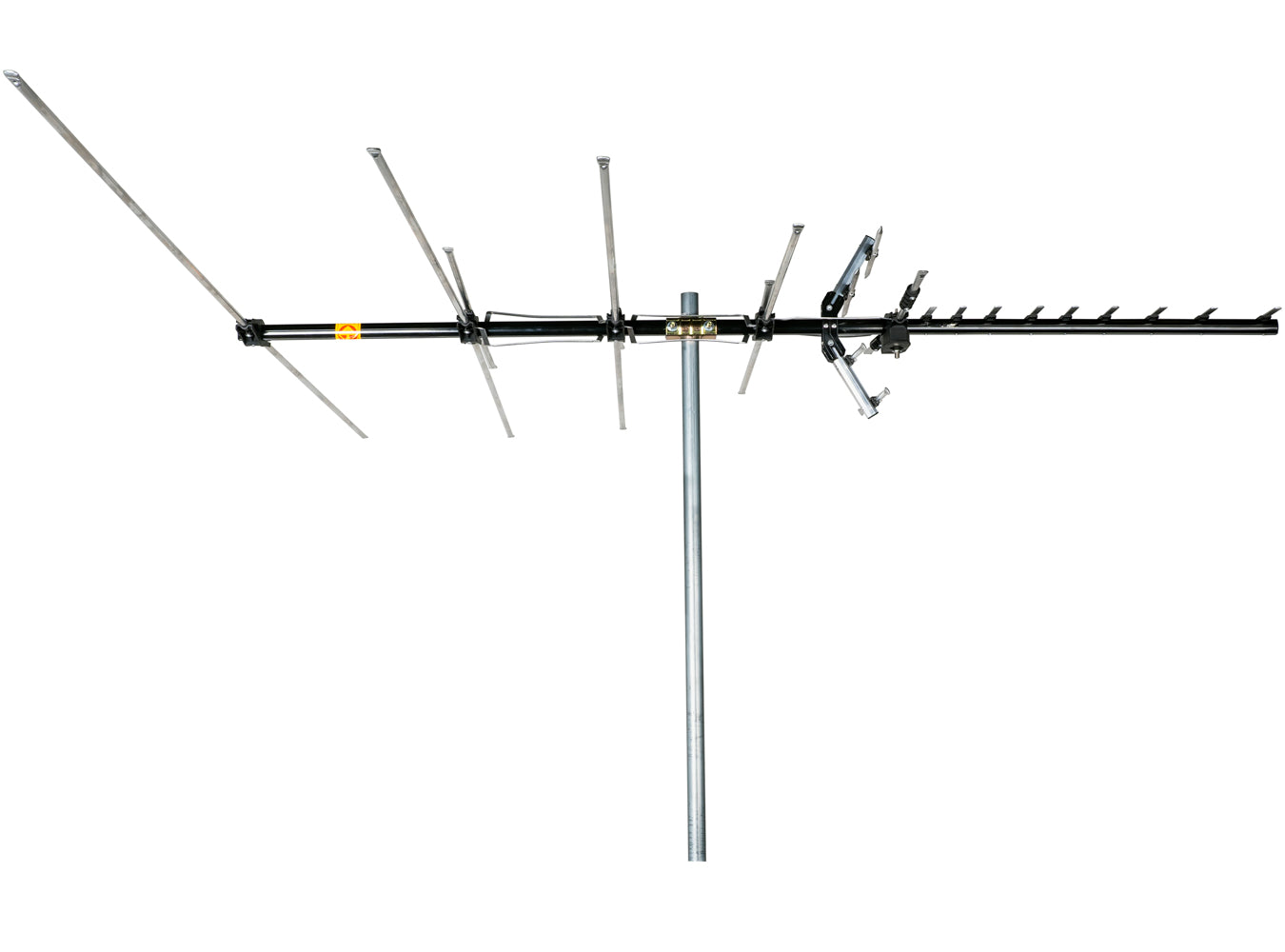

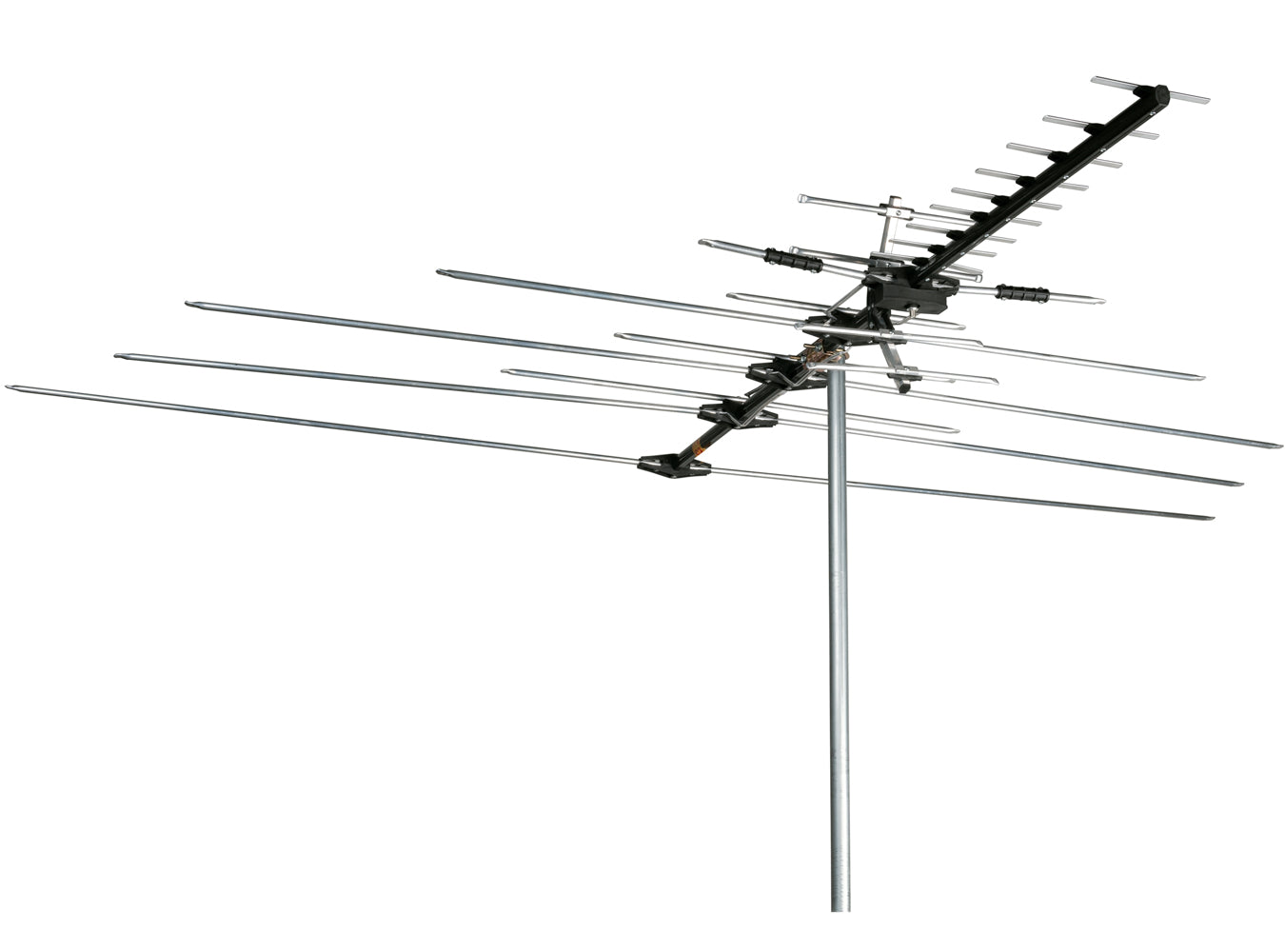

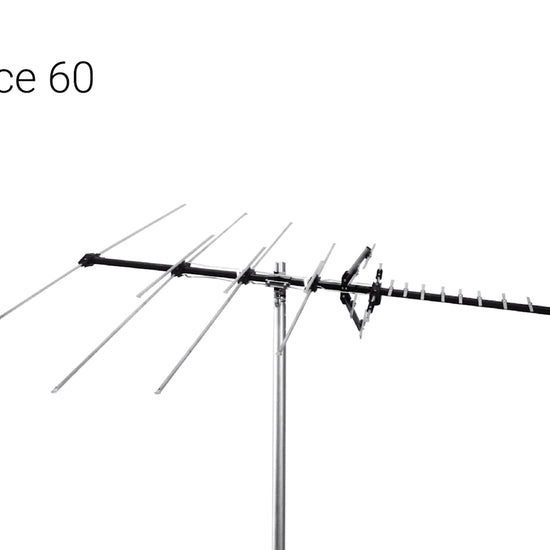

Masterpiece 60


$179.00
SKU: CM-5018

Overview

The Masterpiece 60 is a directional (log periodic), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 60 miles and is designed to withstand extreme outdoor conditions.

Medium range directional (line of sight), rugged outdoor antenna up to 60 miles

What’s Included

Masterpiece 60

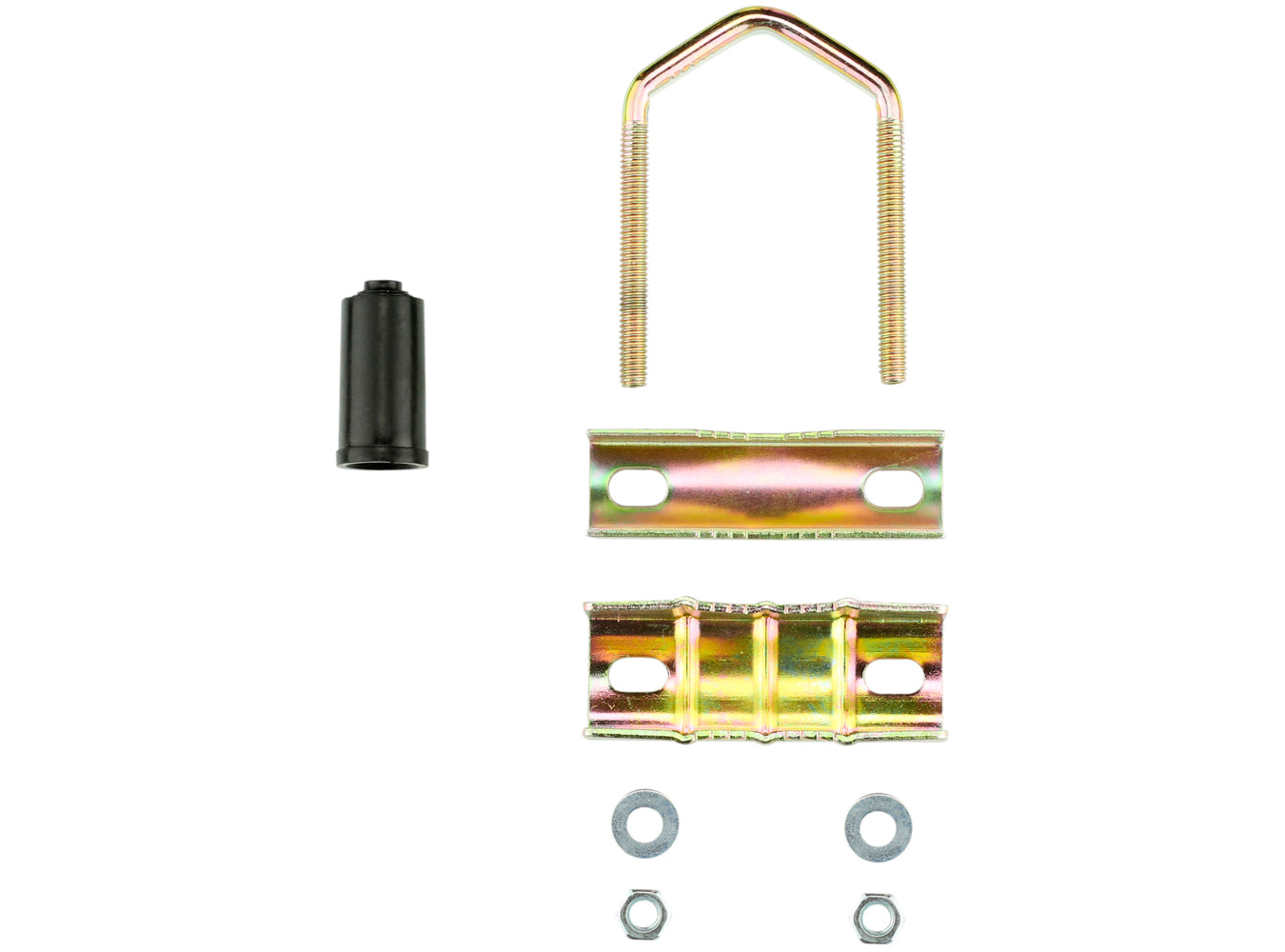

Hardware (Mast, Amplifier and Coax Cable Not Included)
Installation Guide
1-Year Limited Warranty

Features

Reception Range 60 Miles
Type Outdoor
CEA Color Code Yellow, Green, Light Green, Red
Reception Pattern Directional
Built-In Amplifier No
Installation Roof, Mast, Eave, Chimney

Tech Specs

Electrical Specifications

Bandwith 54 to 216 and 470 to 700 MHz
VHF Gain 9.0dB
UHF Gain 13dB
Front to Back Ratio 15dB
Return Loss N/A
Impedance 300 Ohm (75 Ohm balun included)

Mechanical Specifications

Boom Length 74.5"
Number of Elements 17
Max Element Width 107"
Mounting Clamp U bolt up to 2.5"
Turning Radius 6 ft.
Output Connector F-type

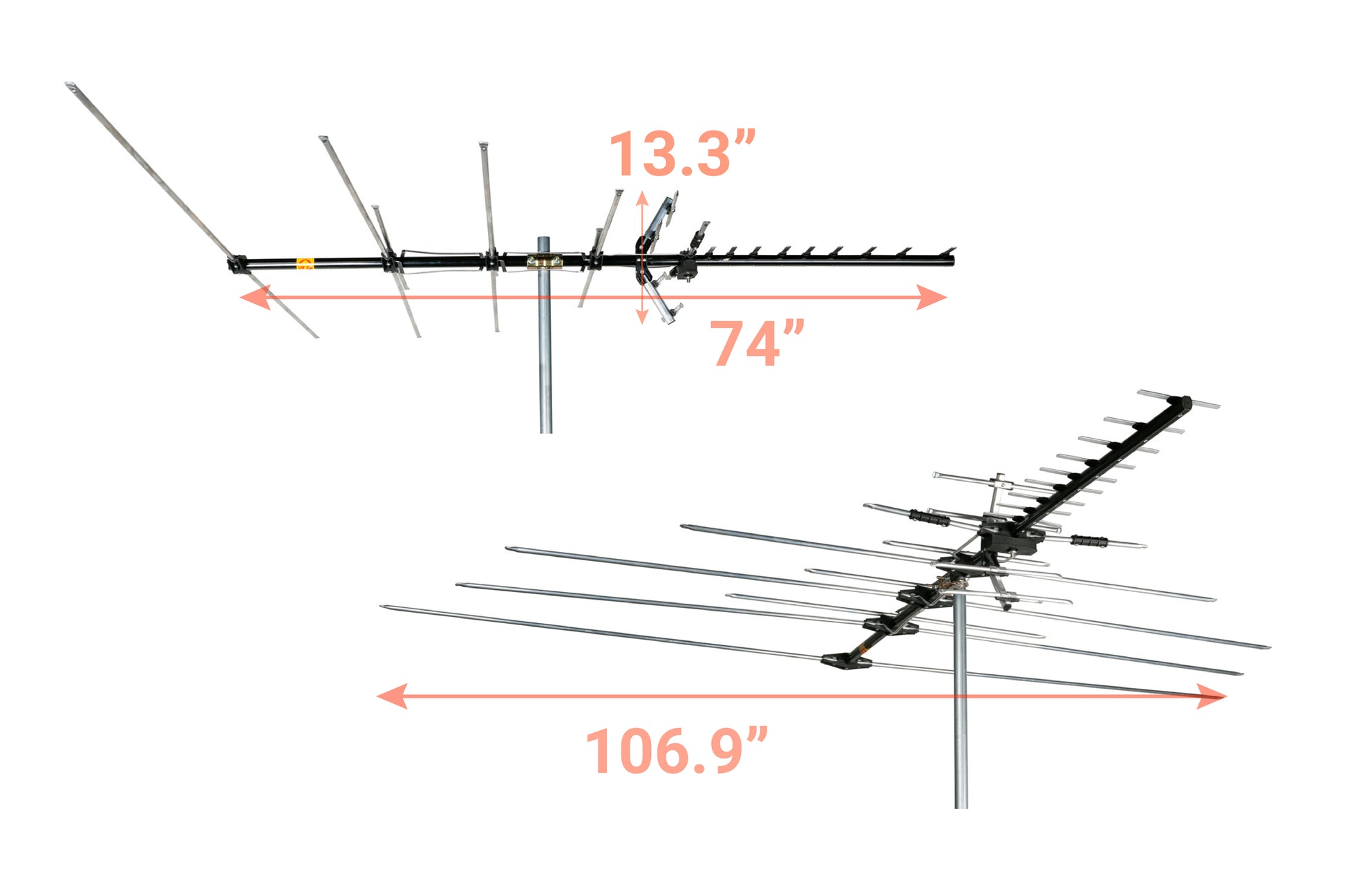

Size (product) 80.25 x 107.75 x 13 in
Weight (product) 10 lb
Wind Resistance (at 100 mph, no ice) – 22 lb
