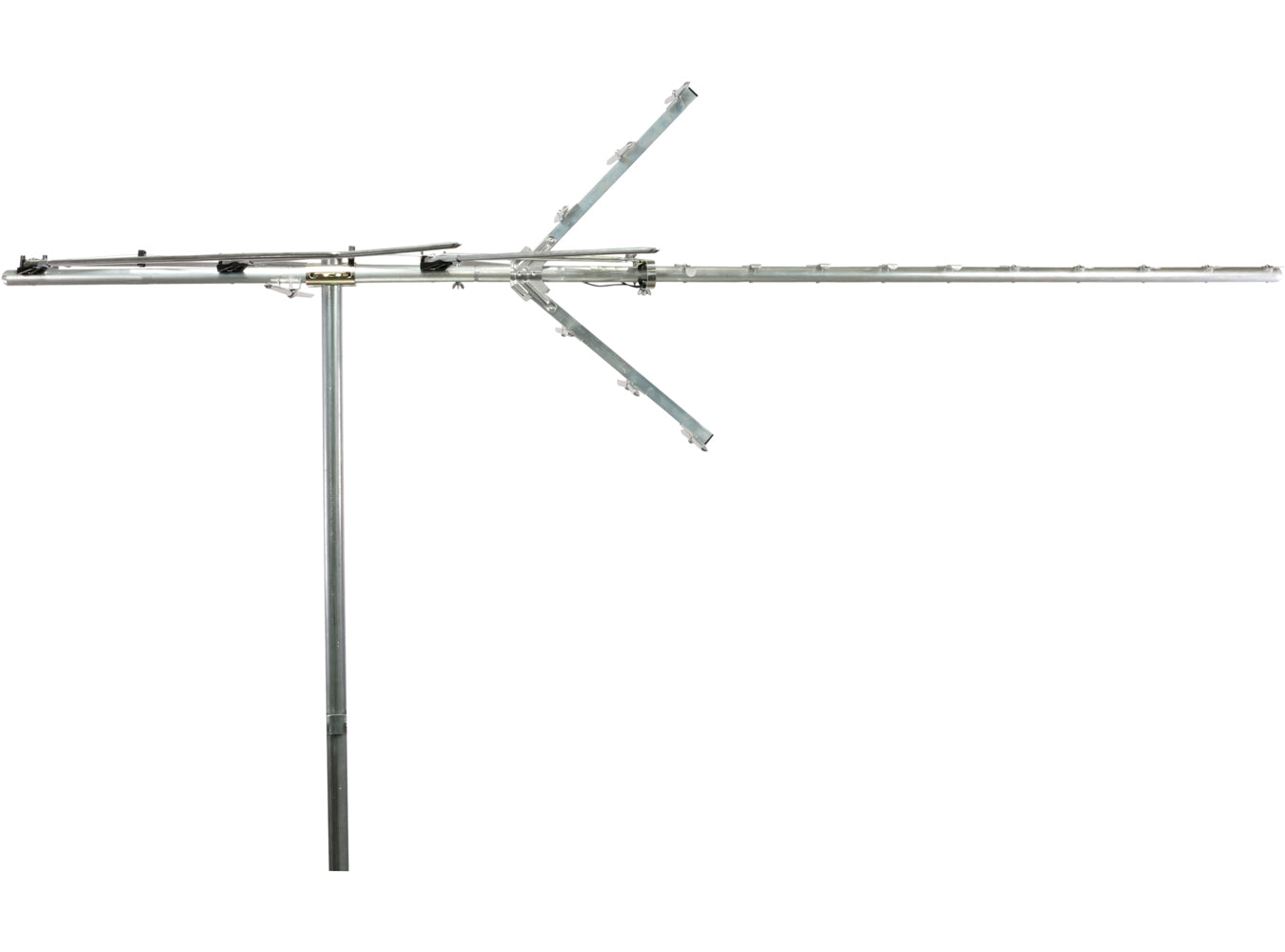

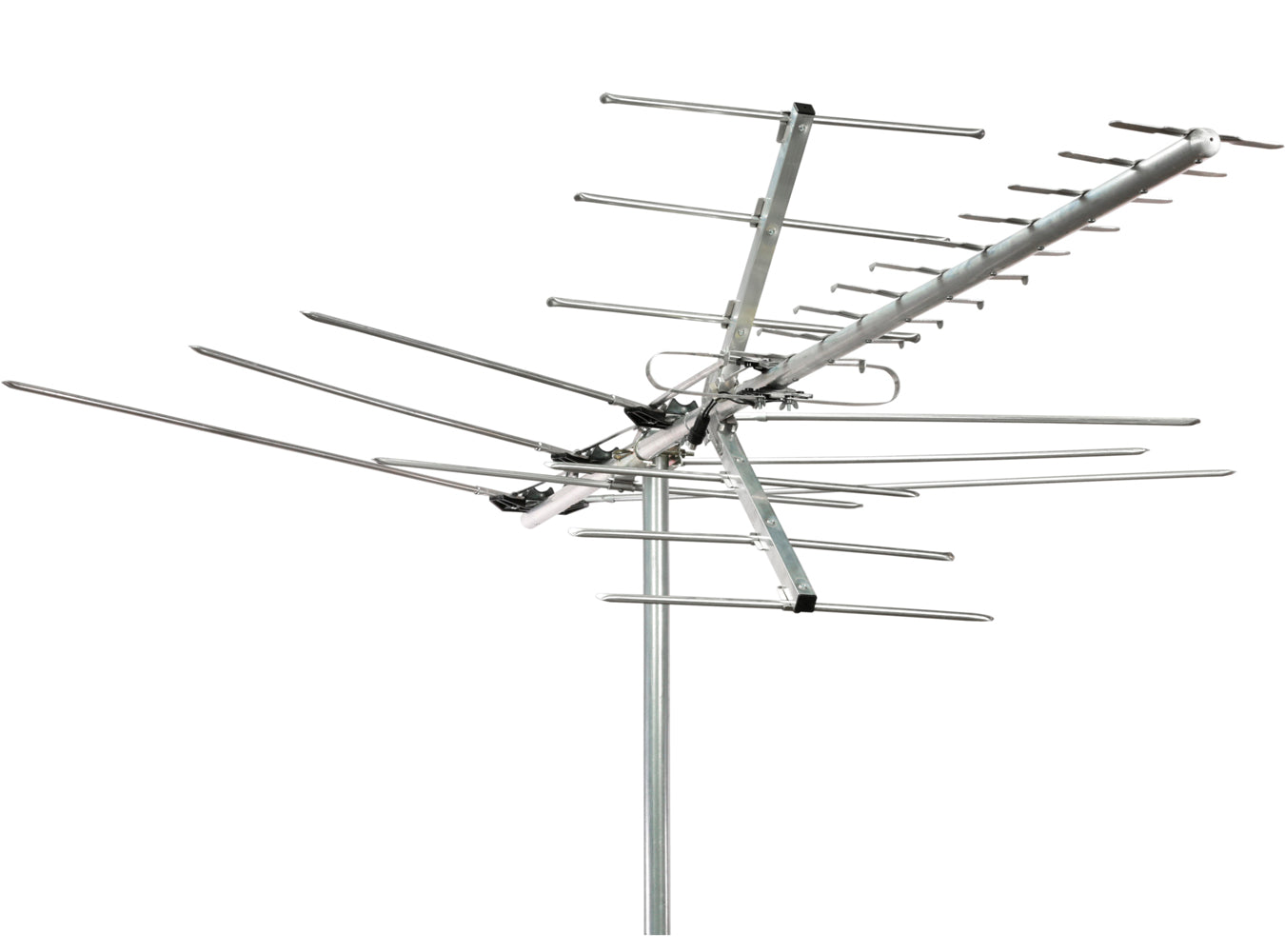

Digital Advantage 60



The Digital Advantage 60 is a directional (yagi), line-of-sight outdoor TV antenna that receives high definition and digital signals from a single direction and is optimized for high VHF and UHF signals. This antenna has a reception range of up to 60 miles.

*Also consider the New Pro-Model Antenna (Smaller size, low-profile/aesthetically pleasing, premium build quality, and similar reception capabilities)

Medium range directional (line of sight) outdoor TV antenna up to 60 miles.

What’s Included

Digital Advantage 60

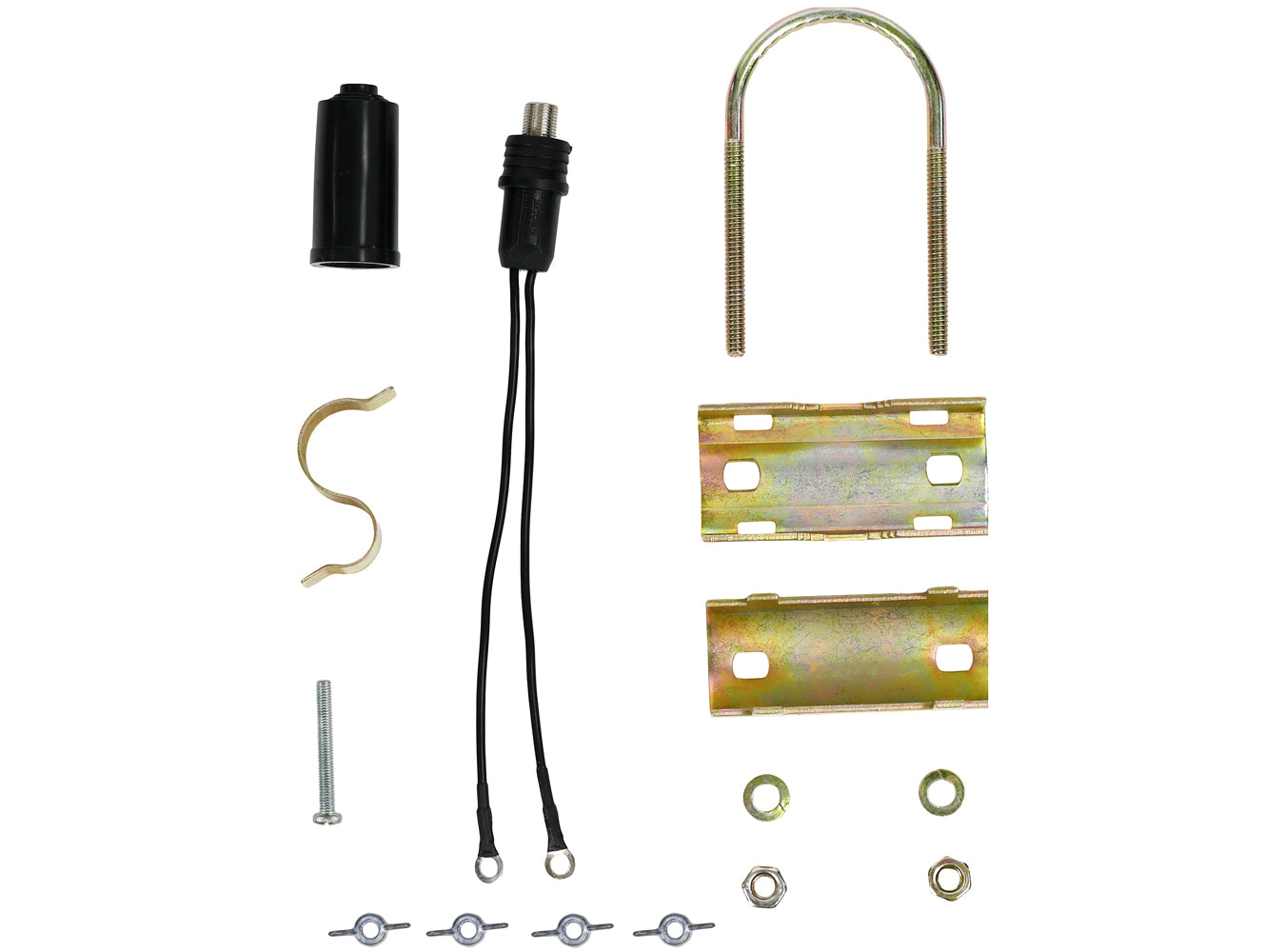

Hardware (Mast, Amplifier and Coax Cable Not Included)
Installation Guide
1-Year Limited Warranty


Reception Range 60 Miles
Type Outdoor
Reception Pattern Directional
Built-In Amplifier No
Installation Roof, Mast, Eave, Chimney

Tech Specs

Electrical Specifications

Bandwith 174 to 216 and 470 to 700 MHz
VHF Gain 7.5dB
UHF Gain 9.3dB
Front to Back Ratio 14dB
Return Loss N/A
Impedance 300 Ohm (75 Ohm balun included)

Mechanical Specifications

Boom Length 78"
Number of Elements 24
Max Element Width 61"
Mounting Clamp U bolt up to 1.75"
Turning Radius 5 ft.
Output Connector F-type
UPC 020572020183
Size (product) 77.75 x 60 x 22 in
Size (packaging) 53.5 x 6 x 6 in
Weight (product) 3 lb
Weight (packaging) 5.5 lb
Wind Resistance (at 100 mph, no ice) – 24 lb
