Digital Advantage 100


$149.00
SKU: CM-2020

Overview

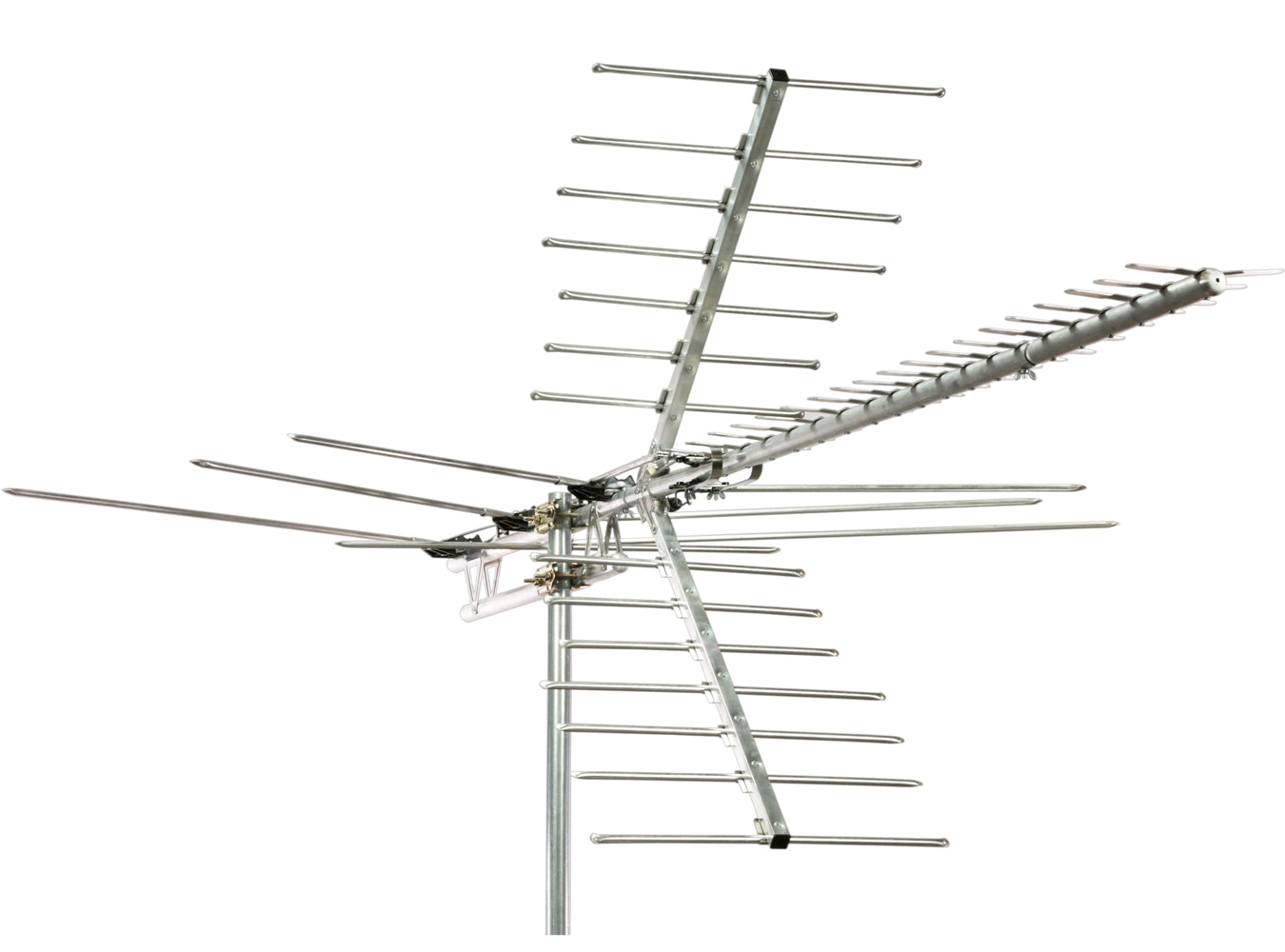

The Digital Advantage 100 is a directional (yagi), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction and is optimized for high VHF and UHF signals. This antenna has a reception range of up to 100 miles.

Long range directional (line of sight) outdoor antenna up to 100 miles

What’s Included

Digital Advantage 100

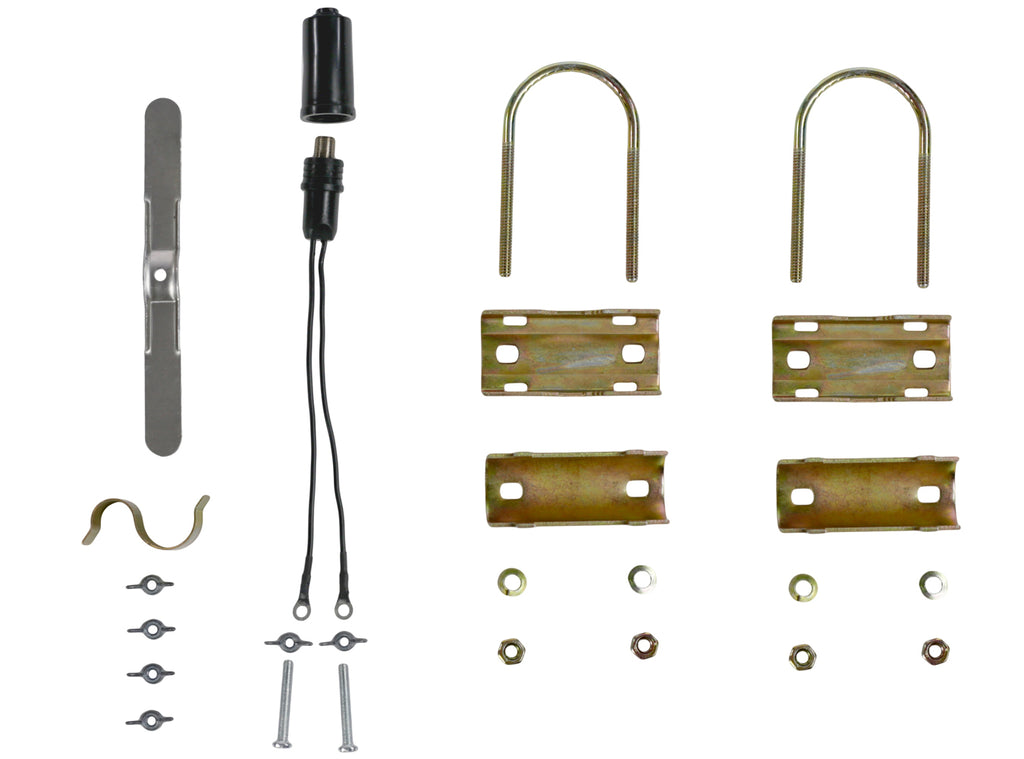

Hardware (Mast, Amplifier and Coax Cable Not Included)
Installation Guide
1-Year Limited Warranty

Features

Reception Range 100 Miles
Type Outdoor
CEA Color Code Yellow, Green, Light Green, Red, Blue
Reception Pattern Directional
Built-In Amplifier No
Installation Roof, Mast, Eave, Chimney

Tech Specs

Electrical Specifications

Bandwith 174 to 216 and 470 to 700 MHz
VHF Gain 7.5dB
UHF Gain 10dB
Front to Back Ratio 14dB
Return Loss N/A
Impedance 300 Ohm (75 Ohm balun included)

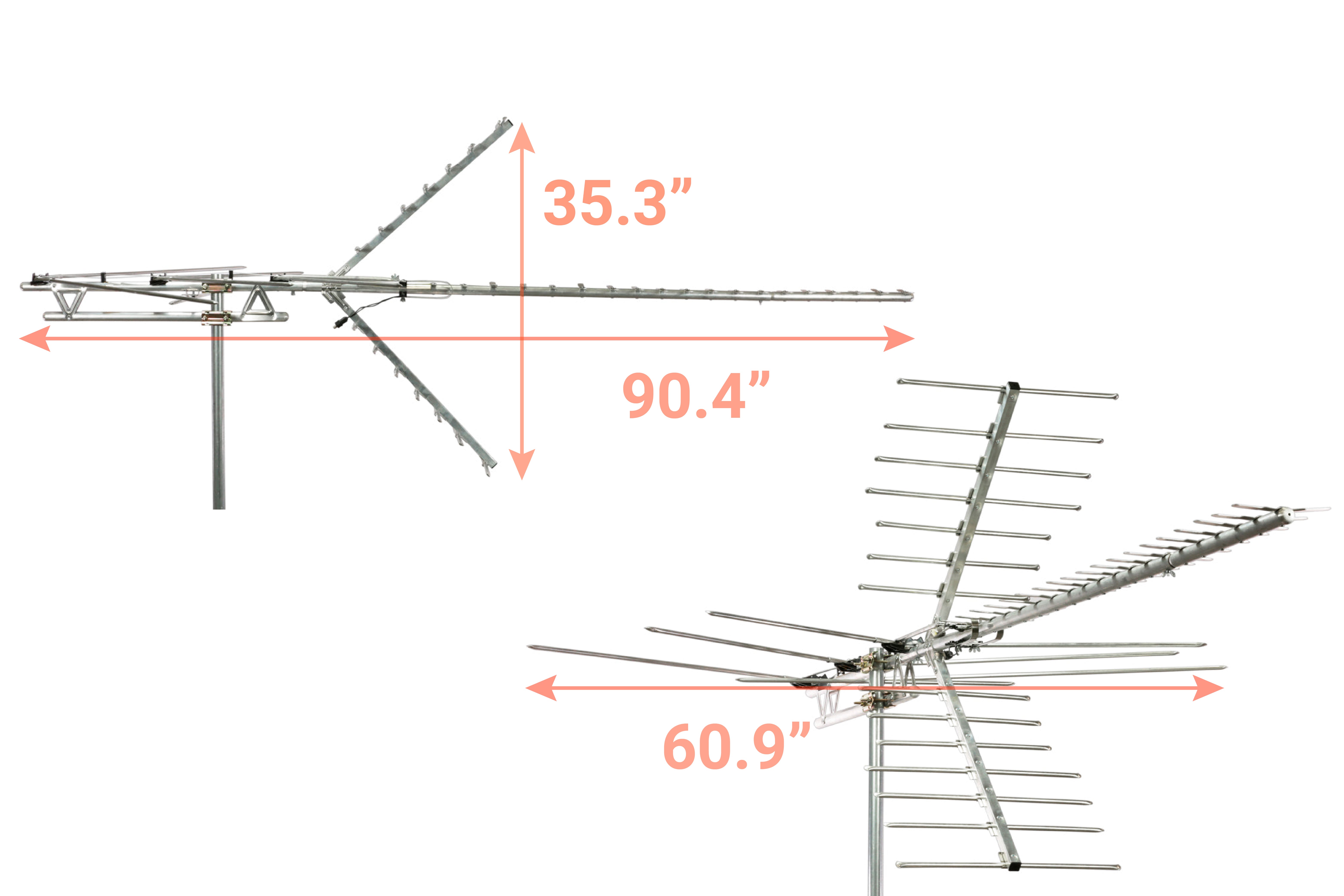

Mechanical Specifications

Boom Length 90.5"
Number of Elements 41
Max Element Width 61"
Mounting Clamp U bolt up to 2"
Turning Radius 6 ft.
Output Connector F-type
Size (product) 90.675 x 60 x 22 in
Size (packaging) 50.5 x 7 x 7.5 in
Weight (product) 4.5 lb
Weight (packaging) 7.75 lb
Wind Resistance (at 100 mph, no ice) – 38 lb

Downloads

CM2020 User Guide
