Titan 2 High Gain Preamplifier (Version 3)


$65.00

Overview

The Titan 2 High Gain Preamplifier will amplify signals received by your antenna. This antenna amplifier is a high gain, low noise preamplifier used to allow weaker signals at the antenna to be amplified to a viewable strength, and is ideal for installations in which all broadcast towers are located at a distance of more than 80 miles. The Titan 2 High Gain Preamplifier is a two part unit, an outdoor amplification unit which is mounted on the mast of your antenna system and an indoor unit which powers the outdoor amplification unit. The indoor unit is stationed indoors and connects to the outdoor unit via coaxial cable. The Titan 2 High Gain Preamplifier is recommended for professional installers only. Due to the high gain output of this product, it can result in over amplification if not used in the appropriate scenario. Over amplification can cause issues with the television tuner’s ability to receive and display some or all channels.

High Gain TV Antenna Signal Preamplifier

What’s Included

Titan 2 High Gain Preamplifier
Power inserter
Power adapter
Coaxial cable
U-Bolt
User Guide
1-Year Limited Warranty

Features

Improves signal quality
Decreases pixilation
May increase number of channels
Ultra low noise
Gain - 26 dB
Selectable FM signal pass-through
Heavy duty rating for outdoor use
Mast mounted for close proximity to antenna

Tech Specs

Power supply input voltage 110-240v, AC ~ 50/60Hz, 200mA (Max)
Power supply output voltage +13.2v DC, 500mA, 6.6W (Max)
Impedance (Input and Output) 75 Ohm
Connector F-type
Frequency range 54 - 700 MHz
Gain 26dB
Noise figure typically less than 2dB
UL listed Yes
RoHS compliant Yes
Input return loss <-15
Output return loss <-15
Max input level 15 dBmV
Max output level 40 dBmV

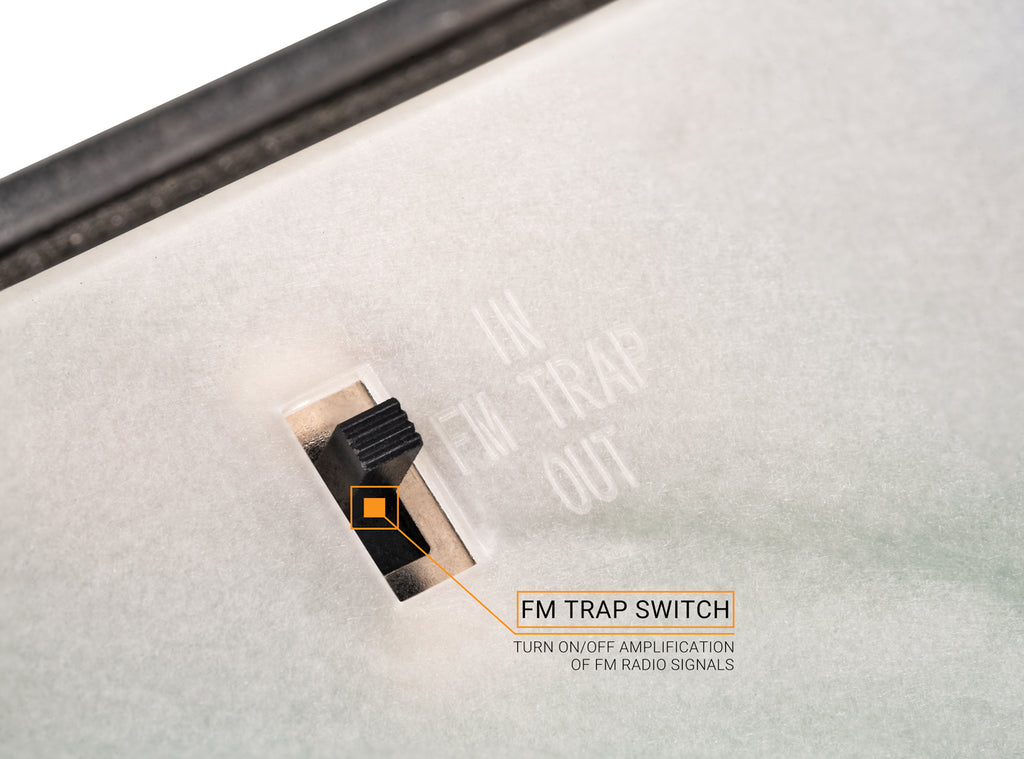

FM trap 88-108 MHz; >15dB down
Power consumption <5W
Operating temperature -40 C to 60 C
Size (product) 5.375 x 3.5 x 3.0 in
Size (packaging) 6.5 x 5.75 x 3.5 in
Weight (product) 12 oz
Weight (packaging) 2 lb
U-Bolt Diameter (Included) 1.875 in

What are some things I should know about using the Titan 2 High Gain Preamplifier?

If you already have an antenna set up and are considering adding a preamplifier to boost your signal strength, you would only need two additional short length coaxial runs, one from the antenna output to the preamplifier input (which should be no more than 6 feet) and one from the indoor power supply to your TV set. You would use the current, longer coaxial run to connect from the output of the mast-mounted unit to the input of the indoor unit.

An ideal scenario for the Titan 2 High Gain Preamplifier is an application where ALL broadcast towers are 80+ miles from the antenna location and a splitter is used to distribute to multiple televisions. A single high-power signal from closer proximity may cause over-amplification resulting in signal loss.

Channel Master recommends the Titan 2 Medium Gain Preamplifier for consumers that do not have the ability to measure or calculate signal levels. In 98% of consumer applications, the Titan 2 Medium Gain Preamplifier is the best choice and will outperform every other professional-grade amplifier on the market without having to worry about the over-amplification of signals.
