Splitter 8



The Channel Master Splitter 8 divides the TV signal from your antenna to connect eight TVs.

The Channel Master Splitter 8 is an 8-way RF splitter that offers exceptional performance and long-term reliability for those looking to split a TV antenna signal to multiple televisions. This high-quality splitter is weatherproof for outdoor use and provides significant advantages in center conductor retention and electrical performance that basic splitters do not offer.  The Splitter 8 from Channel Master was specifically designed for antenna installations but it is also compatible with cable TV signals.

Not Your Typical Connector

The Channel Master Splitter 8 is not your typical cheap Gold-Plated splitter, instead, we put our focus on what really matters.

Power Passing

The Channel Master Splitter 8 is specifically designed for TV antenna installations. The Splitter 8 can be used with or without an antenna pre-amplifier. When used with an antenna pre-amplifier the Splitter 8 simplifies installation allowing DC power to pass through any of the output ports up to the pre-amplifier.  (If you are trying to split the signal from an outdoor antenna that is powered over the coaxial cable or if you have a pre-amplifier that is powered over coaxial cable, you will need a Channel Master power passing splitter.  Regular splitters sold online and the ones used by cable TV companies are typically not power passing and will block power and prevent your antenna or amplifier from working.)

Digital Signal Future Proofing

Channel Master Splitter 8 delivers enhanced reliability for signal reception of current and future standards such as ATSC 3.0, NextGen TV, 4K, Ultra HD and HDR.

Excellent Shielding Effectiveness

A splitter with poor shielding can let unwanted signals penetrate and interfere with your signal. Interference introduced through the splitter will cause signal quality issues resulting in intermittent or complete loss of audio and video.

Indoor/Outdoor Design

All Metal housing and weather-sealed ports provide superior defense against long-term corrosion.

What’s Included

(2) Mounting Screws
1-Year Limited Warranty


Splits TV Signals to Feed up to 8 TVs
Lightweight and Compact
Professional-Grade Performance
Easy Install
Works with Analog, Digital and HD Broadcast Signals
High-Quality Weatherproof Design for Use Outdoors

Tech Specs

Electrical Specifications

Operating Frequency 5-1218 MHz
Insertion Loss -10.5 dB
Return Loss 20 dB
Isolation Between Outputs 22 dB
Surge Withstand 6000VAC, 200A
Power Pass Yes

Mechanical Specifications

Input Connector F-type
Output Connectors F-type
Weight 5 oz
Size 5.375 x 2.125 x 0.625 in

Customer Reviews

Based on 1 review
Bo Johnson
Better than before

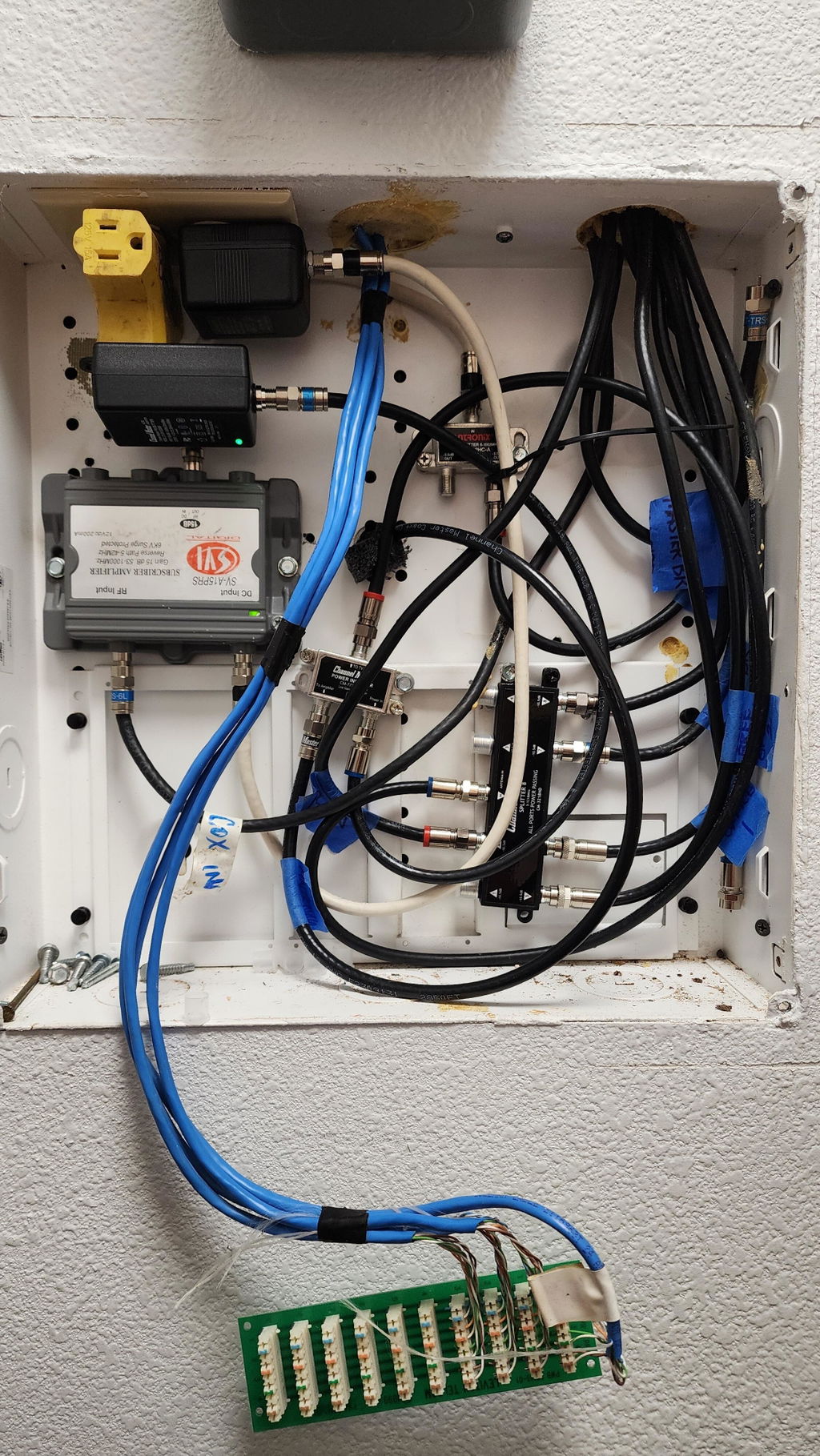

I replaced a splitter that was left behind in my new home by our local cable company because it was not working when we switched to our TV antenna. Channel Master advised that we needed a power passing splitter so I could plug in our amplifier right behind the TV. It works great! I am now getting signals to 6 locations in our new home and at a fraction of the cost! Thanks to the team at Channel Master who was patient with all my questions and helped me determine exactly what I needed to make it all work.
