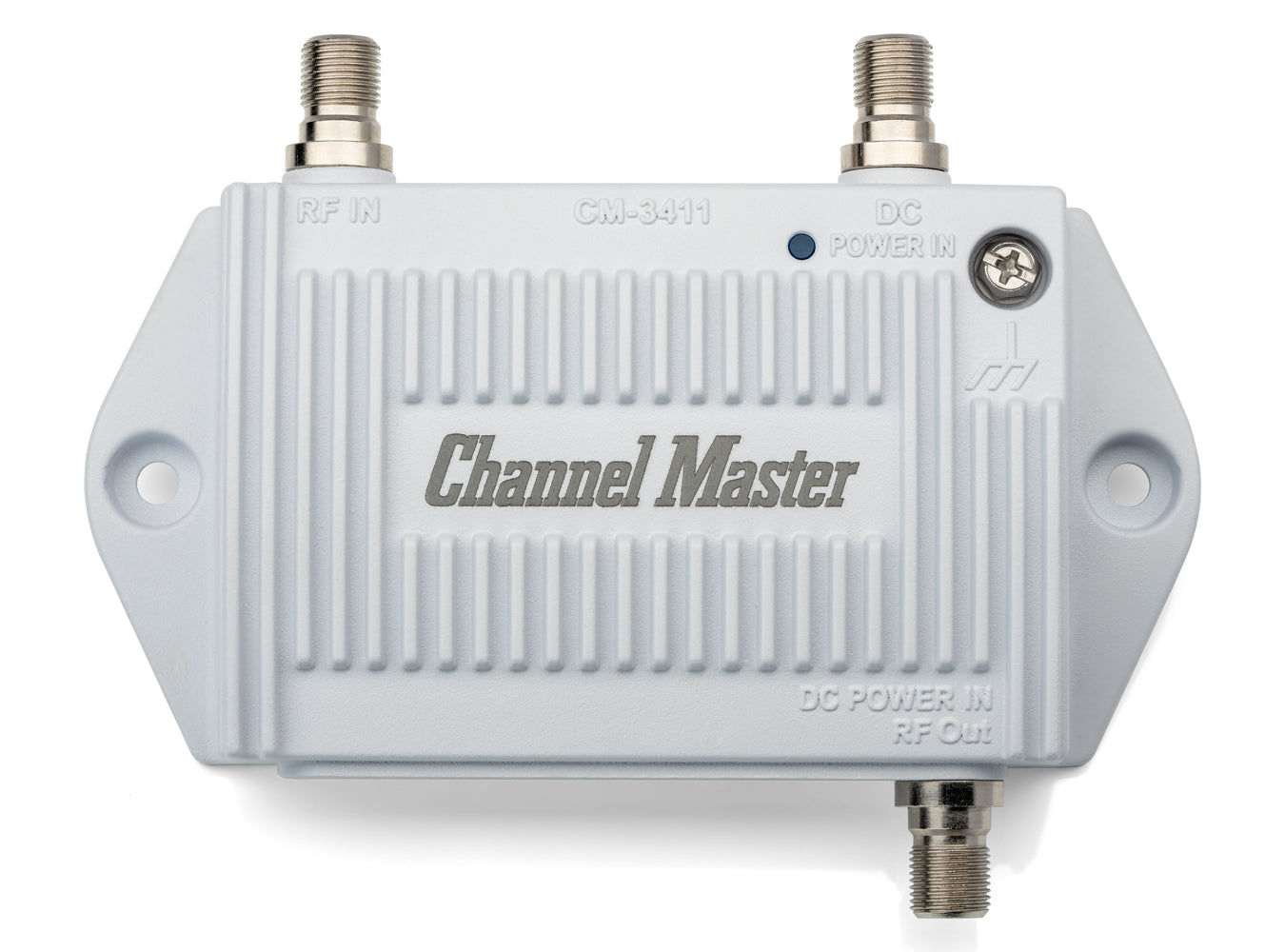

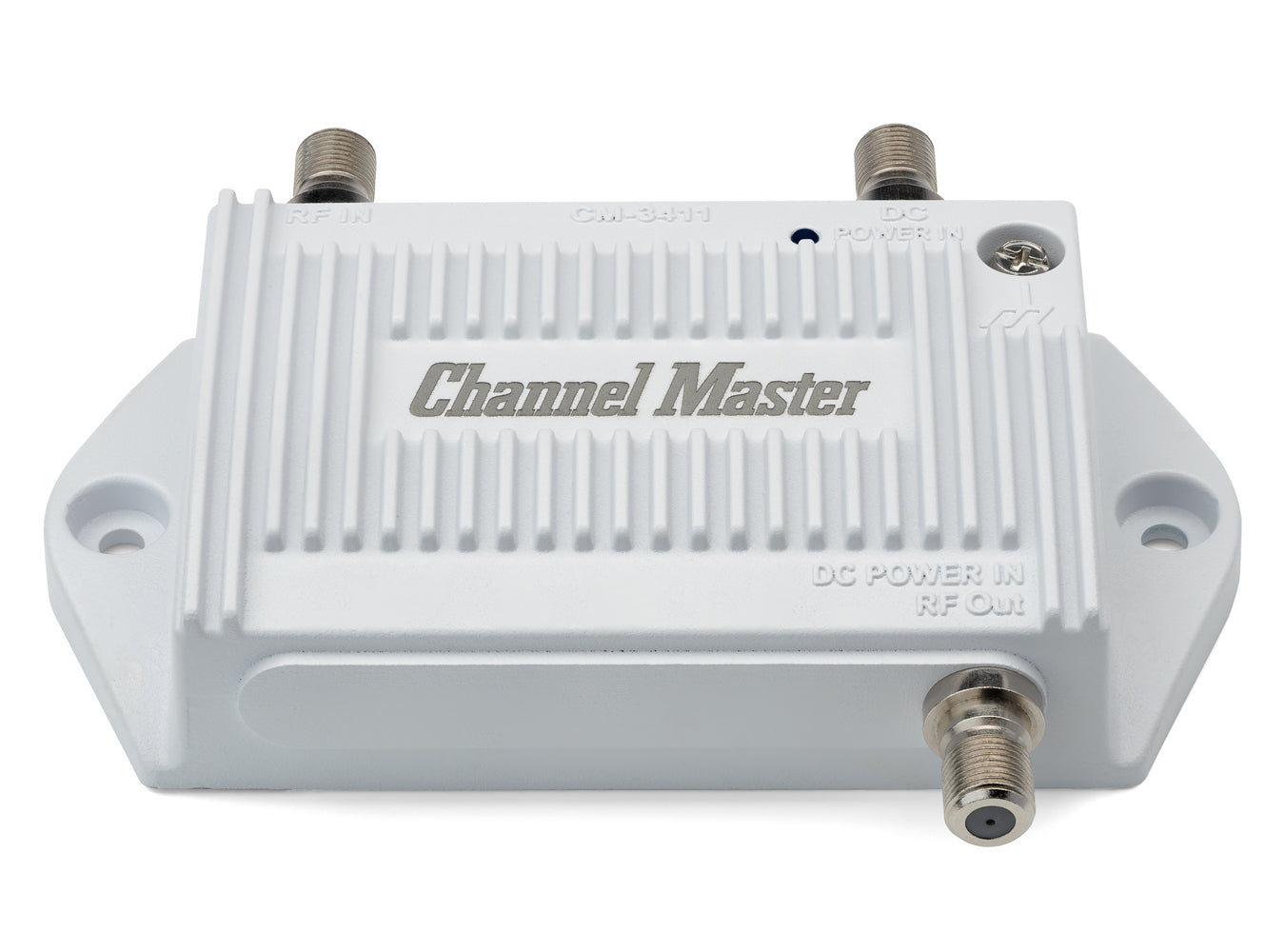

FM Antenna / Cable TV Distribution Amplifier



The Channel Master FM Antenna / Cable TV Distribution Amplifier is the ideal solution for enhancing both residential and commercial FM dedicated antenna setups. This professional-grade amplifier is meticulously designed for seamless installation, offering a single output and compatibility with both FM antennas and Cable TV feeds. Experience an impressive signal boost of approximately 16.5dB on the output port for optimizing FM antenna and Cable TV signals. The robust weatherproof housing and high-quality internal components guarantee reliable performance, whether installed indoors or outdoors. What sets this amplifier apart is its versatility. While labeled as a distribution amplifier, it can also function as a pre-amplifier for FM antennas when installed within 3 feet of the antenna itself. This dual capability enhances its utility for FM enthusiasts, providing flexibility in setup configurations.

What’s Included

FM Antenna / Cable TV Distribution Amplifier
Power Adapter
Coaxial Cable
User Guide
1-Year Limited Warranty


One Amplified Output Port
Increases signal approximately 16.5dB
Designed and Optimized Exclusively for FM Antennas and Cable TV Signals.
Passive Return Path for Broadband Cable Internet Service and DOCSIS Modems
Passive Signal Backup - Passes Signal Without Amplification During Loss of Power
Heavy Duty All-Metal Housing
Powder Coated and Weather-Sealed Housing for Superior Corrosion Protection
Excellent Surge Withstand Capability
Compatible with All TV Antennas
Supports HD Radio Signals
Supports Cable Modems

Tech Specs

Electrical Specifications

Power Supply Input Voltage 110-240v, AC ~ 50/60Hz, 200mA (Max)
Power Supply Output Voltage +13.2v DC, 500mA, 6.6W (Max)
Frequency Bandpass 5-42MHz, 54-1002MHz
Gain +16.5dB
Noise Figure Typically less than 2dB
Operating Temperature -40° to +60°C
Max Input Level 10dBmv
Max Output Level 21.5dBmv
Size (Product) 4.25 x 5.25 x 1.0 in
Size (Packaging) 8.0 x 4.5 x 2.5 in
Weight (Product) 9.5 oz
Weight (Packaging) 1.25 lb
