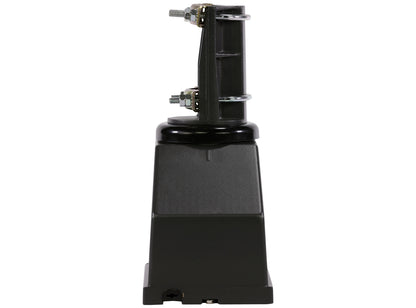

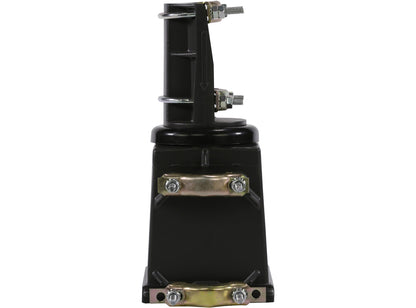

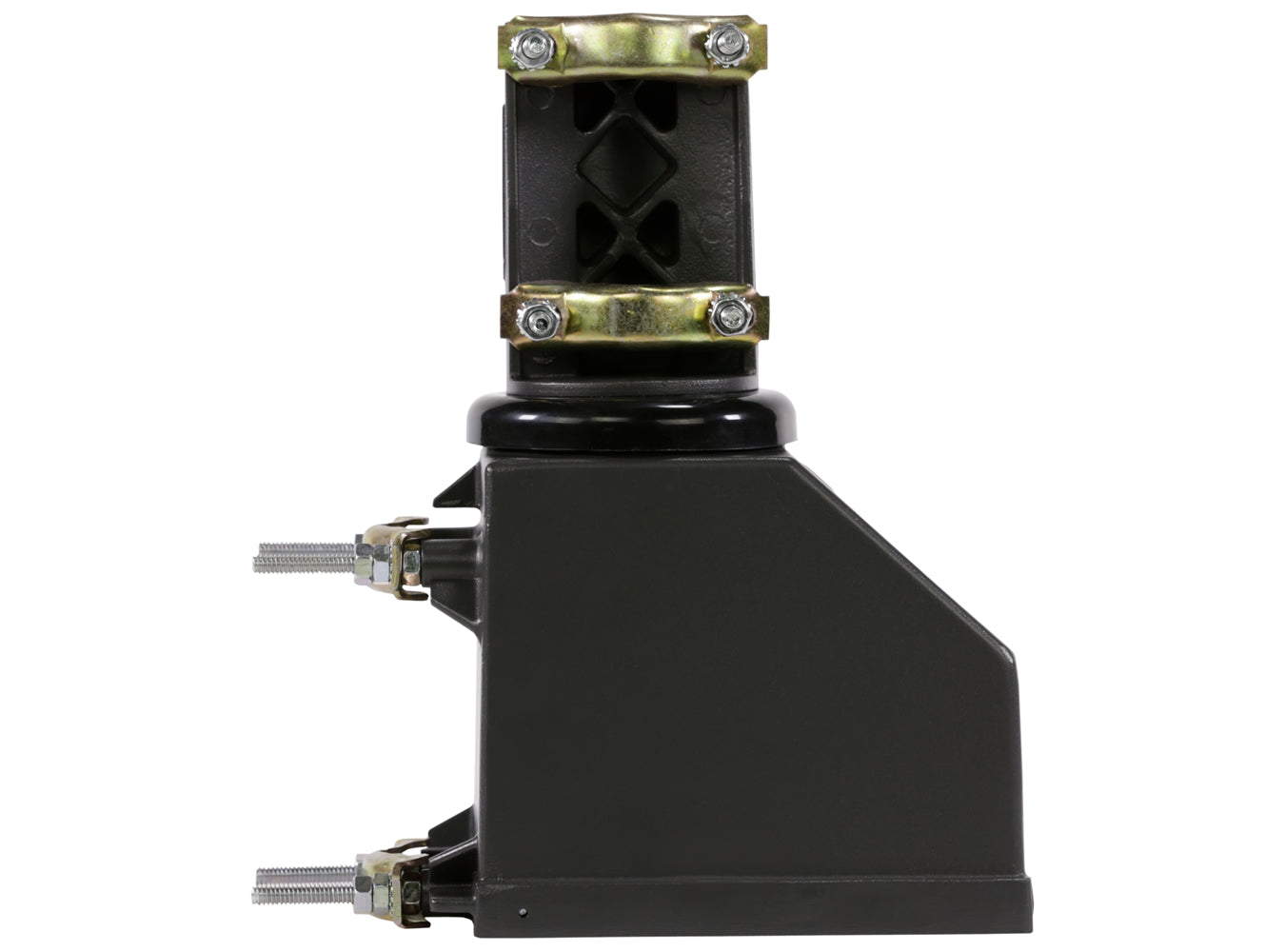

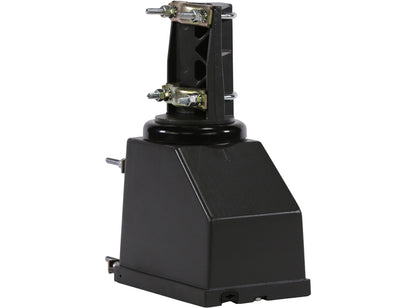

The Antenna Rotator Drive Unit is compatible with Channel Master brand rotator control units.
The Channel Master Rotator Drive Unit is designed to work with all Channel Master rotator control units (control unit not included). When the drive unit is connected to an indoor control box via 3-conductor wire (not included), it enables the rotation of an outdoor antenna from an indoor location with a hand-held remote control. The stand alone rotator drive unit is perfect for those in need of a replacement or simply looking to upgrade to the newer style drive unit.
What’s Included
| Antenna Rotator Drive Unit (Motor) |
| Mast Mounting Hardware |
| 1-Year Limited Warranty |
Features
| Improved Mechanical Stability (New) |
| Enhanced Brake System (New) |
| New Gray Color (Powder-Coat) (New) |
| One-piece cast aluminum gray housing |
| Heavy duty rotator motor |
| Durable powder coat paint finish |
| Precision cut gear system |
| Built-in steel thrust bearings |
| Easy push tab wire connections |
Tech Specs
| Rotation |
1 RPM |
| Gear Ratio |
3,200 to 1 |
| Accepts TV antenna mast |
up to 1.75” in diameter (upper mast) |
| Power |
120 V AC 60Hz only |
| Operating Temperature |
-20 Degrees Celsius to + 55 Degrees Celsius |
| Rotate Torque |
up to 100 in/lbs |
| Driving Torque |
up to 1,000 in/lbs |
| Overall Height |
10.25 in |
| Lower motor drive housing |
5.5 x 4.5 x 7 in |
| Upper mast mount holes |
2.125 in (center to center) |
| Lower mast mount holes |
2.25 in (center to center) |
| Size (product) |
8.5 x 3.75 x 10.25 in |
| Size (packaging) |
5.25 x 10.75 x 9.25 in |
| Weight (product) |
6 lb |
| Weight (packaging) |
6.5 lb |
