Advantage 45

Short range directional (line of sight) outdoor TV antenna up to 45 miles

About This Item

CM-3016

Superior Reception Range: Captures signals up to 45 miles away, ensuring you get the best quality TV broadcasts.
High Definition Clarity: Receives digital HDTV signals for crystal-clear picture quality from major networks like CBS, FOX, ABC, NBC, PBS, Univision, and Telemundo.
Enhanced Signal Strength: High gain performance ensures reliable reception even in challenging conditions.
Built to Last: Constructed from durable materials to withstand extreme weather and high winds, offering long-term reliability.
Easy Installation: Includes mounting hardware and a step-by-step guide. (Mast and Wall-Mount Not Included)
Future-Ready: Supports ATSC 3.0 and 4K broadcasts, ensuring compatibility with upcoming broadcast standards.
Trusted Brand: Manufactured by Channel Master, a trusted name in antennas since 1949, providing top-notch warranty and support.

Style: Advantage 45

45 Miles 60 Miles 100 Miles

$99.00

Sale Sold out

Pickup available at Channel Master (Chandler, AZ)

Usually ready in 24 hours

View full details

Product Information

Overview

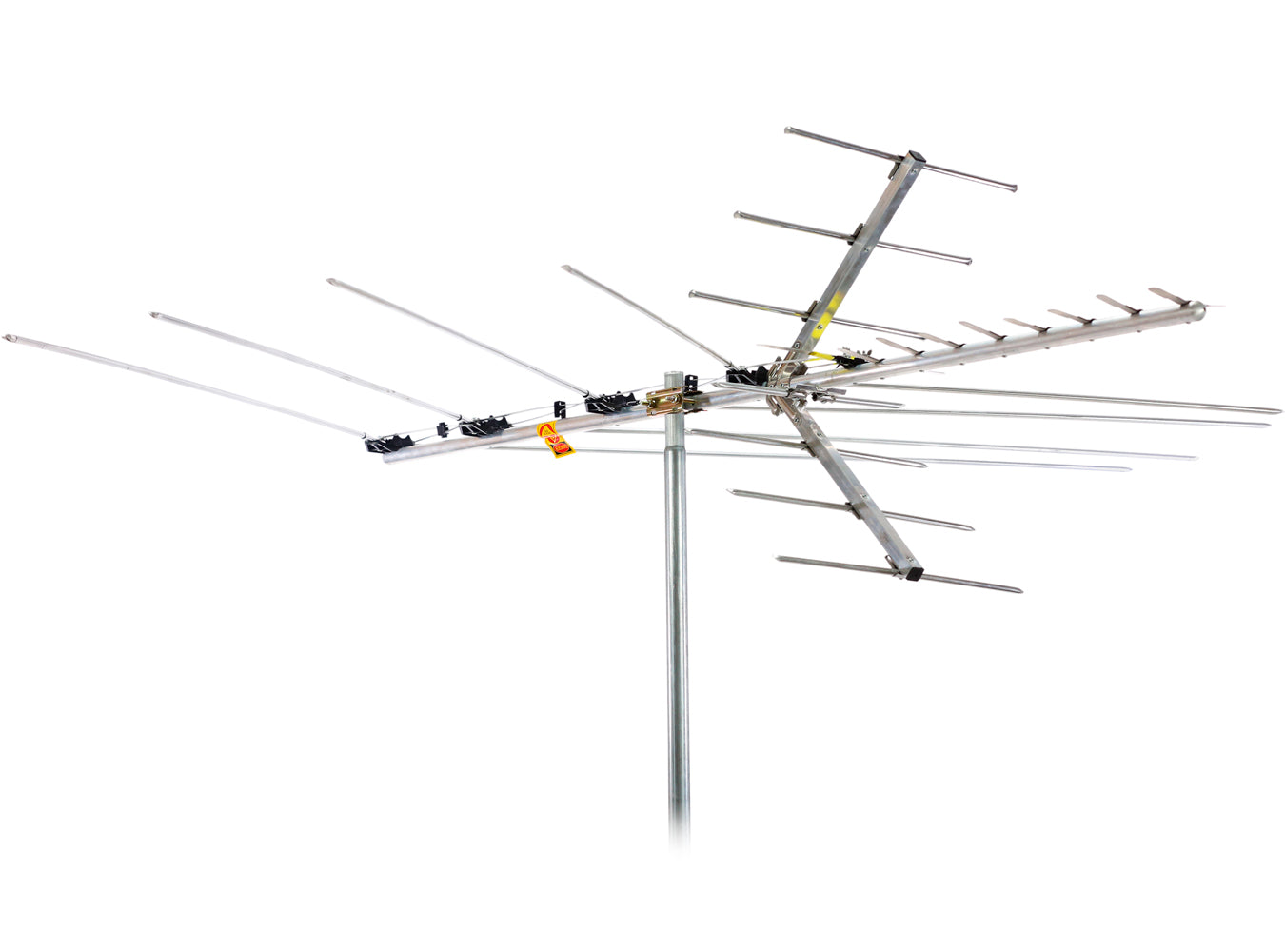

The Advantage 45 is a directional (log periodic), line-of-sight outdoor TV antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 45 miles.

Short range directional (line of sight) outdoor TV antenna up to 45 miles.

Specifications

What's Included

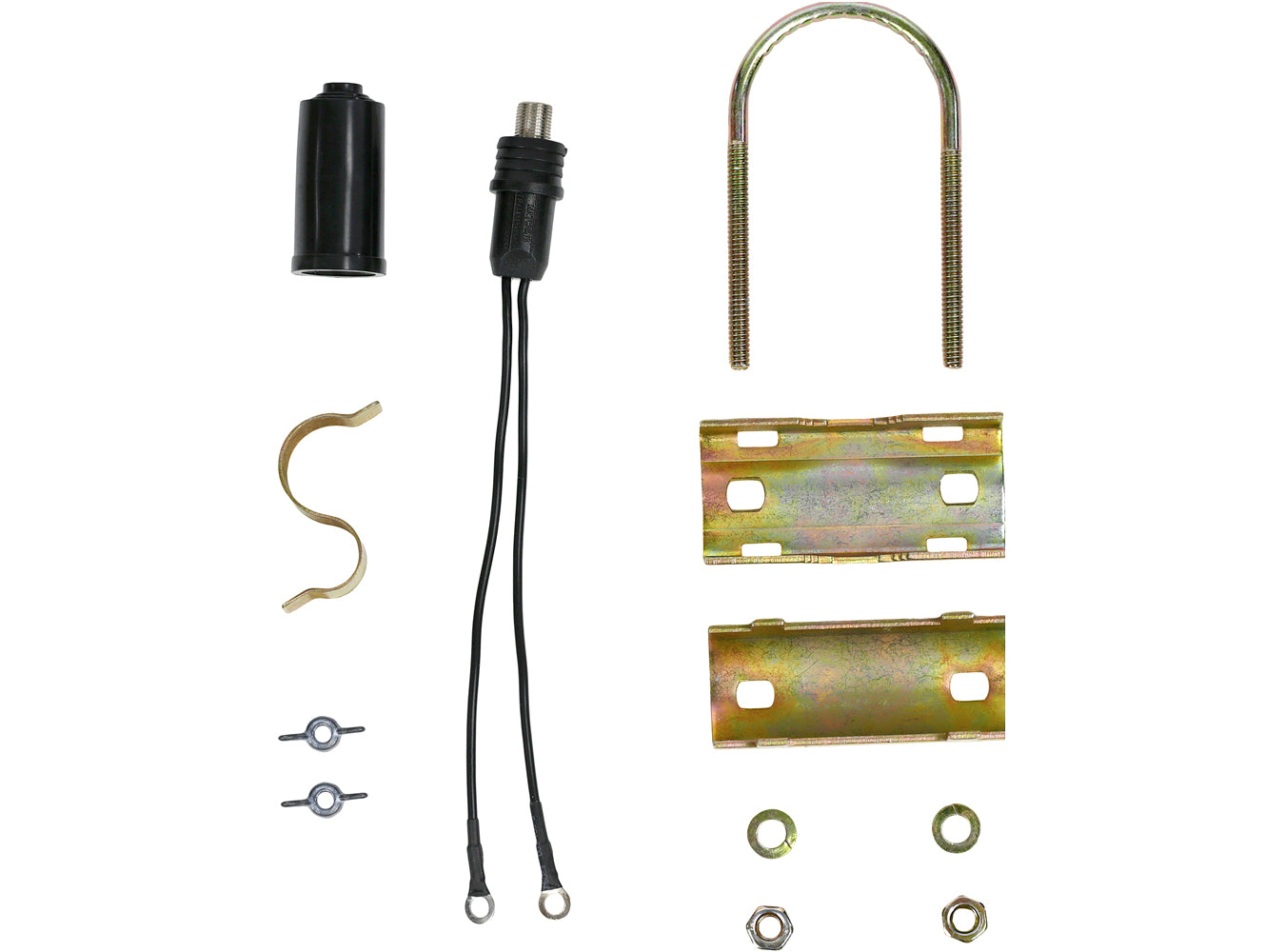

Advantage 45, Hardware (Mast, Amplifier and Coax Cable Not Included), Installation Guide

Warranty

1-Year Limited Warranty

Bandwidth

54 to 216 and 470 to 700 MHz

VHF Gain

7.9dB

UHF Gain

7.7dB

Front to Back Ratio

12dB

Impedance

300 Ohm (75 Ohm balun included)

Boom Length

66"

Number of Elements

24

Max Element Width

83.5"

Mounting Clamp

U bolt up to 1.75"

Turning Radius

3.5 ft

Output Connector

F-type

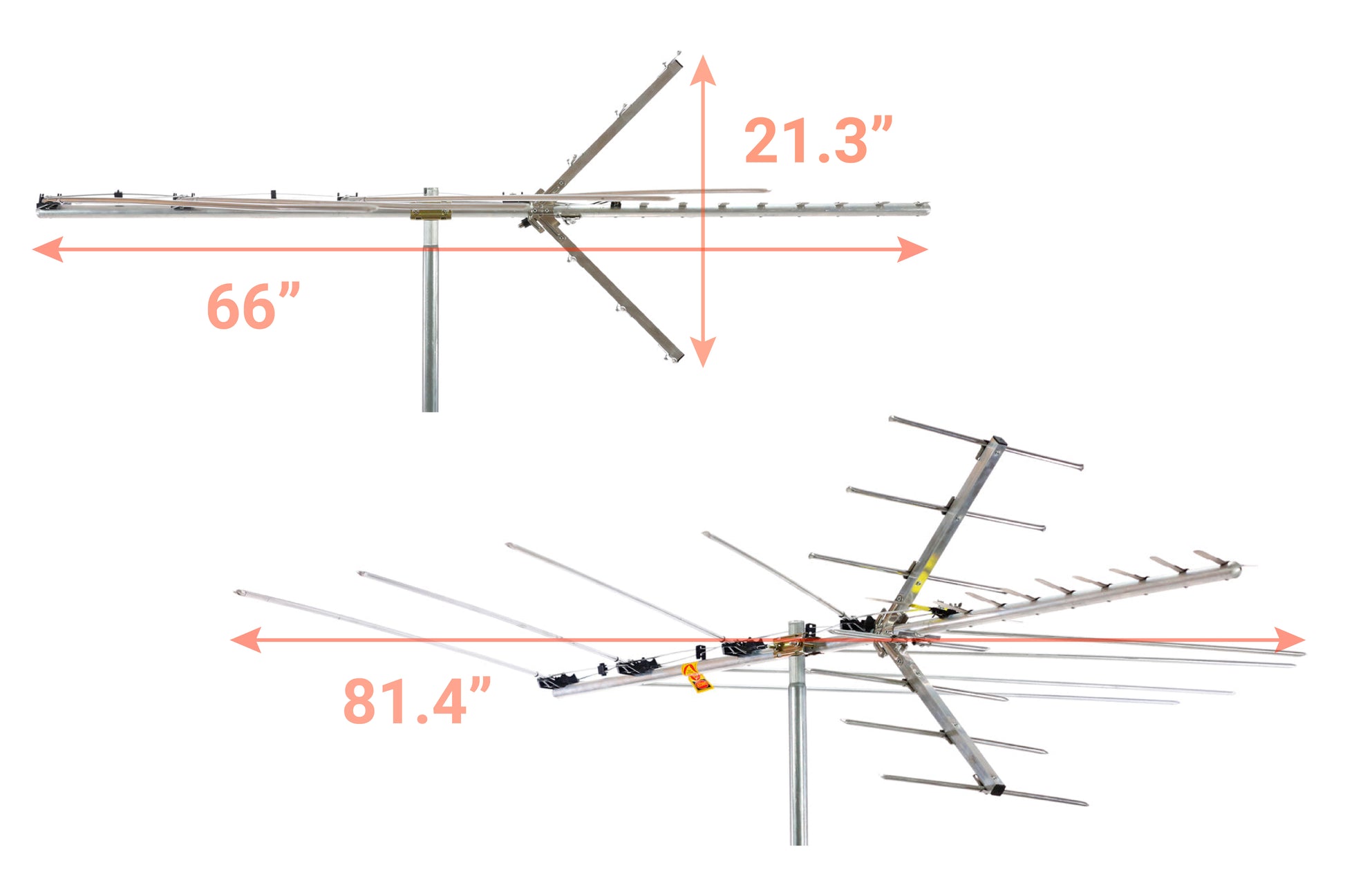

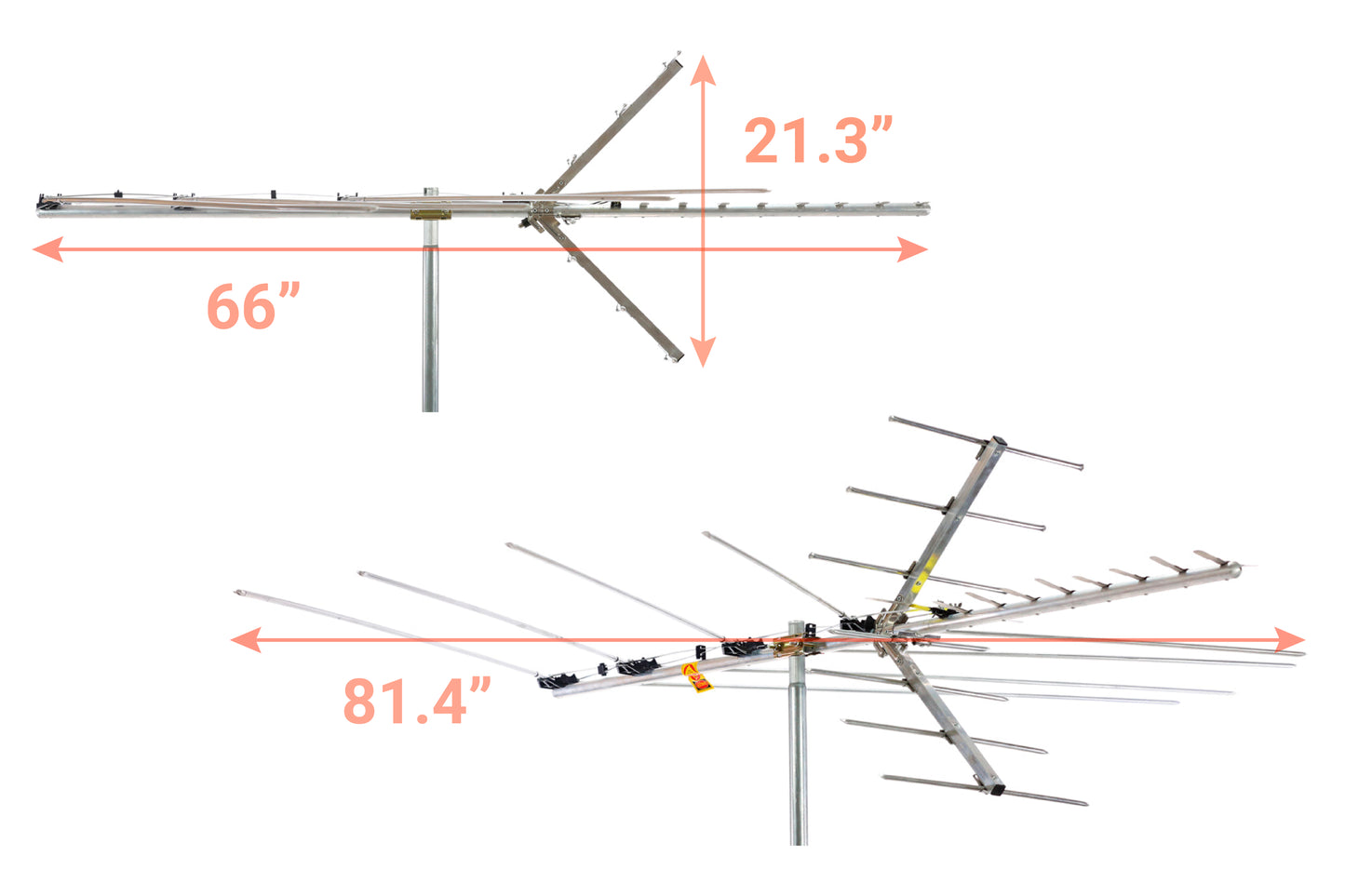

Size (product)

66" x 83.5" x 22"

Size (packaging)

68.25" x 6.25" x 6.25"

Weight (product)

3 lb

Weight (packaging)

6 lb

Wind Resistance

(at 100 mph, no ice) – 22 lb

Very good antenna

This is my third Channel Master Advantage 45 antenna and always with excellent results. Each of these times, the antenna was installed in the attic. For the last one, the antenna was intalled in the attic of my two story house NW of Houston about 40 miles away from the broadcasting antennas. I was able to receive all the main channels (CBS, NBC, ABC, PBS, Fox and CW) perfectly well with all subchannels. TV's channel scanning found 144 channels (not all of them relevant), but the bottom line is that all main channels and subchannels came in perfectly well.
I added later on a Wineguard LNA-200 antenna booster, just in case, and there was no real change in the quantity and quality of channels reception. The Advantage 45 alone was enough.
The installation in the attic was easy and straightforward, no issues whatsoever.

Very highly recommended

P.S. To be able to receive a station it should be a signal in the area. No antenna can bring out a station without enough signal strength on the receiving spot.

Works great with trees

Our old antenna worked fine, but as the trees by us got taller the reception began to suffer. The trees are now about 100 feet tall and approximately 100 ft from the antenna. Our antenna is house mounted and about 13 feet above the ground. Stations are around 23 miles away. Reception with the Advantage 45/CM3016 (our new antenna) has been fantastic.

GREAT ANTENNA!!

Absolutely Great Antenna, great reception!! I'm 40 miles from the closest TV towers. I'm getting an Extrodinary amount of channels! 10 times more than when I had Cable TV. Not to mentiion how CLEAR AND BEAUTIFUL the TV picture is, much, much better than Verizon Cable TV! I'm getting channels some 100's of miles away!! I can't say how HAPPY I am for Finally getting Rid of my Cable TV!
I have to give Kudos to "AntennaMan" for recommending this Antenna.
My only complaint is that when you go to the Channel Master Advantage 45, there's another Link for ""Recommended Alternative: Pro-Model Antenna"". The Reviews on Amazon and "AntennaMan" state that the Pro-Model is NOT as good as the Advantage 45.
HIGHLY RECOMMEND!!!

Quality antenna provides good value

I selected the Advantage 45 because our market's broadcasters' transmitters are within 2 degrees of azimuth and only 22 miles distant. I also purchased an Attic Antenna Mount since I would be installing it in my attic. Easy to open, mount, and align. I would be more than willing to mount outdoors (except for the hassle from our HOA) based on its quality construction. There is approximately 40 feet of cable between the antenna and my TV. I scanned for channels and it detected 98. I flipped through them all. Crystal clear picture and signal strength over 90%. I would recommend this Antenna and other Advantage models based on their quality construction and good value.

Better than expect

I have to say I am picking more channels at better quality than I expected. The antenna is large. Good build quality easy to assemble. And despite the large size was fairly easy to get into the attic. Definitely recommend.
