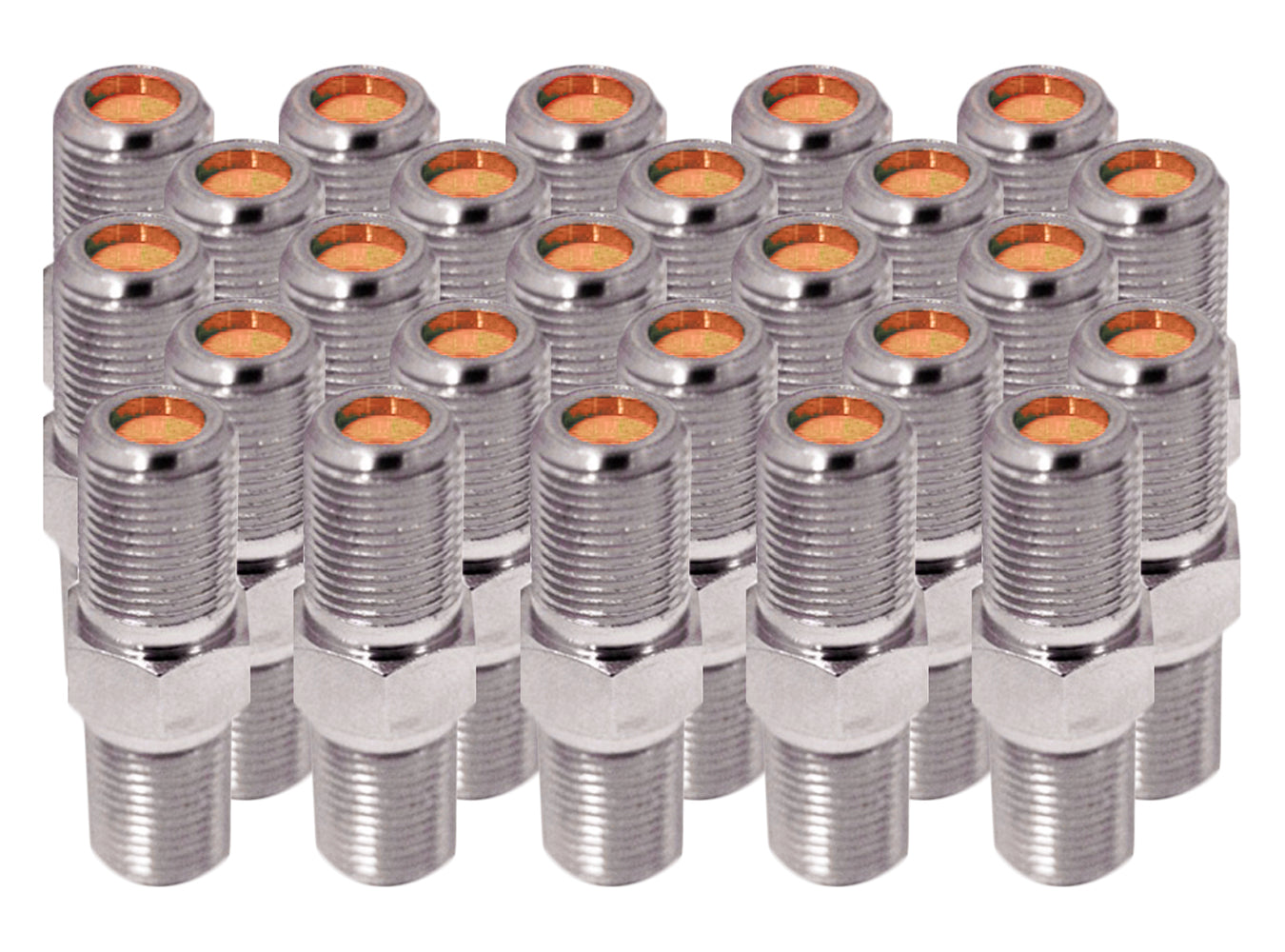

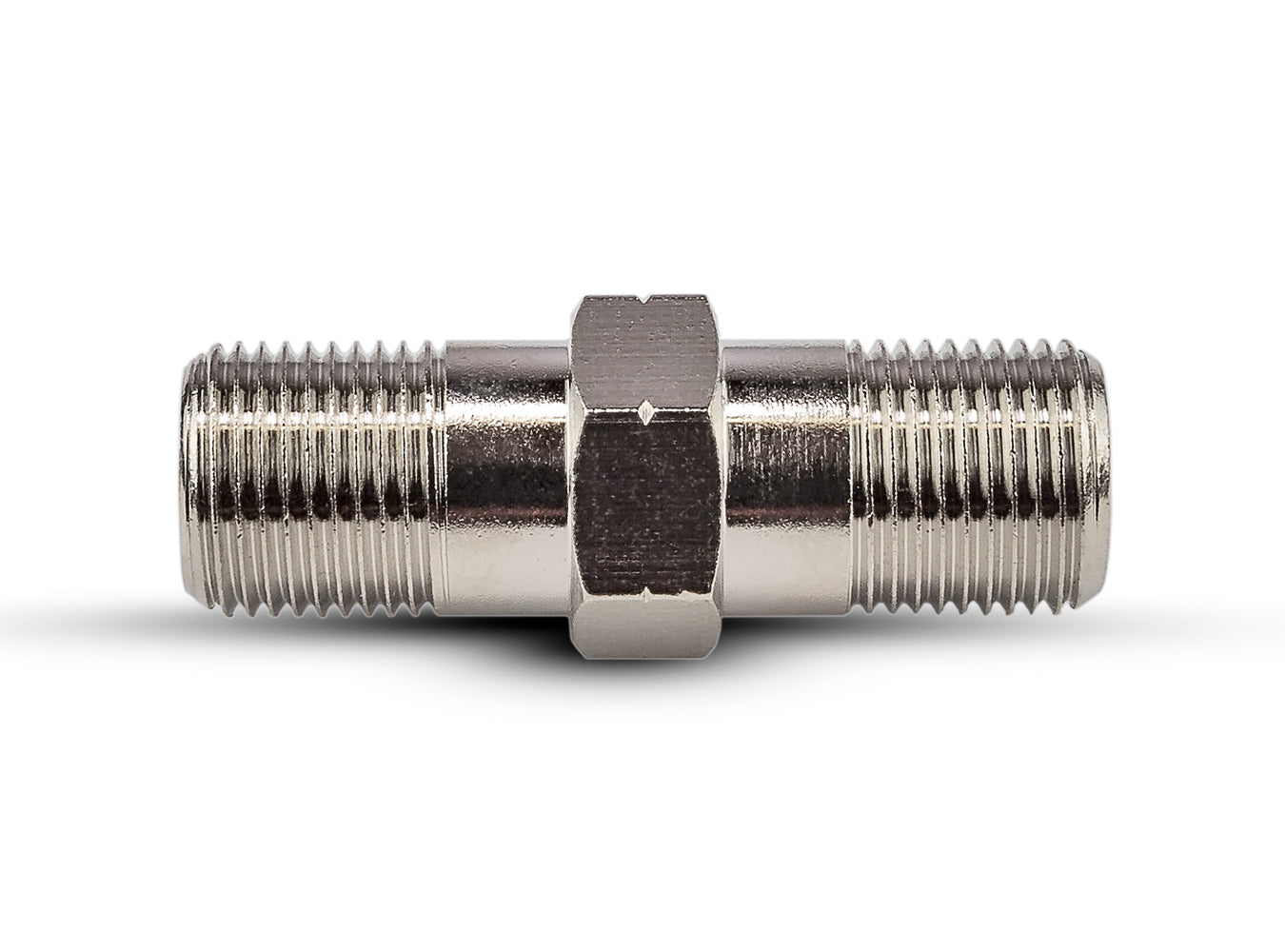

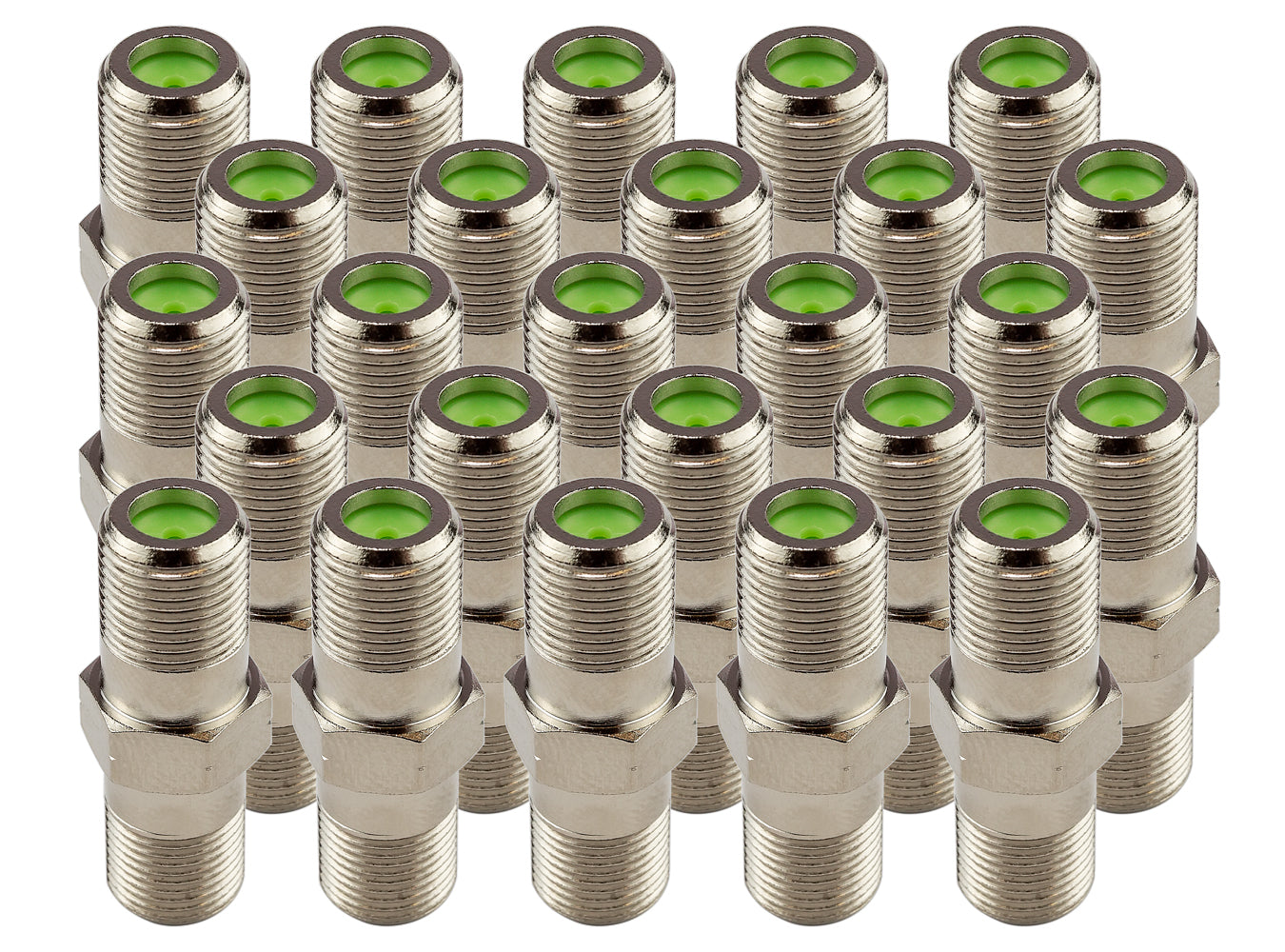

Coaxial Splice Adapter (25-Pack)

Coaxial Splice Adapter (25-Pack)

Splice Adapter connectors are used to combine two lengths of coaxial cable

About This Item

CM-3211-25
  • Versatile Use: Ideal for extending coaxial cables in TV antenna systems, cable, and satellite installations, ensuring seamless and reliable connections.
  • High-Quality and Durable: Suitable for indoor or outdoor use, featuring a robust seizure mechanism to ensure constant connection and reliable signal integrity.
  • Minimal Signal Loss: Designed to maintain signal integrity and minimize signal loss and distortion.
  • Trusted Expertise: Built by Channel Master, leveraging 70 years of experience in premium television reception products.
Regular price $25.00
Regular price Sale price $25.00
Sale Sold out

Item temporarily out of stock.

Email me when back in stock

View full details

Product Information

Overview

Channel Master Dual Female Splice Adapters are professional grade splice adapters designed for High-End Systems that demand the highest quality digital audio/video transmissions as well as high-speed data transmissions over coaxial cable. This splice adapter will allow you to connect together coaxial cabling when running new cables is not ideal or possible.

Leveraging 70 years of experience building professional-grade television reception products, Channel Master provides the industry standard for performance connectors and adapters. Sometimes you need to simply connect two cables in your systems signal path. When that need arises Channel Master’s CM-3211 F-Type F81-G Dual Female Splice Adapters are ideal for these connections. Poor quality coaxial connections are a leading point of failure in cable, satellite and TV antenna systems. Using a quality F-81 Splice Adapter can assure the lowest loss and distortion to your video signal path when it's necessary to connect two existing coaxial cables together.

Specifications

What's Included
Dual Female Splice Adapters (25-Pack)
Warranty
1-Year Limited Warranty
Bandwidth
5 MHz to 3 GHz
Impedance
75 Ohms (Nominal)
Return Loss
5 MHz to 1 GHz 30 dB, 1 to 1.5 GHz 26dB, 1.5 to 3 GHz 20dB
Insertion Loss
5 to 600 MHz ≤ 0.1dB, 600 to 3000 MHz ≤ 0.3dB
Operating Temperature
-40 to +140°F (-40 to +60°C)
Length
1.22 in. (30.9 mm)
Female Mating
3/8" -32 UNEF-2A Thread
Material
Nickel Plated Brass
Insulator
HDPE
Seizure
Gold Plated Beryllium Copper, Patented DSM Digital Seizure Mechanism
