Antenna Selection Guide

Welcome! First, let's find out what channels you will get in your area and make sure that everything you want is available. You are mainly looking for the Big Six networks: ABC, CBS, FOX, NBC, PBS and The CW. These six networks represent 80% of the English-language TV programming watched in the U.S. You can also look for Spanish-language networks such as Univision, Telemundo and UniMas.

Channel Logos


Live in a Metropolitan Area?

Chances are, if you live in a metropolitan area, an indoor TV antenna will recieve several channels and allow you to evaluate antenna TV programming before purchasing a permanently installed outdoor TV antenna (Recommended). Simply purchase the Flatenna 35 by Channel Master with our no risk 30 day money back guarantee. Otherwise, continue through the following guide to find the perfect TV Antenna for your home.

Channel Search with Signal Information

Through the search tool, this is the information you will want to determine:

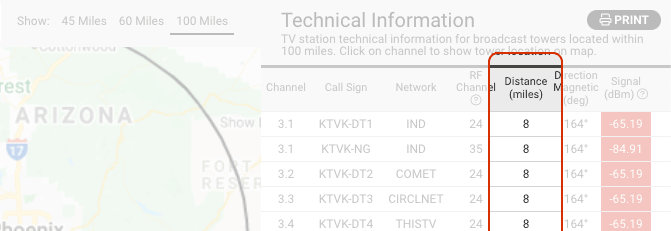

  1. How far away do you live from television broadcast towers in your area, at least for the channels you want to be able to get? Be sure to look for ABC, CBS, FOX, NBC, PBS and The CW at the very least. Search results will give you tower distance in miles from your home address.

    Distance

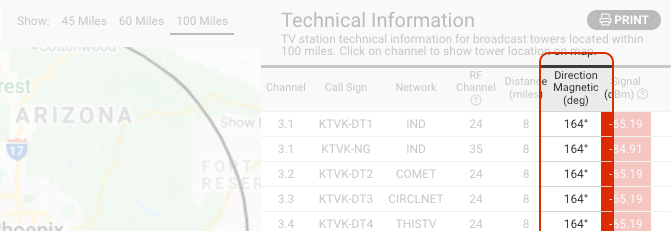

  2. Are the television broadcast towers in your area located in the same general direction, or are some of them located in different directions? Search results will give you tower direction in degrees, clockwise from Due North. Are your desired channels within at least 90 degrees of each other, or are some outside of that range?

    Direction
    Single Tower Location (90 Degrees) Most Common Scenario
    Single Tower Location

    If towers are in a single location, both directional and omni-directional antennas will provide reception. For the best signal reception from a distance of more than 50 miles, a directional antenna is recommended.

    Multiple Tower Location (180 Degrees)
    Multiple Tower Location

    If towers are grouped in two locations in the same general direction, such as living in a "border" area in which you want to get stations from two different cities, a multi-directional bay-type antenna is needed.

    Scattered Tower Location (360 Degrees)
    Scattered Tower Location

    If towers are scattered in several locations, you will need an omni-directional antenna. The best use case for omni-directional antennas is within a signal range of 50 miles or less. If more than 50 miles, the best option would be a directional antenna with the use of a remote- controlled antenna rotator.

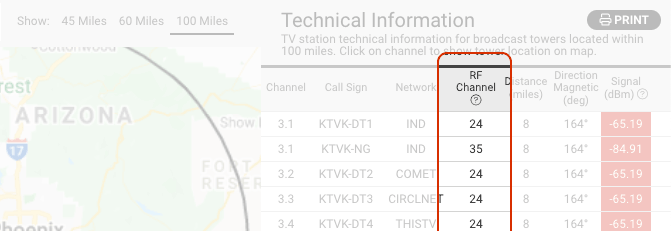

  3. The majority of television broadcast stations in the U.S., about 75%, utilize UHF frequencies (RF channels 14-36). 23% broadcast over high-VHF (RF channels 7-13), while a very small number of stations, about 2%, broadcast over low-VHF (RF channels 2-6). If you are in one of the rare areas that includes a channel broadcasting over low-VHF, you will need an outdoor antenna that receives low-VHF in addition to UHF and high-VHF. Search results will give identify the “RF Channel" of each channel in your area.

    Frequency

Got all of your information? Let's choose an antenna!

Important Note About Amplifiers

It is not always necessary to "boost" your antenna signal using an amplifier. In fact, using a signal amplifier when not needed can add "noise" to your otherwise stellar signals, causing pixelation or signal disruption. A signal amplifier is used in cases where one of your broadcast towers is located at a significantly further distance than the others, or you are having trouble getting reliable reception from one or two channels due to foliage, a mountain range, or splitting signals inside the home between two or more television sets. For these reasons (in addition to encouraging energy conservation!), all Channel Master antennas come "passive" without built-in amplification, and amplifiers are sold seperately.

Indoor Antennas

Channel Master's indoor antennas are designed to be ideal for metropolitan and suburban dwellers, providing simple installation, flexible placement, and reception of both UHF and high-VHF signals. (For the most reliable performance, Channel Master recommends an outdoor TV Antenna whenever possible.)


Product
Type
Range*
Direction / Band
Use Case
Price

Flatenna+

Indoor
50+ Miles
Omni-directional
UHF/VHF
The FLATenna+ will increase signal strength providing increased channel reception and reducing issues with channels having poor signal quality. The included amplifier (MicroAmp) has been fine-tuned for optimal performance when used with the FLATenna.
$49
SHOP NOW

FLATenna

Indoor
35 Miles
Omni-directional
UHF/VHF
Receives signals from all directions, easy stick-on installation for windows, walls or cabinets, easy to relocate. Reversible black and white finish provides added versatility for moving the antenna to different locations in the home.
$25
SHOP NOW

Outdoor Antennas

Channel Master's Outdoor antennas are designed for maximum performance and reliability.


Product
Type
Range*
Direction / Band
Use Case
Price

Pro-Model

Outdoor
70+ Miles
Directional UHF/VHF (Low and High Band)
Receives signals from a single direction
$149
SHOP NOW

Omni+ 50

Outdoor
50 Miles
Omni-directional
UHF/High VHF
Receives signals from all directions
$69
SHOP NOW

METROtenna

Outdoor Bay
40 Miles
Multi-directional
UHF
Receives signals from multiple locations.
$69
SHOP NOW

ULTRAtenna

Outdoor Bay
60 Miles
Multi-directional
UHF
Receives signals from multiple locations.
$99
SHOP NOW
EXTREMEtenna

Outdoor Bay
80 Miles
Multi-directional
UHF
Receives signals from multiple locations.
$169
SHOP NOW
* Range values are an approximation based on the antenna ratings system developed by the Consumer Electronics Association.


Channel Master's antenna recommendation engine will analyze your address and recommend a TV antenna solution that is optimized for your location.

Get Antenna Recommendation
