Ultra-Hi Crossfire 100


Item temporarily out of stock.

Email me when back in stock

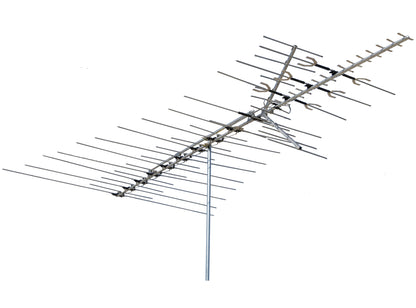

The Ultra-Hi Crossfire 100 is a directional (log periodic), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 100 miles.

The Channel Master CM-3671 Ultra-Hi Crossfire was designed to be the best performing long-range outdoor TV antenna on the market. It offers reliable reception and superior gain across the entire bandwidth including Low VHF, High VHF, UHF and FM signals. With a range of 100+ miles, the Ultra-Hi Crossfire Antenna is perfectly optimized for use in rural and weak signal areas. Thanks to a rugged double boom design and high-strength bracing, the antenna's elements are kept in position, sagging and structural distortion is prevented even under heavy ice loads and high winds.

What’s Included

Ultra-Hi Crossfire 100
(2) U-bolt and Nest Assemblies (Mast, Amplifier and Coax Cable Not Included)
Installation Guide


Reception Range 100 Miles
Type Outdoor
Reception Pattern Directional
Built-In Amplifier No
Installation Roof, Mast, Eave, Chimney

Tech Specs

Electrical Specifications

Bandwith 54 to 216 and 470 to 700 MHz
Low VHF Gain 5.6 dB
High VHF Gain 10.9 dB
UHF Gain 10.0 dB
Return Loss N/A
Impedance 300 Ohm (75 Ohm balun included)

Mechanical Specifications

Boom Length 173 in.
Number of Elements 61
Max Element Width 110 in.
Mounting Clamp U-bolt up to 1.5 in.
Turning Radius 95.75 in.
Output Connector F-type
Size (product) 173 x 110 x 34.5 in.
Size (packaging) 69 x 12 x 12 in.
Weight (product) 15 lb
Weight (packaging) 16.5 lb
