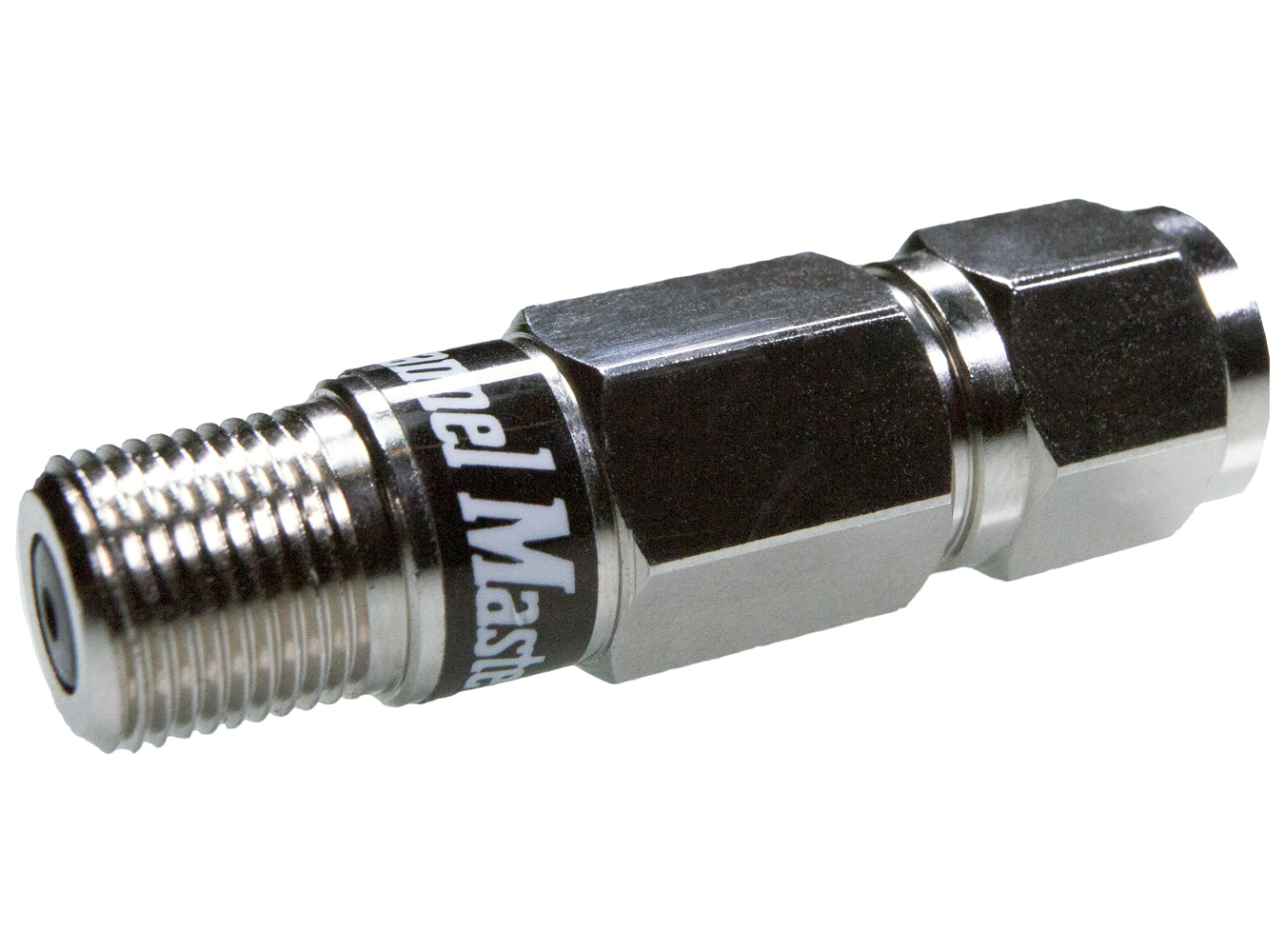

TV Antenna Lightning Surge Suppressor


$12.50

Overview

The Channel Master TV Antenna Lightning Surge Suppressor is designed to reduce the chances of damage to electronic equipment caused by lightning and electrical surges. Channel Master always recommends proper grounding of an outdoor antenna but in instances where a grounding solution was not installed, the TV Antenna Lightning Surge Suppressor provides an added layer of protection to help reduce electronic equipment damage caused by lightning and electrical surges.

Reduce electrical & lightning surge damage to electronic devices connected to your coaxial cable including television’s, set top boxes, and other electronics equipment in your TV antenna setup by simply installing the coaxial surge suppressor in line prior to connecting the coaxial cable to your electronic equipment. The TV Antenna Lightning Surge Suppressor is designed to withstand electrical surges up to 6kV/3Ka. Primarily designed to be used in TV antenna installations the TV Antenna Lightning Surge Suppressor provides the same level of surge suppression in other coaxial installations such as Cable TV, Broadband Cable Internet, and Satellite TV systems. The TV Antenna Lightning Surge Suppressor works by suppressing transient voltage surges and spikes on a coaxial cable network prior to them reaching and damaging expensive equipment such as televisions, set top boxes, DVR’s and other electronic equipment connected to the coaxial cable infrastructure. The TV Antenna Lightning Surge Suppressor was designed with negligible signal loss (less than 0.2dB) when the signal passes through it preventing degradation to your signal or picture quality.

*This product is designed as a surge suppressor. It is not a lightning rod, does not replace proper grounding, and will not channel lightning to the earth to protect people or structures from injury or fire.

What’s Included

CM-3205 TV Antenna Lightning Surge Suppressor
Instruction Sheet
1-Year Limited Warranty

Features

Protects electronic devices from electrical surges
Small, Powerful, Robust
Simple to add to any device
Up to 6kV Surge Protection
Wide Band: 2.6GHz
Low Insertion Loss: 0.2dB
Excellent Return Loss
Class A RFI Shielding
Weather Resistant against moisture

Tech Specs

Electrical Specifications

Item CM-3205
Impedance 75 Ohm
Frequency Range 5 - 2600 MHz
Insertion Loss 0.2dB (typical)
Return Loss 20dB (typical)
Power Passing N/A
Surge Protection IEC 61000-4-5 Level 6kV
Weight 0.55 oz
