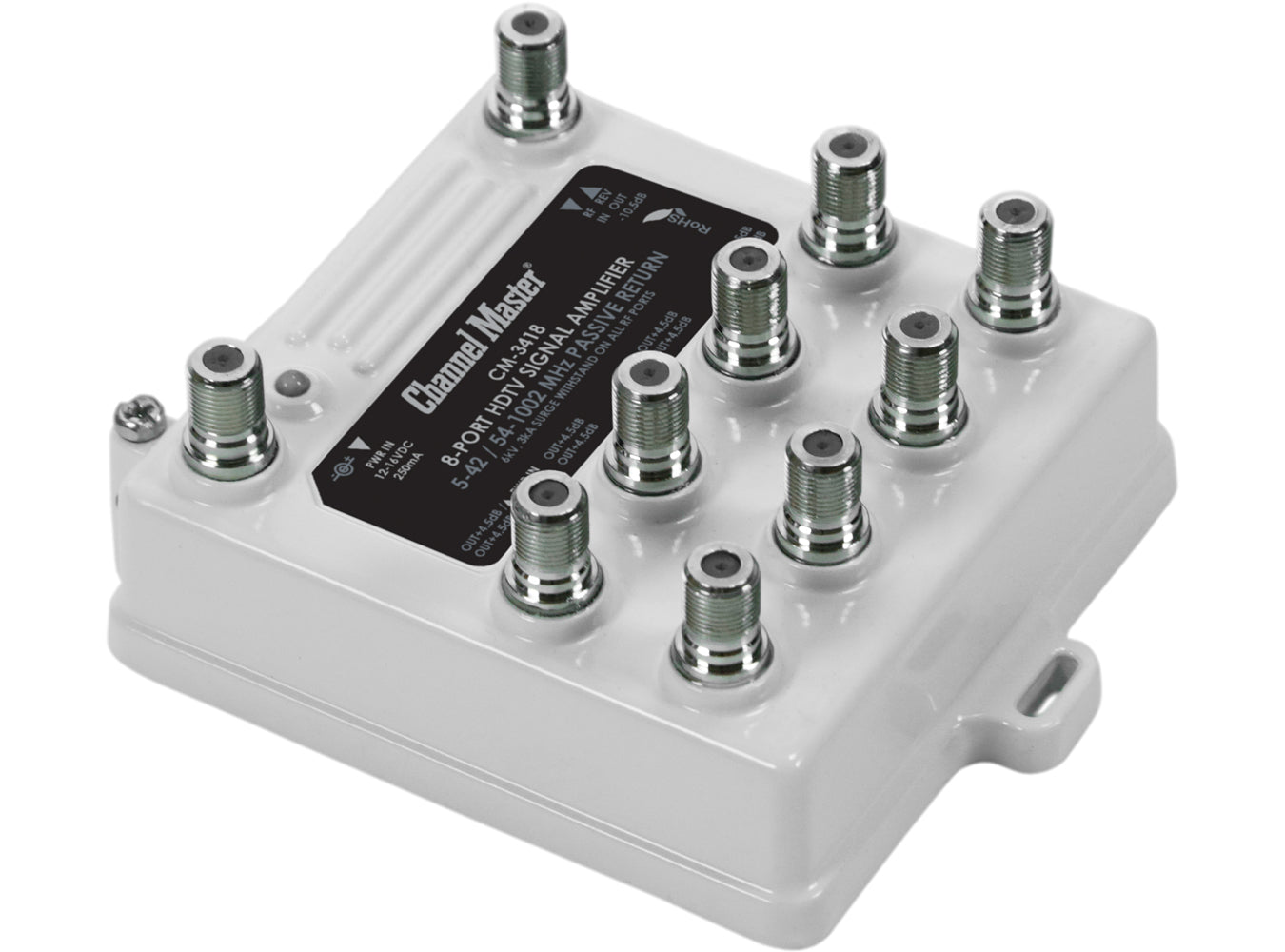

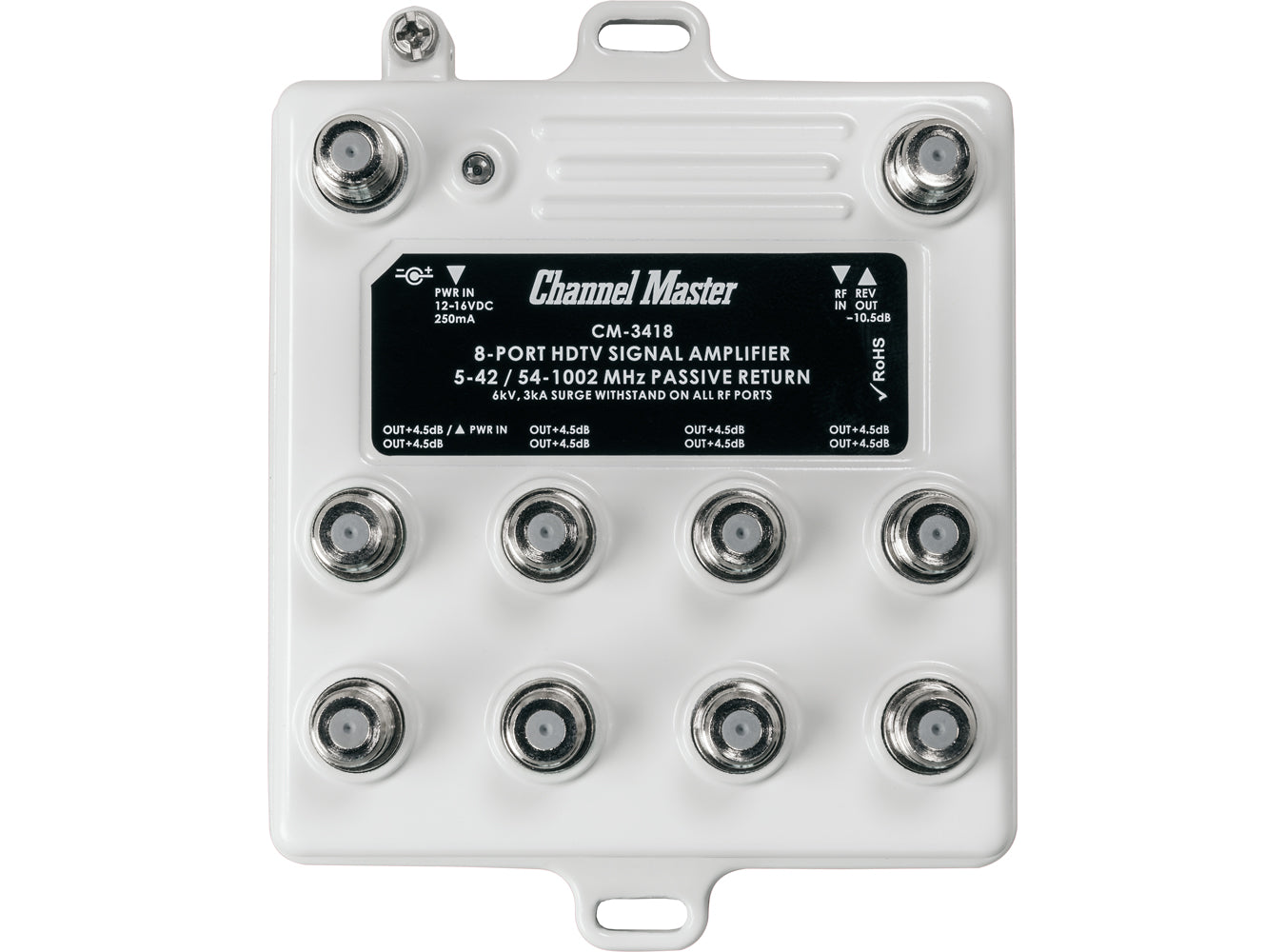

The Ultra Mini 8 distribution amplifier will boost TV signals, increasing the overall signal strength for distribution throughout the home. The Ultra Mini 8 has eight output ports and can be used in HDTV, CATV, off-air, analog and digital RF distribution applications where high performance and reliability are required.

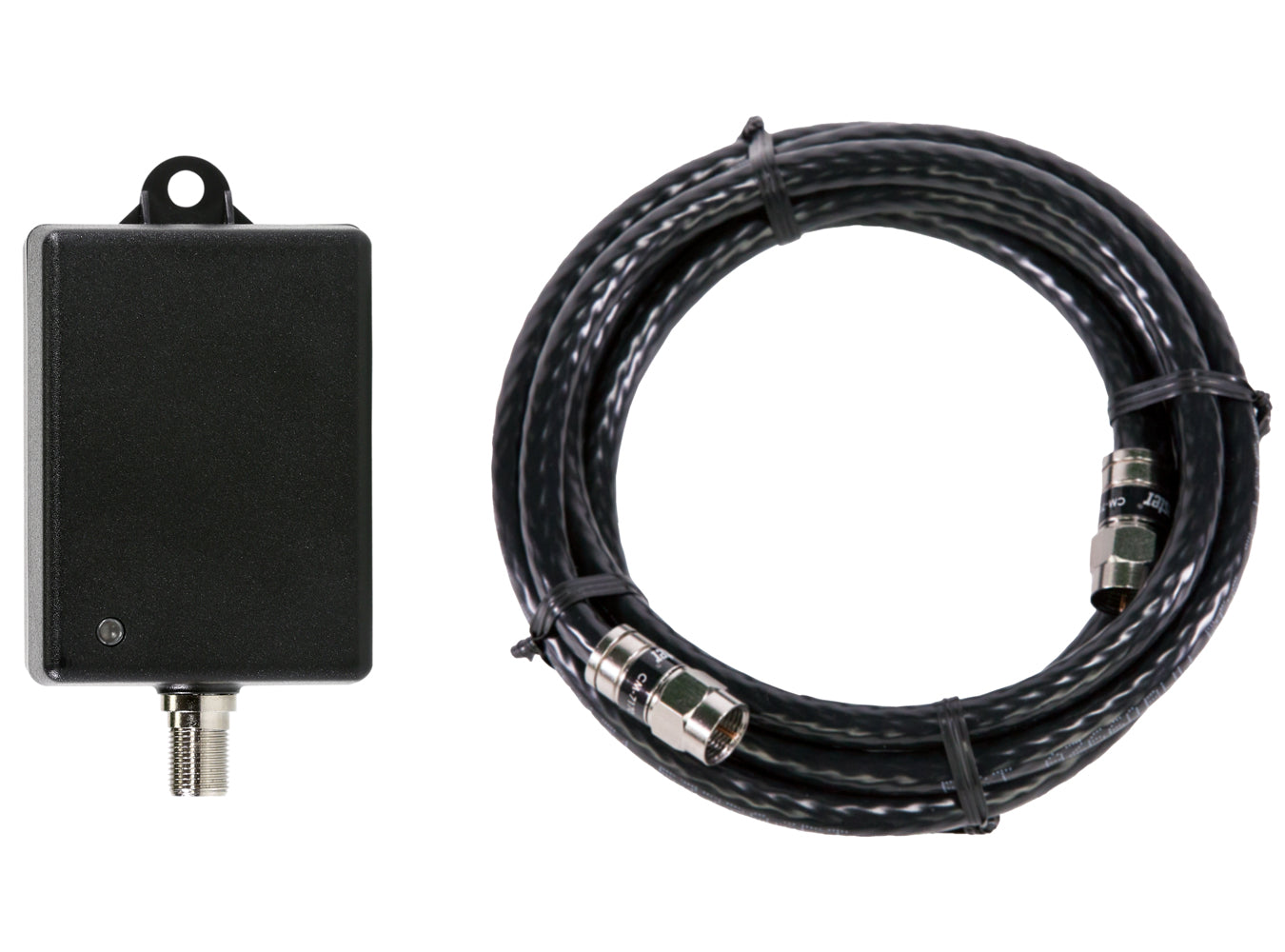

What’s Included
Ultra Mini 8 Distribution Amplifier
Power Adapter
Coaxial Cable
User Guide
1-Year Limited Warranty

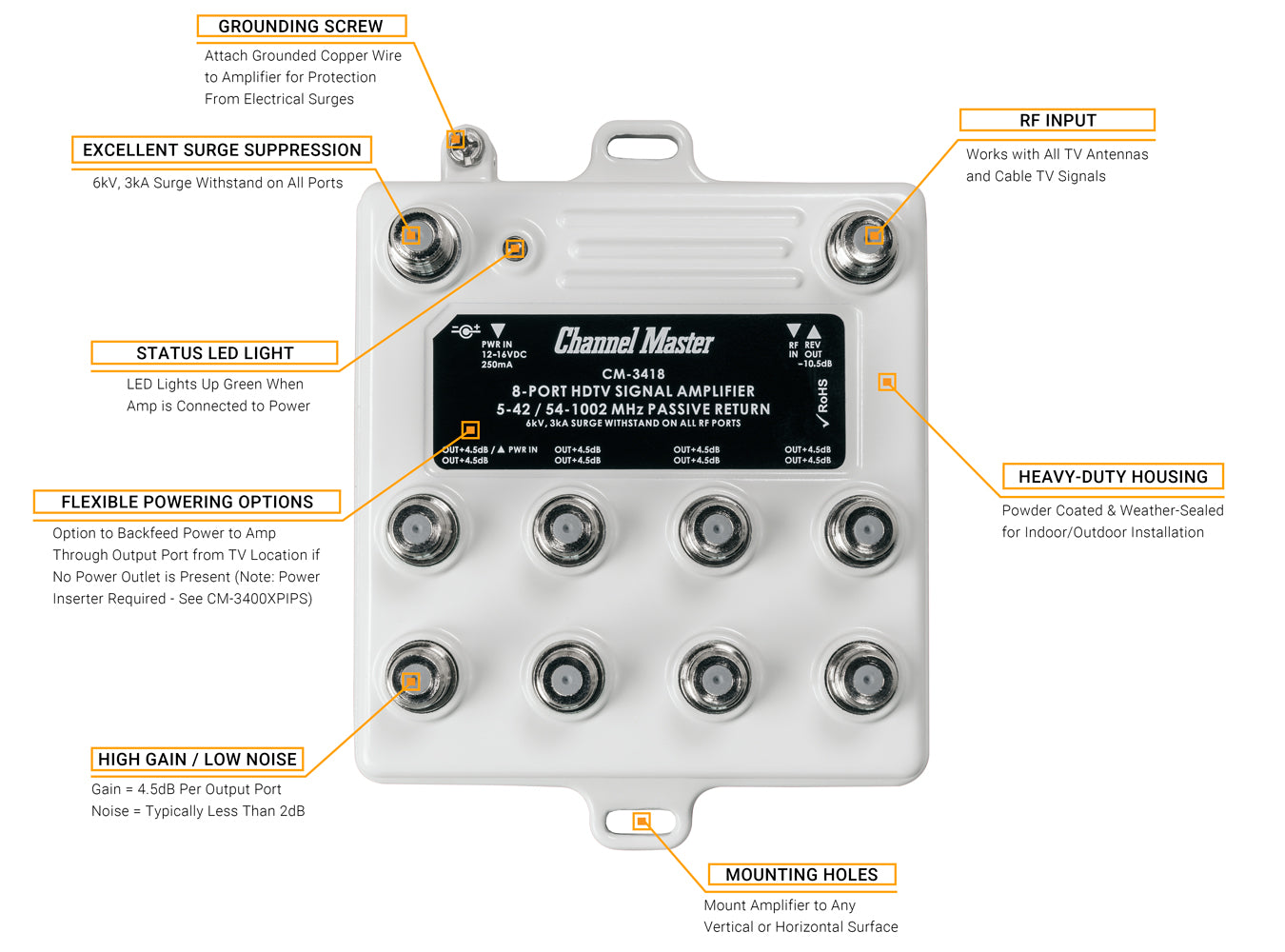

Features
Miniature Size for Space-Saving Installations
Eight Output Ports
Compatible with All TV Antennas
Will Support ATSC 3.0, NextGen TV and 4K Broadcast when Available
Professional Grade Performance
Powder Coated and Weather-Sealed Housing for Superior Corrosion Protection
Excellent Surge Withstand Capability
Offers Return Path for Cable Modem Applications
Supports Both Analog and Digital Broadcast Signals
Patented Digital Seizure Mechanism (DSM) for Superior Center Conductor Retention, Surface Area Contact and Electrical Performance
Tech Specs
Power Supply Input Voltage
110-240v, AC ~ 50/60Hz, 200mA (Max)
Power Supply Output Voltage
+13.2v DC, 500mA, 6.6W (Max)
Forward Frequency Range
54 to 1002 MHz
Return Path Frequency Range
5 to 42 MHz
Gain
+4.5dB per Output
Noise Figure
Typically Less than 2dB
Isolation
24 dB
Max Output Level
14 dBmV
Passive Return
-11.5 dB
Max Input Level
10 dBmV
Operating Temperature
-40 C to +60 C
Connector
F-Type
UPC
020572034180
Size (Product)
3.75 x 3.75 x 2 in
Size (Packaging)
5.75 x 8.5 x 2.25 in
Weight (Product)
14 oz
Weight (Packaging)
1.8 lb
