Splitter 2

2-Way TV Antenna Splitter (Power Passing)

About This Item

CM-3212HD

Efficient Signal Division: Splits the TV signal from your antenna to connect up to two TVs with ease, ensuring clear and consistent reception on multiple televisions.
Exceptional Performance: Designed for superior electrical performance and center conductor retention, outperforming basic splitters for reliable signal distribution.
Power Passing Capability: Allows DC power to pass through any output ports to an antenna pre-amplifier, simplifying installations and enhancing signal strength for outdoor antennas.
Future-Proof Design: Ensures compatibility with current and future digital standards, including ATSC 3.0, NextGen TV, 4K, Ultra HD, and HDR, providing enhanced reliability for evolving technology.
Superior Shielding: Prevents unwanted signals from interfering with your TV signal, maintaining consistent audio and video quality with excellent shielding effectiveness.
Indoor/Outdoor Durability: Features an all-metal housing and weather-sealed ports for robust protection against corrosion, making it ideal for both indoor and outdoor installations.
Versatile Compatibility: Works with both antenna and cable TV signals, offering flexibility for various TV setups and installations.

Style: Splitter 2

2-Way 3-Way 4-Way 8-Way

$6.50

Sale Sold out

View full details

Product Information

Overview

The Channel Master Splitter 2 divides the TV signal from your antenna to connect two TVs.

The Channel Master Splitter 2 is a 2-way RF splitter that offers exceptional performance and long-term reliability for those looking to split a TV antenna signal to multiple televisions. This high quality splitter is weather proof for outdoor use and provides significant advantages in center conductor retention and electrical performance that basic splitters do not offer. The Splitter 2 from Channel Master was specifically designed for antenna installations but it is also compatible with cable TV signals.

Not Your Typical Splitter

The Channel Master Splitter 2 is not your typical cheap gold-plated splitter, instead we put our focus on what really matters.

Power Passing

The Channel Master Splitter 2 is specifically designed for TV antenna installations. The Splitter 2 can be used with or without an antenna pre-amplifier. When used with an antenna pre-amplifier the Splitter 2 simplifies installation allowing DC power to pass through any of the output ports up to the pre-amplifier. (If you are trying to split the signal from an outdoor antenna that is powered over the coaxial cable or if you have a pre-amplifier that is powered over coaxial cable, you will need a Channel Master power passing splitter. Regular splitters sold online and the ones used by cable TV companies are typically not power passing and will block power and prevent your antenna or amplifier from working.)

Digital Signal Future Proofing

Channel Master Splitter 2 delivers enhanced reliability for signal reception of current and future standards such as ATSC 3.0, NextGen TV, 4K, Ultra HD and HDR.

Excellent Shielding Effectiveness

A splitter with poor shielding can let unwanted signals penetrate and interfere with your signal. Interference introduced through the splitter will cause signal quality issues resulting in intermittent or complete loss of audio and video.

Indoor/Outdoor Design

All Metal housing and weather-sealed ports provide superior defense against long-term corrosion.

Specifications

What’s Included

Splitter 2, (2) Mounting Screws

Warranty

1-Year

Operating Frequency

5-1218 MHz

Insertion Loss

3.5 dB

Return Loss

20 dB

Isolation Between Outputs

22 dB

Surge Withstand

6000VAC, 200A

Power Pass

Yes

Input & Output Connectors

F-type

Weight

2.5 oz

Size

2.375" x 2.0" x 0.625"

Super splitter-2

I had another splitter I was using and bought The Channel Master Splitter based on its description and what it was claiming, hoping to improve my connection. It is true to what it was advertising. My reception has gotten much better and less disconnects using this splitter.
I am sold on their products and would buy again from them.

Channel Master 2 Way Splitter with DC Passthrough

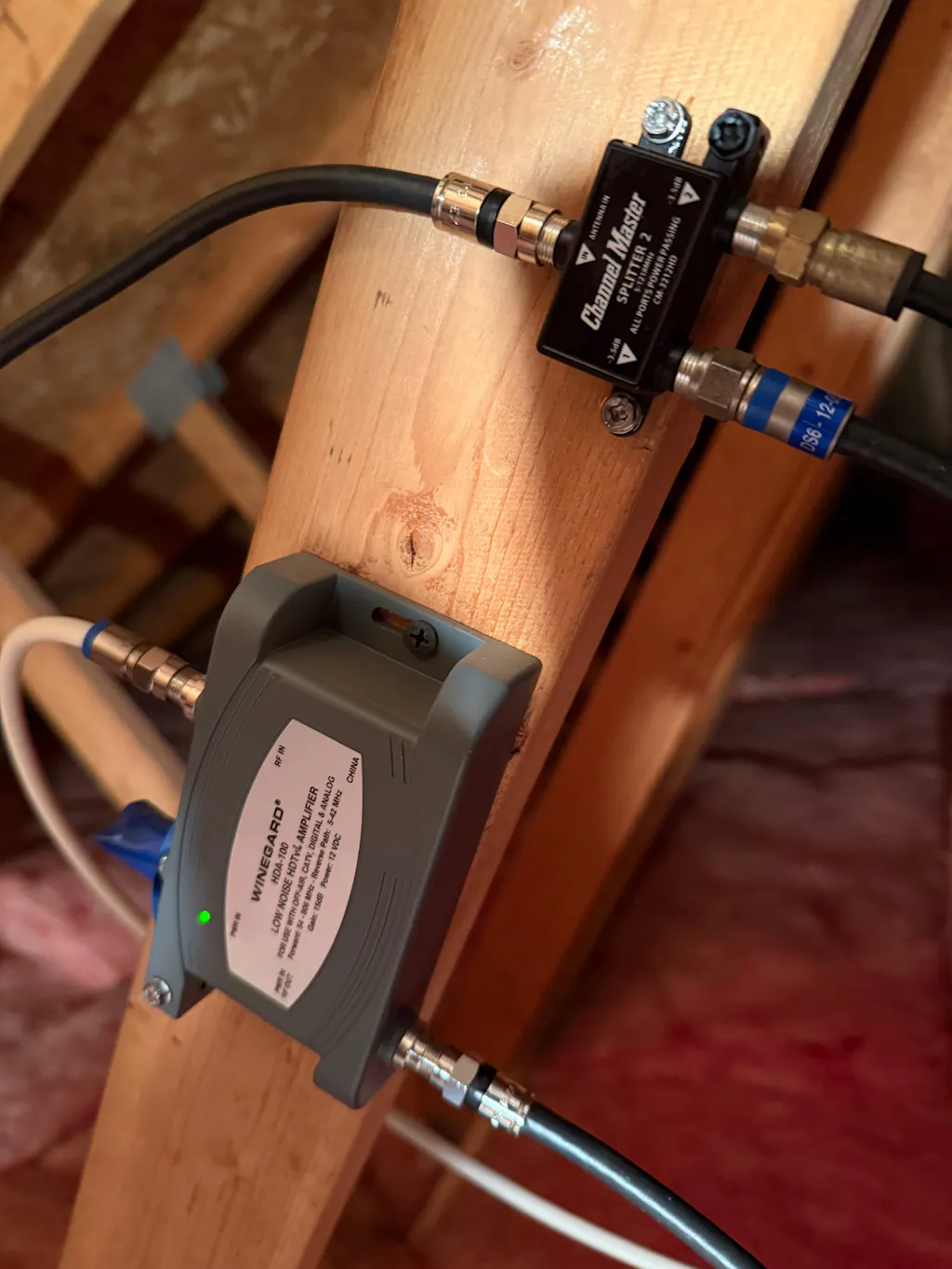

I have a tv antenna mounted in the attic of my two story house with an amplifier that is remotely powered by the coax cable running to the antenna. I needed to split the signal to another tv in the house and initially thought I could use a regular splitter. Upon further review learned you needed a splitter that would pass through the DC current to the amplifier. The Channel Master two way splitter with DC pass through worked perfectly and came with mounting screws. The splitter is pictured on the right in the photo. I would highly recommend this product if you have a similar application.

The Best of the Best

Awesome quality and performance from all products. I recently needed some 6' coaxial cable and a 3-way splitter. For the price, service, and quality, there is no need to go elsewhere. My entire antenna system is Channel Master and I pull in 60 channels from over 50 miles away with almost perfect reception.

Trust Channel Master

I can't say enough good about Channel Master's equipment. Their products work when cheaper alternatives fail. I am splitting the signal from a Channel Master Stealth antenna to my TV and to my Media computer. There was a very negligible drop in the signal when measured by the TV's signal meter after splitting the signal but most of the time the signal is still bumping up to 100%, unlike with an attic antenna I was using. If you want a crystal clear signal, get your antenna outside and use all Channel Master products to get the best signal available for your location. No question, Channel Master is the best!

positive

I replaced an old splitter with this new splitter and saw a little improvement is signal strength
