TV Antenna Booster 4

TV Antenna Booster 4

4-Port TV Antenna Distribution Amplifier

About This Item

CM-3424
  • Professional-Grade Amplifier: Designed to boost and distribute TV antenna signals to multiple TVs without signal loss.
  • Four Output Design: Splits the TV antenna signal into four outputs, ideal for connecting multiple TVs.
  • Optimized for OTA Antennas: Specifically engineered for use with over-the-air TV antennas, ensuring maximum performance.
  • Built-In Filters: Includes out-of-band filters and a 4G/5G LTE interference filter to maintain signal integrity.
  • Weatherproof Housing: Durable, heavy-duty weatherproof construction allows for both indoor and outdoor installation.
  • High-Quality Components: Premium internal components ensure reliable performance and long-lasting durability.
  • Enhanced Signal Quality: Improves overall signal strength, reducing pixelation and providing a clearer picture.
  • Not Compatible with Cable or Satellite: Designed exclusively for use with TV antennas, not for cable or satellite signals.

Style: 4‑Port

2‑Port 4‑Port 8‑Port
$54.00
$54.00
Sale Sold out
View full details

Product Information

Overview

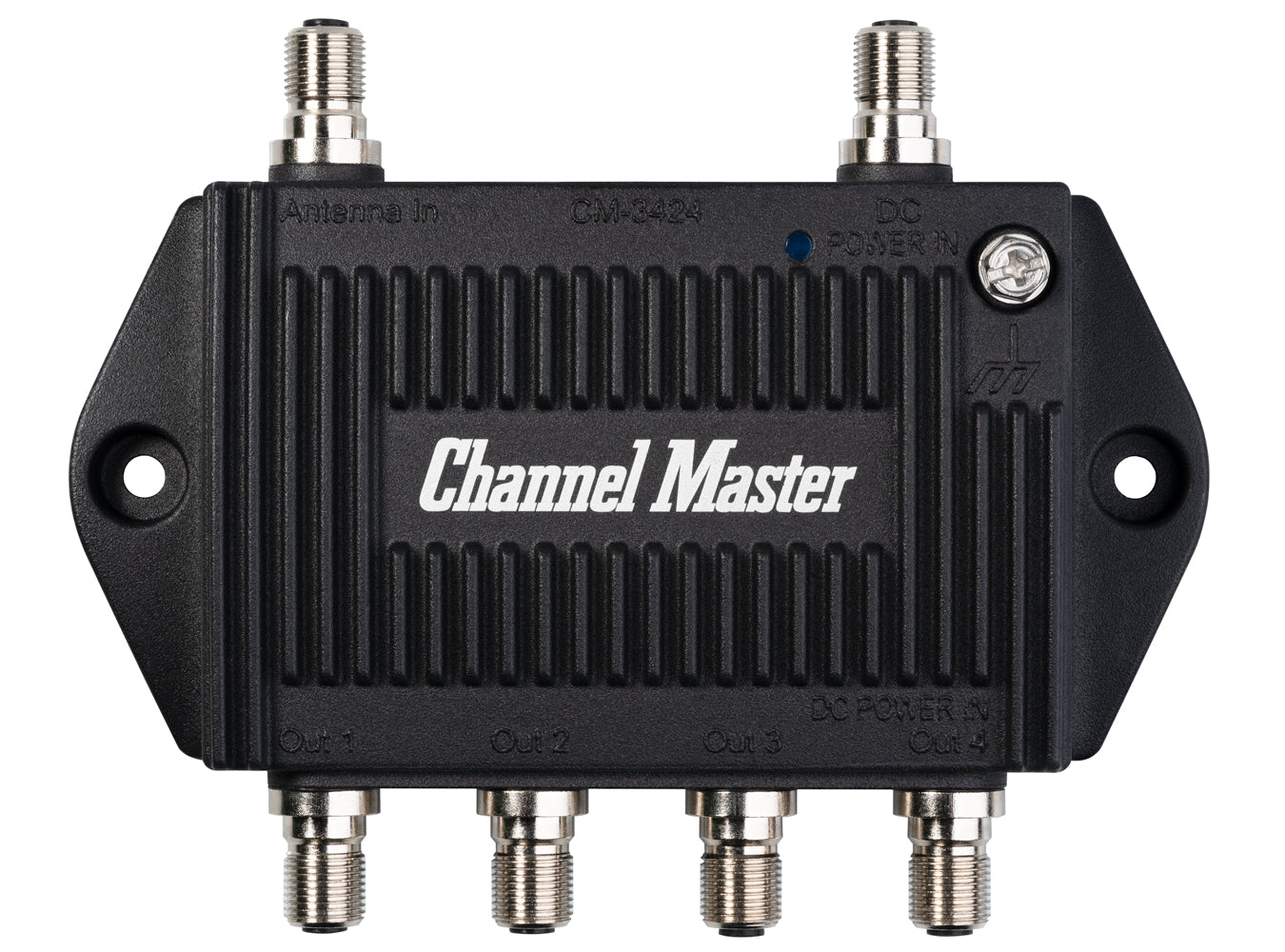

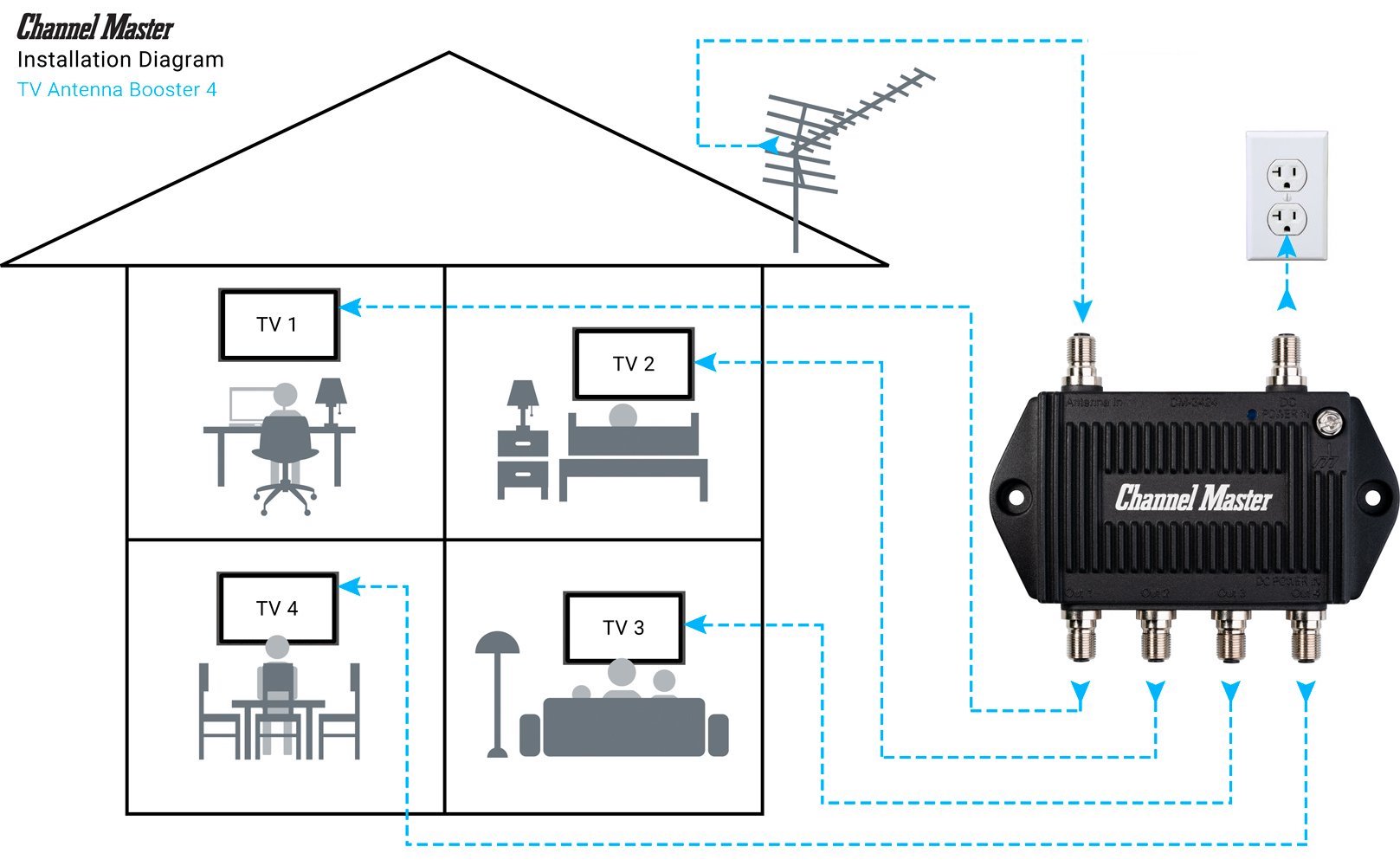

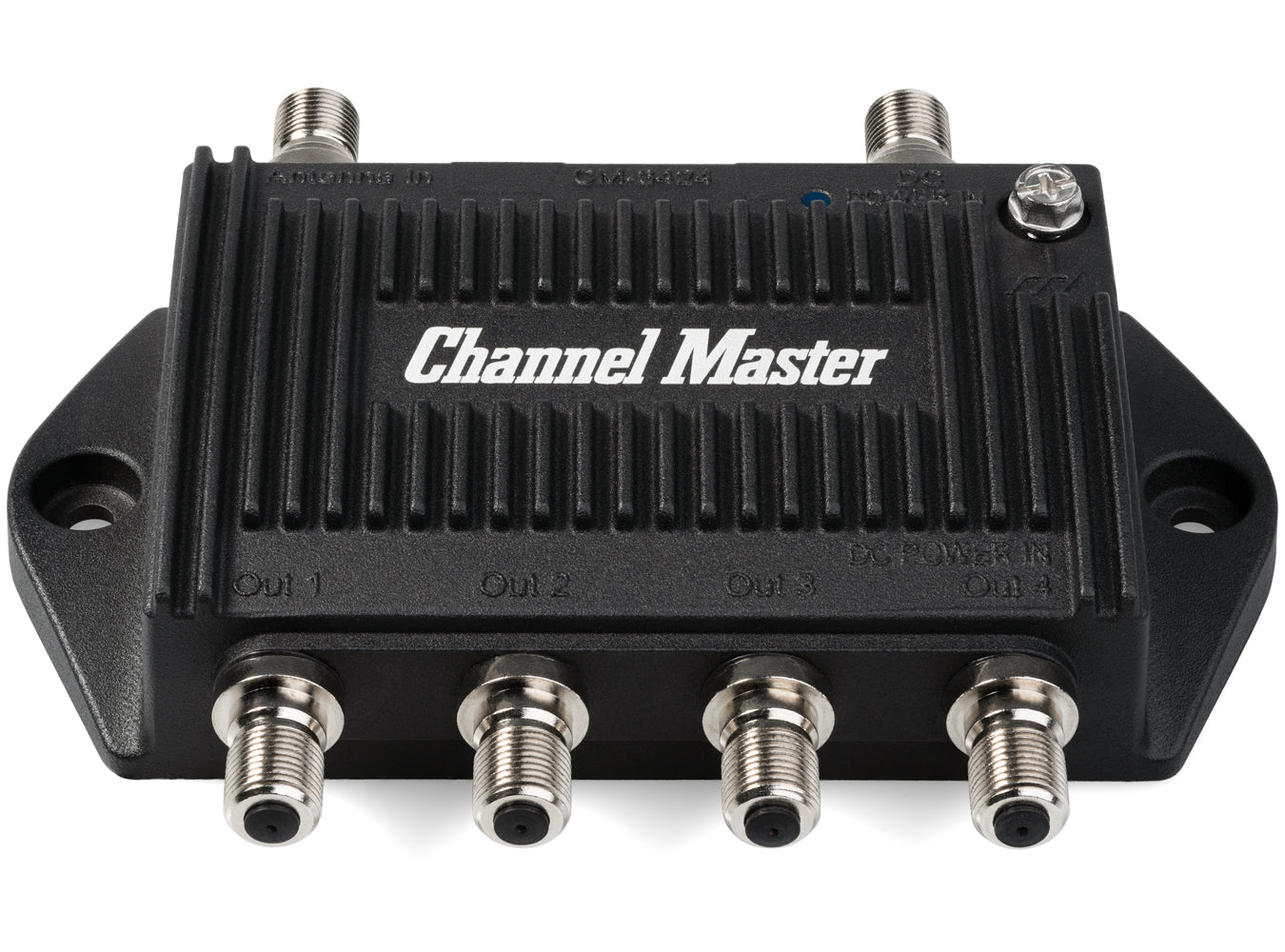

Channel Master's TV Antenna Booster 4 is an easy to install, four output professional-grade TV antenna booster / distribution amplifier. The TV Antenna Booster 4 can be used to split a TV antenna signal into four outputs and is ideal for connecting multiple TV's to a TV antenna without losing signal. This is the only high quality four output TV antenna distribution amplifier on the market specifically optimized for use with over the air TV antennas and includes built-in out of band filters and a 4G/5G LTE interference filter. The heavy-duty weatherproof housing and premium internal components will accommodate installation outdoors as well as indoors. (not compatible with cable or satellite).

Specifications

What’s Included

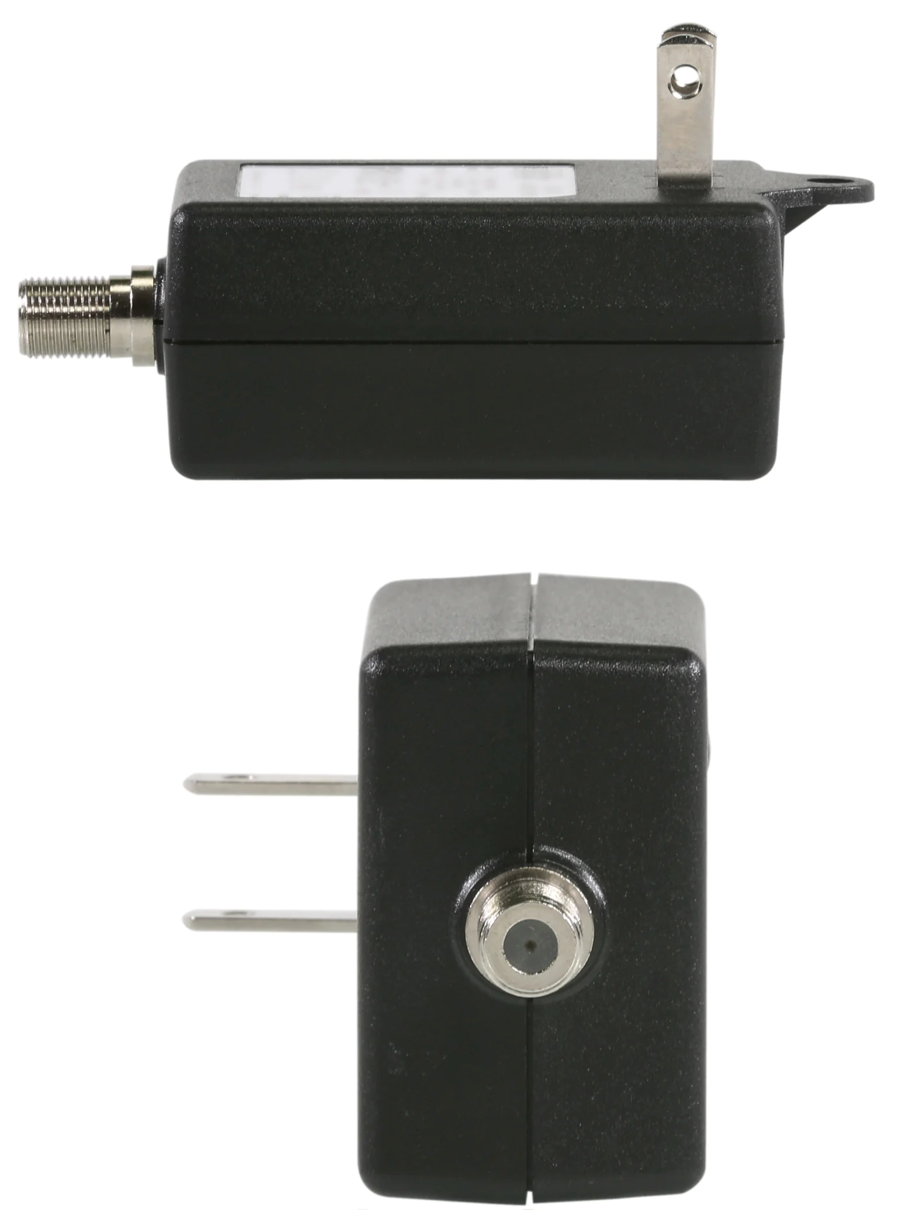

TV Antenna Booster 4 Distribution Amplifier, Power Adapter, Coaxial Cable, User Guide
Warranty
1-Year
Power Supply Input Voltage
110-240v, AC ~ 50/60Hz, 200mA (Max)
Power Supply Output Voltage
+13.2v DC, 500mA, 6.6W (Max)
Frequency Bandpass
54-88MHz, 174-216MHz, 470-608MHz. (Filters / Signal Attenuation is Applied to Frequencies Outside of these Bands)
Gain
+7.5dB per Output
Noise Figure
Typically less than 2dB
Operating Temperature
-40° to +60°C
Max Input Level
10dBmv
Max Output Level
21.5dBmv
Size (Product)
4.25" x 5.25" x 1.0"
Weight (Product)
0.60 lb
