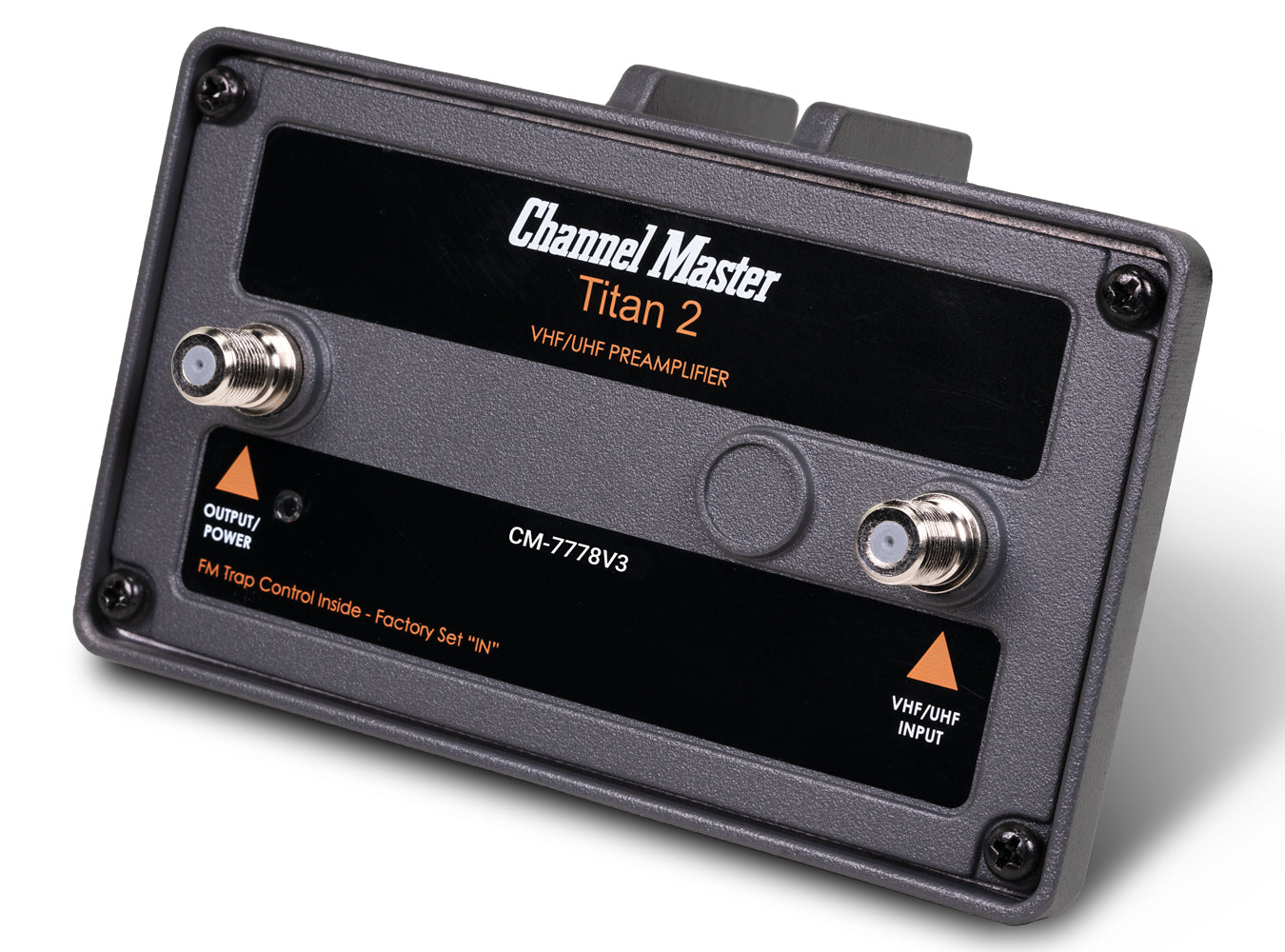

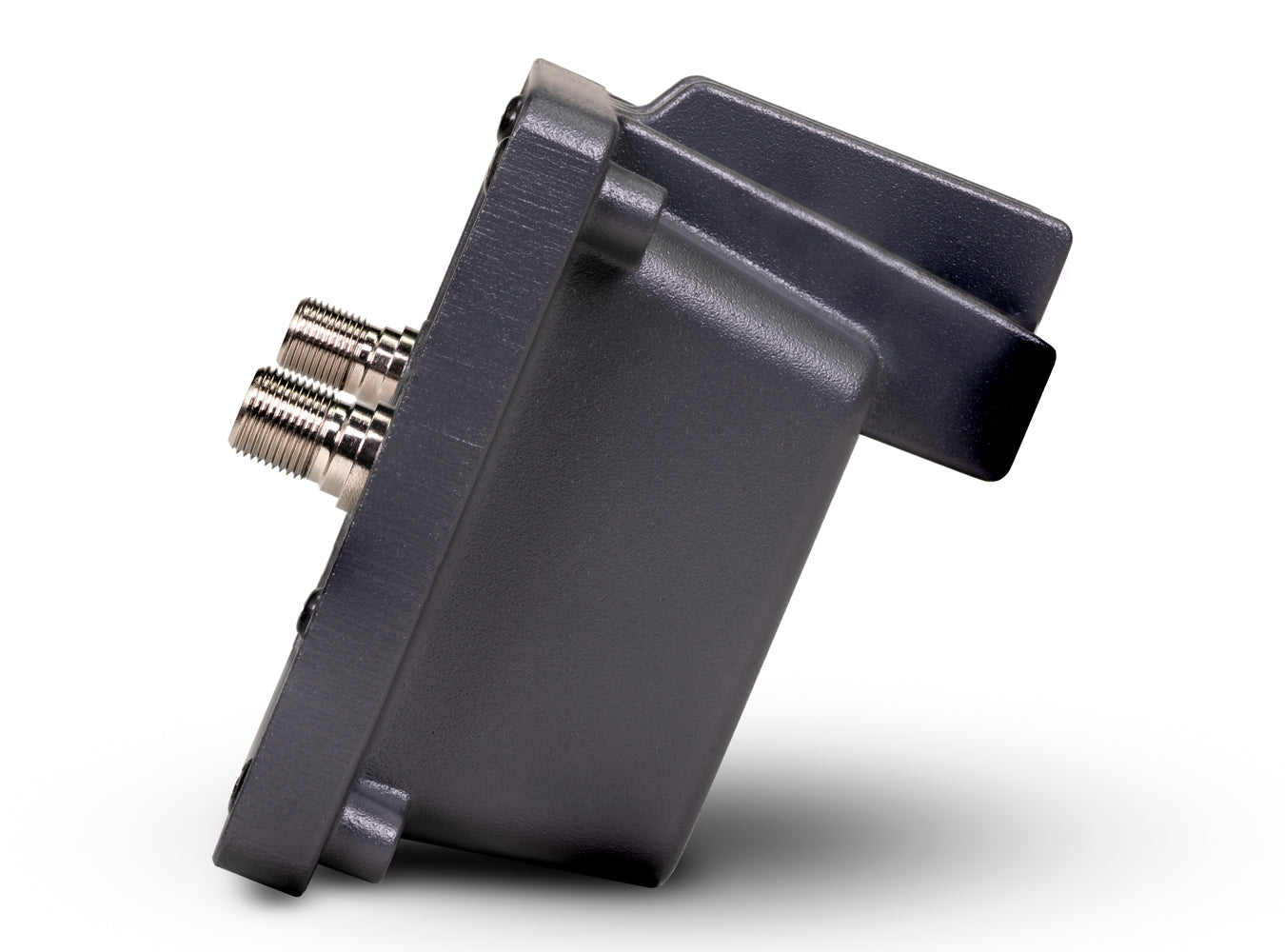

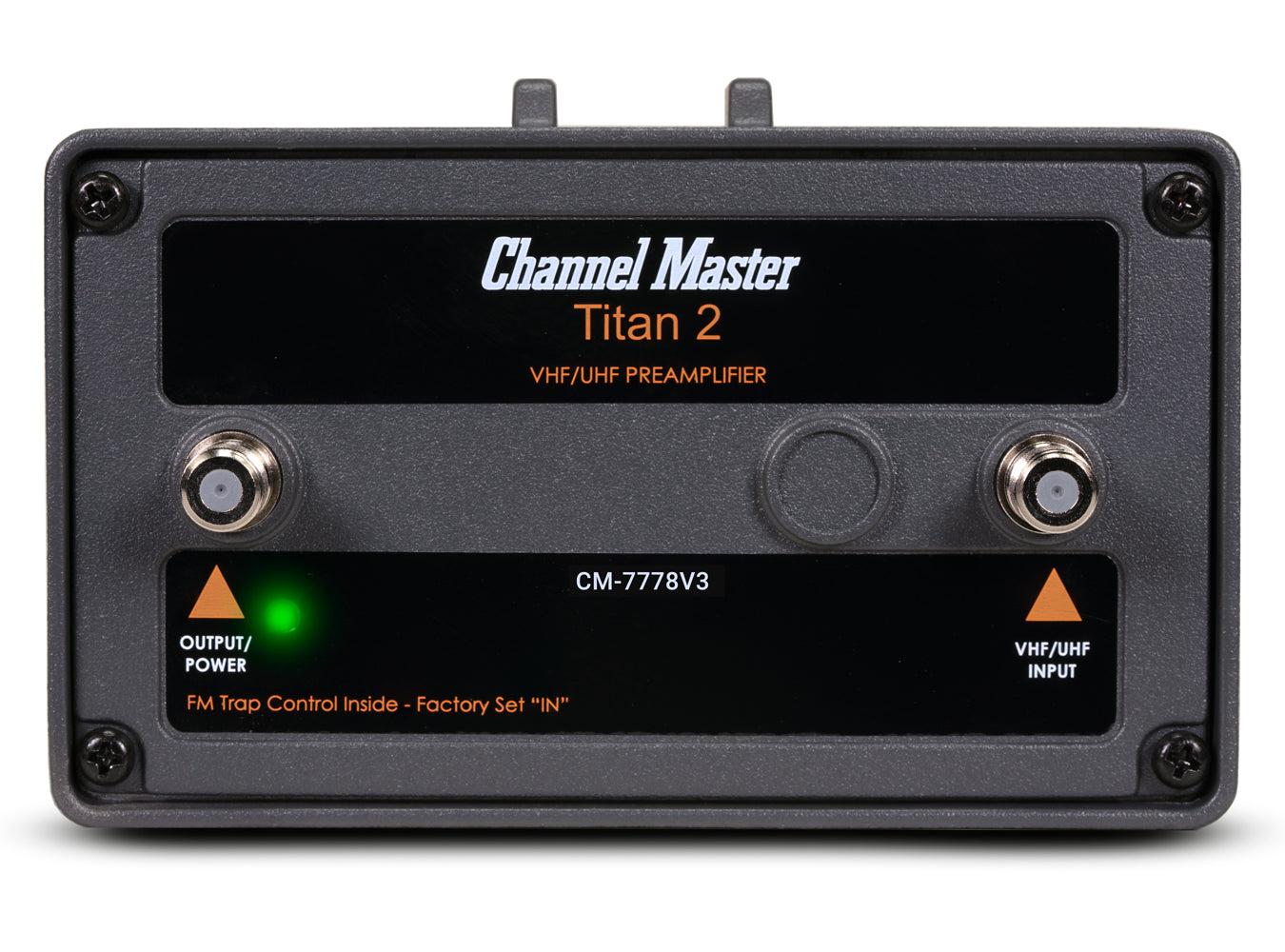

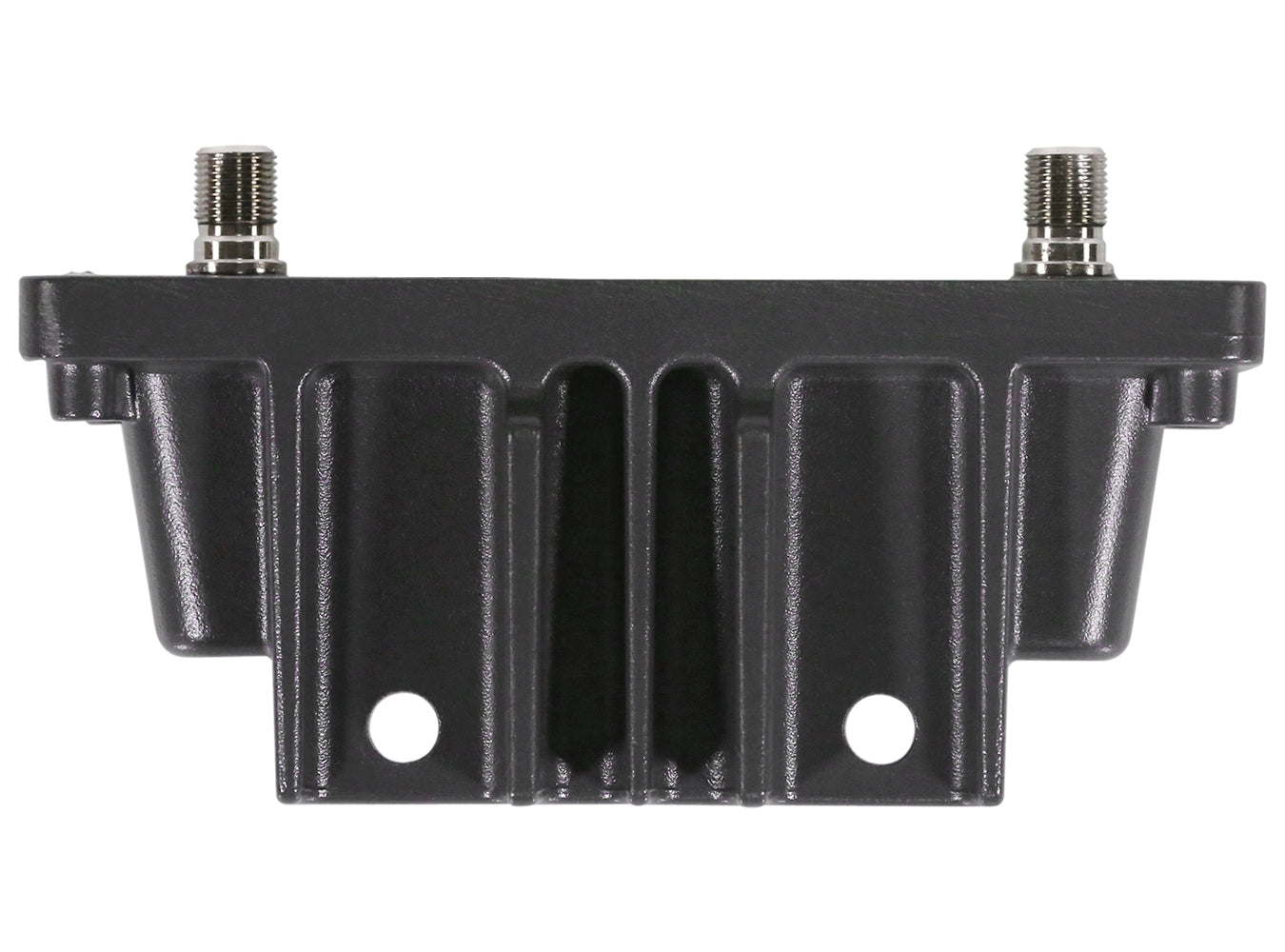

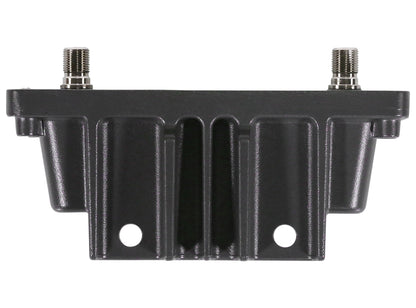

The Titan 2 Medium Gain Preamplifier will amplify signals received by your antenna. This antenna amplifier is a medium gain, low noise preamplifier used to allow weaker signals at the antenna to be amplified to a viewable strength, and is ideal for installations in which broadcast towers are located at widely varying distances. The Titan 2 Medium Gain Preamplifier is a two part unit, an outdoor amplification unit which is mounted on the mast of your antenna system and an indoor unit which powers the outdoor amplification unit. The indoor unit is stationed indoors and connects to the outdoor unit via coaxial cable. (When installing a splitter with this amplifier it must be a power passing splitter, most common splitters will not pass power.)
Medium Gain TV Antenna Signal Preamplifier.

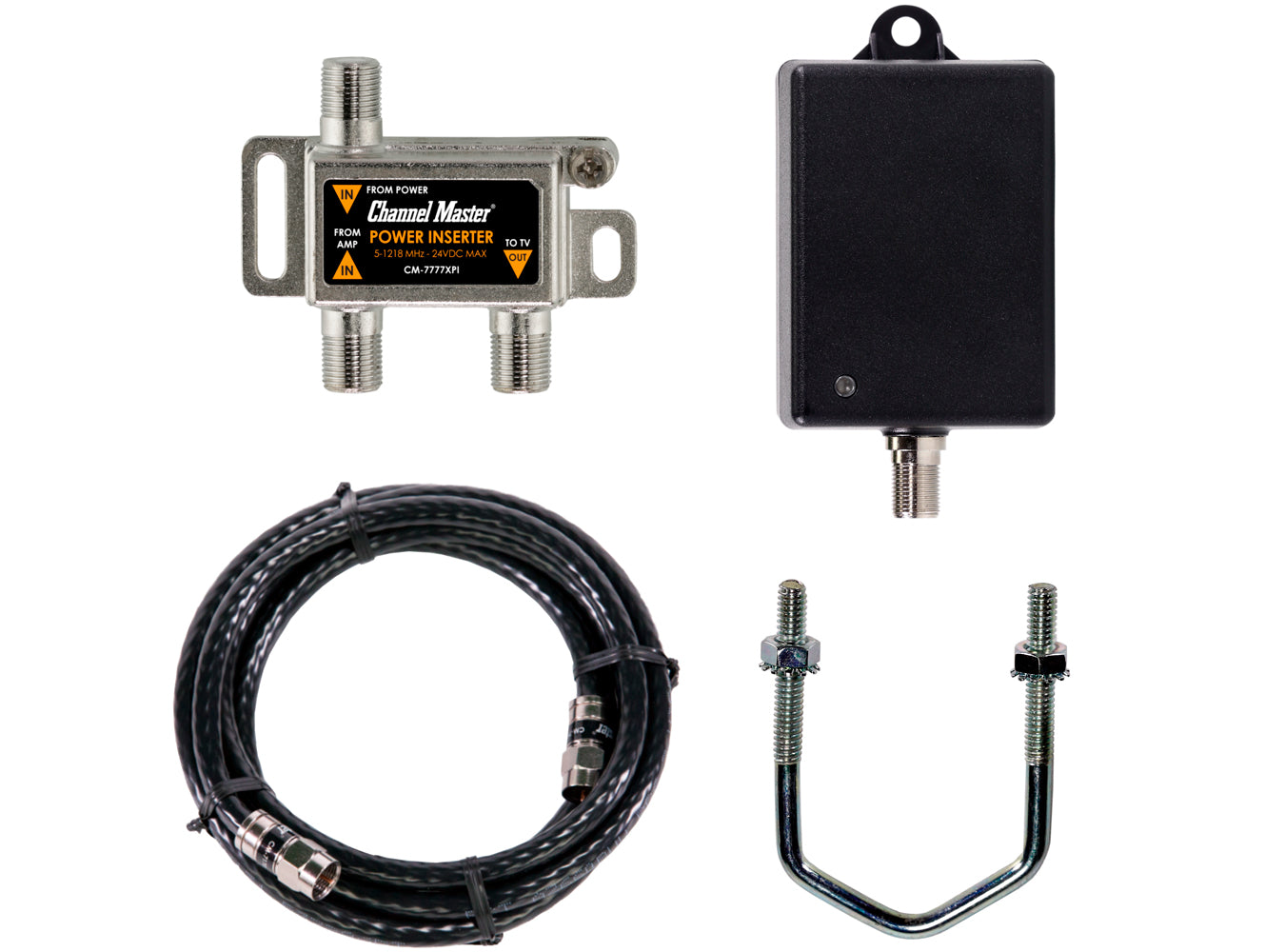

What’s Included
Titan 2 Medium Gain Preamplifier
Power Inserter
Power Adapter
Coaxial Cable
U-Bolt
User Guide
1-Year Limited Warranty

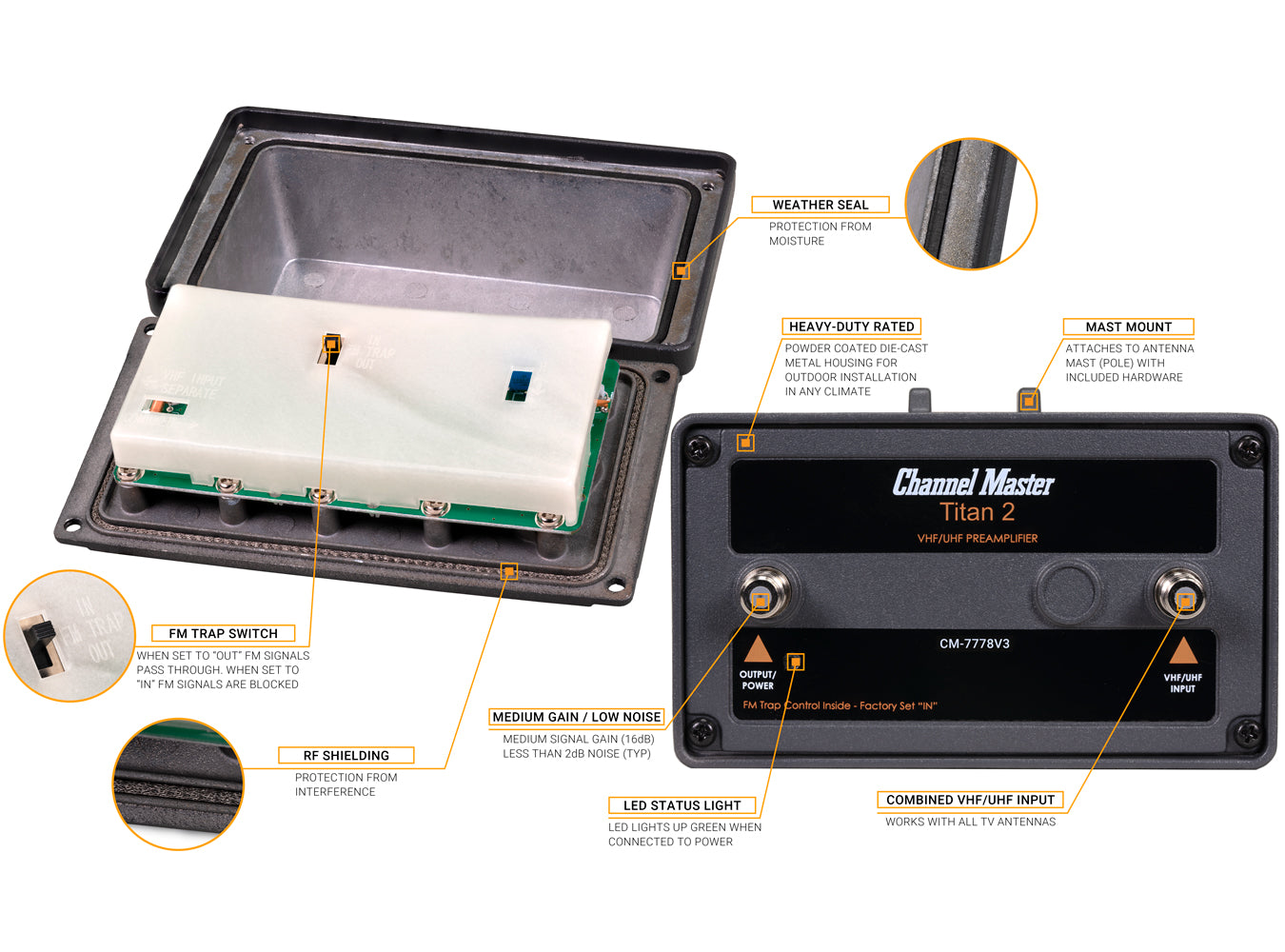

Features
Improves Signal Quality
Decreases Pixilation
May Increase Number of Channels
Blocks LTE Interference from 3G/4G/5G Smartphones and Transmitters
Will Support ATSC 3.0, NextGen TV and 4K Broadcast when Available

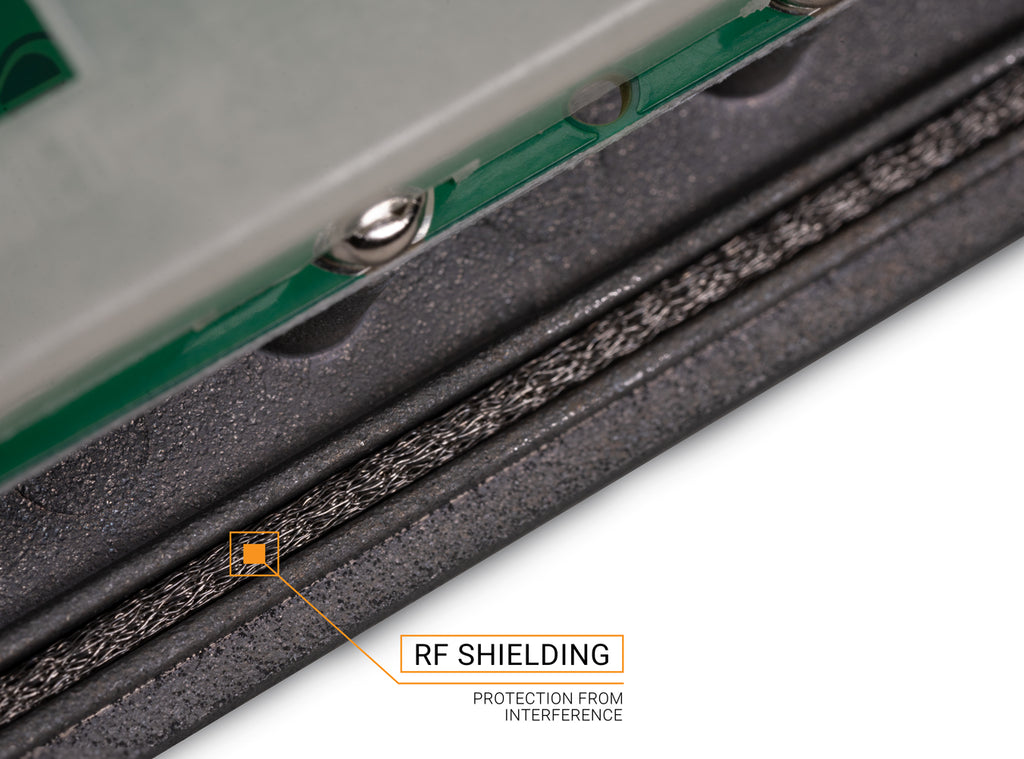

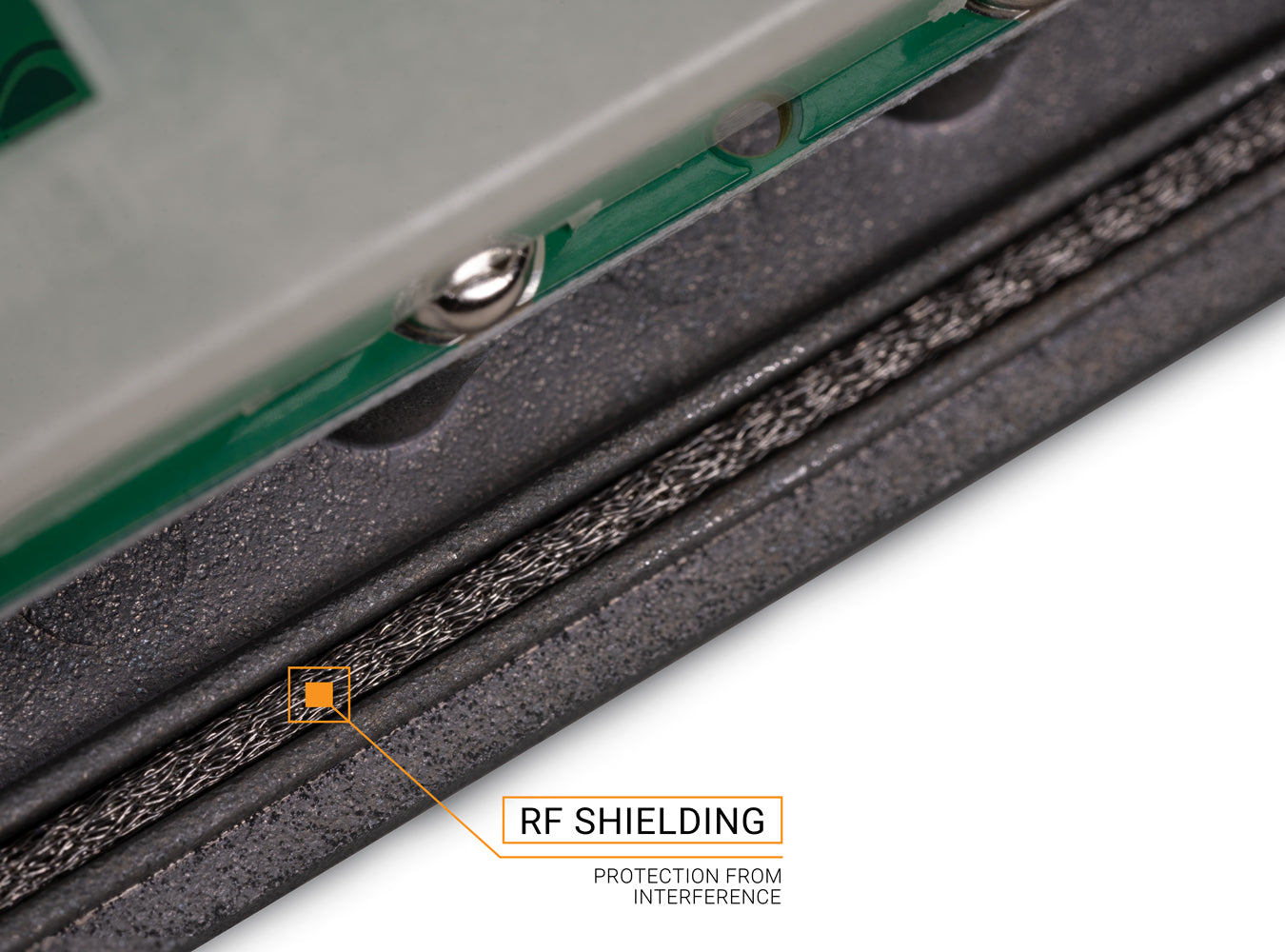

Housing Offers RF Shielding for Reducing Interference
Ultra Low Noise
Gain - 16 dB

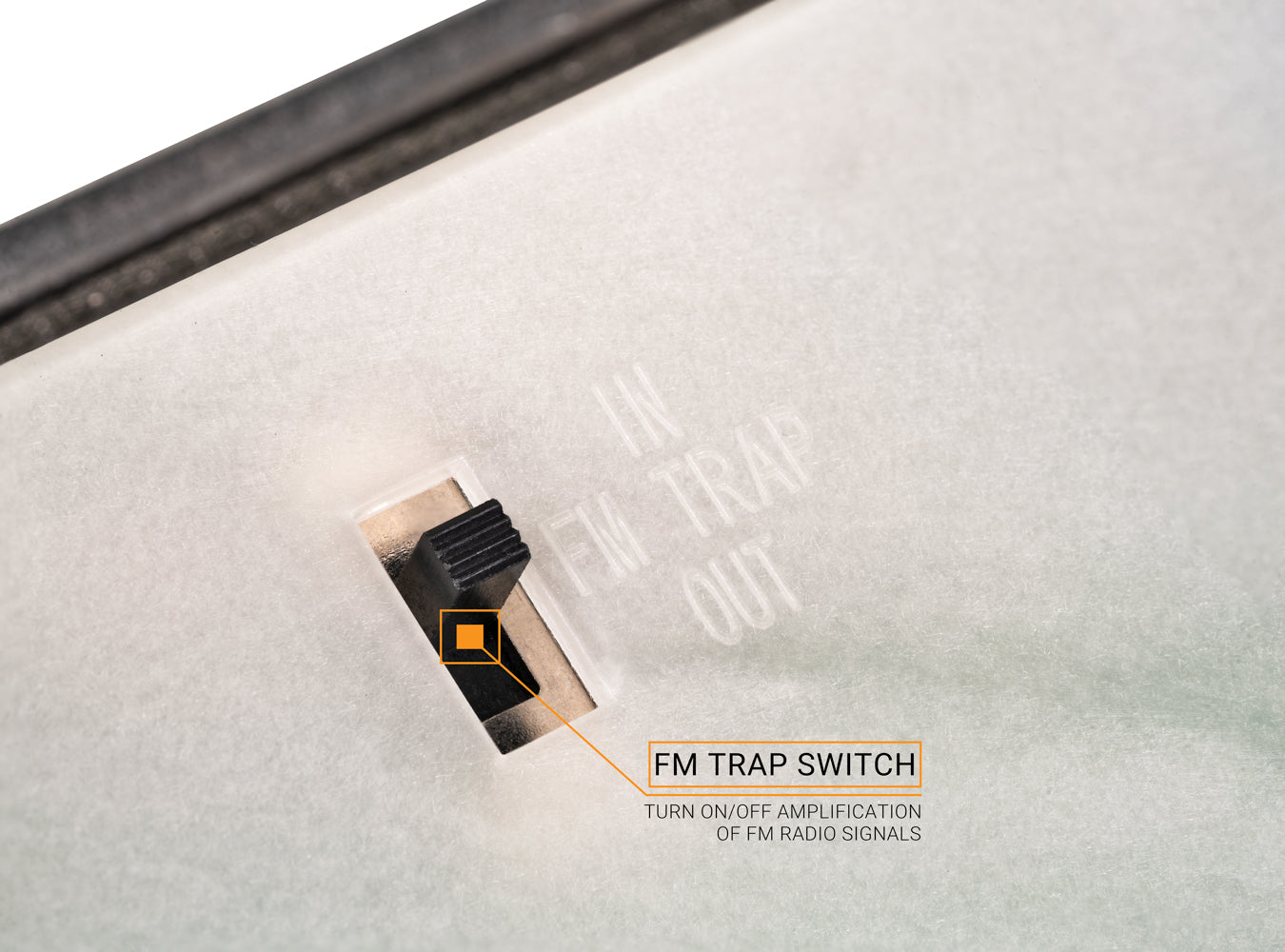

Selectable FM Signal Pass-Through

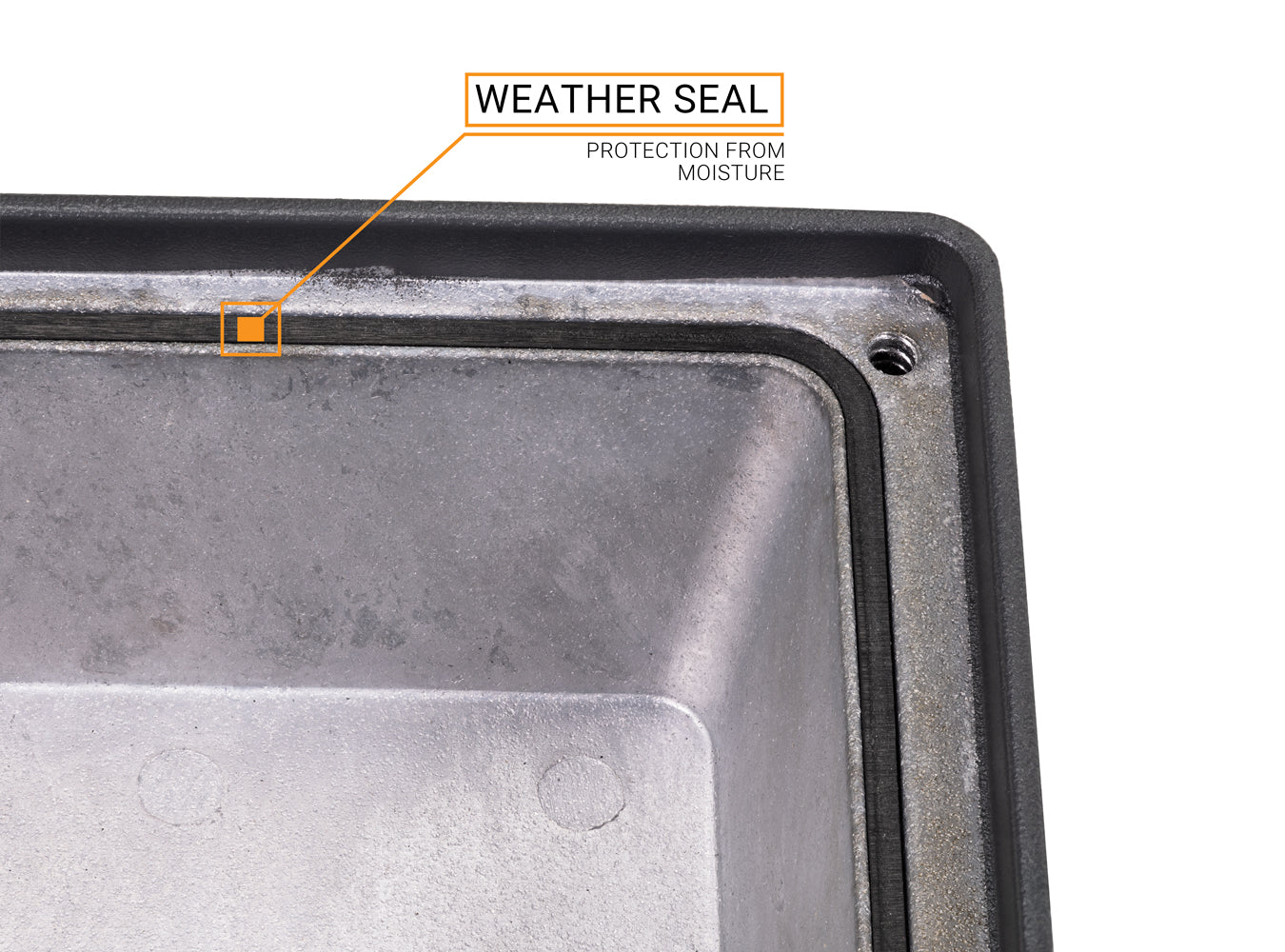

Heavy-Duty Rating for Outdoor Use
Mast Mounted for Close Proximity to Antenna
Tech Specs
Power Supply Input Voltage
110-240v, AC ~ 50/60Hz, 200mA (Max)
Power Supply Output Voltage
+13.2v DC, 500mA, 6.6W (Max)
Impedance (Input and Output)
75 Ohm
Connector
F-Type
Frequency Range
54 - 700 MHz
Gain
16dB
Noise Figure
Typically Less than 2dB
UL Listed
Yes
RoHS Compliant
Yes
Input Return Loss
<-15
Output Return Loss
<-15
Max Input Level
34 dBmV
Max Output Level
50 dBmV
FM Trap
88-108 MHz; >15dB Down
Power Consumption
<5W
Operating Temperature
-40 C to 60 C
Size (Product)
5.375 x 3.5 x 3.0 in
Size (Packaging)
6.5 x 5.75 x 3.5 in
Weight (Product)
12 oz
Weight (Packaging)
2 lb
U-Bolt Diameter (Included)
1.875 in
