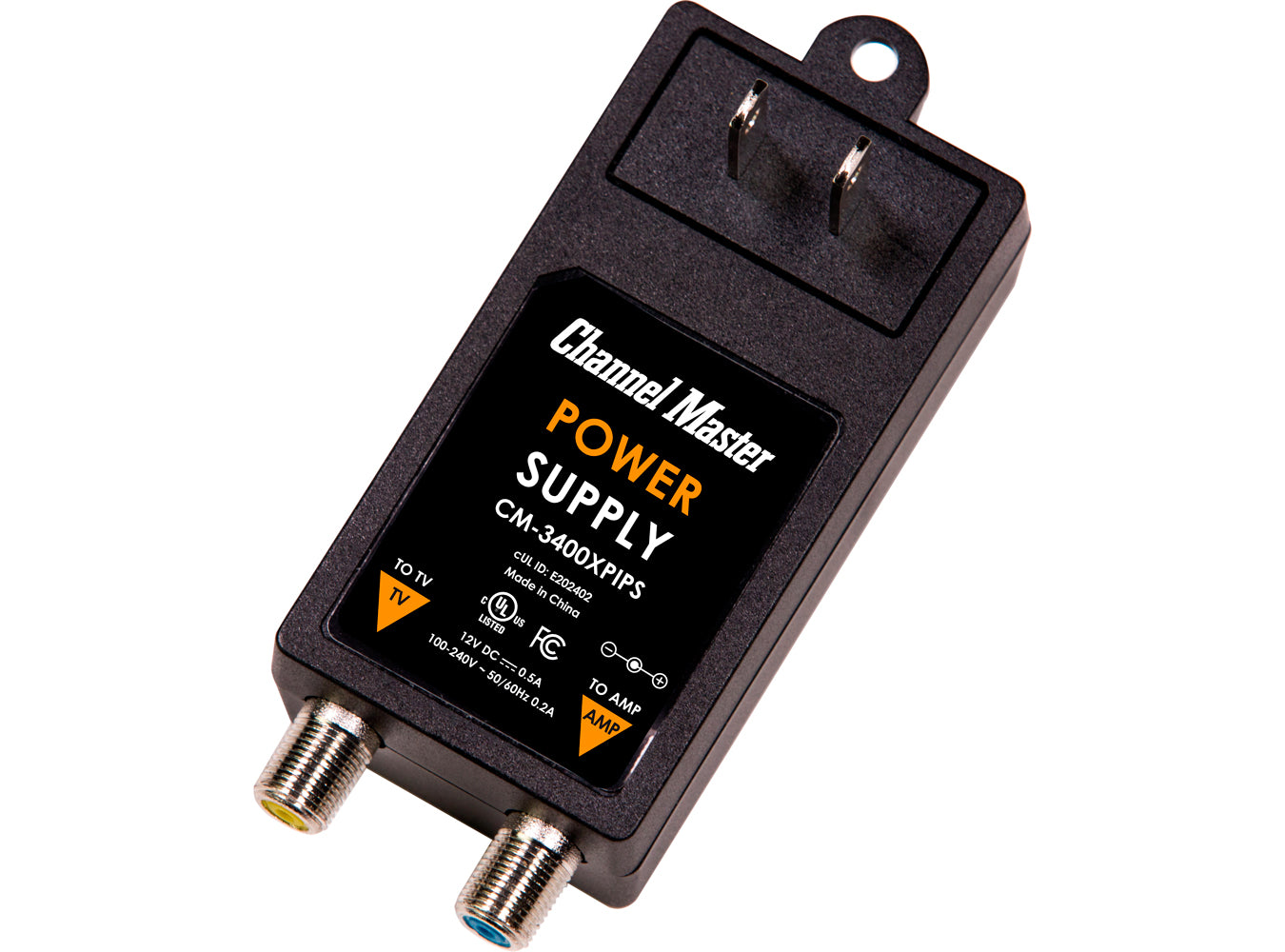

Power Over Coax Adapter

The Power Over Coax Adapter enables Channel Master Distribution Amplifiers to be located in a central location while being powered over coaxial cable from a television located in another location in the home. The Power Over Coax Adapter is compatible with these Channel Master Amplifier Models: CM-3422, CM-3424, CM-3428, CM-3410, CM-3412, CM-3414, CM-3418.

NOT COMPATIBLE WITH MODEL CM-7777HD(Amplify) and CM-7779HD (PreAmp1). This product is not required for Channel Master Pre-Amplifiers, all Channel Master Pre-Amplifiers Include a Power inserter and Power Adapter.

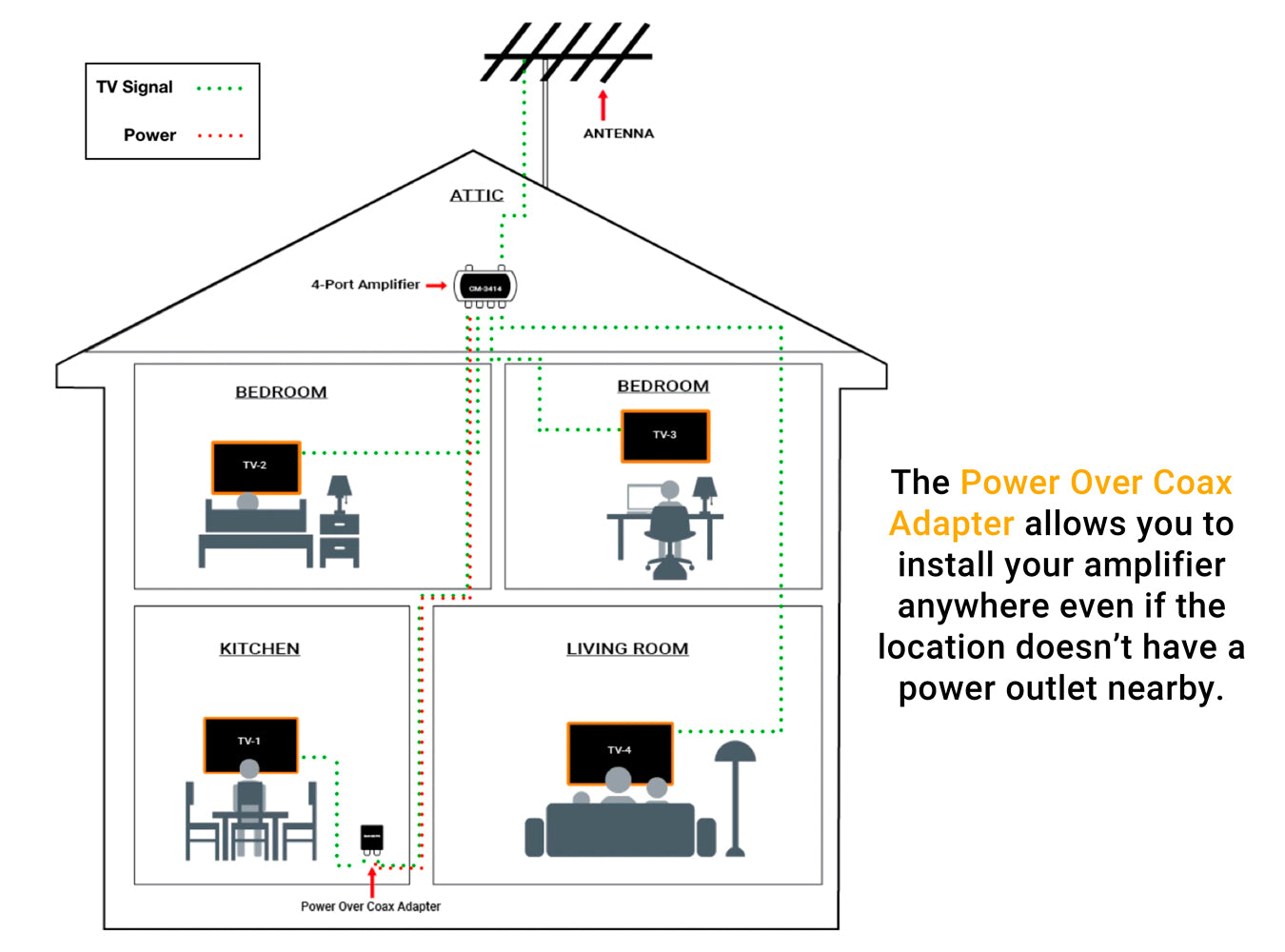

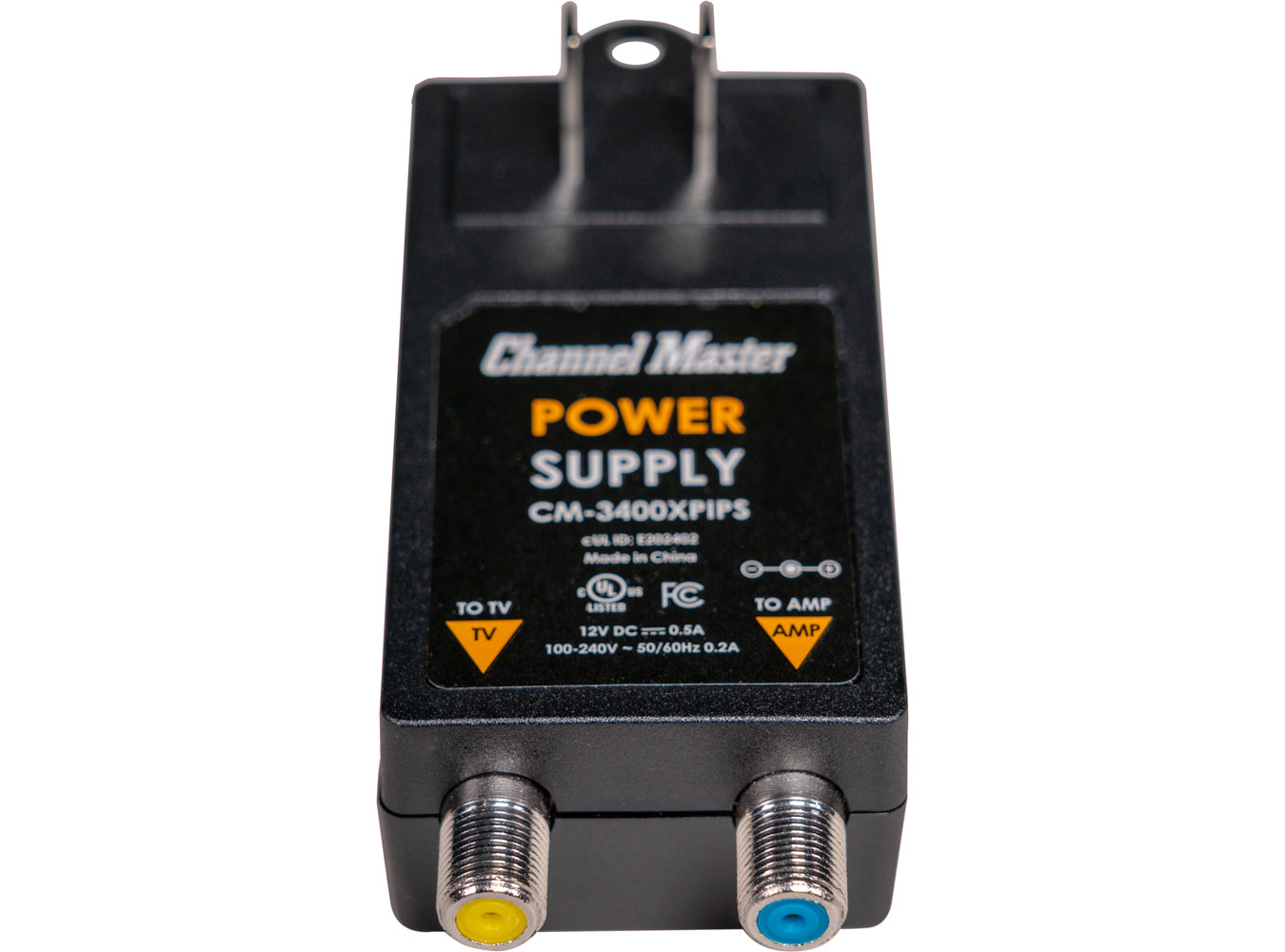

The Channel Master Power Over Coax Adapter can help reduce the complexity of many types of signal amplifier installations by allowing the user to install the amplifier in a central location in the home where a power outlet is not available. The Power Over Coax Adapter can be useful when the user/installer wants to install an amplifier on the side of the home or in an attic where there is no power outlet present. By using the Power Over Coax Adapter, the amplifier can be installed in either one of those locations and be powered from a TV location in another room or location in the home that is wired with coaxial cable to one of the outputs on the amplifier. The Power Over Coax Adapter simply plugs into an available power outlet and power is fed back to the amplifier over the connected coaxial cable while still allowing for TV signals to pass over the same coaxial cable. There are two coaxial ports on the Power Over Coax Adapter, one port should be connected to the amplifier and will send power to the amplifier while receiving the TV signals, the other port is designed to pass the video signal on to a television or receiver. The Power Over Coax Adapter is compatible with Channel Master Ultra Mini Amplifiers and can also be used as an all-in-one replacement for the separate power adapter and power inserter that is included with certain Channel Master Pre-Amplifiers.

Compatible Models: (Ultra Mini Distribution Amplifiers: CM-3422, CM-3424, CM-3428, CM-3410, CM-3412, CM-3418) (Pre-Amplifiers: CM-7777, CM-7778, CM-7777v3, CM-7778v3, CM-7778HD). The Channel Master Power Over Coax Adapter may also work with other brand amplifiers that use 12v DC or for customer applications where the user wants to send 12v DC over standard coaxial cable.
