METROtenna 40

METROtenna 40

Multi-directional (180-degree range) outdoor TV antenna up to 40 miles

About This Item

CM-4220HD
  • Superior Reception Range: Captures signals up to 40 miles away, ensuring you get the best quality TV broadcasts.
  • High VHF and UHF Performance: Optimized for receiving both high VHF and UHF signals for comprehensive coverage.

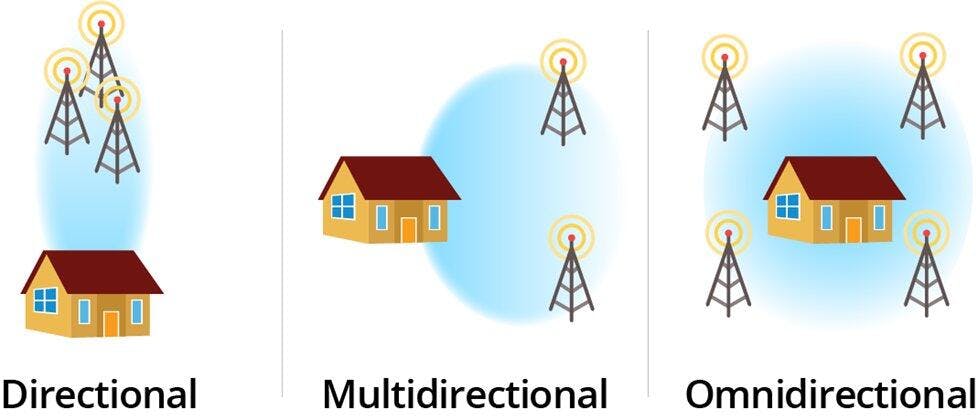

  • Wide Beam Width: Multi-directional design with a 180° reception range, allowing it to receive signals from multiple broadcast towers simultaneously.
  • Built-In Reflectors: Enhances signal strength and reduces interference for more reliable reception.
  • High Definition Clarity: Receives digital HDTV signals for crystal-clear picture quality from major networks like CBS, FOX, ABC, NBC, PBS, Univision, and Telemundo.
  • Built to Last: Constructed from durable materials to withstand extreme weather and high winds, offering long-term reliability.
  • Easy Installation: Includes mounting hardware and a step-by-step guide. (Mast and Wall-Mount Not Included)
  • Future-Ready: Supports ATSC 3.0 and 4K broadcasts, ensuring compatibility with upcoming broadcast standards.
Regular price $59.00
Regular price Sale price $59.00
Sale Sold out
View full details

Product Information

Overview

The METROtenna is a 2-bay, phased array, multi-directional outdoor antenna that receives high definition and digital signals from a span of 180 degrees. This antenna has a reception range of up to 40 miles.

Short range multi-directional (180-degree range) outdoor antenna up to 40 miles.

Specifications

What’s Included
METROtenna (Mast, Amplifier and Coax Cable Not Included), Mounting Brace, U-Bolt with Bracket, Installation Guide
Warranty
1-Year
Bandwidth
174 to 216 and 470 to 700 MHz
VHF Gain
2.5dB
UHF Gain
8dB
Front to Back Ratio
12dB
Impedance
75 Ohm
Boom Length
N/A
Number of Elements
4
Max Element Width
8"
Mounting Clamp
U bolt up to 2"
Turning Radius
1' ft.
Output Connector
F-type
Size (product)
25" x 14" x 5"
Weight (product)
3 lb
Wind Resistance
(at 100 mph, no ice) – 19 lb


Customer Reviews

Based on 22 reviews
86%
(19)
9%
(2)
5%
(1)
0%
(0)
0%
(0)
A
Aaron and Sharon
Quality Equipment

I enjoy toying with this equipment. I was familiar with Channel Master in the 1980s due to a relative being a certified technician. I enjoy experimenting with how distant signal receptions can be picked up. At first I added a cheap indoor antenna from Amazon that picked up maybe 10 channels, most with interference, disappointing. Got what we paid for. Afterwards, I purchased a Channel Master Metroantenna 40 mile range (Amazon dp/B000XSAW9S), installed in the attic at about 30' off ground, picked up 23-26 channels, most with solid reception. Added a Channel Master Titan 2 Medium Gain PreAmp. The channel count increased to 33 with mostly solid reception on initial scan. By scanning for more channels, eventually the collective count rose to a total of 92 channels stored in my guide (most channels of course were detected and would play for a short time but dropped out after a short time. Sometimes on a stormy night the antenna was detecting signals up to 150 miles away! i.e., Coastal NC to Raleigh, NC, and Charleston, SC, 130 miles away. Two stations in nearby Wilmington, NC eluded us with the attic installation; a low power station, Channel 10 and Channel 49, in spite of adding a LTE filter by Channel Master. In the past week, we moved the 40 mile range antenna outdoors, installing the antenna on a 30 ft mast. It was difficult since my son had to do the install without assistance. For the first 5 days the reception was not performing as expected. I was very disappointed. Two nights ago, during a late night scan the antenna with amplifier picked up WSOC, 172 miles away, all the way in Charlotte, NC! At that point I knew the antenna and amplifier had likely not been damaged during installation, but since I had never seen transmitters from Charlotte, NC in past signal detection... we must not have the multidirectional antenna aligned properly. Just last night, with some tweaking of the direction the antenna is pointed, we are now getting around 50 channels, most of them with solid reception. Channel 10 is now coming in crystal clear for the first time, as is Channel 49. Some groups of channels will come through at night (i.e., my favorite is WPDE 15-4 (transmitter based in Mullins, SC, 60 miles away) the "Weather Authority" with 24/7 weather reports for coastal weather. Rating given to Channel Master equipment: 5 stars/ A+

P
Pawel
Metrotenna 40

I am about 20 to 30 miles from towers, perfect reception in my attic on about 40 or so channels. No need for preamp or amplified splitter. Easy to put up and well made.

T
Tim M
Great reception

Worked perfectly just under the peak of the gable end of my house, angled about 30 degrees of straight, to towers 8 miles away. Perfect reception when combined with the OBTV filter.

R
Robert Freel
Metrotenna Review

Although the Channel Master Flatenna did a great job with 36 of 42 local stations, the Channel Master Metrotenna now allows me to watch all 42 local stations without any fading in and out. It is a great antenna. Wish I had purchased it much sooner.

R
Rick McPherson
Great little antenna

I needed an extra antenna since I had too much coax and way too many splitters on my main antenna to operate my OTA recorder properly. I added this one on a mast, set direction and it's perfect. I get a 100% signal.
