Indoor Antenna Booster

Indoor Antenna Booster

Antenna Booster for indoor TV antennas, boosts antenna signal up to 30dB with three different fine tuning modes.

About This Item

CM-3421

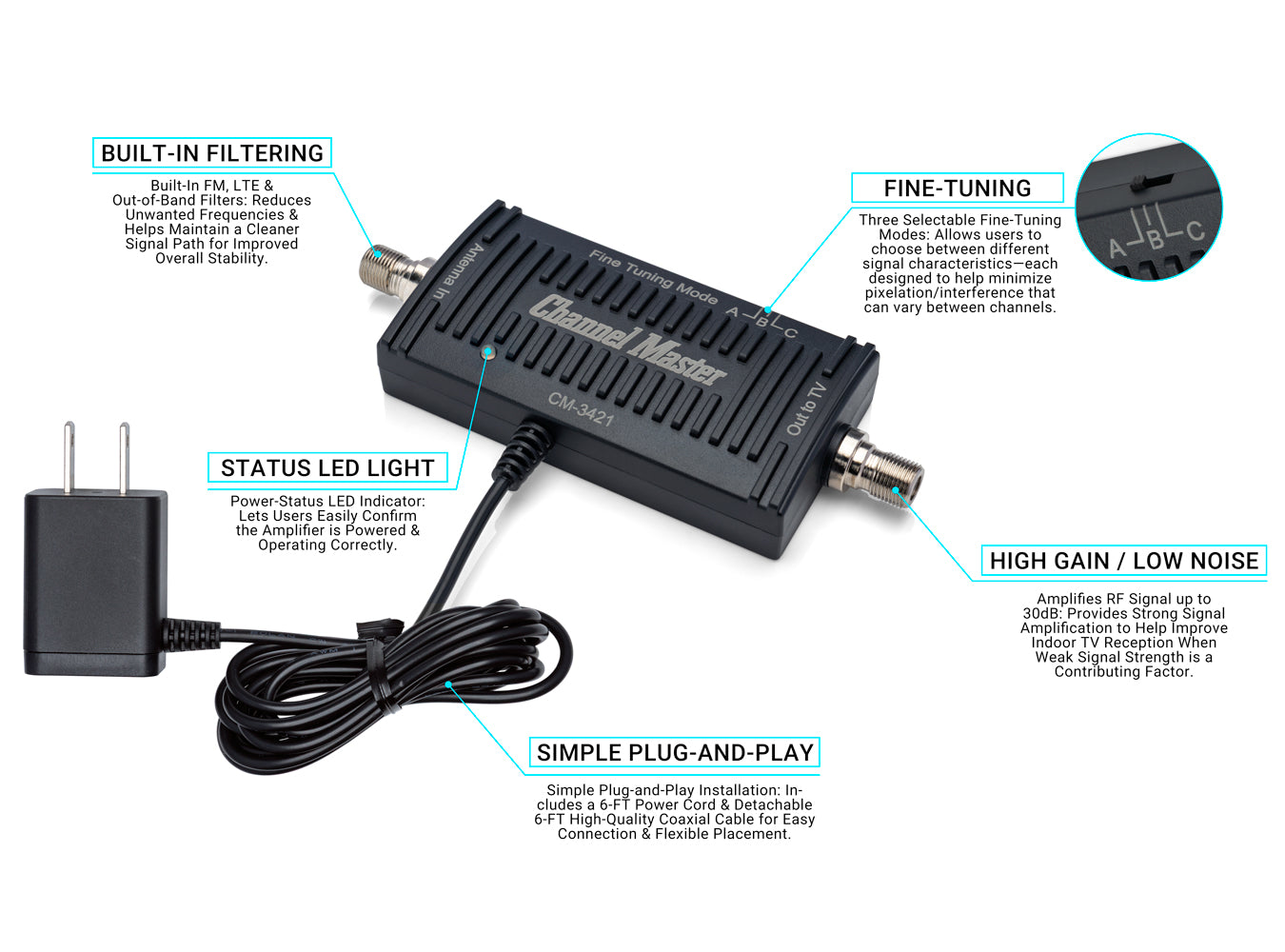

  • Amplifies RF Signal up to 30 dB: Provides strong signal amplification to help improve indoor TV reception when weak signal strength is a contributing factor.

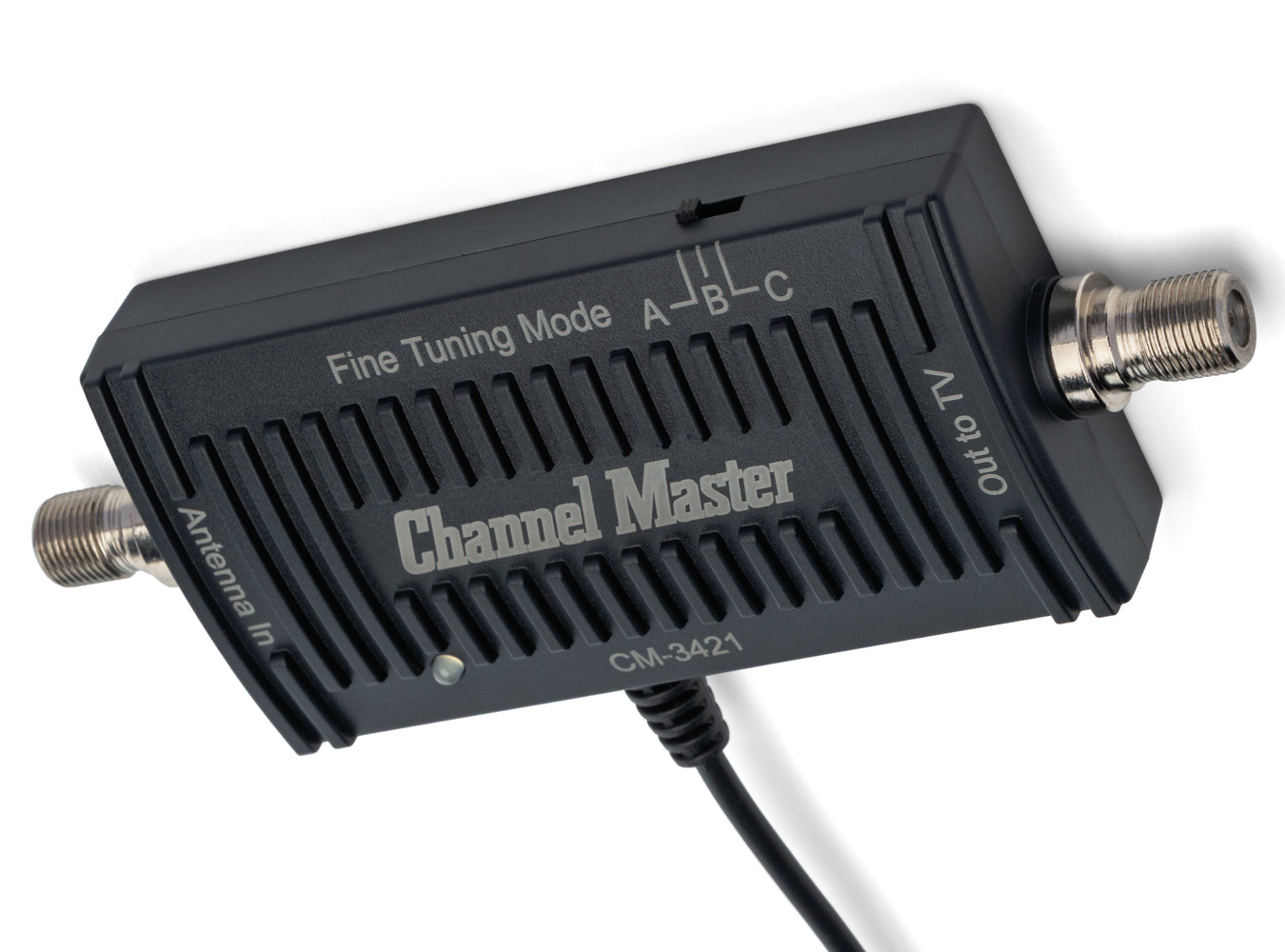

  • Three Selectable Fine-Tuning Modes: Allows users to choose between different signal characteristics, each designed to help minimize pixelation or interference that can vary between channels.
  • Built-In FM, LTE & Out-of-Band Filters: Reduces unwanted frequencies and helps maintain a cleaner signal path for improved overall stability.
  • Ultra-Low Noise Figure: Amplifies signals cleanly with minimal added noise, supporting more consistent digital reception.
  • Power-Status LED Indicator: Lets users easily confirm the amplifier is powered and operating correctly.
  • Simple Plug-and-Play Installation: Includes a 6-foot power cord and detachable 6-foot high-quality coaxial cable for easy connection and flexible placement.
  • Optimized for Channel Master Indoor Antennas: Works seamlessly with all Channel Master indoor models, including the Channel Master FLATenna, while also compatible with most passive indoor antennas.
$39.00
$39.00
Sale Sold out
View full details

Product Information

Overview

The Channel Master Indoor Antenna Booster is a professional-grade signal amplifier engineered to enhance the performance of indoor TV antennas by boosting RF signal strength up to 30 dB.  It features an integrated three-mode fine-tuning mechanism that allows users to select between different signal characteristics to help improve reception on certain channels.  Because over-the-air broadcast signals vary in direction, frequency, and strength, the tuning mode that benefits one channel may differ from the mode that helps another. This flexibility allows users to experiment and find the setting that delivers the most stable reception across their local channels, helping to reduce pixelation and minimize interference caused by a poor signal-to-noise ratio.

Designed and built with Channel Master’s decades of broadcast expertise, the Indoor Antenna Booster includes FM, LTE, and Out-of-Band filters to prevent unwanted frequencies from being amplified, maintaining a cleaner and more stable RF environment for digital television reception.  Its ultra-low noise figure ensures the signal is amplified cleanly, supporting more reliable tuning and reducing the likelihood of intermittent reception issues.

The Booster includes a built-in power-status LED indicator for easy confirmation that the unit is powered and functioning.  It comes with an integrated 6-foot power cord and a detachable high-quality 6-foot coaxial cable for convenient installation.  Optimized for use with all Channel Master indoor antennas including the Channel Master FLATenna, this amplifier delivers consistent, dependable performance and helps stabilize digital TV reception, backed by Channel Master’s trusted engineering since 1949.

Specifications

Amplifier Type
Indoor RF signal amplifier for passive (non-amplified) TV antennas
Amplification Gain
Up To 30 dB
Fine-Tuning Modes
Three selectable modes for optimizing reception across varying channels and frequencies
Noise Figure
Ultra-low (typically ≤ 2 dB)
Built-In Filters
FM, LTE (4G/5G), and Out-of-Band interference filters
Power Indicator
Integrated LED confirms amplifier power status
Power Supply

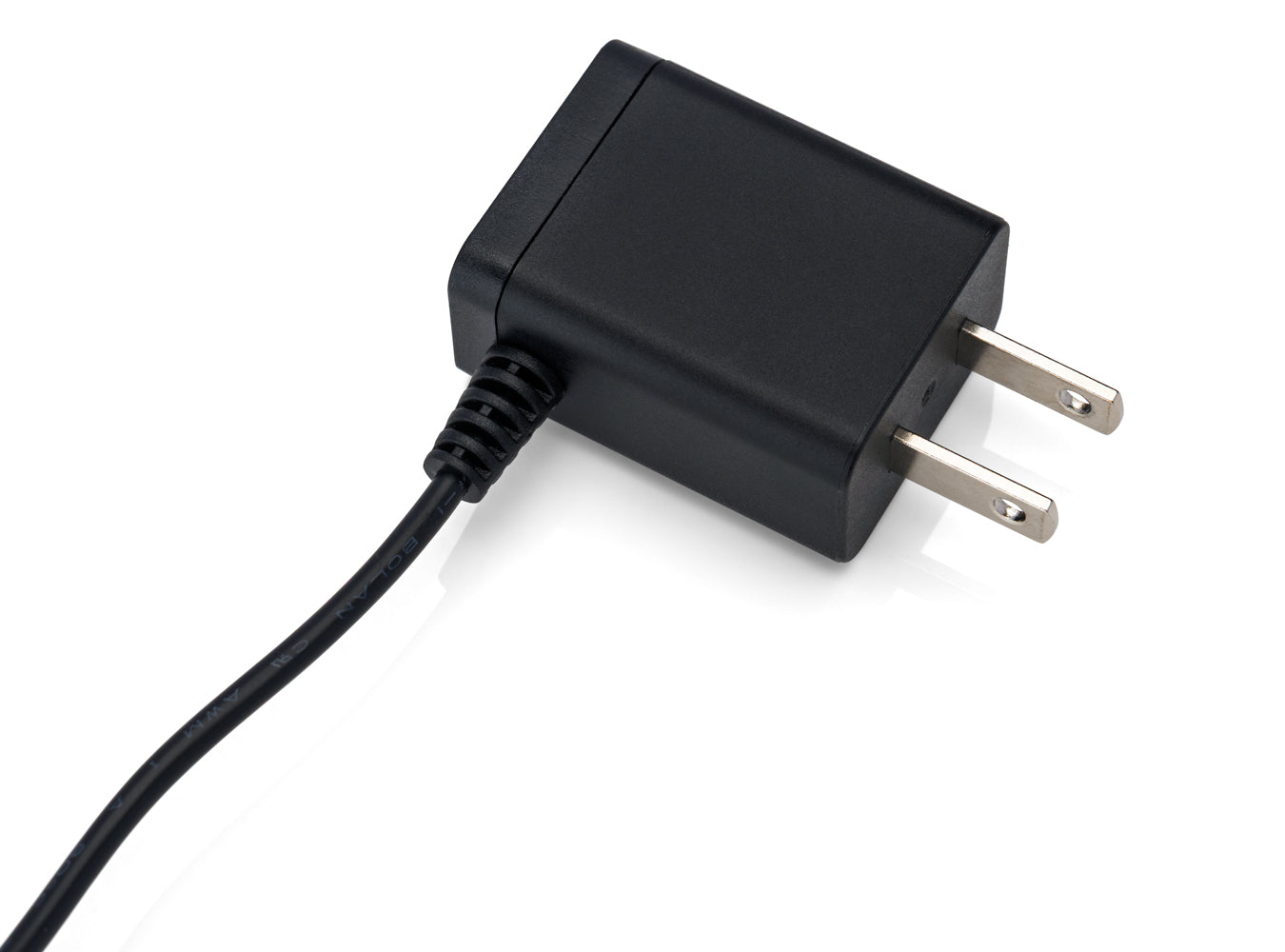

Integrated 120 V AC adapter with 6 ft (1.8 m) power cord
Input/Output Connectors
Standard 75 Ω F-type female
Included Coaxial Cable
6 ft (1.8 m) high-quality RG-6 cable
Compatibility
Designed for all Channel Master indoor antennas including FLATenna; compatible with most other passive indoor TV antennas
Operating Frequency Range
54 – 698 MHz (VHF + UHF)
Dimensions (Approx.)
5 in L × 1.75 in W × 0.75 in H
Weight
0.25 lb (0.11 kg)
Warranty
1 Year
