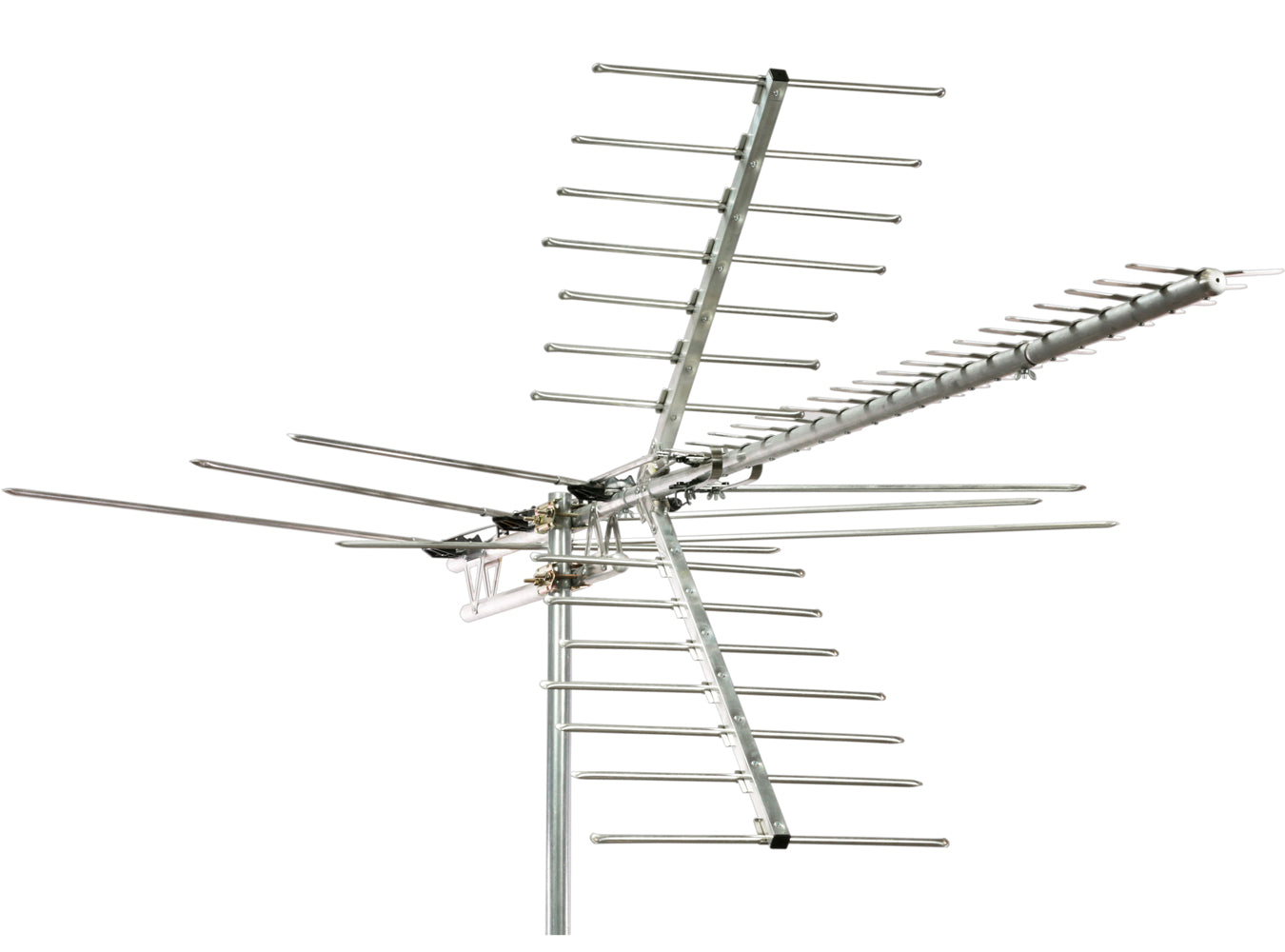

• Channel Master Digital Advantage 100, Part Number: CM-2020

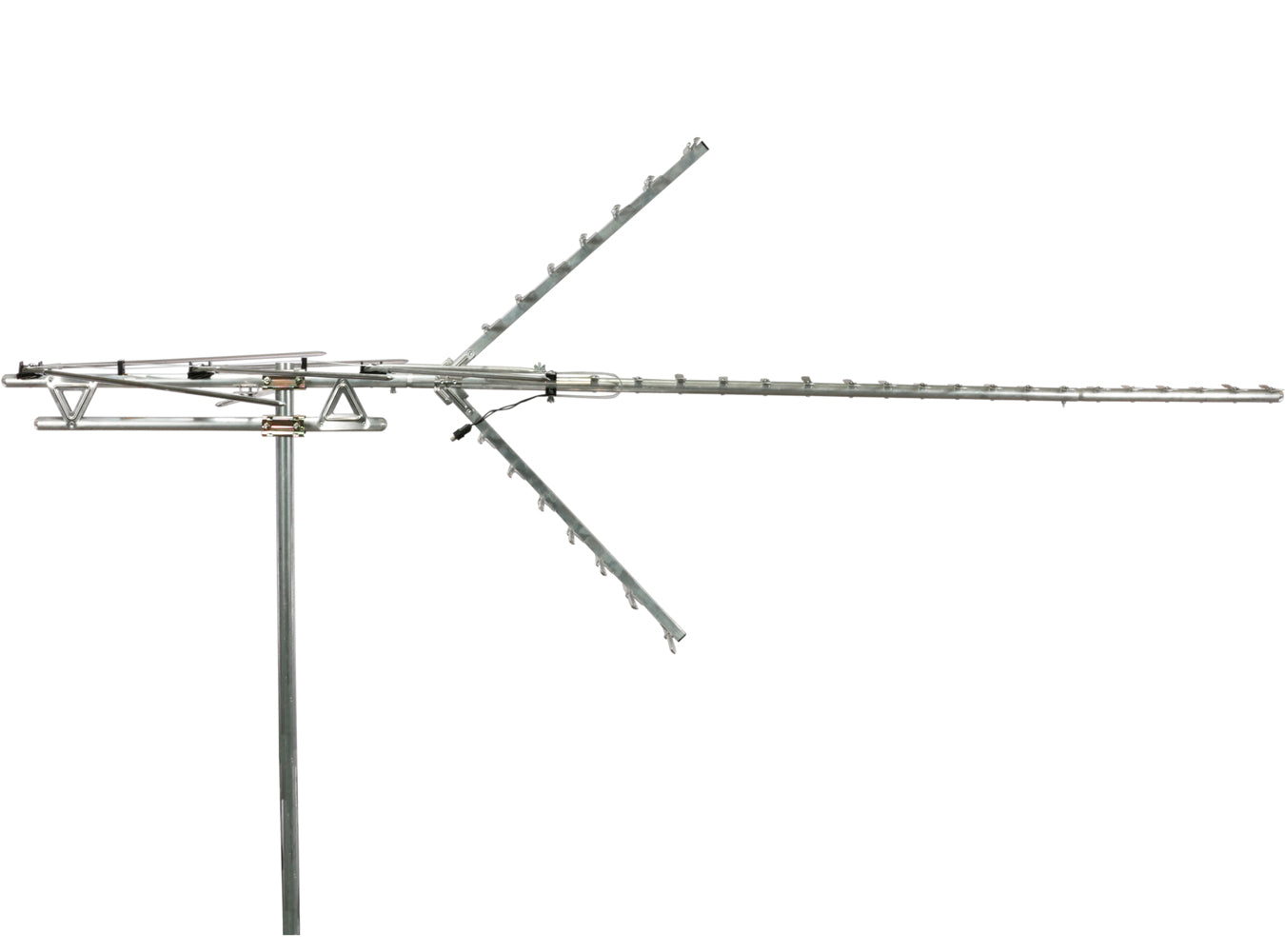

  • Channel Master Digital Advantage 100 Side, Part Number: CM-2020

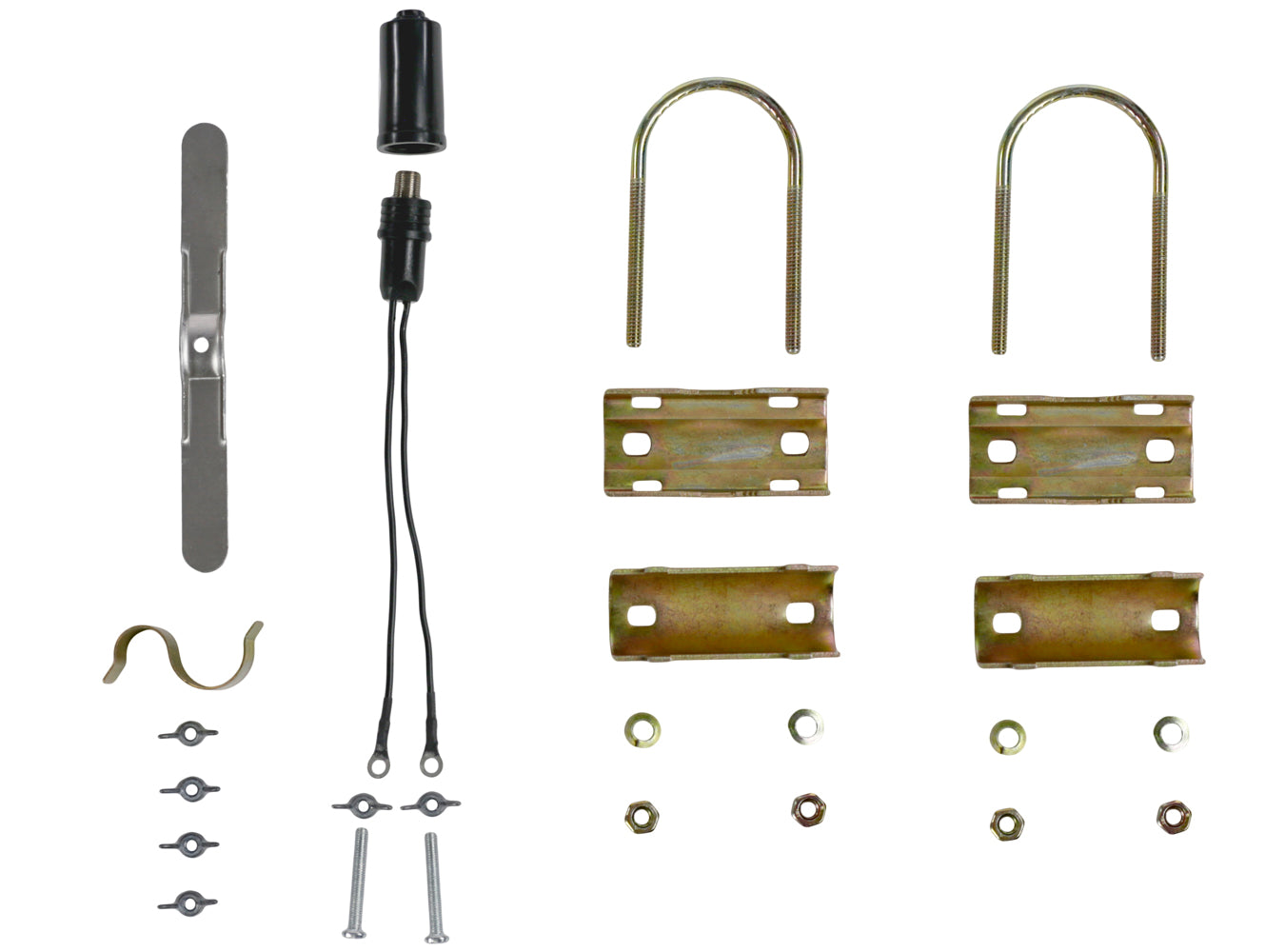

  • Channel Master Digital Advantage 100 Hardware, Part Number: CM-2020

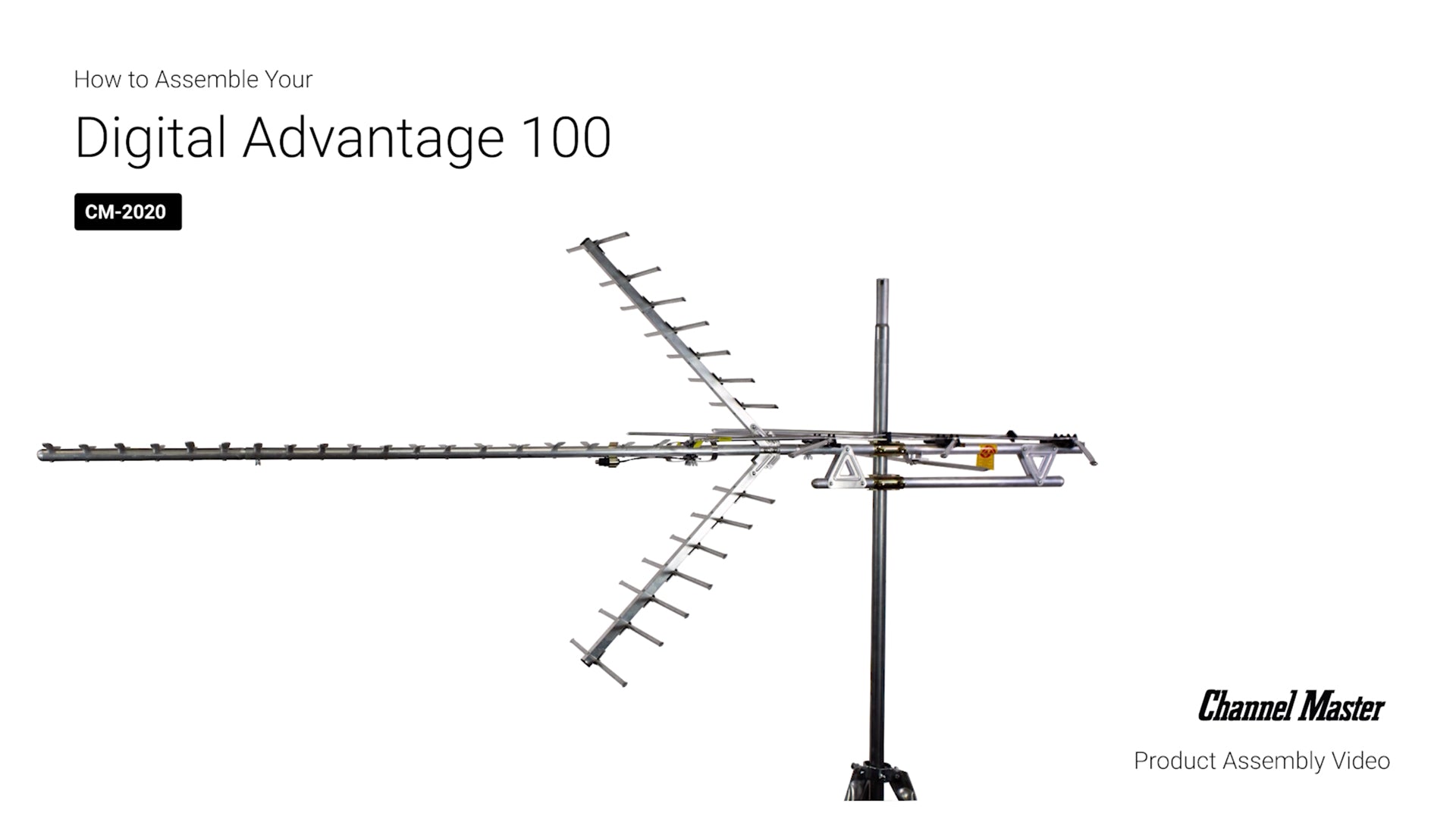

  • Channel Master Digital Advantage 100 Video, Part Number: CM-2020
1 5

Digital Advantage 100

Digital Advantage 100

Long range directional (line of sight) outdoor TV antenna up to 100 miles

About This Item

CM-2020
  • Superior Reception Range: Captures signals up to 100 miles away, ensuring you get the best quality TV broadcasts.
  • High Definition Clarity: Receives digital HDTV signals for crystal-clear picture quality from major networks like CBS, FOX, ABC, NBC, PBS, Univision, and Telemundo.
  • Enhanced Signal Strength: High gain performance ensures reliable reception even in challenging conditions.
  • Built to Last: Constructed from durable materials to withstand extreme weather and high winds, offering long-term reliability.
  • Easy Installation: Includes mounting hardware and a step-by-step guide. (Mast and Wall-Mount Not Included)
  • Future-Ready: Supports ATSC 3.0 and 4K broadcasts, ensuring compatibility with upcoming broadcast standards.
  • Trusted Brand: Manufactured by Channel Master, a trusted name in antennas since 1949, providing top-notch warranty and support.

Style: Digital Advantage 100

45 Miles 60 Miles 100 Miles
$119.00
$119.00
Sale Sold out
View full details

Product Information

Overview

The Digital Advantage 100 is a directional (yagi), line-of-sight outdoor TV antenna that receives high definition and digital signals from a single direction and is optimized for high VHF and UHF signals. This antenna has a reception range of up to 100 miles.

Long range directional (line of sight) outdoor TV antenna up to 100 miles.

Specifications

What's Included
Digital Advantage 100, Hardware (Mast, Amplifier and Coax Cable Not Included), Installation Guide
Warranty
1-yr Limited Warranty
Bandwidth
174 to 216 and 470 to 700 MHz
VHF Gain
7.5 dB
UHF Gain
10 dB
Front to Back Ratio
14 dB
Impedance
300 Ohm (75 Ohm balun included)

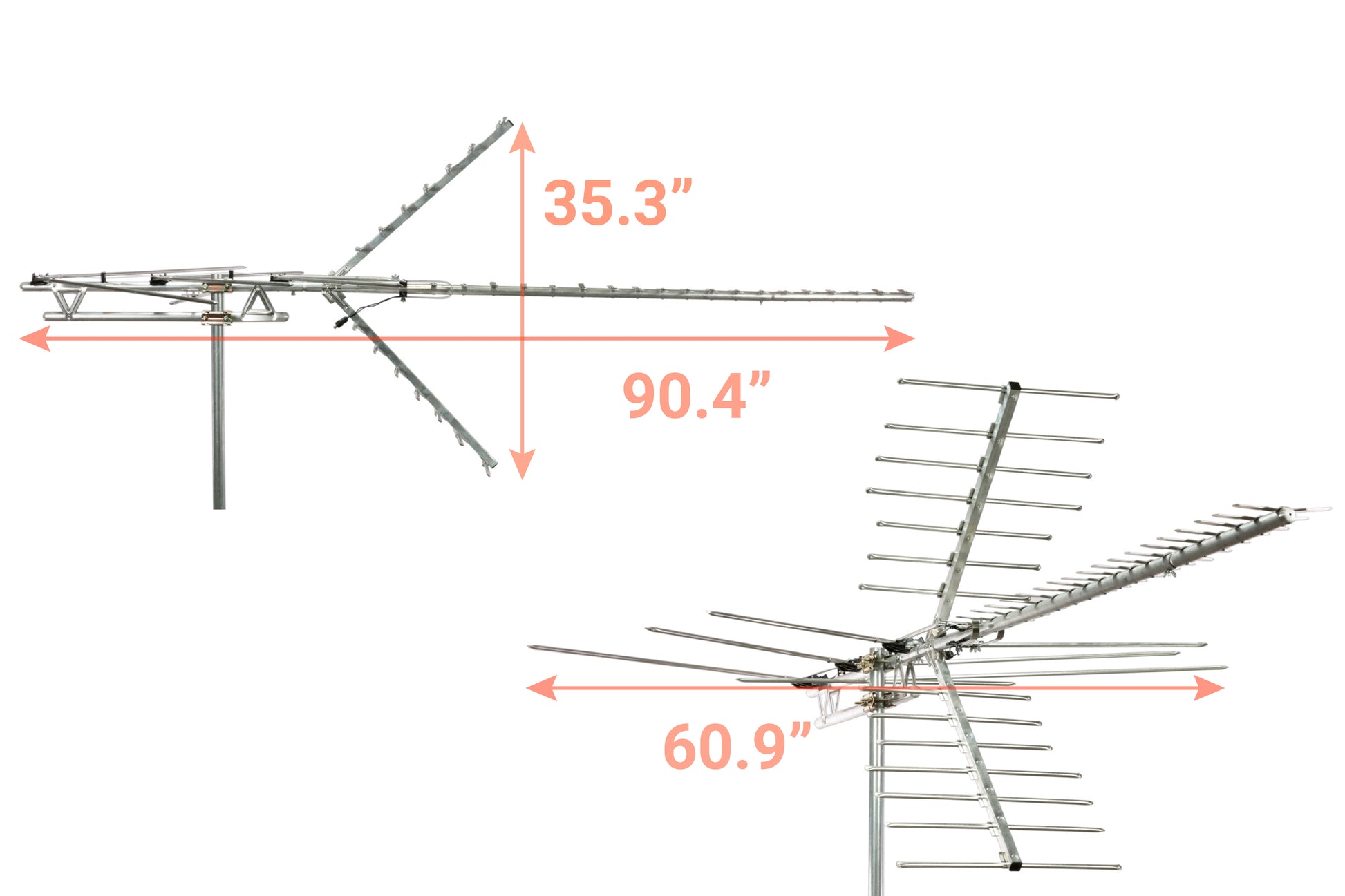

Boom Length
90.5"
Number of Elements
41
Max Element Width
61"
Mounting Clamp
U bolt up to 1.75"
Turning Radius
6'
Output Connector
F-type
Size (product)
90.675" x 60" x 22"
Size (packaging)
50.5" x 7" x 7.5"
Weight (product)
4.5 lb
Weight (packaging)
7.75 lb
Wind Resistance
(at 100 mph, no ice) – 38 lb
