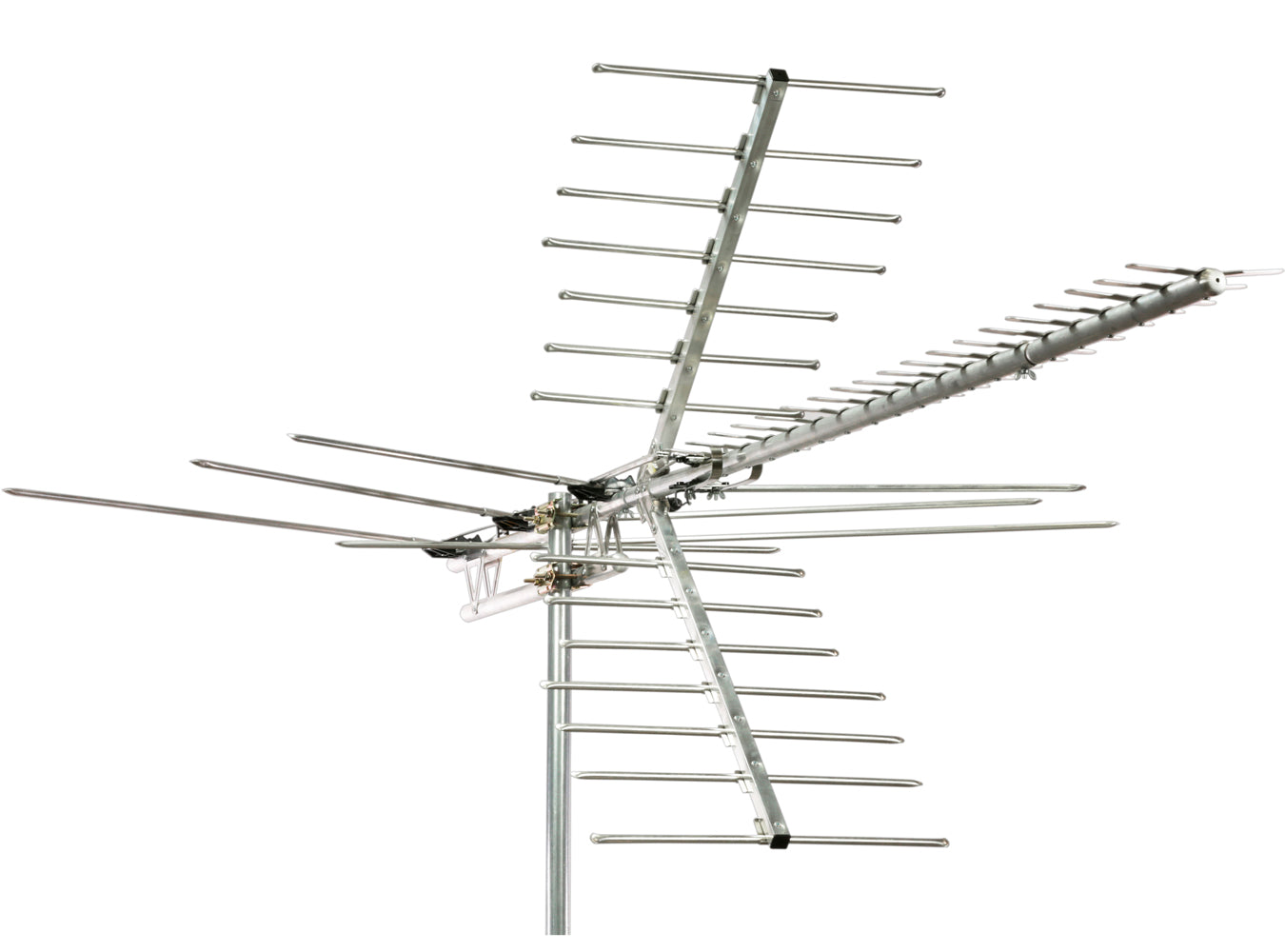

• Channel Master Digital Advantage 100, Part Number: CM-2020

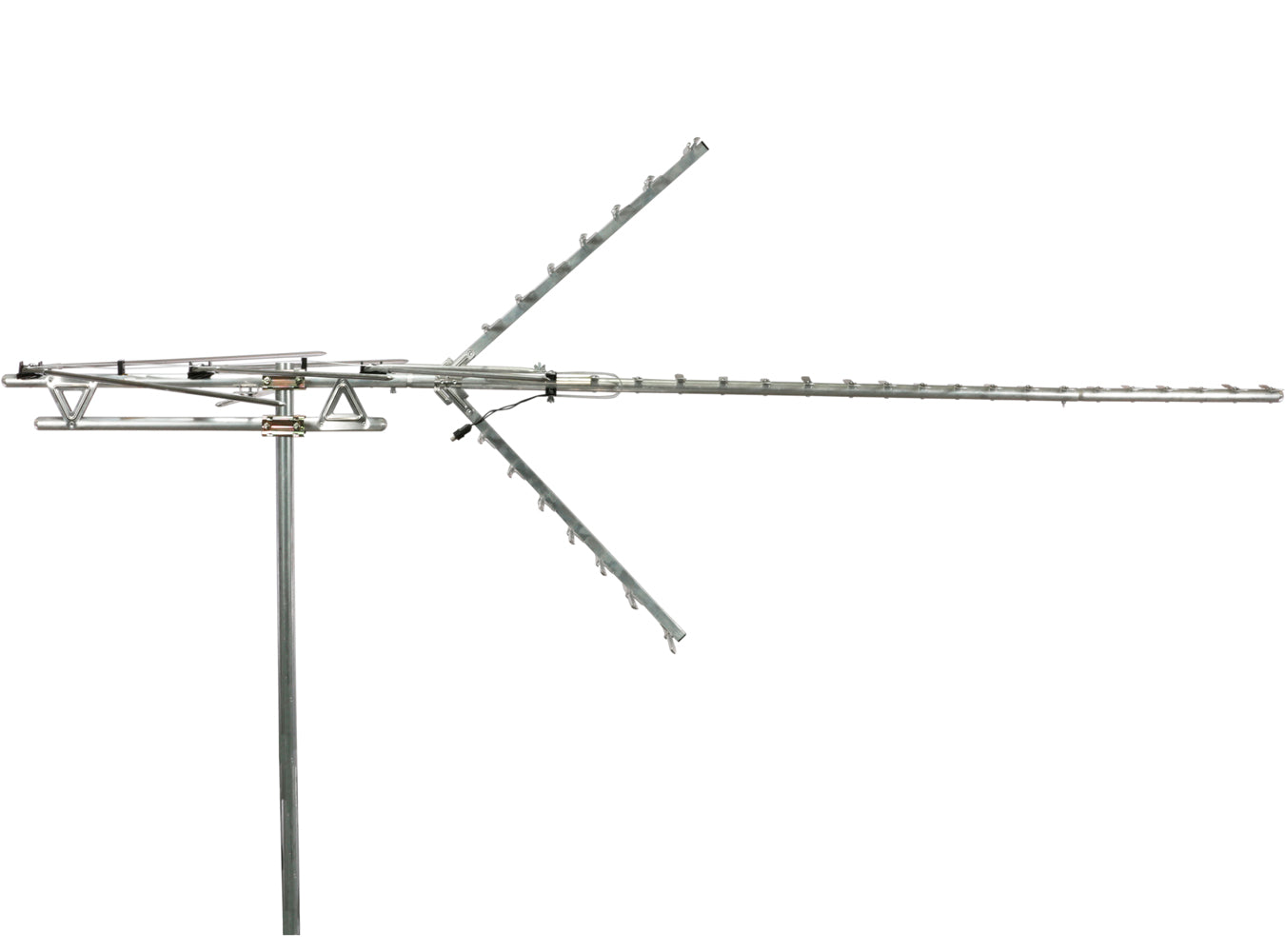

  • Channel Master Digital Advantage 100 Side, Part Number: CM-2020

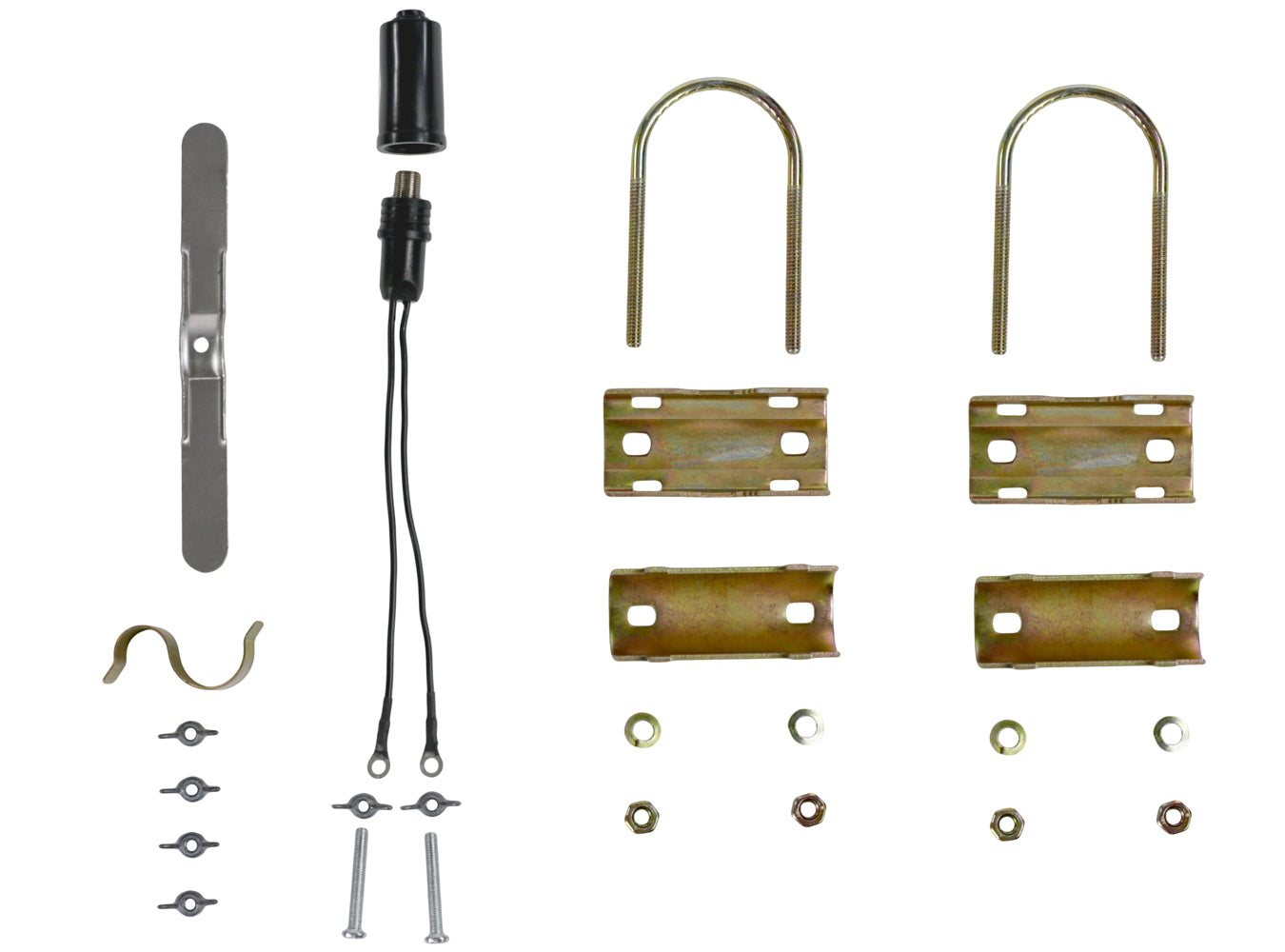

  • Channel Master Digital Advantage 100 Hardware, Part Number: CM-2020

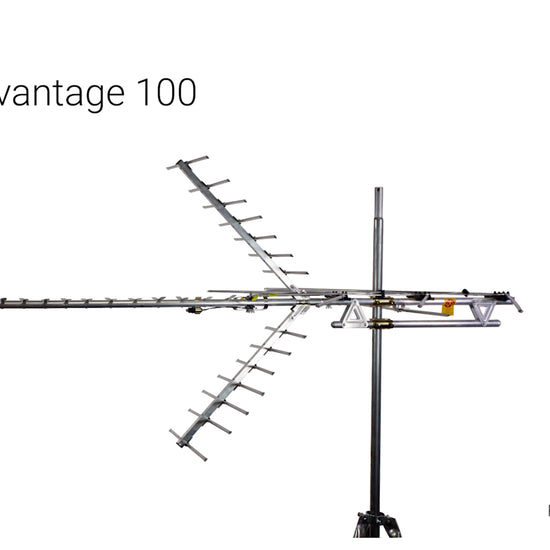

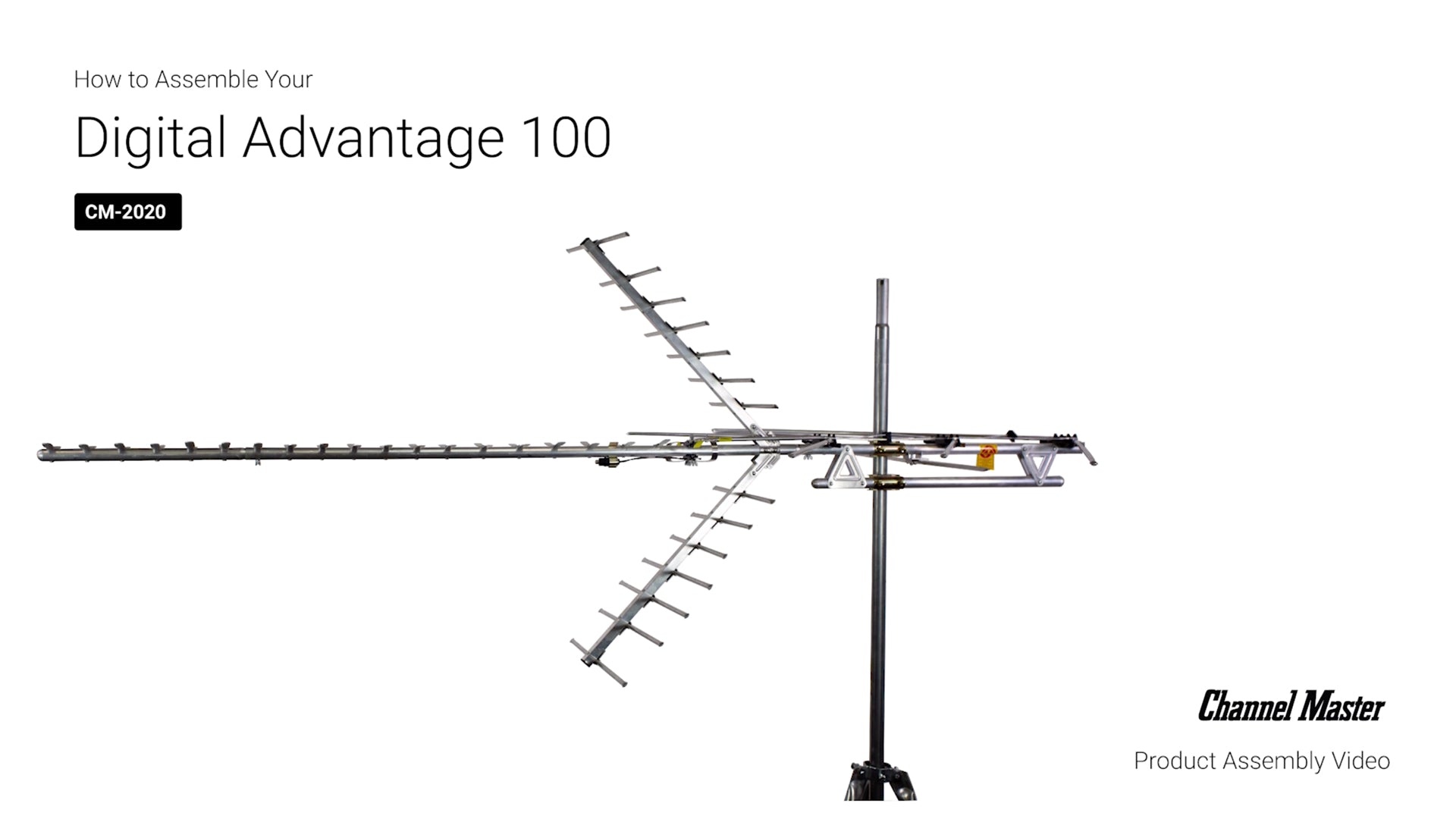

  • Channel Master Digital Advantage 100 Video, Part Number: CM-2020
1 5

Digital Advantage 100

Digital Advantage 100

Long range directional (line of sight) outdoor TV antenna up to 100 miles

About This Item

CM-2020
  • Superior Reception Range: Captures signals up to 100 miles away, ensuring you get the best quality TV broadcasts.
  • High Definition Clarity: Receives digital HDTV signals for crystal-clear picture quality from major networks like CBS, FOX, ABC, NBC, PBS, Univision, and Telemundo.
  • Enhanced Signal Strength: High gain performance ensures reliable reception even in challenging conditions.
  • Built to Last: Constructed from durable materials to withstand extreme weather and high winds, offering long-term reliability.
  • Easy Installation: Includes mounting hardware and a step-by-step guide. (Mast and Wall-Mount Not Included)
  • Future-Ready: Supports ATSC 3.0 and 4K broadcasts, ensuring compatibility with upcoming broadcast standards.
  • Trusted Brand: Manufactured by Channel Master, a trusted name in antennas since 1949, providing top-notch warranty and support.

Style: Digital Advantage 100

45 Miles 60 Miles 100 Miles
$119.00
$119.00
Sale Sold out
View full details

Product Information

Overview

The Digital Advantage 100 is a directional (yagi), line-of-sight outdoor TV antenna that receives high definition and digital signals from a single direction and is optimized for high VHF and UHF signals. This antenna has a reception range of up to 100 miles.

Long range directional (line of sight) outdoor TV antenna up to 100 miles.

Specifications

What's Included
Digital Advantage 100, Hardware (Mast, Amplifier and Coax Cable Not Included), Installation Guide
Warranty
1-yr Limited Warranty
Bandwidth
174 to 216 and 470 to 700 MHz
VHF Gain
7.5 dB
UHF Gain
10 dB
Front to Back Ratio
14 dB
Impedance
300 Ohm (75 Ohm balun included)
Boom Length
90.5"
Number of Elements
41
Max Element Width
61"
Mounting Clamp
U bolt up to 1.75"
Turning Radius
6'
Output Connector
F-type

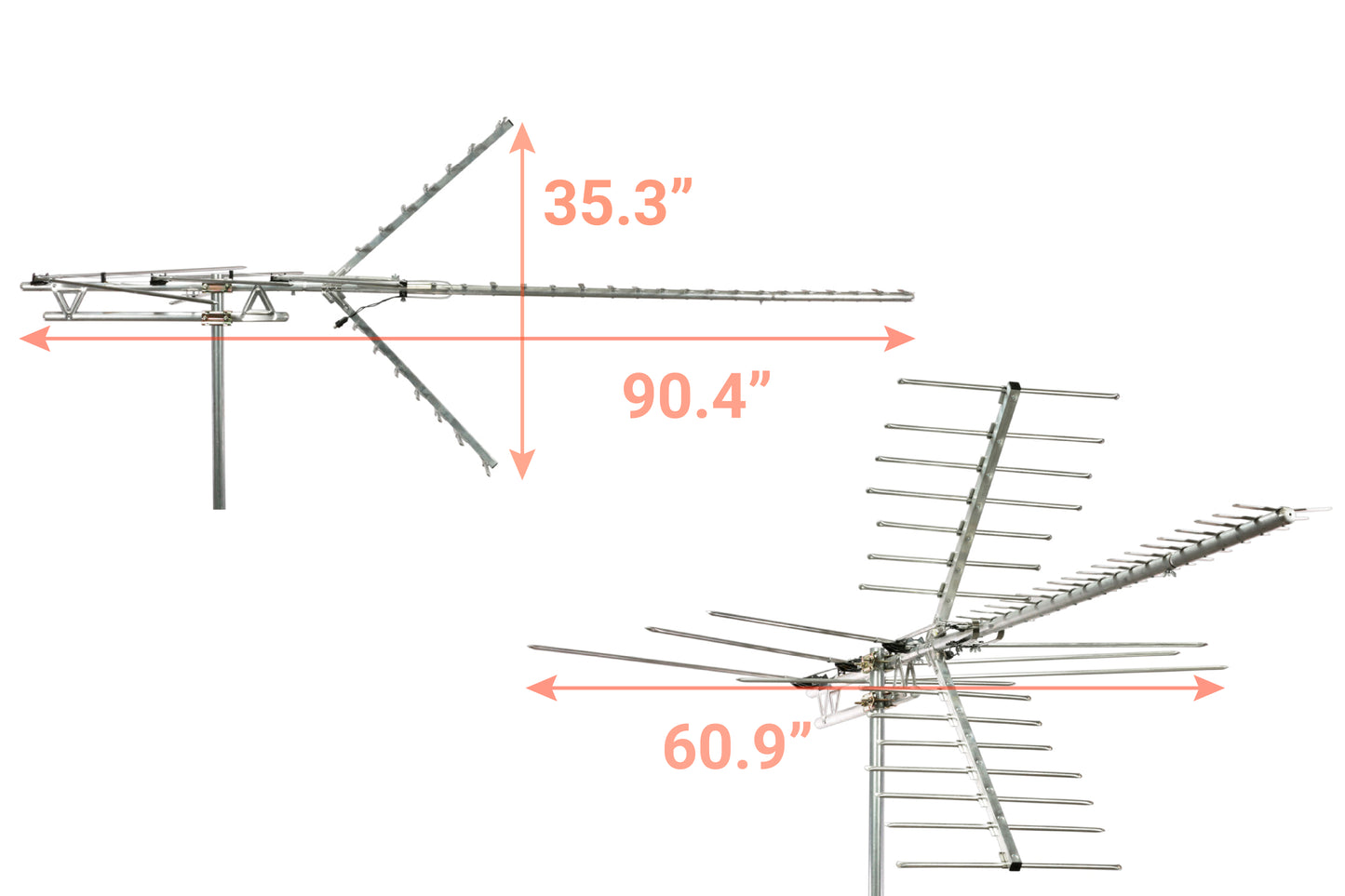

Size (product)
90.675" x 60" x 22"
Size (packaging)
50.5" x 7" x 7.5"
Weight (product)
4.5 lb
Weight (packaging)
7.75 lb
Wind Resistance
(at 100 mph, no ice) – 38 lb


Customer Reviews

Based on 64 reviews
86%
(55)
13%
(8)
2%
(1)
0%
(0)
0%
(0)
P
Paul Marciniak
Impressed With This Antenna

I'm about 80-90 miles from Springfield MO TV towers and I'm getting almost all the stations clearly, 24hrs a day, without a pre-amp. Pretty excellent since the highest I can place this antenna is 15 feet. Being at a little higher altitude than Springfield probably helps. The only network station I cant get most days is CBS KOLR10 which I believe is still high band VHF, and has been operating for years under reduced power per FCC. All other stations are UHF. This antenna can pick up high VHF and I will be installing a pre-amp with gain control just to pick up KOLR10. Added note: I am using a distribution amp for my 2 TVs. I had a problem with one of my TVs not getting consistent good reception. Tuner or coax connector in that TV was the problem, and I solved it by connecting an external digital tuner to the TV AV ports. Assembly of antenna was exceptionally easy. I broke one wing nut during assembly because they seem to be light duty aluminum. I suggest that wings nuts should be replaced with with stainless steel 10-32 wing nuts. Antenna is 99.9% metal and should stand up very well to wind & weather. Amazing fast delivery! Ordered on Tuesday. CM shipped same day. FedEx delivered that Friday ..

J
Jim in Columbia
My Go To Antenna

I have been installing antennas for customers for years and this antenna works like much larger antennas. It is relatively light and only about 7.5 feet long. I come prepared to used a preamp but about 75% of the time it doesn't need one. I travel up to 50 miles for installs and don't want to have to drive back out for reception problems later. This antenna works.

J
J.M.
Great Product

Very pleased with the buying experience and the customer service when I was confused about the tracking feature.

The product arrived in a quick fashion and easy to install. Working great.

E
E.B.
Eddie

Antenna worked great with amplifier. Towers were at 50 to 70 miles installed it on house on the water shot across water for towers on other coast.

s
s.s.
performing as expected, well worth the price,

well worth the price,
