Coaxial Connector Installation Kit
Overview
The Coaxial Connector Installation kit is an all-in-one solution for making professional quality coaxial cable connections.

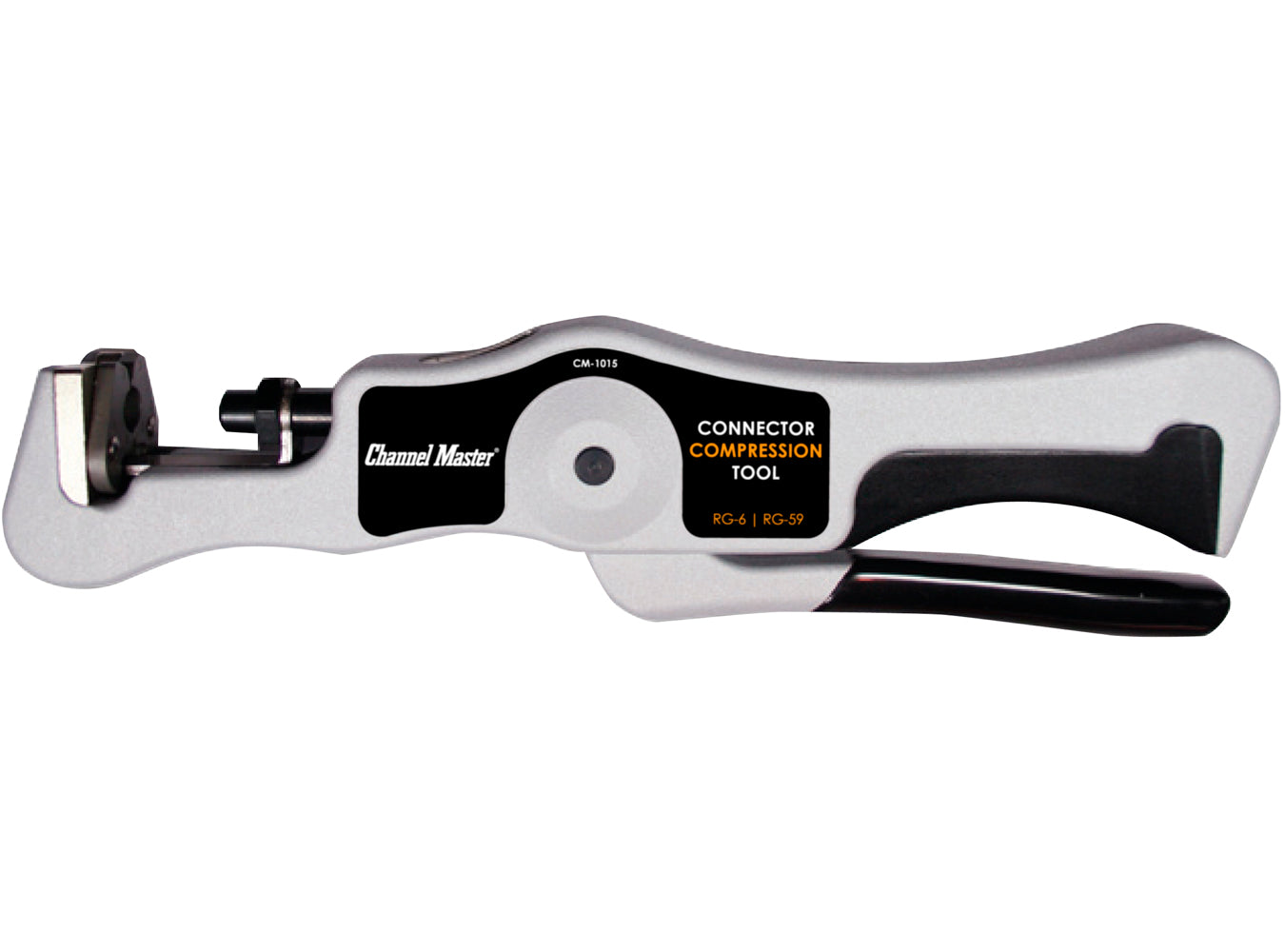

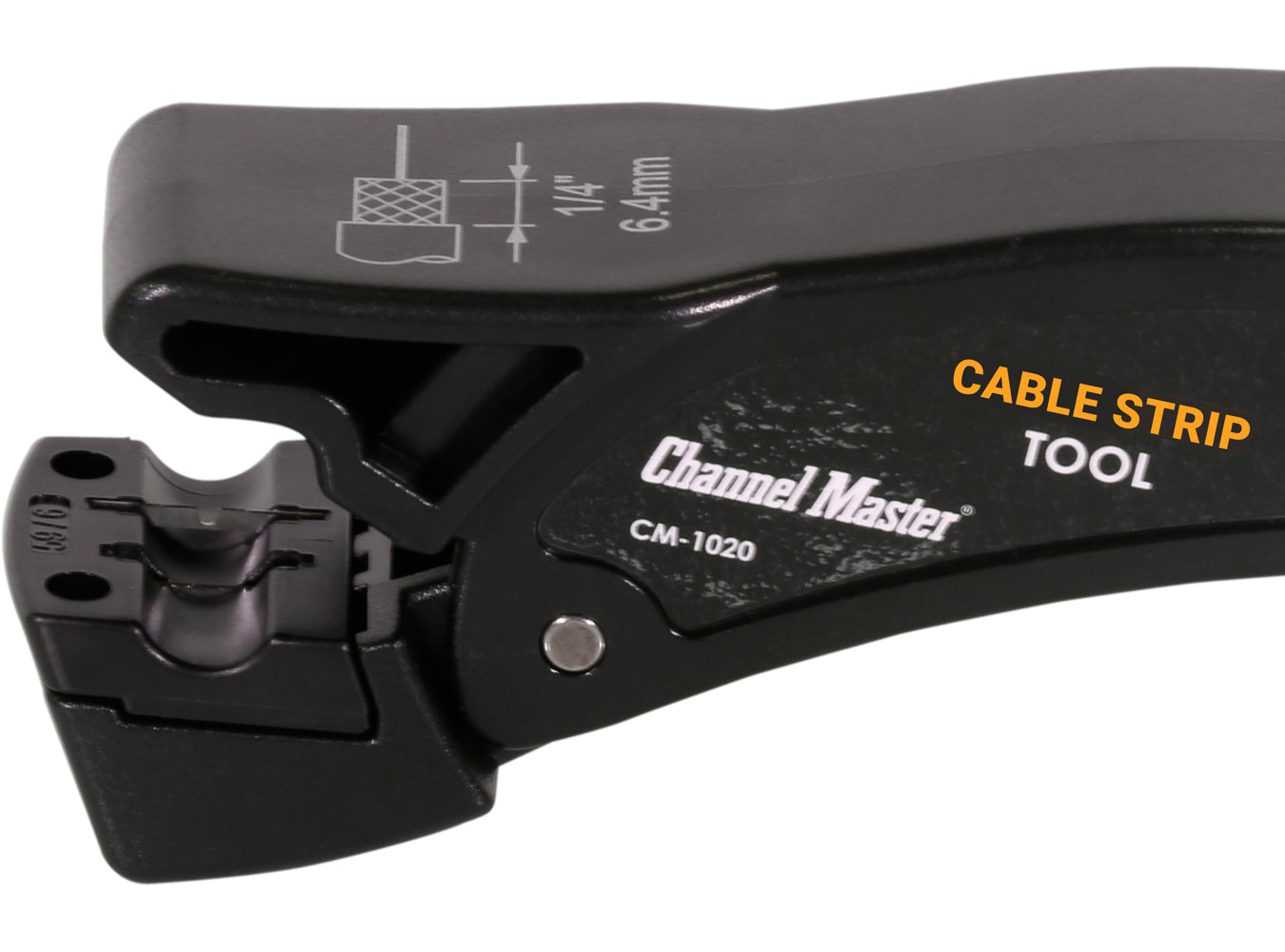

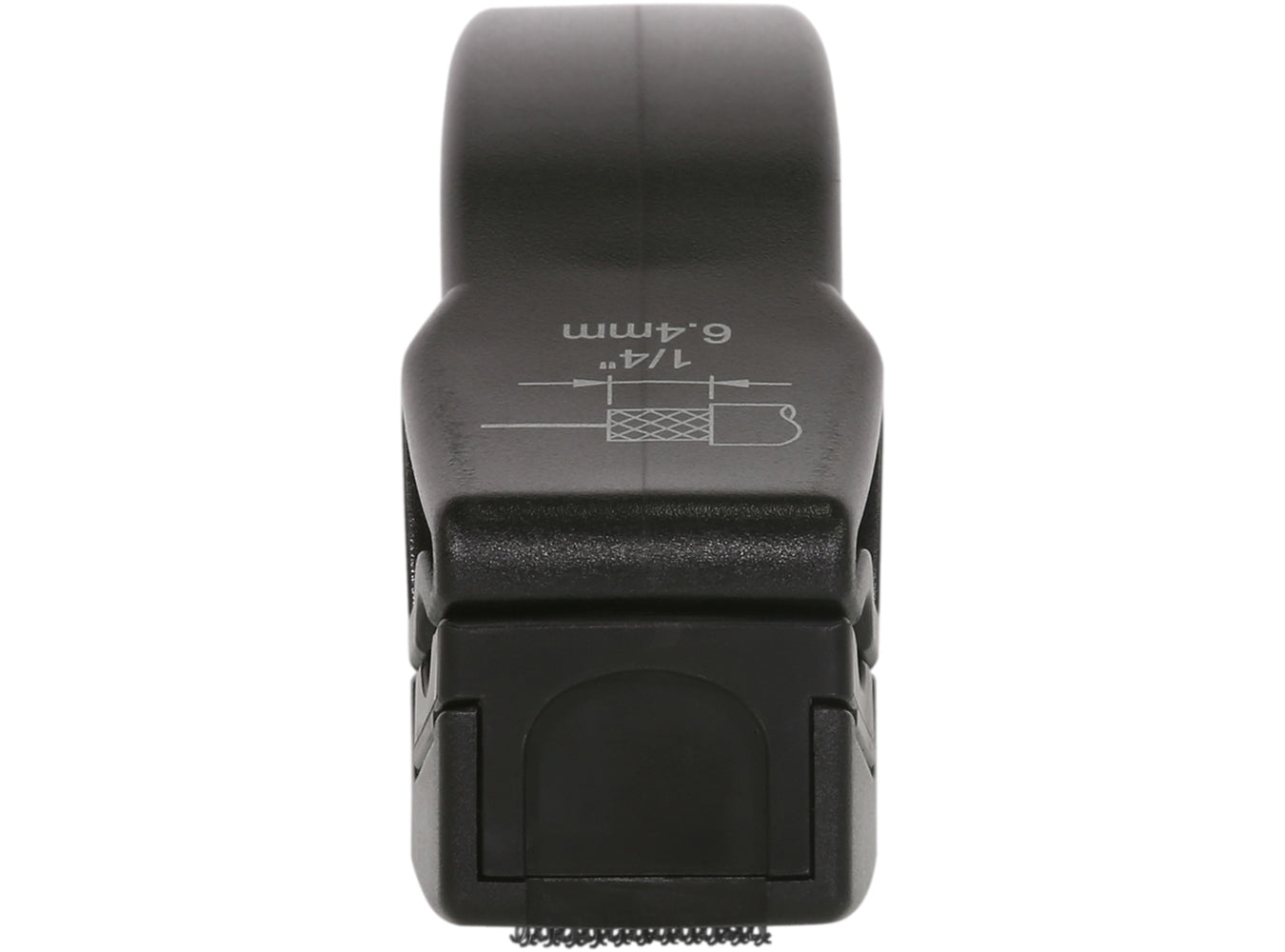

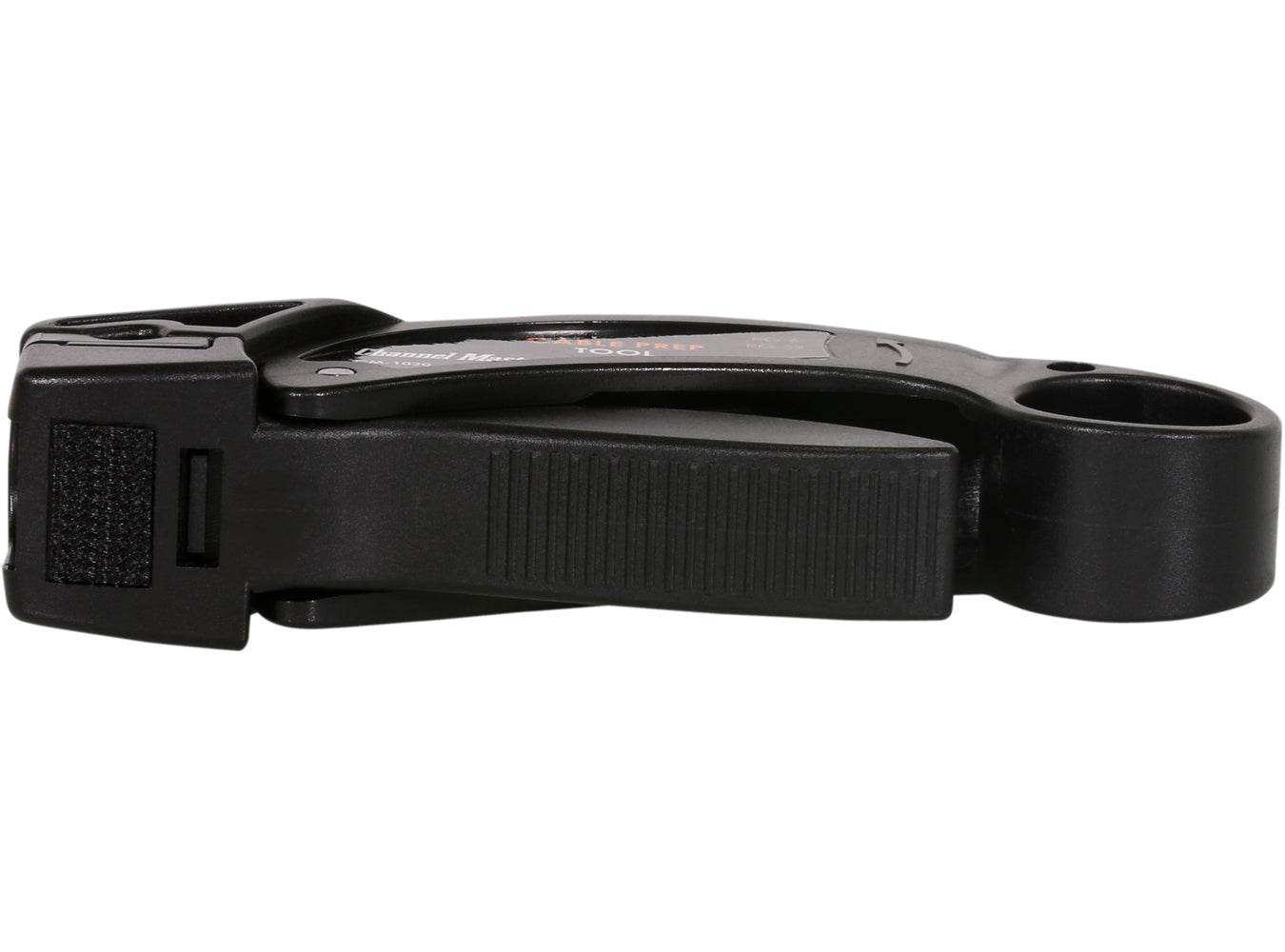

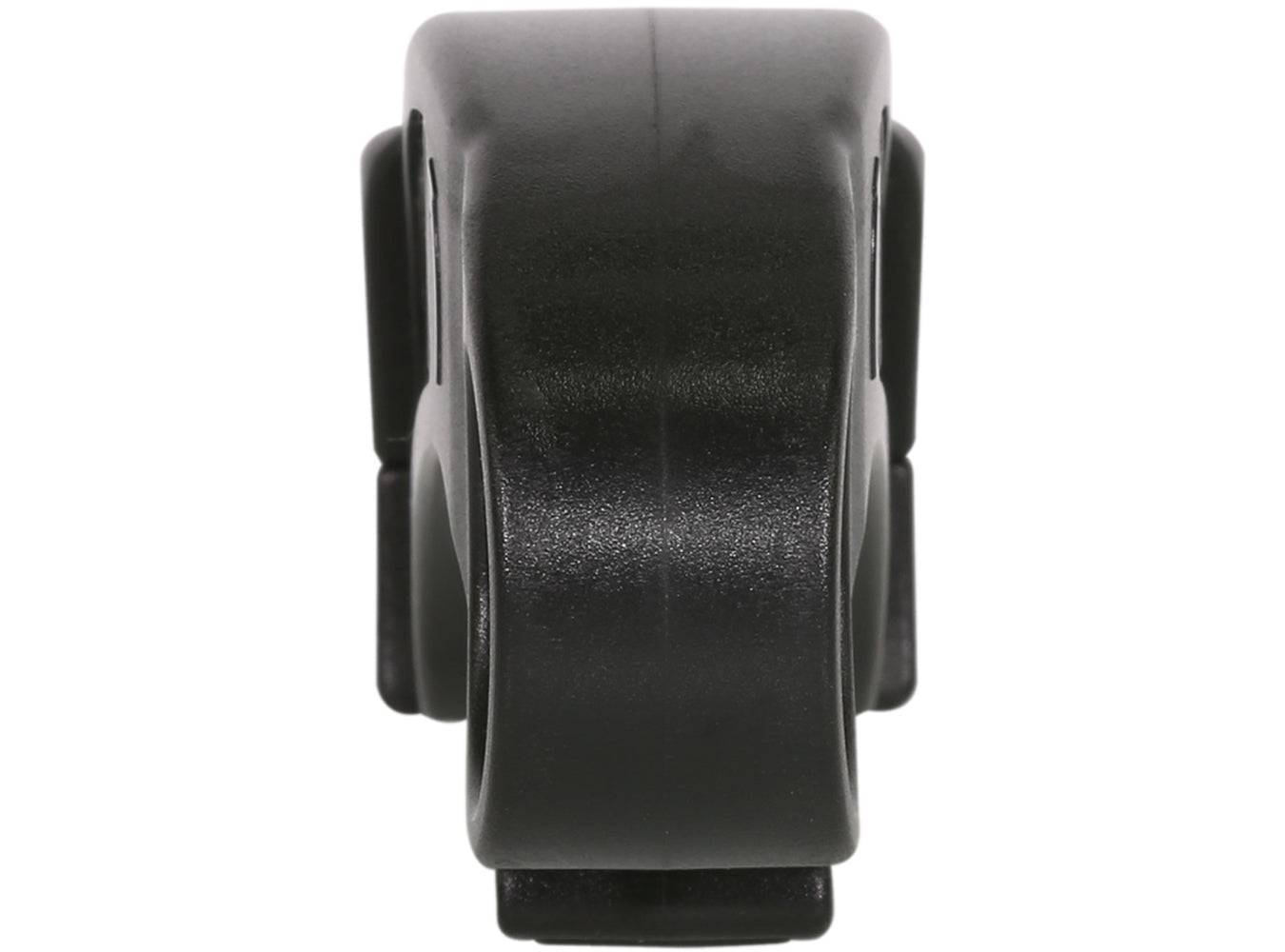

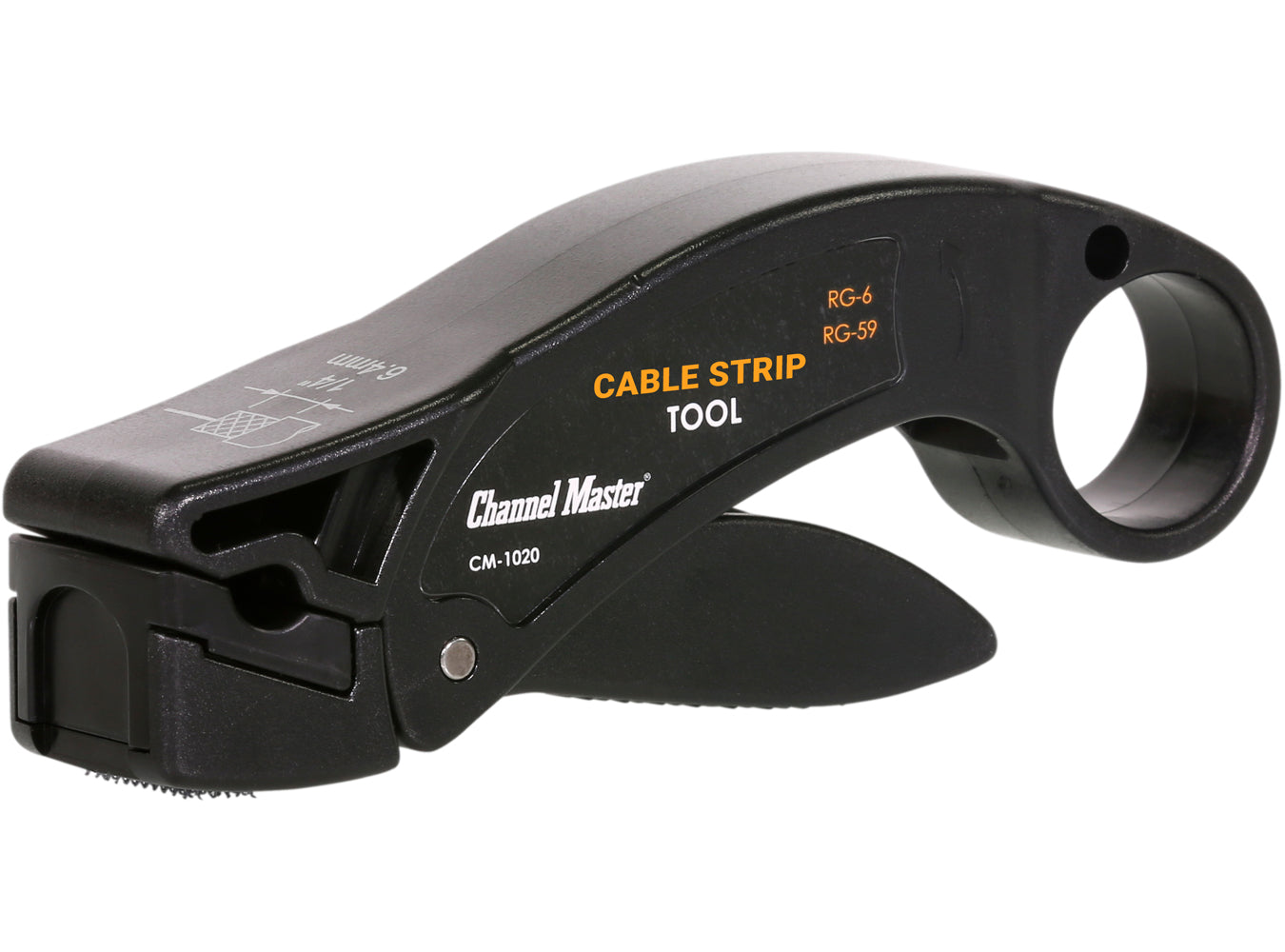

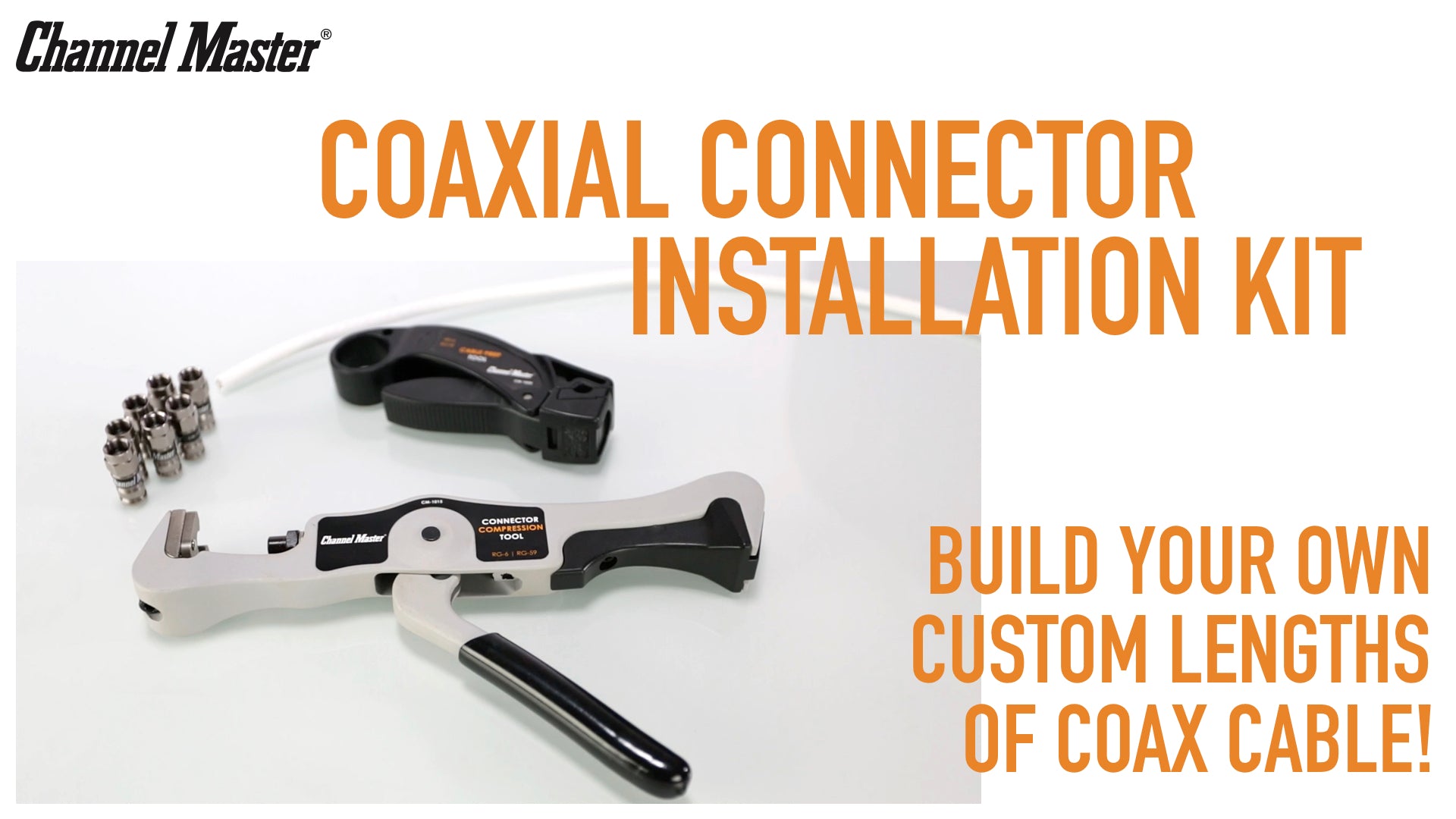

The Channel Master Coaxial Connector Installation Kit includes 10 Channel Master F-Type compression connectors, the Channel Master compression tool and the Channel Master cable preparation tool (cable stripper). Designed for professionals and the Do-it-Yourself consumer, the kit provides everything needed to attach high quality Channel Master compression connectors at the end of a coaxial cable. Popular consumer applications for this kit include, making short indoor coax cables, long outdoor cables and replacing old low quality connectors installed during construction. The kit is also popular as a starter kit for new antenna installers, electricians, home theater installers and other professional coaxial cable installers. The included connectors can be used indoors, outdoors and are compatible with standard, tri and quad shield RG-6 coaxial cable.
Not Your Typical Connector

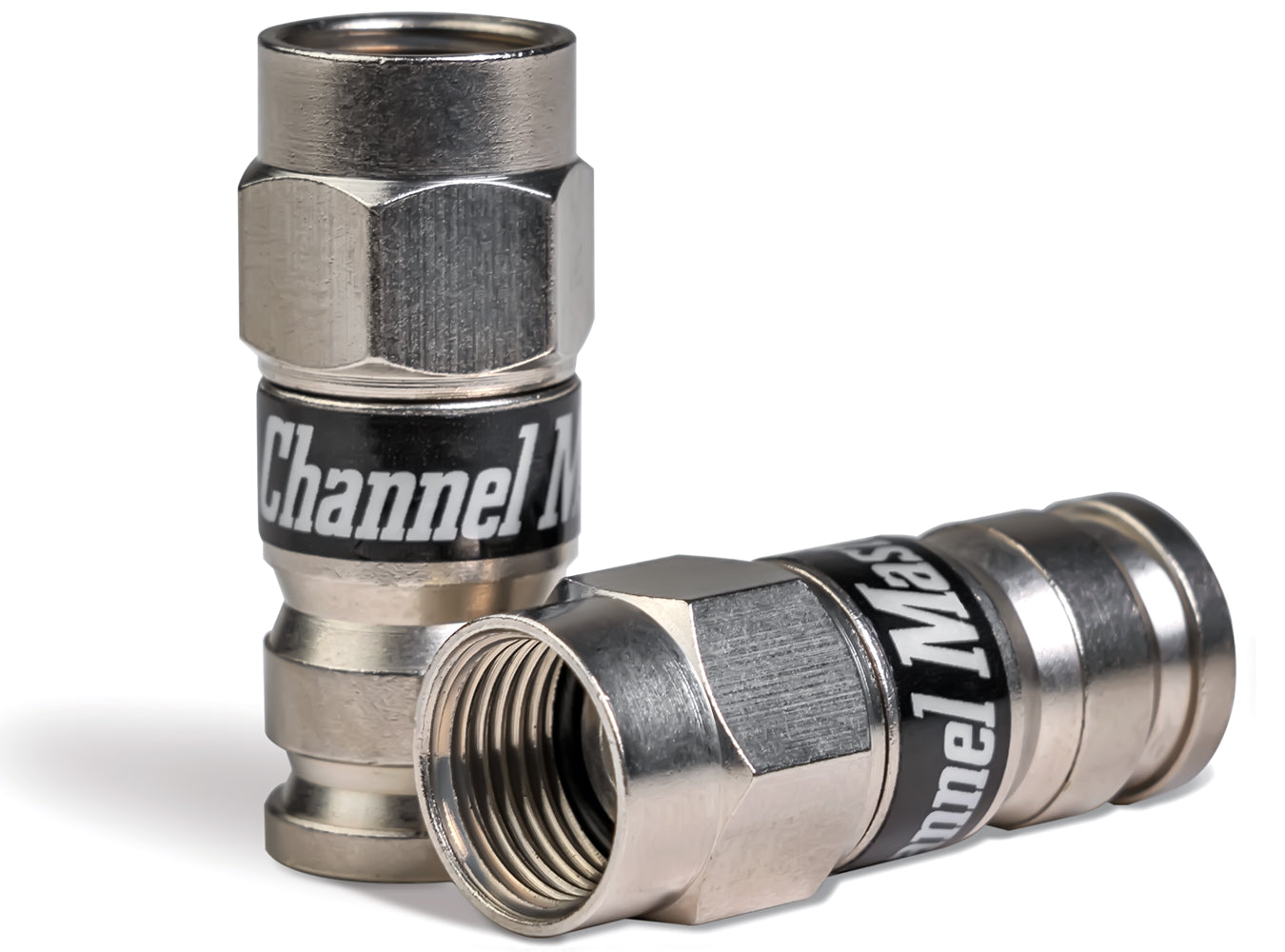

The Channel Master compression connector is not your typical cheap Gold-Plated connector, instead we put our focus on what really matters.
Digital Signal Future Proofing
Channel Master coaxial connectors deliver enhanced reliability for signal reception of current and future standards such as 4K, Ultra HD and HDR.
Continuous Ground
Provides a continuous ground regardless if the connector is tight or loose. A broken ground path due to a loose connector will cause signal quality issues that could result in intermittent macroblocking of video.
Excellent Shielding Effectiveness
A connector with poor shielding can let unwanted signals penetrate and interfere with your signal. Interference introduced through the connector on the cable will cause signal quality issues resulting in intermittent or complete loss of audio and video.
Indoor/Outdoor Design
Integrated dual o-rings sit on both the front and back sides of the Channel Master compression connector nut. The o-rings are constructed of high tensile strength NBR rubber and provide a superior barrier against moisture intrusion preventing long-term signal issues when moisture makes it's way onto the inner part of the coaxial cable. The 100% brass all metal design delivers maximum cable retention and will hold up over time as opposed to connectors constructed of plastic.

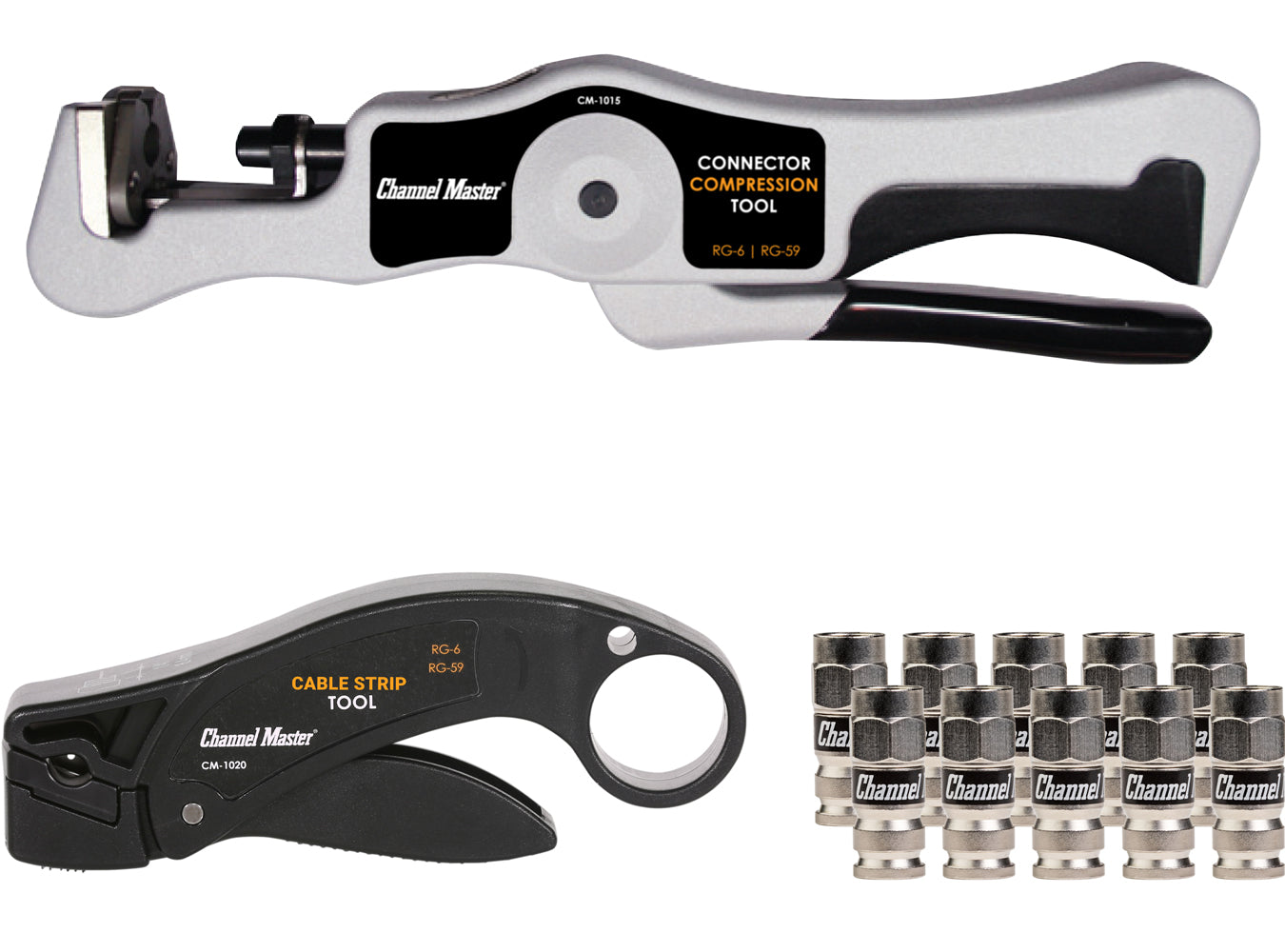

What’s Included

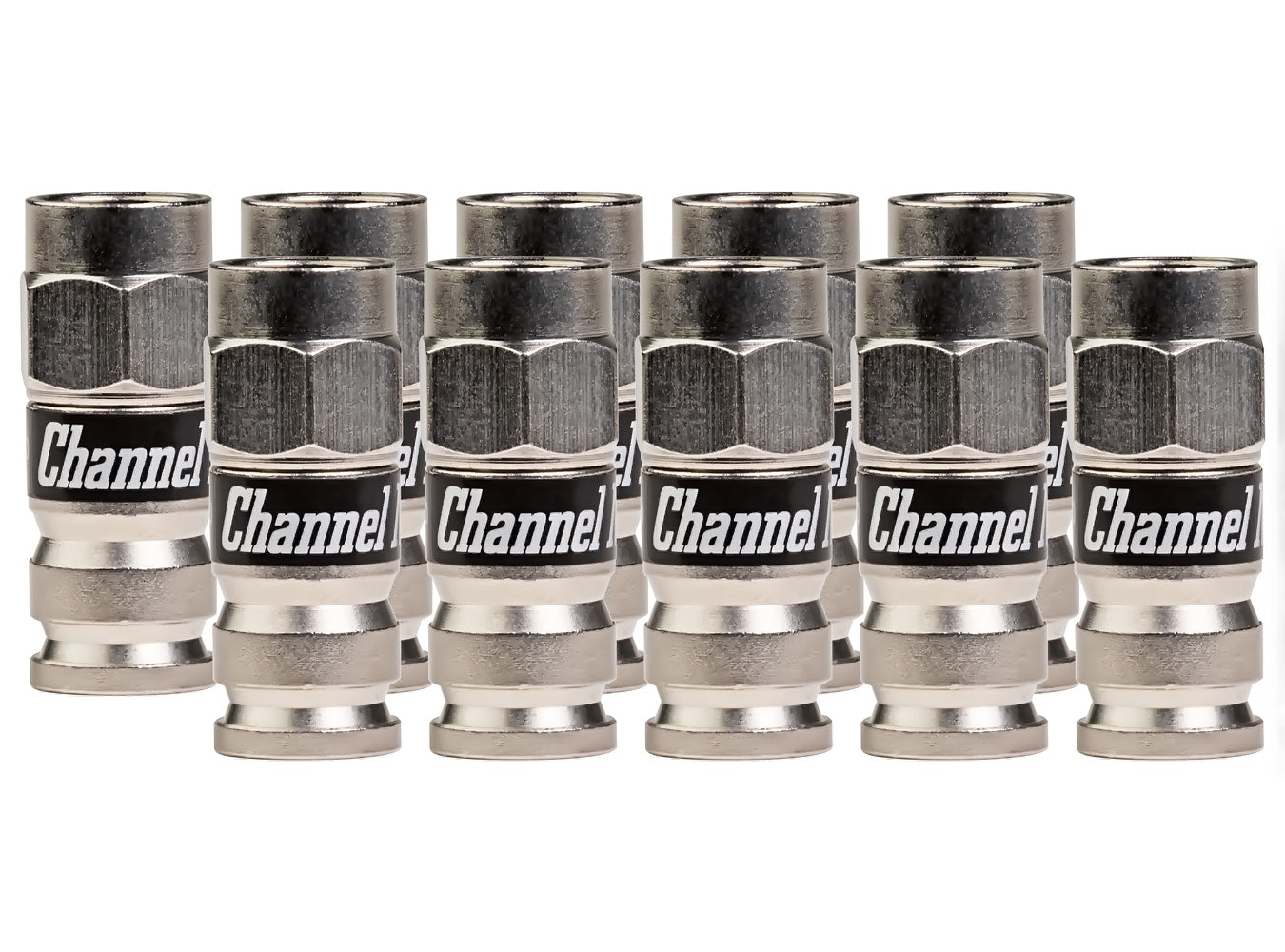

| (10) Connectors |

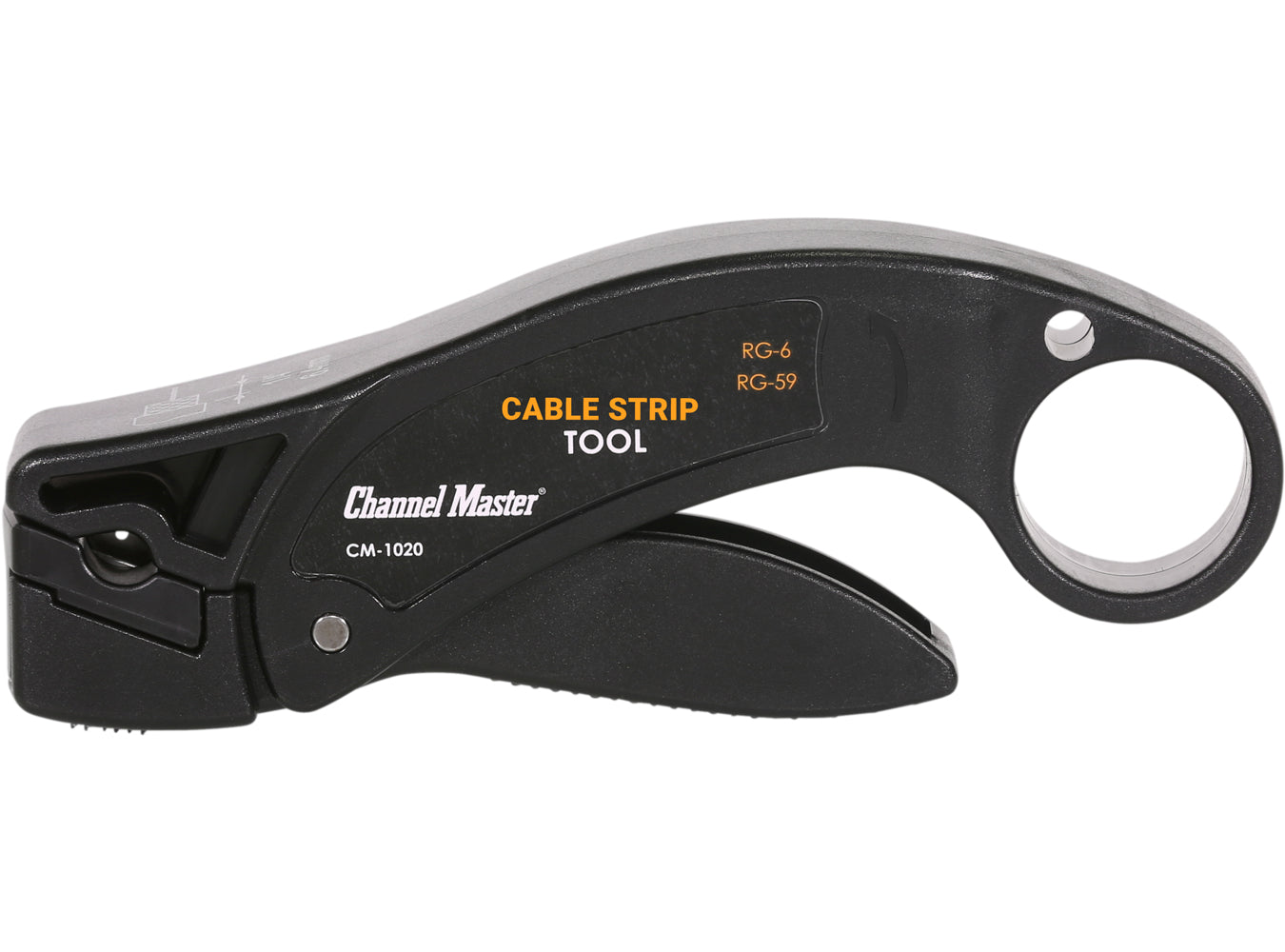

| Cable Preparation Tool |
| Connector Compression Tool |
| Instruction Sheet |
| 1-Year Limited Warranty |
Features
| Universal Cable Support: | Easy insertion on RG6 standard, tri and quad shield coaxial cables |
| Locking Feature: | Torque Retaining Nut keeps the connection tight where temperature cycling and vibration will loosen other connectors. |
| Elegant / High-End Look: | Special Polished Nickel Plating provides a high-end look for those installing luxury A/V systems. |
| Easy-Spin Nut: | Unlike other connectors, once the connector is compressed the nut spins freely for an easy installation. |
| ****Requires an industry standard cable preparation tool such as the CM-1020 and exclusively the CM-1015 compression tool for proper installation. | |
Tech Specs
Specifications
| Body material | C 360 brass |
| Body finish | Polished Nickel |
| O-ring | Ethylene-propylene rubber |
| Return loss | -28 dB up to 3 GHz |
| Insertion loss | -0.2 dB up to 3 GHz |
| RFI shielding | -80 dB |
