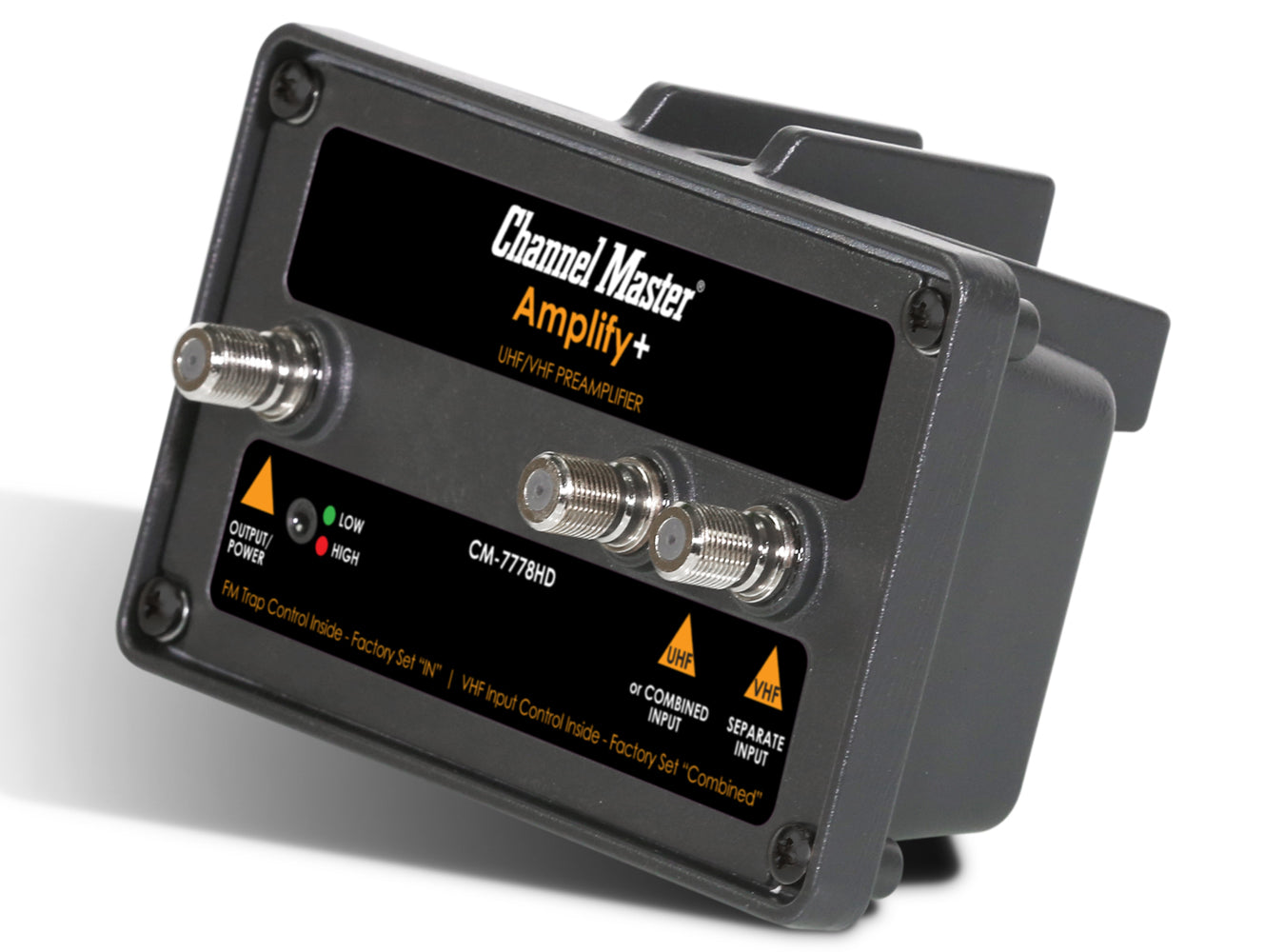

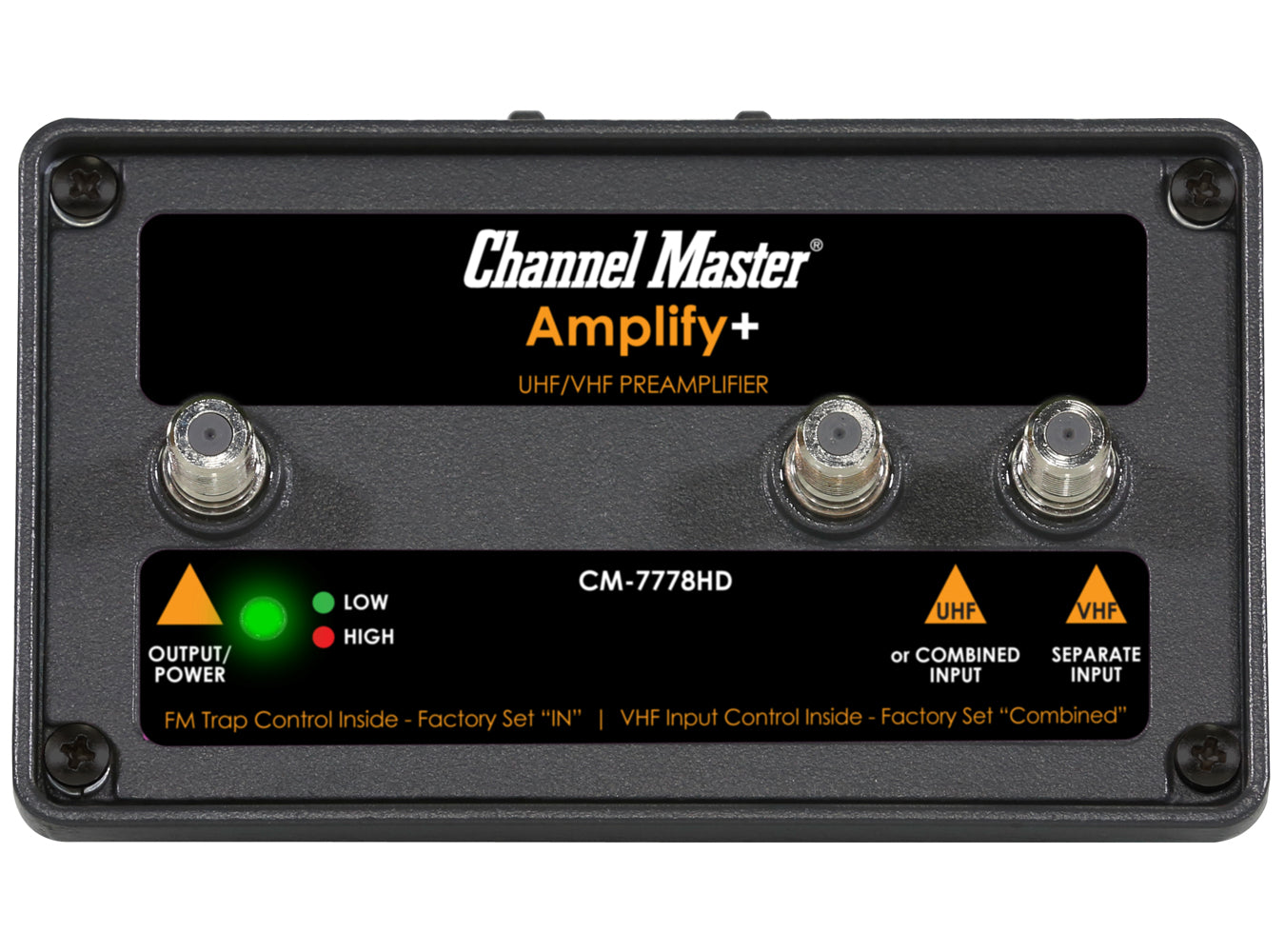

Amplify+ Adjustable Gain Preamplifier for Professionals


$99.00

Overview

Amplify+ is intended for outdoor professional use, including multi-dwelling units and commercial applications. The product provides separate UHF and VHF inputs for two-antenna, band-specific installations, as well as a switchable FM trap.

Amplify+ is an outdoor preamplifier designed for mast-mounting with the TV antenna(s). Professional installers may choose options for High gain, Low gain, FM signal blocking and band-specific dual antenna use if required.

Unlike the consumer-ready Amplify product, Amplify+ does not include a USB powering option for indoor use.

Outdoor Heavy-Duty Housing

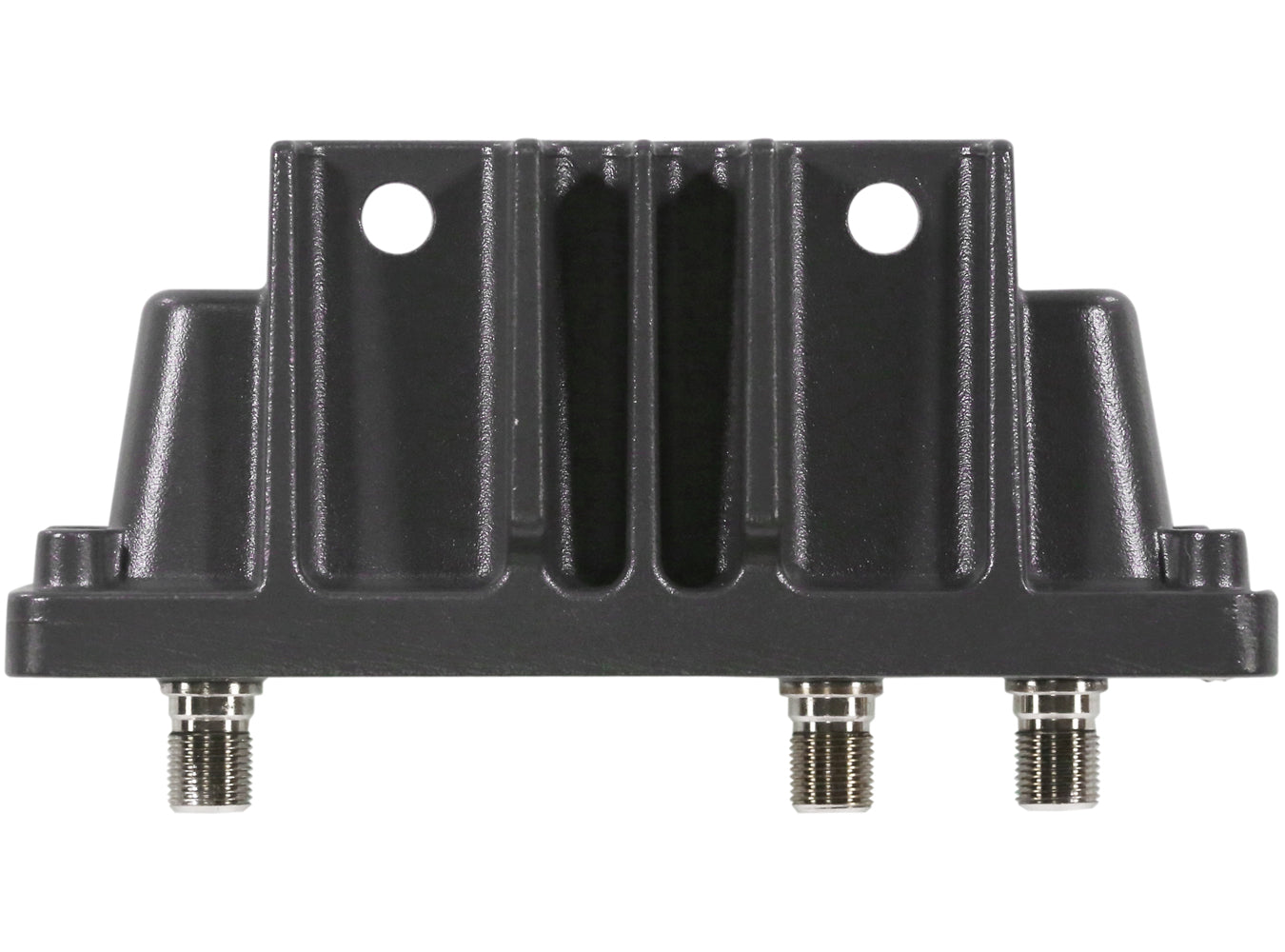

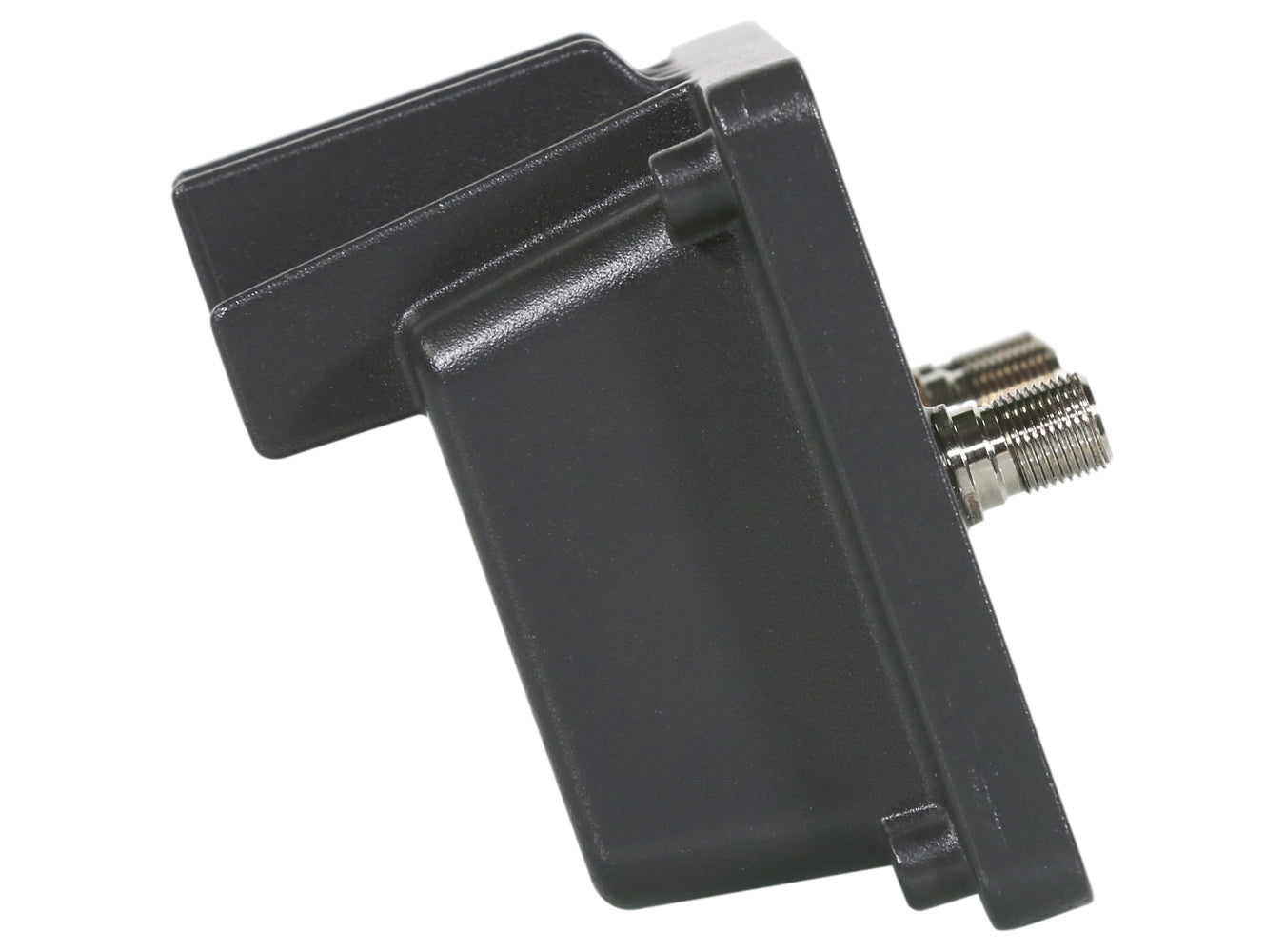

Amplify+ is constructed of a die-cast metal housing with weatherproof ports to support outdoor installations in extreme weather conditions.

Adjustable Amplification

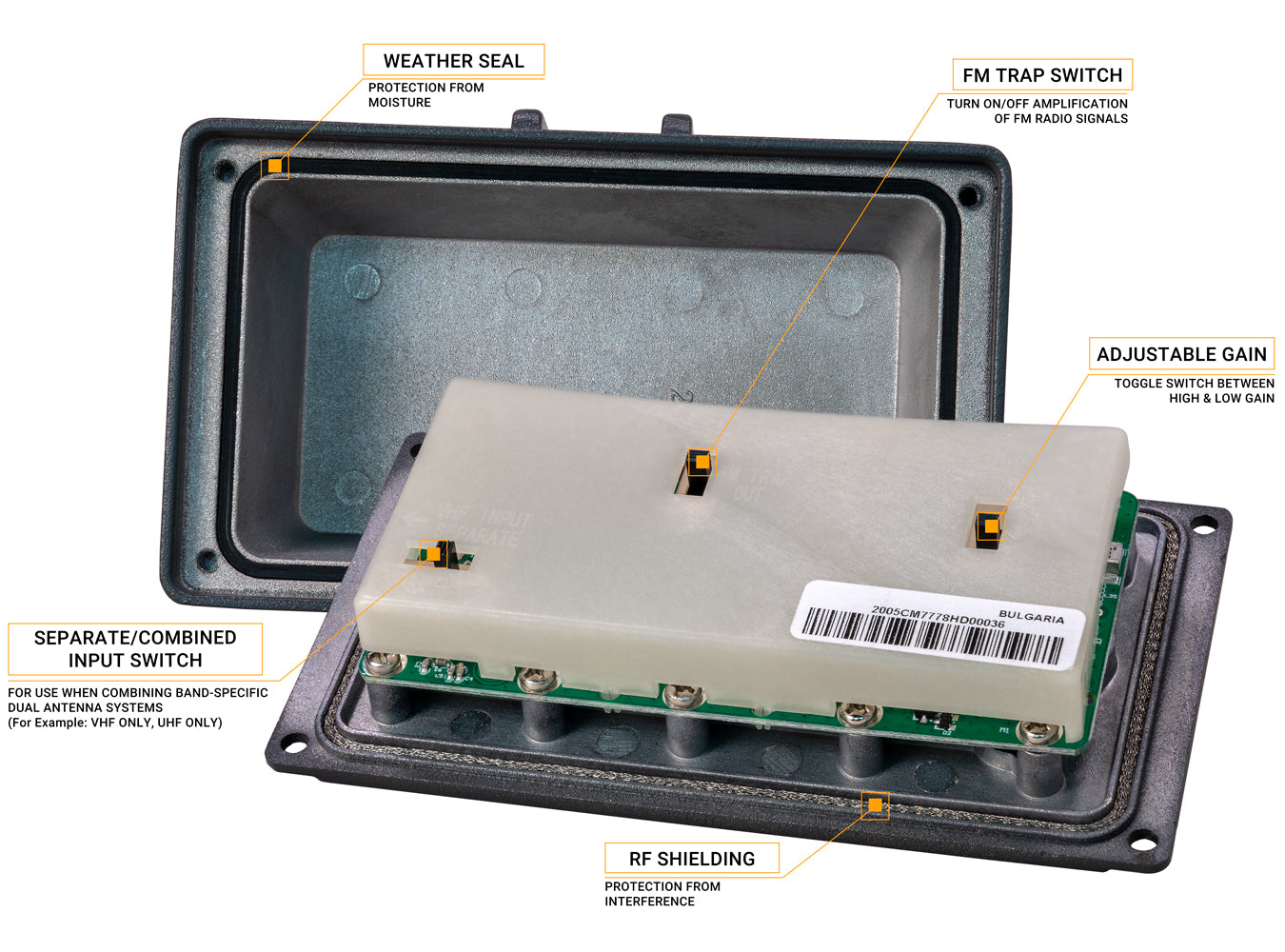

Amplify+ provides adjustable settings that allow the installer to select the appropriate gain required for a specific installation scenario, eliminating the potential issues encountered from either too much or too little gain. The internal switch can be placed at either a High or Low setting.

Adjustable FM Trap

Amplify+ provides a trap mechanism to block unwanted FM Radio signals from FM-enabled commercial TV antennas, which can cause interference with UHF and VHF television signals. Pass-through of FM signals can be enabled or disabled via an internal switch.

LTE Filtering

Like the consumer-ready Amplify product, Amplify+ provides 3G/4G/5G LTE signal filtering. The proliferation of LTE signal towers and connected LTE devices are a growing cause of intermittent disruption of over-the-air broadcast television signals. These disruptions can result in weak signals, pixelation or even channel loss, and can be especially disruptive when an amplifier is used with a TV antenna.

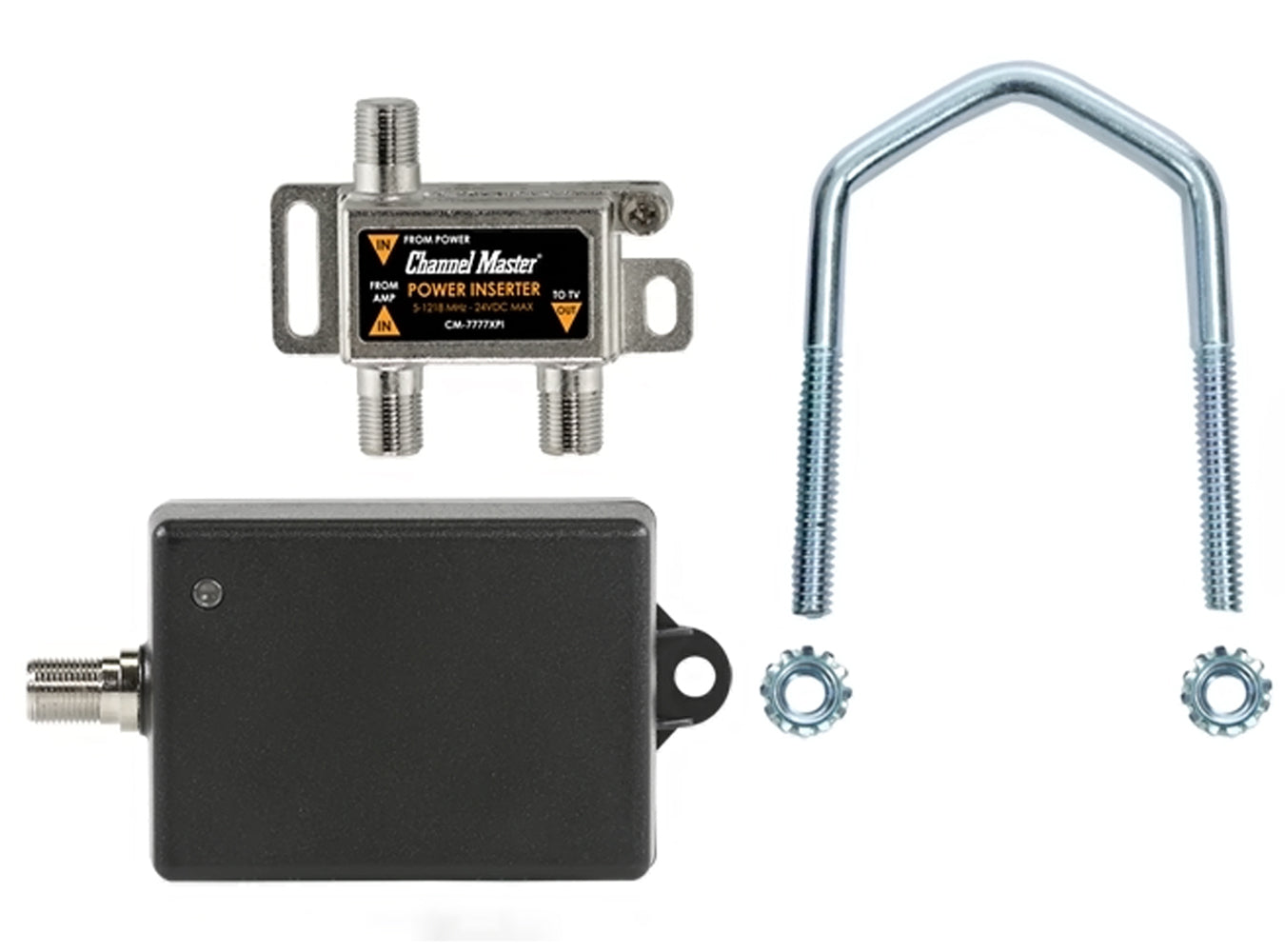

What’s Included

AMPLIFY+ TV Antenna Amplifier
Power Inserter
Power Adapter
Mounting U-Bolt
(2) Mounting Screws
Installation Guide
1-Year Limited Warranty

Features

Improves Signal Quality
Dual Antenna Inputs (VHF & UHF)
Switchable FM Trap
Decreases Pixilation
May Increase Number of Channels
Ultra Low Noise
Adjustable Gain
Blocks LTE Interference from 3G/4G/5G Smartphones and Transmitters
EMI & FM Out of Band Filtering
Will Support ATSC 3.0, NextGen TV and 4K Broadcast when Available
Housing Offers RF Shielding for Reducing Interference
Heavy-Duty Rated for Outdoor Use
Mast Mounted for Close Proximity to Antenna

Tech Specs

Impedance (Input and Output) 75 Ohm
Connector F-type
Frequency range 54MHz~88MHz, 174MHz~260MHz, and 470MHz~609MHz
Gain VHF 23dB (High) / 16dB (Low)
Gain UHF 26dB (High) / 20dB (Low)
Gain Combined 23dB (High) / 16dB (Low)
Noise Figure 1.5dB
UL Listed Yes
RoHS Compliant Yes
Return Loss <-15dB
Input Voltage 12-15 VDC
FM Trap 95-108 MHz; >13dB Down
Operating Temperature -40 C to +60 C
Size (Product) 5.375 x 3.5 x 3.0 in
Size (Packaging) 8.125 x 5.125 x 3.0 in
Weight (Product) 13 oz
Weight (Packaging) 2 lb
