FM Antenna


$69.00

Overview

The Channel Master FM antenna is a high quality FM antenna capable of receiving FM radio signals from broadcast towers located more than 50 miles away.  This FM antenna is manufactured in the USA and optimized for receiving standard FM and HD Radio signal reception. This antenna is an excellent upgrade from the typical wire antennas that are included with most FM radios and audio/video receivers.

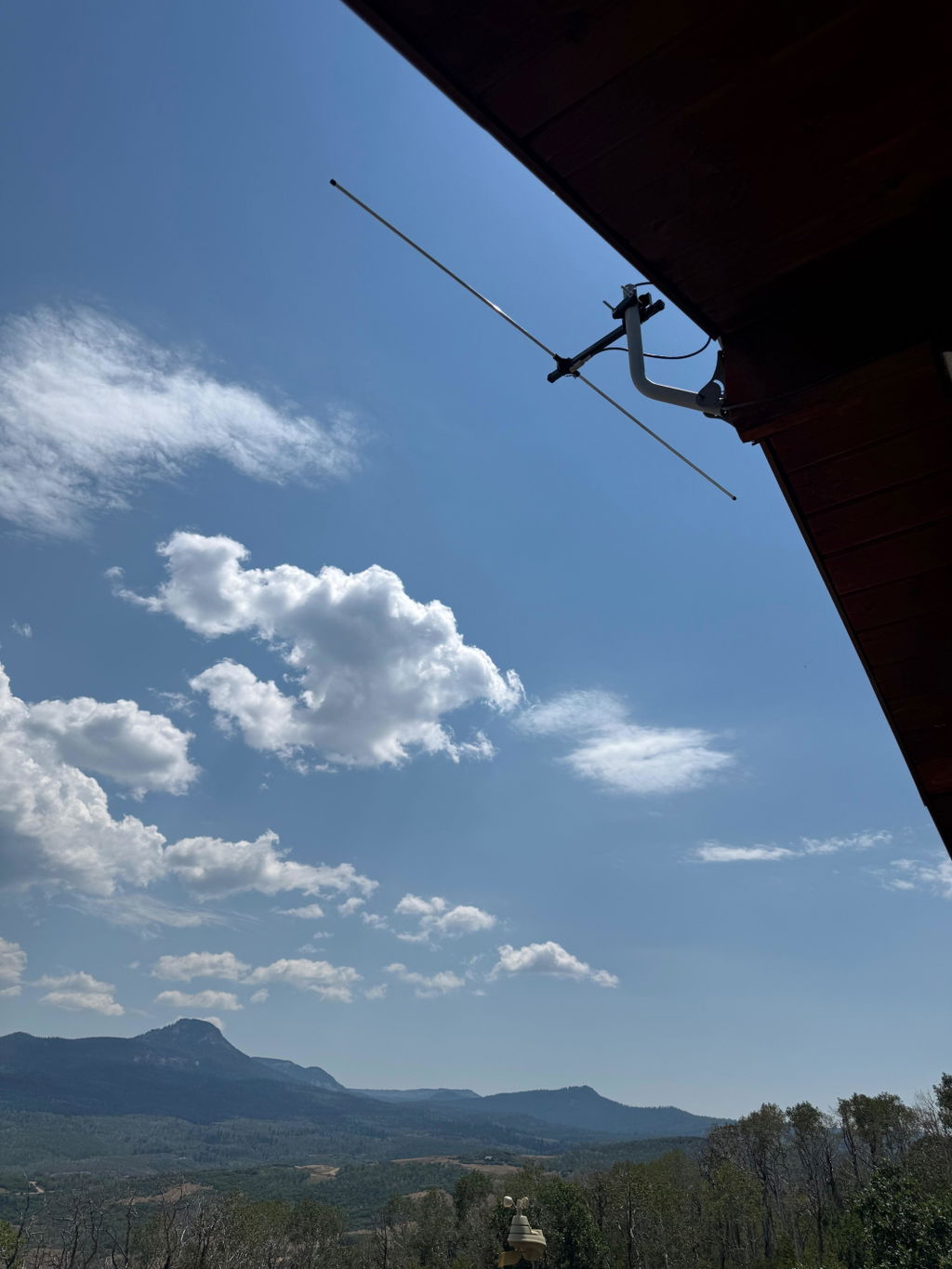

Channel Master’s FM antenna is designed to be mounted outdoors or in the attic.  The antenna is equipped with a heavy duty matching transformer which allows you to run coaxial cable from the antenna to any audio receiver or FM radio that is supports the connection of an external FM antenna.  (Connecting to an audio receiver may require an adapter which will convert from coaxial cable to whatever port is on the device.  This is not included, you will need to purchase this separately.)

As with all Channel Master products, the quality of materials and product craftsmanship is our highest priority. The FM antenna is assembled and packaged at Channel Master's Chandler, Arizona corporate headquarters. The antenna boom and elements are made from high-quality 6061 and 6063 aluminum and extruded, cut and drilled in the United States. The FM antenna's design is intended to reduce the amount of plastic required; however, for a few plastic parts on the antenna, they are injection modeled locally from high-quality UV resistant ASA and PVC materials.





What’s Included

FM Antenna
Assembly Hardware
Mounting Bracket (Pole Not Included)
Installation Guide
1-Year Limited Warranty



Features

Reception Range 50+ Miles
Type Outdoor
Reception Pattern Omni-directional
Built-In Amplifier No
Coax Cable Not Included
Installation Roof, Eave, Attic, Chimney, Mast

Tech Specs

Electrical Specifications

Bandwith 88-108 MHz
Front to Back Ratio N/A
Return Loss N/A
Impedance 75 Ohm
Power Supply N/A

Mechanical Specifications

Boom Length 17"
Number of Elements 2
Max Element Width 32.5 in.
Mounting Bracket Supports up to 2" Diameter Mast/Pole
Output Connector F-type
Size (product) 17 x 66.5 x 1.36 (Not including mount)
Size (packaging) 37.75 x 9.85 x 3.25 in
Weight (product) 1.8 lb
Weight (packaging) 3.6 lb
