Rotator System


Item temporarily out of stock.

Email me when back in stock

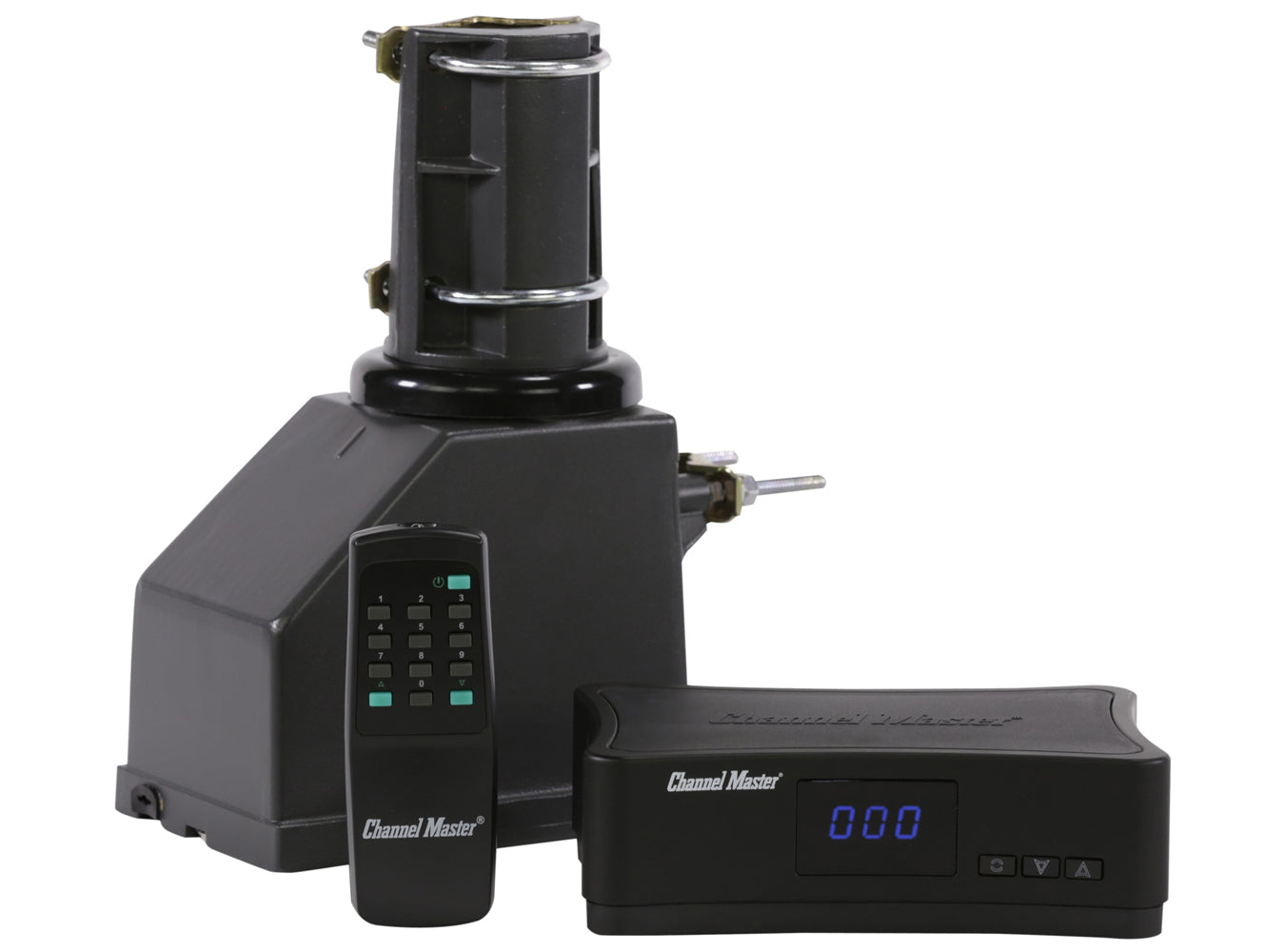

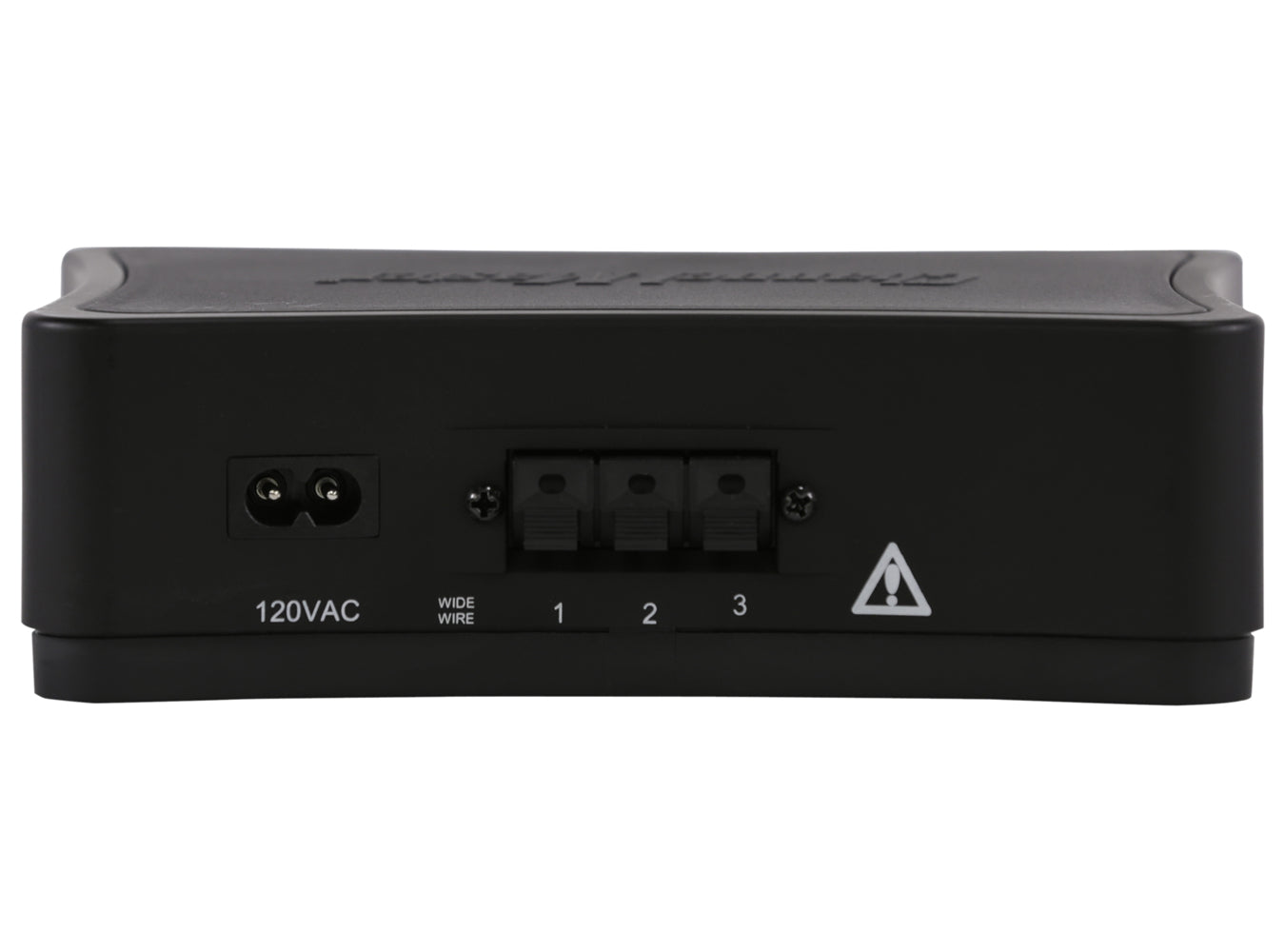

The Channel Master Antenna Rotator System is an easy to use, all in one system that will enable the rotation of an outdoor antenna from an indoor control box and a hand-held remote control. The indoor control unit has internal memory which will allow the user to auto tune an antenna to rotate to up to 69 pre-programmed positions. The Channel Master Rotator System can be specifically helpful for those who use a single outdoor antenna but are able to receive signals being broadcast from towers in different directions. In addition to TV antenna use, the Channel Master Rotator System is also popular among ham radio operators and hobbyists for miscellaneous uses requiring remote rotation. The motor and control unit are connected via a 3-conductor wire that carries the electrical voltage and control signals from the indoor control unit to the outdoor drive unit. (Rotator wire not included)

What’s Included

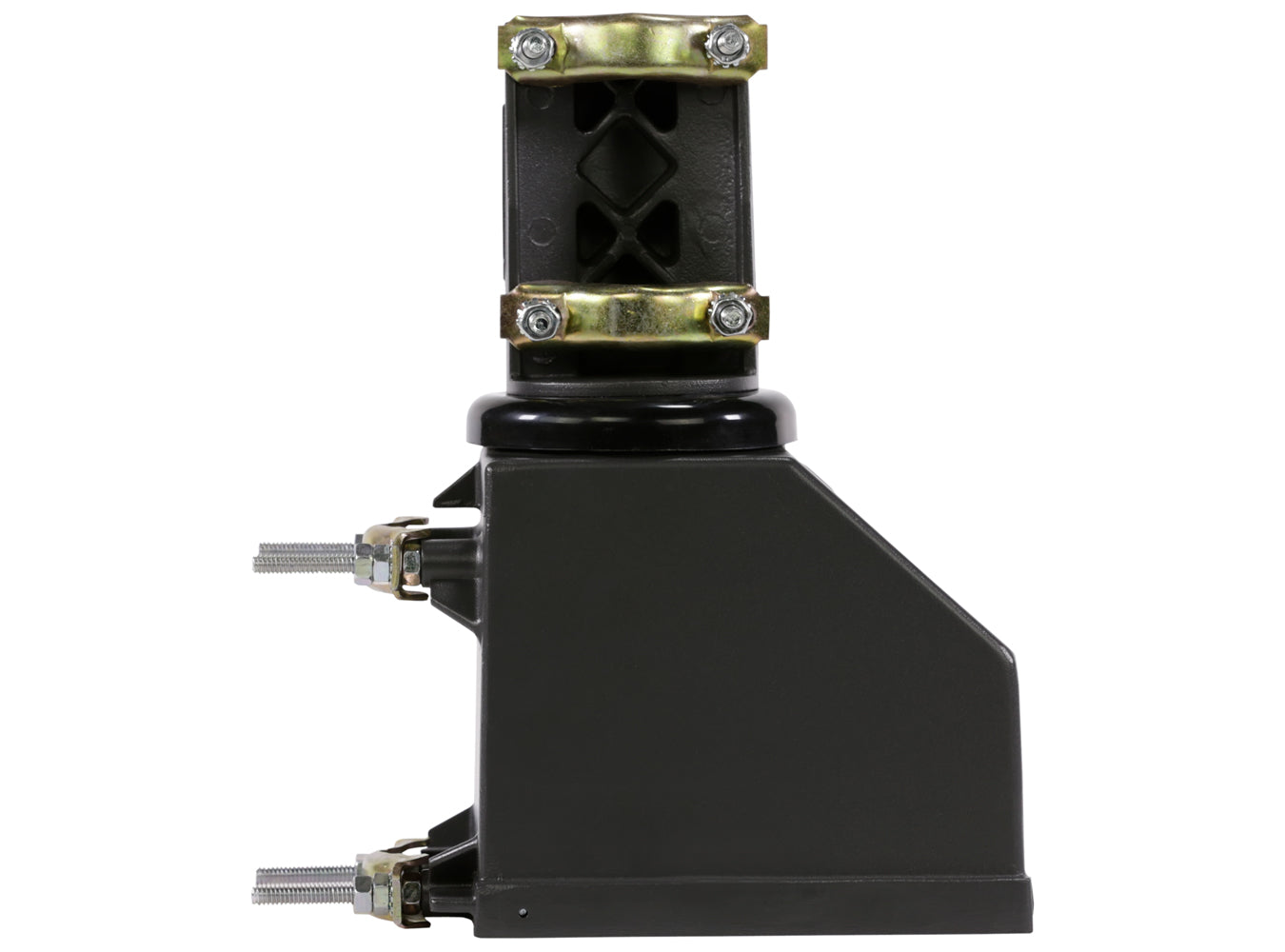

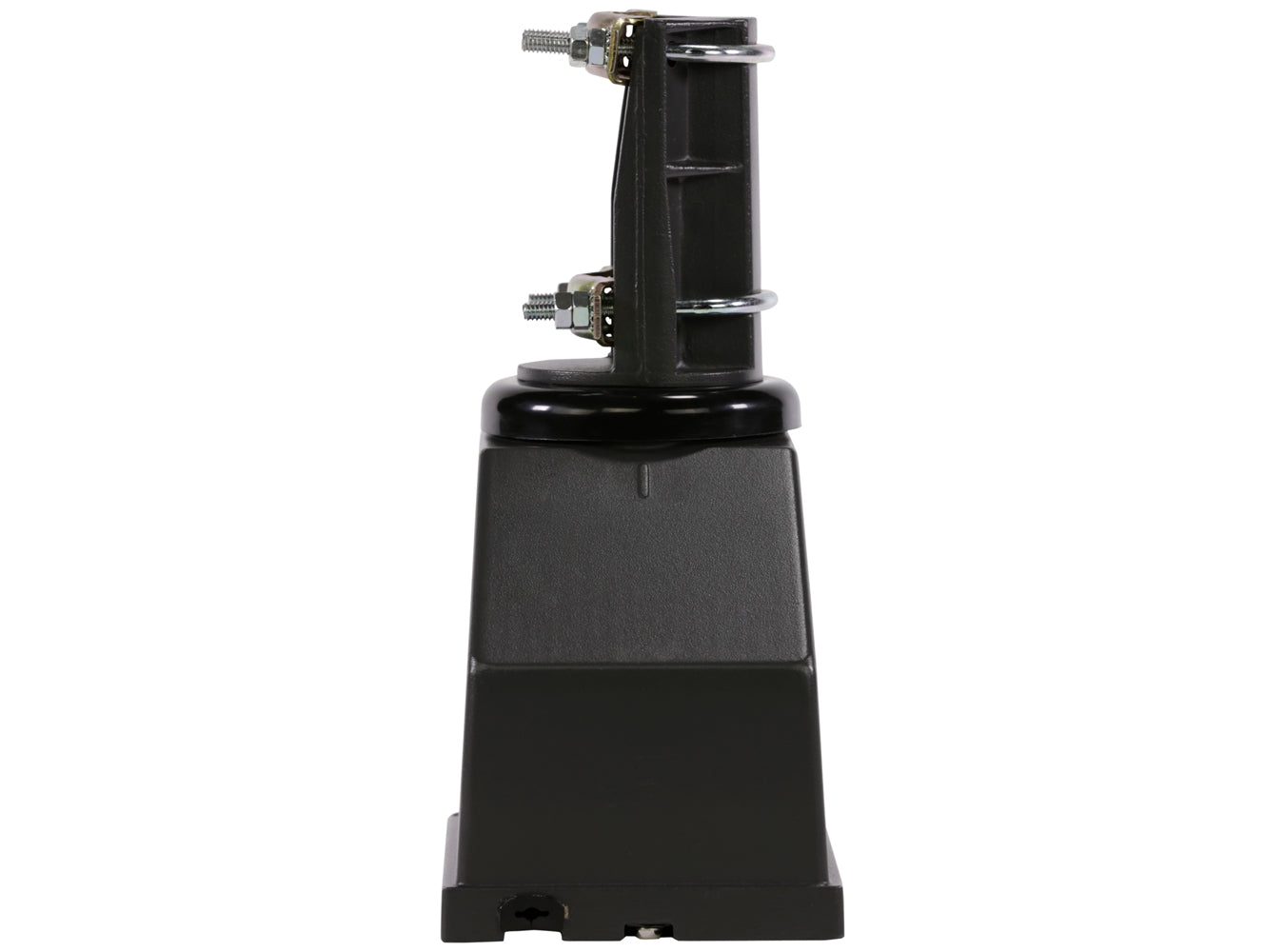

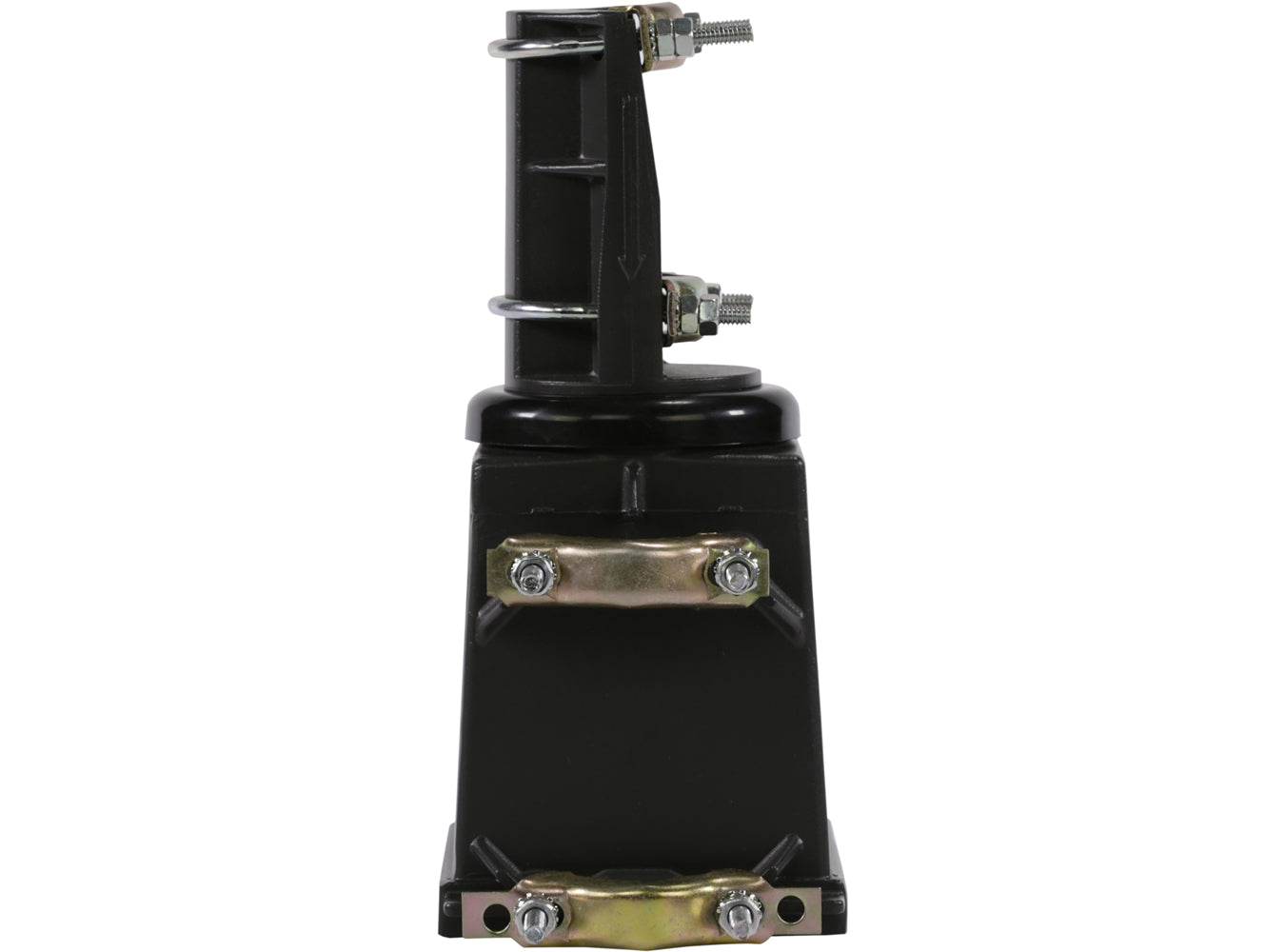

Drive unit (Gray)
Control unit (rotator wire not included)

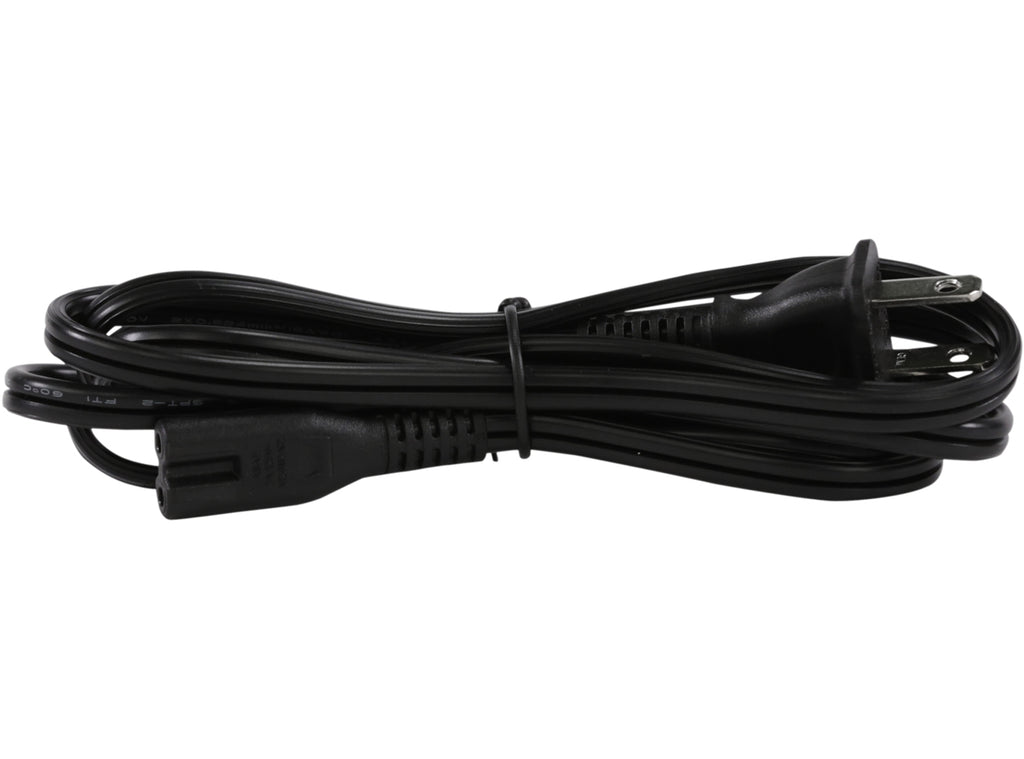

Power cable

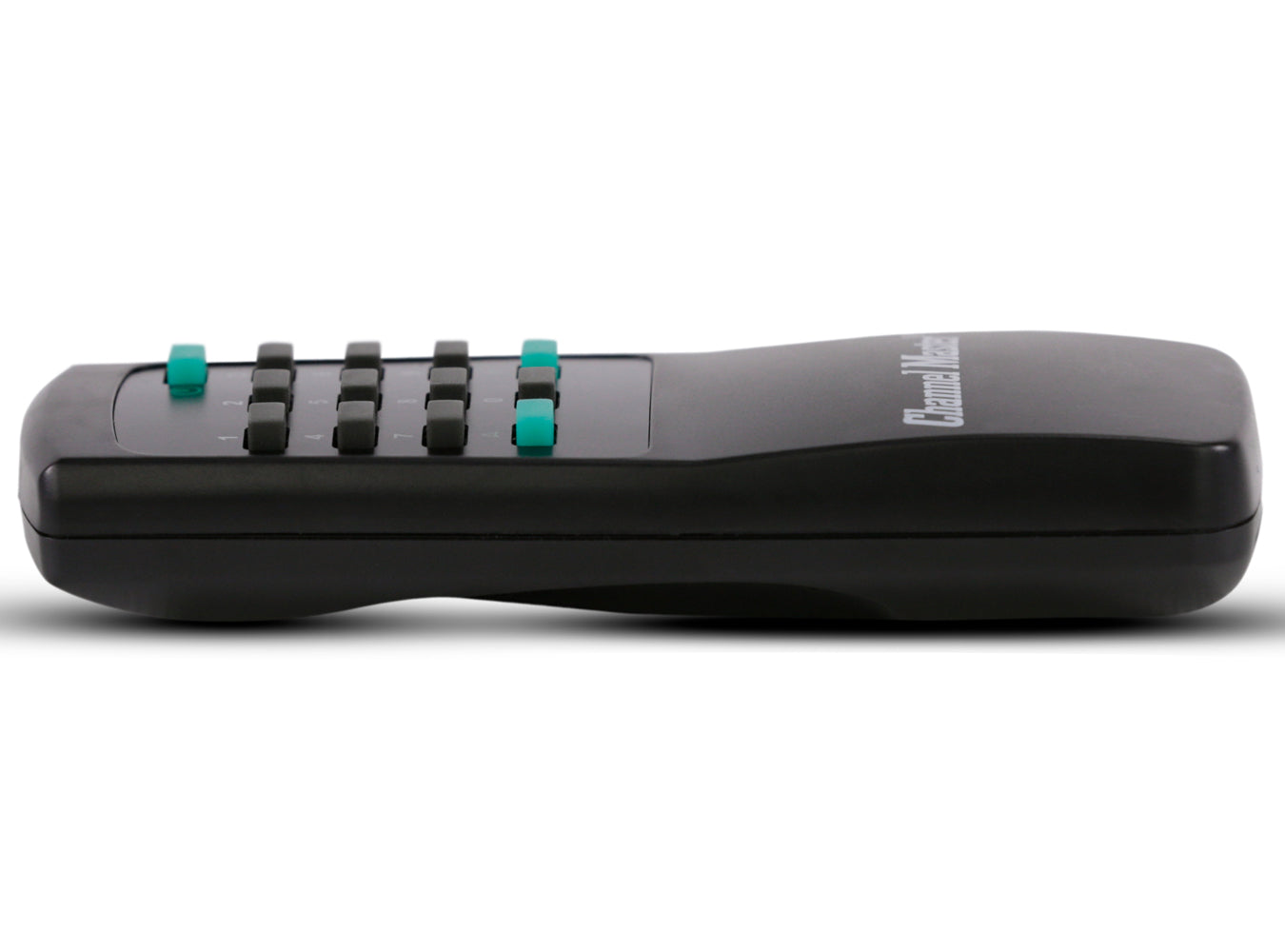

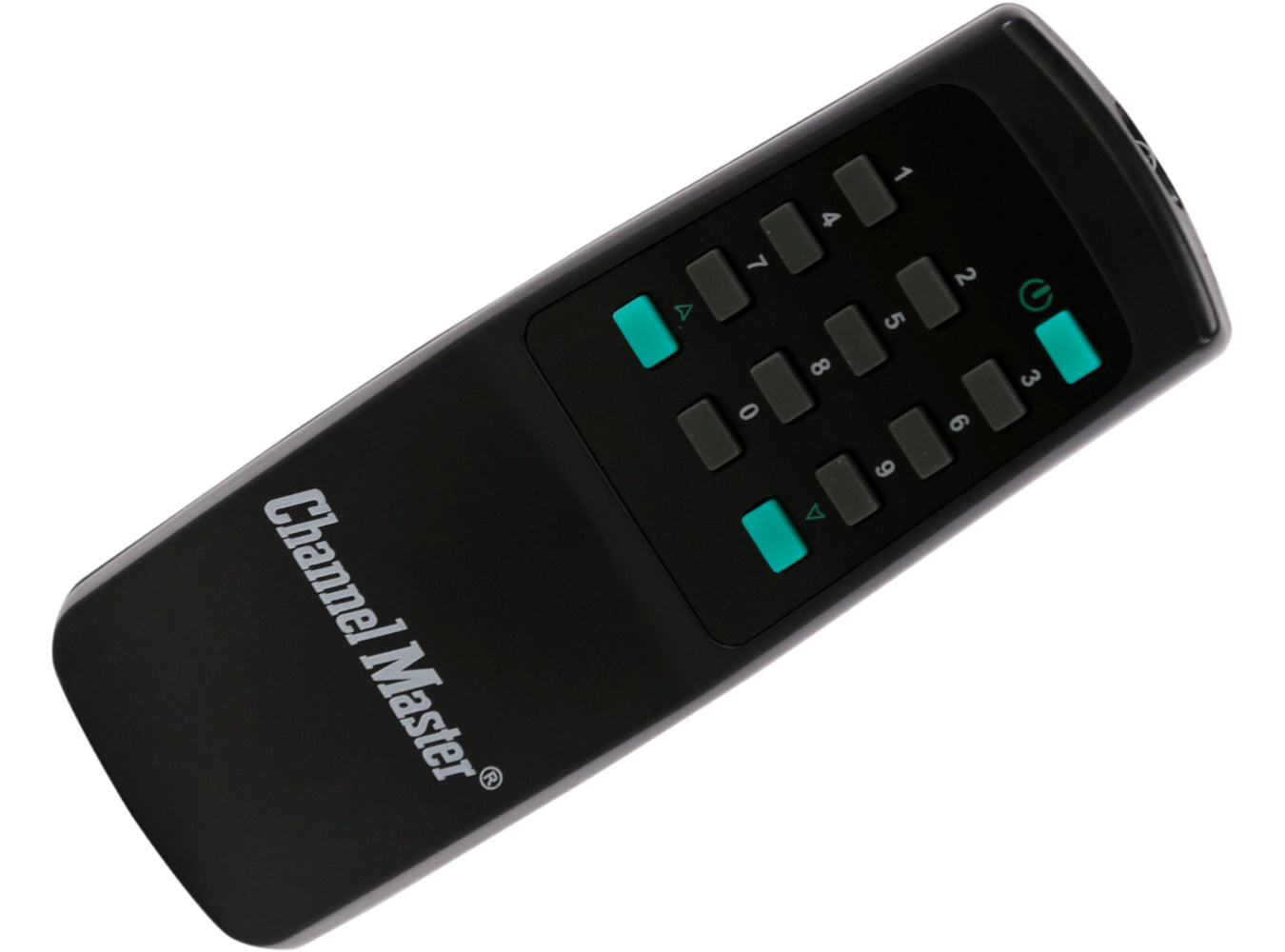

Remote Control
1-Year Limited Warranty


Improved Mechanical Stability (New)
Enhanced Brake System (New)
New Gray Color (Powder-Coat) (New)

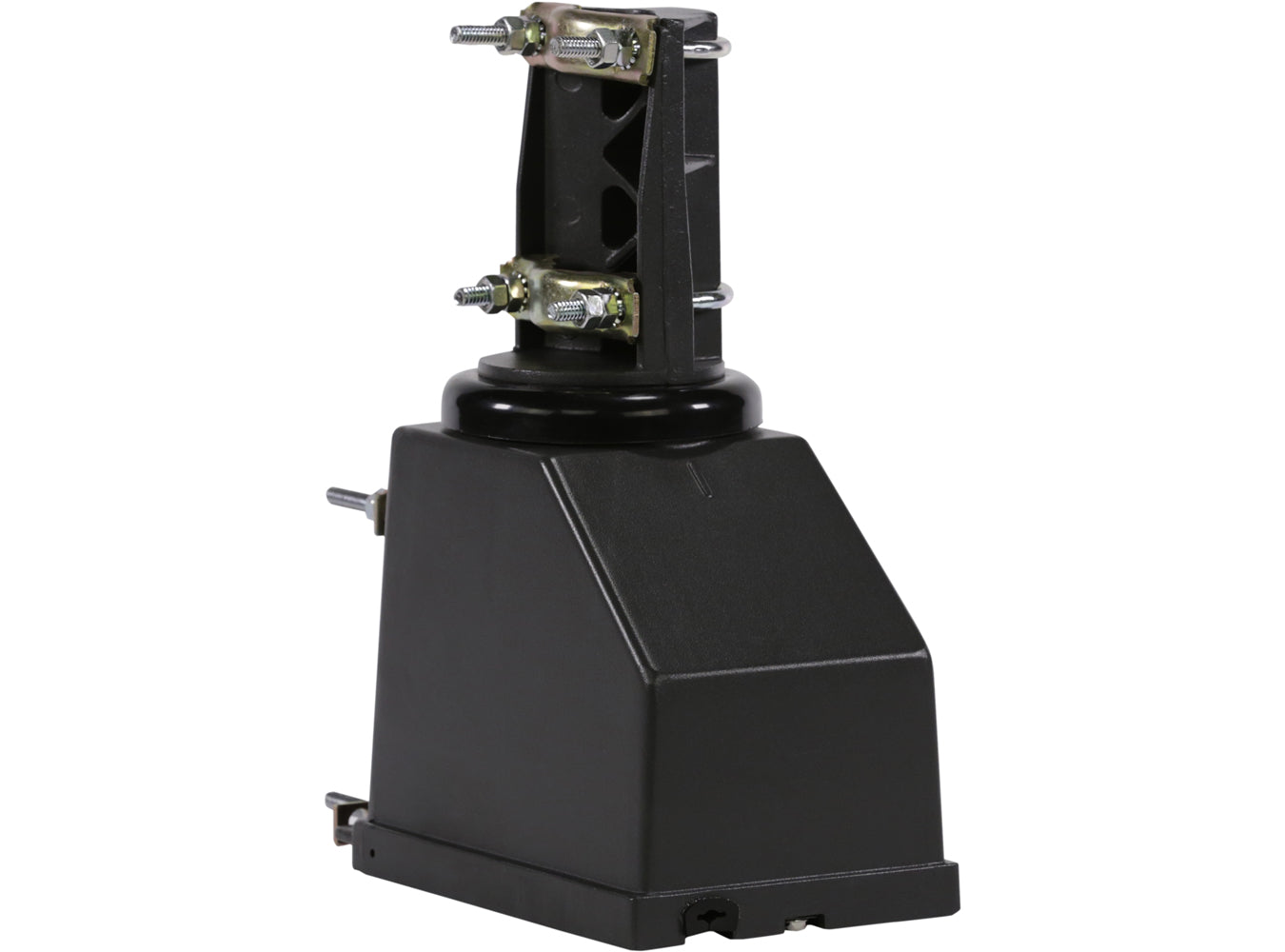

One-piece cast aluminum gray housing
Heavy duty rotator motor
Durable powder coat paint finish
Precision cut gear system
Built-in steel thrust bearings
Easy push tab wire connections

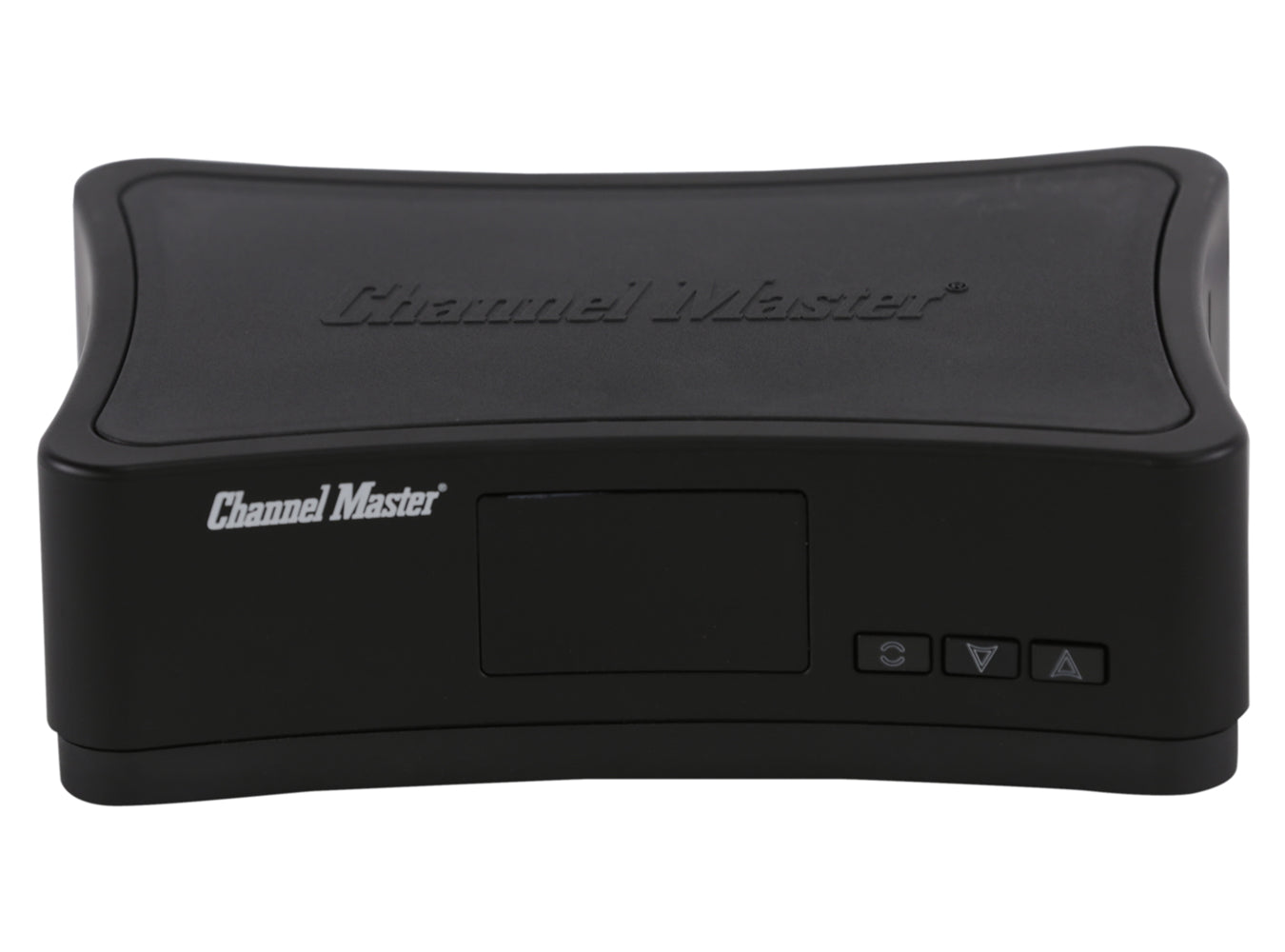

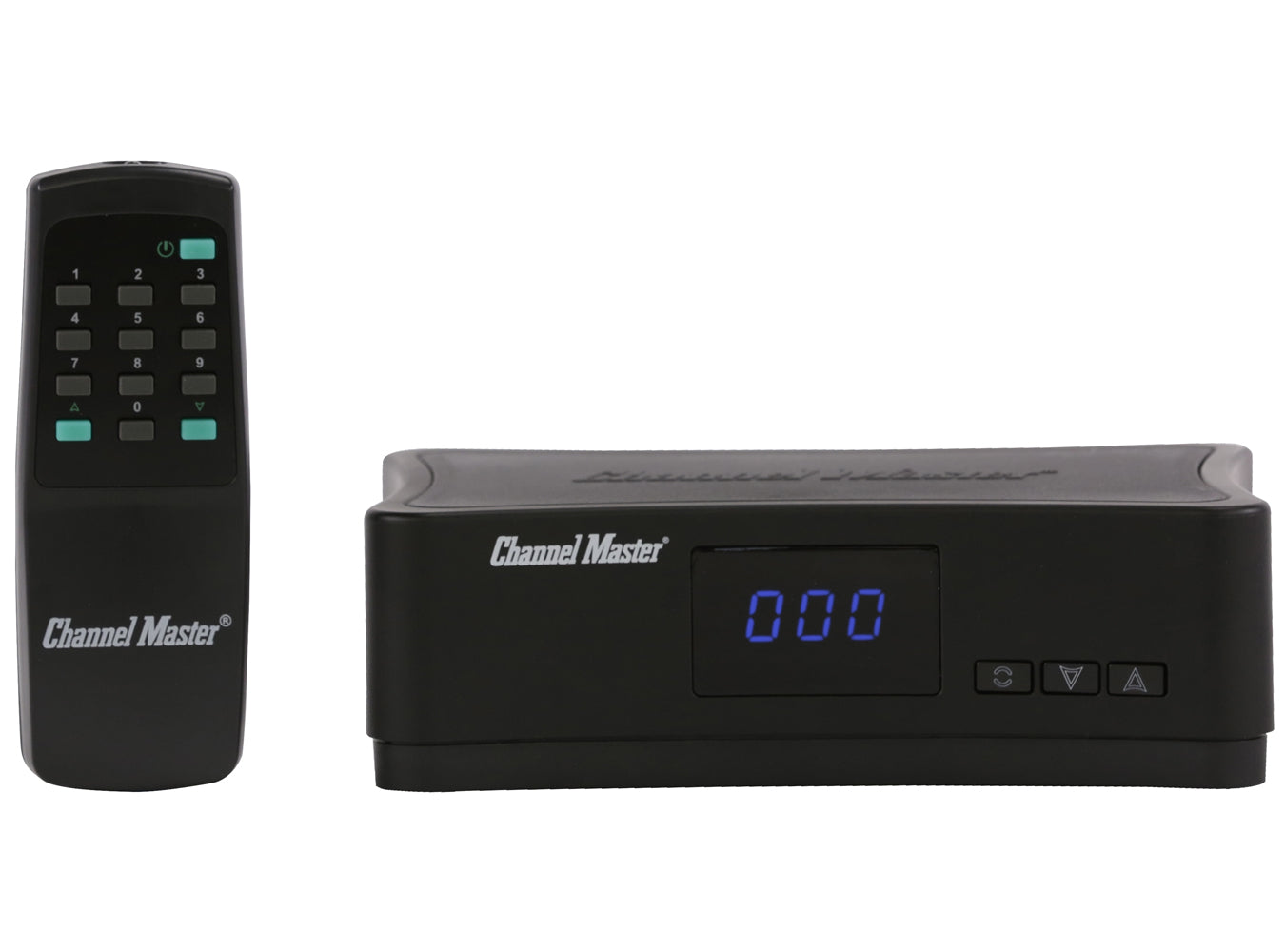

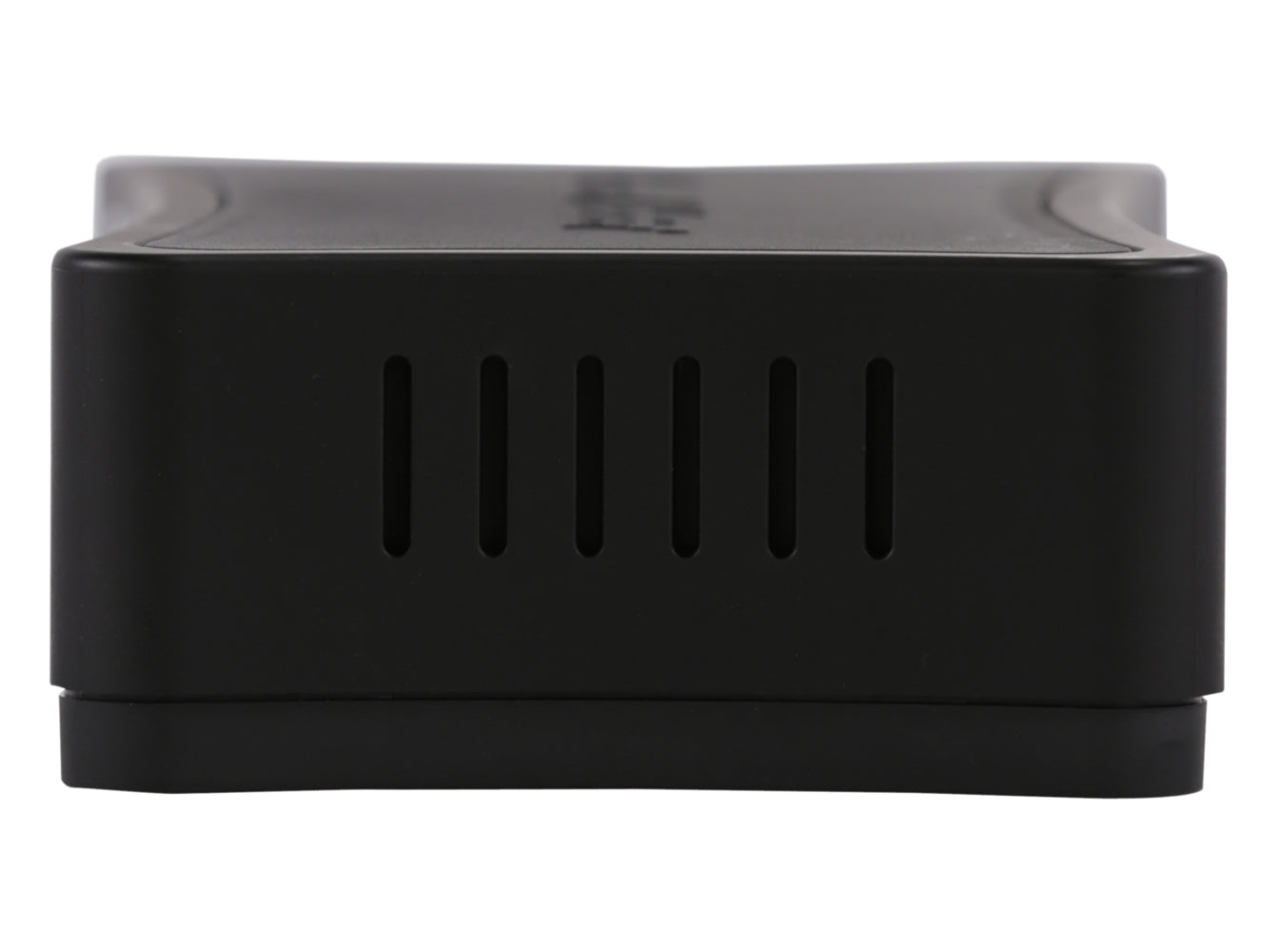

Control Unit
Updated Physical Design (New)
New Flush-Mount Front Panel Buttons (New)
Enhanced Position Reliability (New)
New Blue LED Display (New)
Integrated Power Supply (New)
Non-Volatile memory – Holds locations during power failures
Automatic synchronization ensures pinpoint position accuracy
Directional access control via TV channel number or digital compass location
Unobtrusive control unit blends with any décor
Infra-red remote control
Compatible with most universal remote controls

Tech Specs

Rotation 1 RPM
Gear Ratio 3,200 to 1
Accepts TV antenna mast up to 1.75” in diameter (upper mast)
Power 120 V AC 60Hz only
Operating Temperature -0 Degrees Celsius to + 55 Degrees Celsius
Rotate Torque up to 100 in/lbs
Driving Torque up to 1,000 in/lbs
Overall Height 10.25 in
Lower motor drive housing 5.5 x 4.5 x 7 in
Upper mast mount holes 2.125 in (center to center)
Lower mast mount holes 2.25 in (center to center)
Size (product) 8.5 x 3.75 x 10.25 in
Size (packaging) 7 x 10.5 x 9 in
Weight (product) 6 lb
Weight (packaging) 9.5 lb


Customer Reviews

Based on 15 reviews
James C.
I have people wanting this

I was a antenna installer for 30 years I have put up numbers of Channel master antennas and their rotors with very happy customers .channel master was my go to source for products. its hard to find anybody that has products that came close to channel master. hope there back in stock soon

Mark Jones
Still performing

Purchased one of these in the spring of 2017 to aim a horizontal 2m, 13 element yagi antenna for ham radio. Upgraded the antenna and just added a vertical 2 feet on top of that. Total of about 4lbs of antenna and 1lb of fiberglass tubing. It works every time and I'll spin those antenna around quite a bit during the PNW Weak Signal net on voice. I had my trepidations when I ordered this, but it just keeps going after five years. I will buy another when I have work this one out!

Dave Putnam
Great Product!

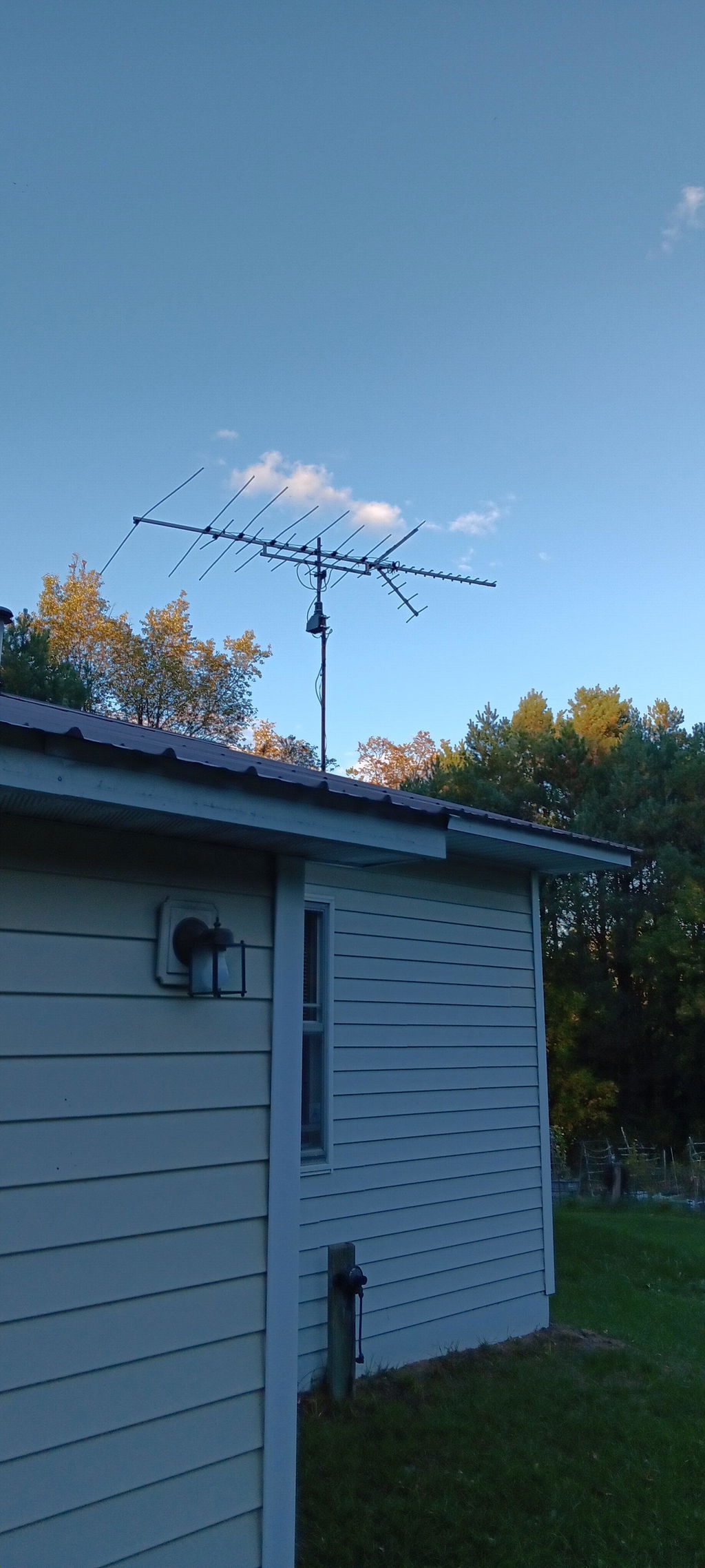

I installed our antenna rotator two years ago and it has worked flawlessly so far. I purchased it about a year prior to installation so I believe it is not the latest version. We are fortunate enough to live where we have access to signals from 3 different television markets. The closest television transmitter is about 40 miles away and the other two are around 100 miles away. We have a 100 mile Cannel Master off air antenna mounted at the top of two 5’ poles. We are going to upgrade from our 15 year old Panasonic plasma tv soon and I’m looking forward to the additional programming that will be available.

John Dyer
It lasted a long time

It lasted 21 years, 43' feet off the ground, in river valley weather. Now I have to get another one, and they're out of stock. Dang.


My remote does not work any more after a year of working beautifully. I have to manually push the buttons to change the directionon the box.
