TV Antenna Installation

For most residential installations, the goal is to place the antenna outdoors, high enough to reduce nearby obstructions, while using a mounting location that is structurally sound, accessible, and allows the antenna to be properly aimed.

For many homes, an eave or fascia installation is one of the most practical mounting methods. It can position the antenna above the roofline without requiring unnecessary penetration through the main roof surface, and it provides a convenient location for securing a mast to a structurally appropriate part of the building.

This is similar to the mounting approach commonly used for residential satellite dishes. A relatively short mast is attached near the roof edge or eave, then positioned so the antenna has sufficient clearance from the roof.

Channel Master's Pro-Mount and Pro-Tube mounting system is designed specifically for this type of installation. The Pro-Mount can be installed on an eave, wall, or roof, and its mast clamp is designed to provide strong clamping force and resist rotation. The complete Pro-Model mounting system combines the Pro-Mount with the 30 inch Pro-Tube mast.

Channel Master Pro-Model TV Antenna Mounting System

A J-mount is another practical option, particularly for smaller and medium sized antennas. Channel Master's J-Mount uses high tensile steel construction and can be used for residential and commercial antenna installations.

Channel Master J-Mount Antenna Mast

The mounting method should always be selected based on the antenna size, wind load, structure, required height, local conditions, and the ability to securely anchor the mounting hardware.

In many cases, yes. An existing satellite dish mount can provide an excellent mounting location for a TV antenna if the mount is structurally sound, securely attached to the building, appropriately sized for the antenna, and located where the antenna can receive the desired signals.

Many homes already have a satellite J-mount or similar mast installed from previous DISH, DIRECTV, or other satellite service. If the customer has discontinued satellite service, the dish reflector and satellite electronics can often be removed while leaving the mast and mounting hardware in place.

A TV antenna with a compatible mast clamp can then be attached to the existing mast. An antenna such as the Channel Master Pro-Model CM-1776 uses a mast mounting system that can accommodate this type of installation when the existing mast diameter and installation are suitable.

Before reusing the mount, inspect it carefully. Make sure the base remains securely anchored, the mast is not badly corroded or damaged, the fasteners remain tight, and the installation can safely support the antenna under local wind conditions.

Also verify that the old satellite location is appropriate for terrestrial television reception. A satellite dish was aimed toward a satellite in the sky, while a TV antenna normally needs to be oriented horizontally toward terrestrial broadcast towers. The existing location may therefore be mechanically convenient but still require evaluation for obstructions and proper antenna aiming.

Reusing a good satellite mount can eliminate unnecessary mounting work and provide a clean installation for customers who have cut the cord.

Install the antenna high enough to obtain reliable reception and reduce important nearby obstructions, but a tall telescoping mast or dedicated antenna tower is not automatically necessary.

Increasing antenna height can improve reception when it helps the antenna clear nearby rooflines, trees, buildings, terrain, or other obstructions. Changes in height can also change the combination of direct and reflected signals reaching the antenna, so even a relatively small height adjustment can sometimes affect reception.

This is one reason professional signal predictions consider antenna height. FCC television reception models account for terrain and antenna height, and the FCC's consumer DTV prediction tool historically assumes an outdoor receiving antenna approximately 30 feet above ground while warning that actual reception varies with terrain, buildings, trees, weather, and receiving hardware.

However, distance alone should not be used to decide that a tower is necessary. A customer within approximately 70 miles of the desired transmitters will often be able to use a conventional roofline, eave, or wall installation when predicted signals and terrain are favorable. Conversely, a much closer home behind difficult terrain or major obstructions may benefit from additional height.

For most typical residential installations, a short mast that gets the antenna above or clear of the roofline is considerably simpler than installing a large telescoping mast or tower.

Tall telescoping masts and antenna towers remain useful for specialized installations, including rural and deep fringe locations, properties surrounded by significant obstructions, or locations where additional elevation is necessary to improve the RF path.

Channel Master continues to offer conventional and telescoping antenna masts for these applications, including 5 foot, 25 foot, and 40 foot mast solutions.

The correct height is therefore the practical height that provides reliable reception and appropriate clearance, not necessarily the maximum height that can physically be installed.

Modern TV antenna installations should generally use 75 ohm RG6 coaxial cable rather than the 300 ohm flat twinlead commonly used in older antenna systems.

Modern televisions, splitters, amplifiers, and other consumer TV equipment are designed primarily around 75 ohm coaxial connections.

RG6 coax uses a center conductor surrounded by dielectric insulation and shielding. The shielding helps protect the desired television signals from external RF interference and allows the cable to be routed near many building materials and electrical systems without the severe interaction problems associated with unshielded twinlead.

Cable quality and installation technique still matter.

Avoid crushing or sharply bending coaxial cable because deformation can alter the geometry between the center conductor and shield. Use properly installed F-connectors, minimize unnecessary adapters and splices, and use outdoor rated cable where the coax will be exposed to weather.

Outdoor connections should also be weather protected, and the cable should form a drip loop before entering the building so water travels to the bottom of the loop and drips away rather than following the cable into the wall opening.

Cable length should be kept reasonable because coaxial cable introduces signal loss, and that loss generally increases with frequency and cable length. Long cable runs, multiple splitters, or distribution to many televisions may require additional system planning or amplification.

Channel Master recommends installing a TV antenna outdoors whenever practical, in a location that provides a favorable RF path toward the desired broadcast towers.

The best mounting location is not necessarily the highest point on the property. The objective is to find a location with reliable signal quality, adequate signal strength, minimal obstruction, and a secure mounting surface.

Buildings, trees, terrain, metal structures, roofing materials, and other objects can attenuate or reflect television signals. Moving an antenna vertically or horizontally can therefore change reception, even when the antenna remains pointed in the same general direction.

Installers can test different roof positions and heights before permanently mounting an antenna. Modern digital signal meters can make this process particularly useful because reception should be evaluated using both signal level and digital signal quality.

An attic installation can work where signals are sufficiently strong, but the roof and building materials become part of the RF path. Metal roofing, foil backed insulation, HVAC equipment, wiring, and other materials can significantly alter reception. An outdoor installation removes many of these variables.

Before choosing the final mounting location, determine the directions and predicted signal strengths of the desired stations. Channel Master's map provides location specific tower directions, distances, RF channels, frequencies, and predicted signal information.

Channel Master TV Antenna Map & Signal Prediction Tool

Once a promising location is identified, test reception before completing all permanent cable routing and weather sealing whenever practical.

Outdoor antenna installation involves working with ladders, roofs, metal masts, tools, and overhead electrical hazards, so safety should be considered before reception performance or installation convenience.

The most important rule is to keep antennas, masts, ladders, guy wires, and installers well away from overhead electrical power lines. A metal antenna or mast contacting an energized conductor can cause serious injury or death.

Do not install an antenna during high winds, thunderstorms, rain, icy conditions, or other conditions that make climbing or handling an antenna unsafe. Roof surfaces and ladders should be dry and stable, and ladders should be appropriate for the installation.

Before drilling into an eave, wall, or roof structure, determine what is behind the mounting location. Electrical wiring, plumbing, structural components, and other utilities can be hidden behind finished surfaces.

The mount itself must be anchored to structurally appropriate material. Screws or lag bolts intended to support an antenna should not rely only on thin siding, trim, or another weak surface. Mounting requirements vary with the structure, antenna size, wind exposure, mast length, and mounting hardware.

Longer masts create greater leverage on the mounting structure. As mast height and antenna wind load increase, additional mounting brackets, guy wires, or a purpose designed tower system may become necessary. Channel Master's Pro-Mount documentation, for example, recommends multiple mounts spaced along the mast when masts longer than 5 feet are used or when additional strength is required.

If the installation requires working near power lines, climbing a steep or high roof, erecting a tall telescoping mast, climbing a tower, or performing work beyond the installer's capabilities, use a qualified professional installer.

There are several ways to mount an outdoor TV antenna, and the best method depends on the construction of the building, antenna size, required mounting height, wind exposure, accessibility, and the reception conditions at the location.

For most residential and light commercial installations, a relatively short mast mounted near the roofline is usually the most practical solution. A tall telescoping mast or antenna tower should generally be reserved for installations where additional height is actually necessary.

Eave or fascia mounting is one of the most practical mounting methods for a typical home. The mast is secured near the edge of the roof structure and can extend high enough to place the antenna above the roofline without requiring a tall mast. This location can also make future antenna adjustments and maintenance easier than installations located farther up a roof.

Channel Master's Pro-Mount CM-3091 is particularly well suited for this type of installation. Its adjustable design allows it to be installed on an eave or wall, and it supports masts up to 2 inches in diameter. It is commonly paired with the 30 inch Pro-Tube mast. Multiple Pro-Mounts can also be spaced along a longer mast when additional support is required.

Channel Master Pro-Model TV Antenna Mounting System

J-mounting is another simple option for residential and commercial installations. A J-mount combines the mast and mounting base into a compact assembly that can be attached to an appropriate structural surface. It is particularly useful when the antenna only needs enough elevation to clear the roofline. The Channel Master J-Mount CM-3099 is constructed from high tensile steel and can be installed on a roof, wall, or other suitable stable surface.

Channel Master J-Mount Antenna Mast

Wall mounting can be useful when the side of a building provides a structurally appropriate attachment point. Wall brackets can support a vertical mast alongside the building, and multiple brackets can be used when additional mast support is required. The spacing and hardware should be appropriate for the mast length, antenna size, structural material, and expected wind loading.

Roof mounting can be used when the antenna needs to be positioned farther onto the roof to obtain the desired location or clearance. Tripod mounts provide a broad support structure and are commonly used when greater rigidity is required. Because roof mounting normally requires penetrating the roofing material, installation and weather sealing must be performed carefully to prevent water intrusion. Channel Master offers a 3 foot tripod mount for this type of installation.

Chimney mounting uses straps and brackets to secure an antenna mast to an appropriate masonry chimney without attaching the mount directly through the roofing surface. The chimney must be structurally sound, and the antenna and mast must not impose excessive mechanical loading on it. This mounting method is less common today but remains useful for certain installations.

Attic mounting may be considered when an outdoor installation is not practical. The antenna is typically attached to a short mast secured to a rafter or other appropriate structural member. Attic reception can be less predictable because roofing materials, foil backed insulation, metal ductwork, wiring, and other building materials can attenuate or reflect television signals. For this reason, Channel Master recommends outdoor installation whenever practical.

Ground mounted masts can be installed alongside a building when roof or eave mounting is not appropriate. The mast is supported at ground level and normally secured to the building at additional points. This approach can provide additional antenna height while keeping much of the mast accessible from the ground.

Telescoping masts are useful when considerably more antenna height is necessary. They are primarily appropriate for rural, deep fringe, or obstruction limited installations where additional elevation provides a meaningful reception advantage. Depending on the height and installation configuration, guy wires and additional structural support may be required. Channel Master currently offers telescoping mast products for these specialized applications.

Antenna towers provide even greater height and structural capability, but they are specialized installations. Towers can be useful in difficult rural or deep fringe locations where terrain, trees, buildings, or other major obstructions make conventional roofline mounting inadequate. Tower design, foundation requirements, loading, climbing, and installation introduce significant structural and safety considerations, so these installations should generally be handled by experienced professionals.

For most homes, additional height should only be added when the reception conditions justify it. A customer with good predicted signals and a relatively unobstructed path toward the broadcast towers usually does not benefit from installing a 25 or 40 foot mast simply because greater height is available.

The goal is to place the antenna where it can receive the desired signals reliably while using the simplest secure mounting system appropriate for the installation.

For a typical residential installation, a practical order of consideration is:

Eave or fascia mount → J-mount or wall mount → roof or tripod mount → ground mounted mast → telescoping mast → tower

The first few options will satisfy many residential installations. The latter options become more appropriate as additional antenna height and structural support are required.

Channel Master offers mounting hardware for these different applications, including Pro-Mounts, J-mounts, universal mounts, attic mounts, wall mounts, eave mounts, chimney mounts, tripods, conventional masts, and telescoping masts.

View Channel Master Antenna Masts & Mounts

Guy wires are used to provide additional mechanical support for taller TV antenna masts that cannot be adequately supported by the mast mounting brackets alone. When properly installed, the guy wires stabilize the mast against movement caused by wind and the additional leverage created by the antenna and mast above the upper support point.

Guy wires are generally unnecessary for the short masts used in most residential TV antenna installations. They become more important with tall masts, telescoping masts, large antennas, high wind exposure, or whenever the mast extends a significant distance above its primary structural support.

The exact requirements depend on the mast, antenna wind load, mounting method, height, local wind conditions, guy wire material, and attachment structure. Always follow the mast and mounting hardware manufacturer's requirements when they are available.

Use three or four properly spaced guy wires

A common guying arrangement uses three guy wires spaced approximately 120 degrees apart around the mast. This provides support from three directions while keeping the mast centered.

A four wire installation can also be used, with the guy wires spaced approximately 90 degrees apart.

The objective is to distribute the supporting forces as evenly as practical around the mast. All guy wires in a particular guying level should attach at approximately the same height on the mast and extend outward toward structurally appropriate anchor points.

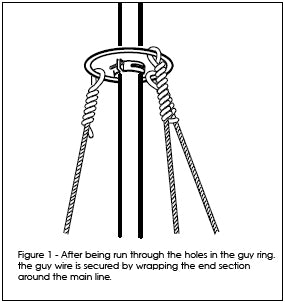

Attach the guy wires to a proper guy ring

Guy wires should normally be connected to a guy ring or other mast hardware specifically designed for guy wire attachment, rather than being randomly wrapped around the antenna mast.

The guy ring is positioned on the mast at the height where lateral support is required. For a telescoping mast with multiple supported sections, more than one level of guy wires may be necessary.

The antenna should remain above the guy attachment point so the wires do not contact or interfere mechanically with the antenna elements.

Position the anchor points away from the mast

Whenever the installation allows it, the guy wires should extend outward from the mast rather than dropping almost vertically beside it.

A wider guy wire angle generally provides more effective resistance to lateral movement. A useful installation target is approximately a 45 degree angle between the mast and guy wire, when the available mounting area and structure permit it.

For example, a guy attachment point 10 feet above its supporting structure would ideally have its anchor point located roughly 10 feet horizontally from the mast if a 45 degree geometry is desired.

The exact geometry will vary with the installation, and structural limitations may prevent achieving an ideal angle.

Anchor the guy wires to structural material

The strength of the complete guy wire system is determined by more than the wire itself. Every anchor point must be capable of handling the forces transferred through the guy wire.

Roof or building anchors should be secured into appropriate structural material, not simply into shingles, siding, thin sheathing, or another surface that is not designed to carry the load.

Ground mounted installations may use appropriately rated ground anchors when the installation and soil conditions permit.

Do not use one undersized attachment point to support several guy wires unless the hardware and supporting structure are specifically designed for that load.

Use hardware designed for outdoor exposure

Guy wires, guy rings, turnbuckles, anchors, clamps, and related hardware should be suitable for long term outdoor exposure.

Galvanized steel and other corrosion resistant materials are commonly used because guy wire systems remain continuously exposed to rain, moisture, sunlight, temperature changes, and wind.

Corrosion is especially important to consider in coastal and high moisture environments.

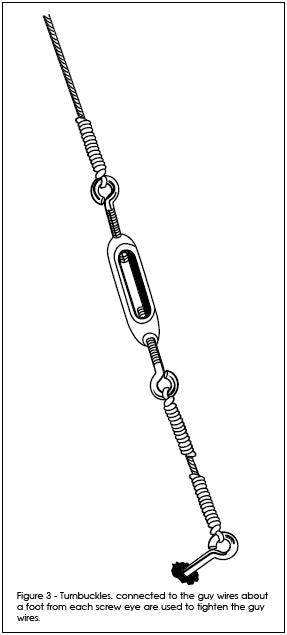

Use turnbuckles to properly tension the guy wires

Turnbuckles provide a convenient way to adjust the tension of each guy wire after the mast has been positioned.

Begin with the mast vertical, then gradually tension the guy wires while repeatedly checking the mast from multiple directions. The wires should be firm and evenly tensioned, but they should not be tightened excessively.

Overtightening can place unnecessary compression and bending forces on the mast, mounting hardware, anchors, and supporting structure.

The purpose of guy wires is to stabilize the mast, not to pull against it with excessive force.

After the installation is complete, verify that the mast remains vertical and that the antenna is still aimed in the intended direction.

Taller telescoping masts may require multiple guying levels

A tall telescoping mast should not necessarily be supported by only one set of guy wires at the very top.

Depending on the mast design and extended height, additional guying levels may be required to stabilize individual mast sections and control bending along the length of the structure.

For example, a tall mast might use one set of guy wires at an intermediate height and another set closer to the upper portion of the mast. Each level would normally use its own properly spaced anchor points.

Always follow the mast manufacturer's guying requirements because allowable mast height and guying configuration depend on the mechanical characteristics of the particular mast.

Consider the antenna's wind load

The antenna mounted at the top of the mast acts as a wind load. Wind creates force on the antenna, and the mast acts as a lever transferring that force to the mast supports and guy wires.

Increasing the height of the antenna above the primary support increases the leverage placed on the installation. A larger antenna or an antenna with greater surface area can also produce greater wind loading.

This is why a mast that appears perfectly rigid on a calm day may require substantial additional support during high winds.

Guy wires should therefore be considered part of the complete structural antenna mounting system, rather than simply an accessory added to a tall mast.

Inspect guy wires periodically

Outdoor guy wire systems should be periodically inspected for:

• Loose or uneven guy wire tension
• Corrosion
• Frayed or damaged wire
• Loose clamps or connections
• Damaged turnbuckles
• Movement at anchor points
• Mast movement or leaning
• Deterioration of the structure supporting the anchors

Any significant deterioration should be corrected before the installation is subjected to severe weather.

For a tall mast, large antenna, tower installation, or installation in a high wind area, structural requirements become increasingly important. If there is uncertainty about the appropriate mast, guy wire configuration, anchor strength, or structural loading, the installation should be evaluated or performed by an experienced antenna installer or other qualified professional.
