Universal Antenna Mount

Universal Antenna Mount is a one of a kind mounting solution from Channel Master
CM3090

Additional Images:


Price: $39.00

Description Technical Specifications FAQ's & Support Docs

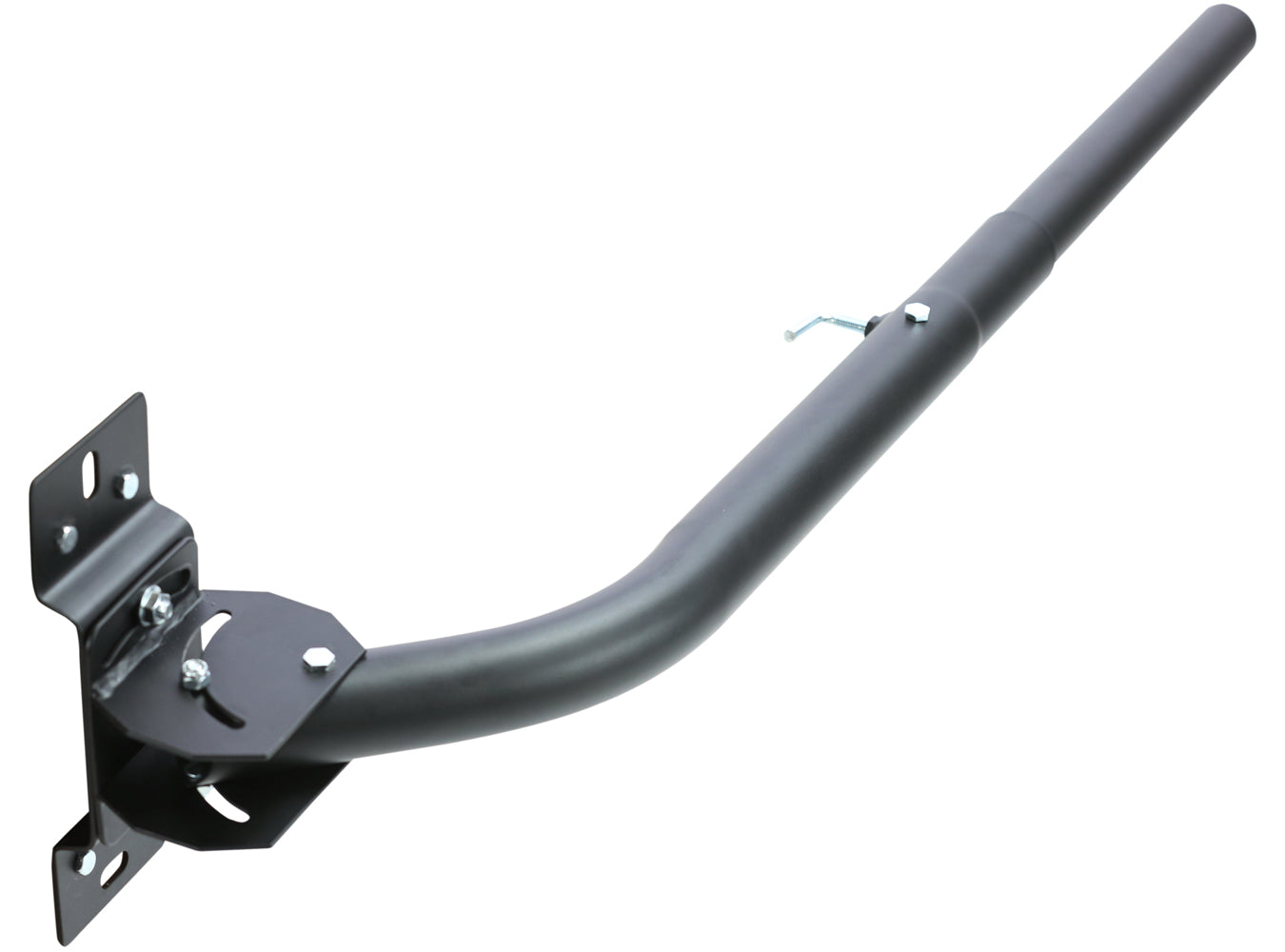

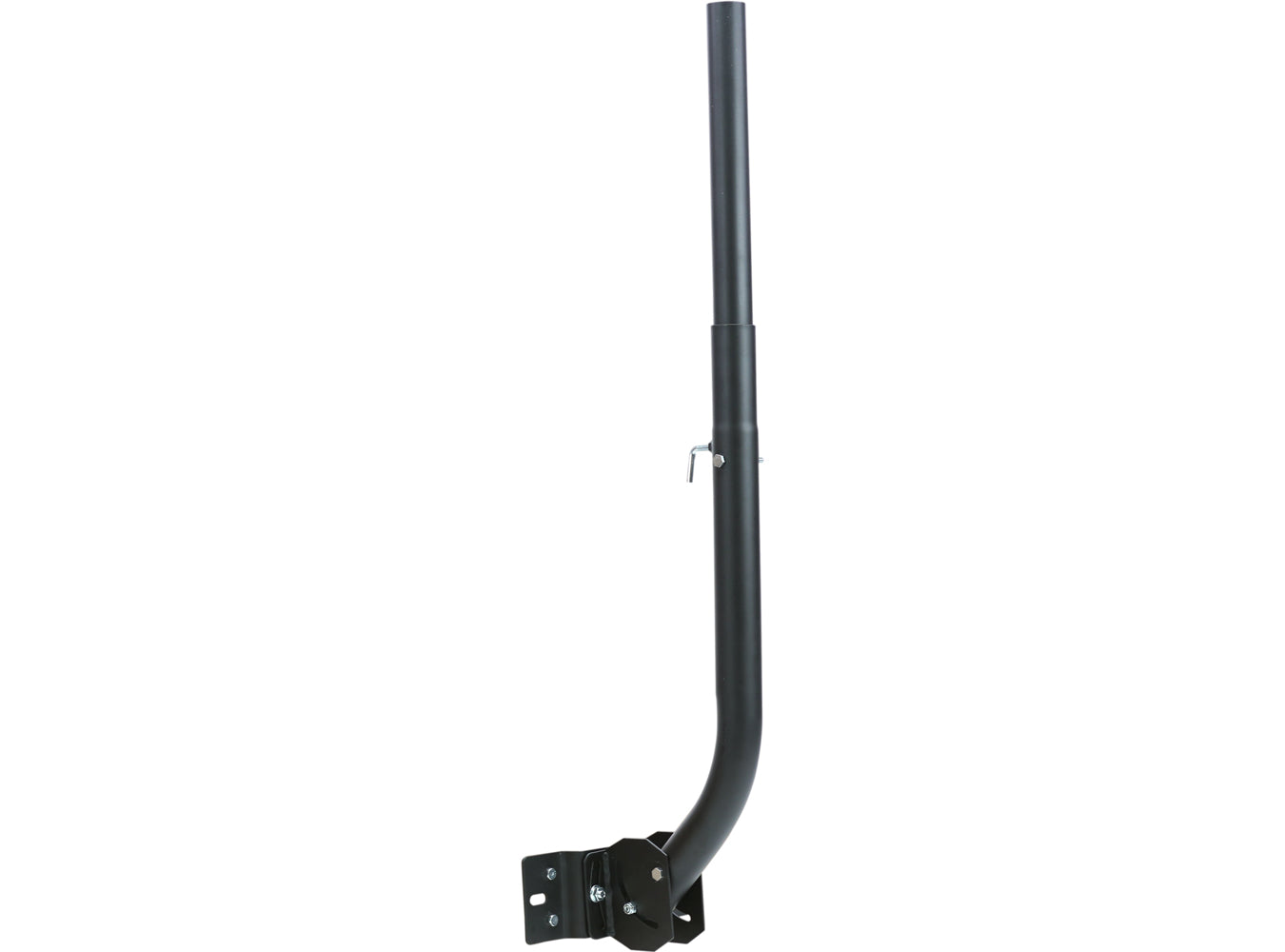

The Universal Antenna Mount is a one of a kind mounting solution enabling consumers and professionals to easily install many different types of outdoor antennas in a variety of different mounting applications. The Universal Antenna Mount will accommodate most brand and styles of outdoor TV antennas. The Mast section of the mount is adjustable and telescopes from 24 inches to 44 inches allowing for clearance on most pitched roofs or to extend above a wall. The mounting plate was designed to revolutionize the traditional J-mount with two adjustments allowing it to be installed on angled and/or pitched surface’s while maintaining a vertical positioned mast.

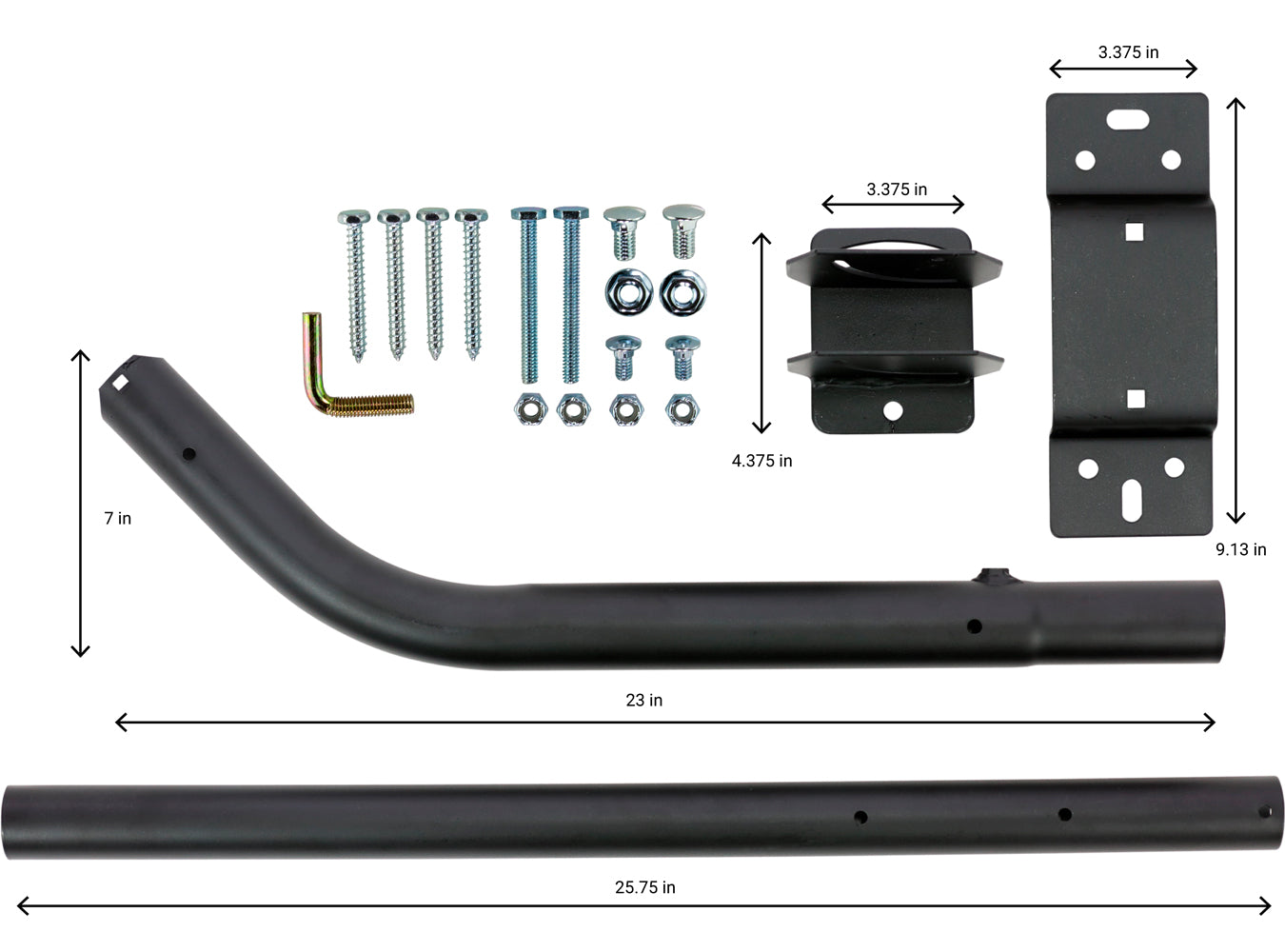

What’s Included

J-Mount
Extension Pole
Hardware
Instruction Sheet

Features

Extends up to 44 inches
J-Pole pivots 45 degrees
Mounting Brace pivots 45 degrees on Base

Supported Antennas:

Yagi
Log-Periodic
Phases Array
Omnidirectional
Parabolic
Broadband Internet
Satellite (1.66” Clamp)
Cellular
Microwave, and more.

Supported Installs:

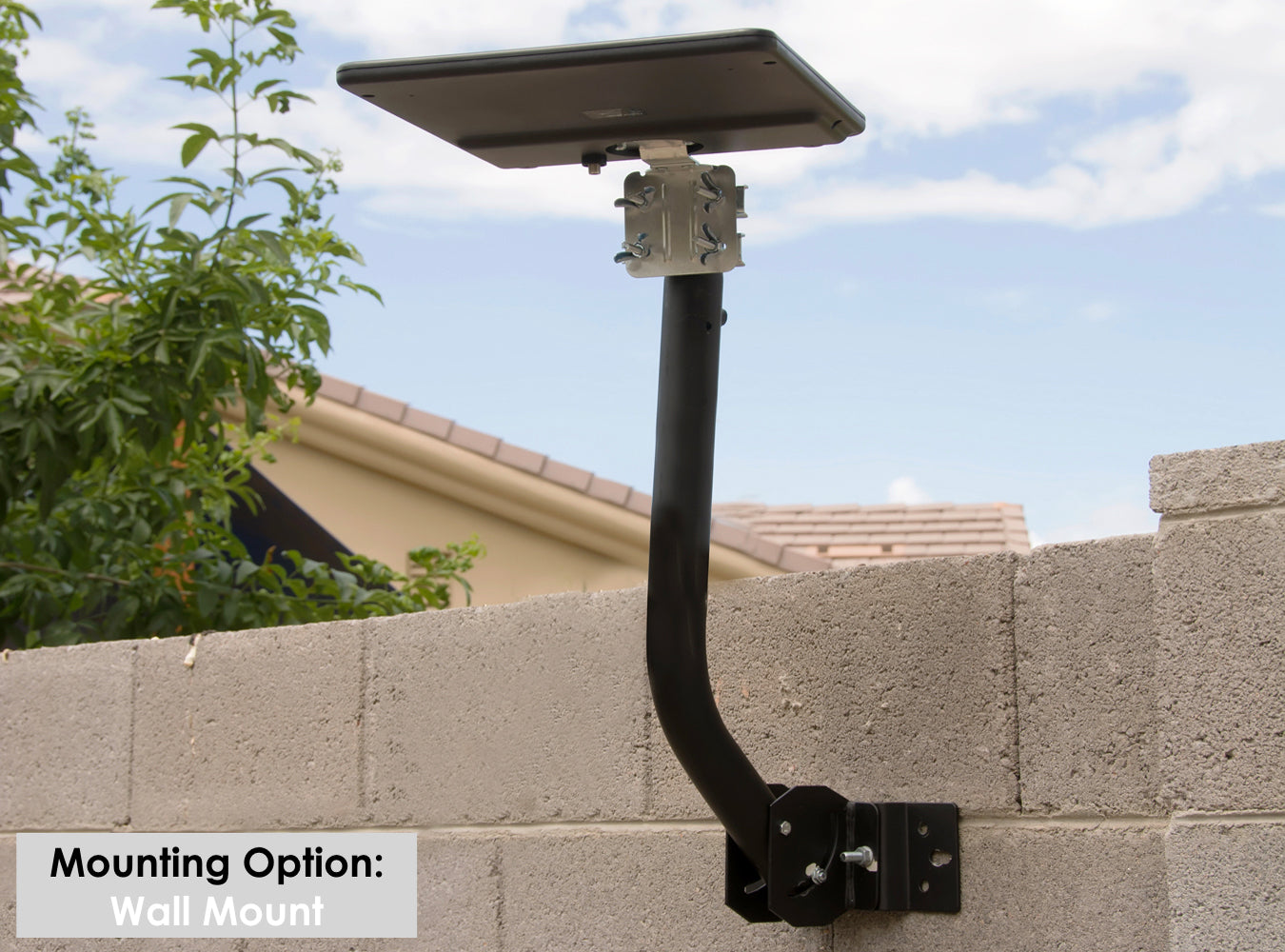

Wall

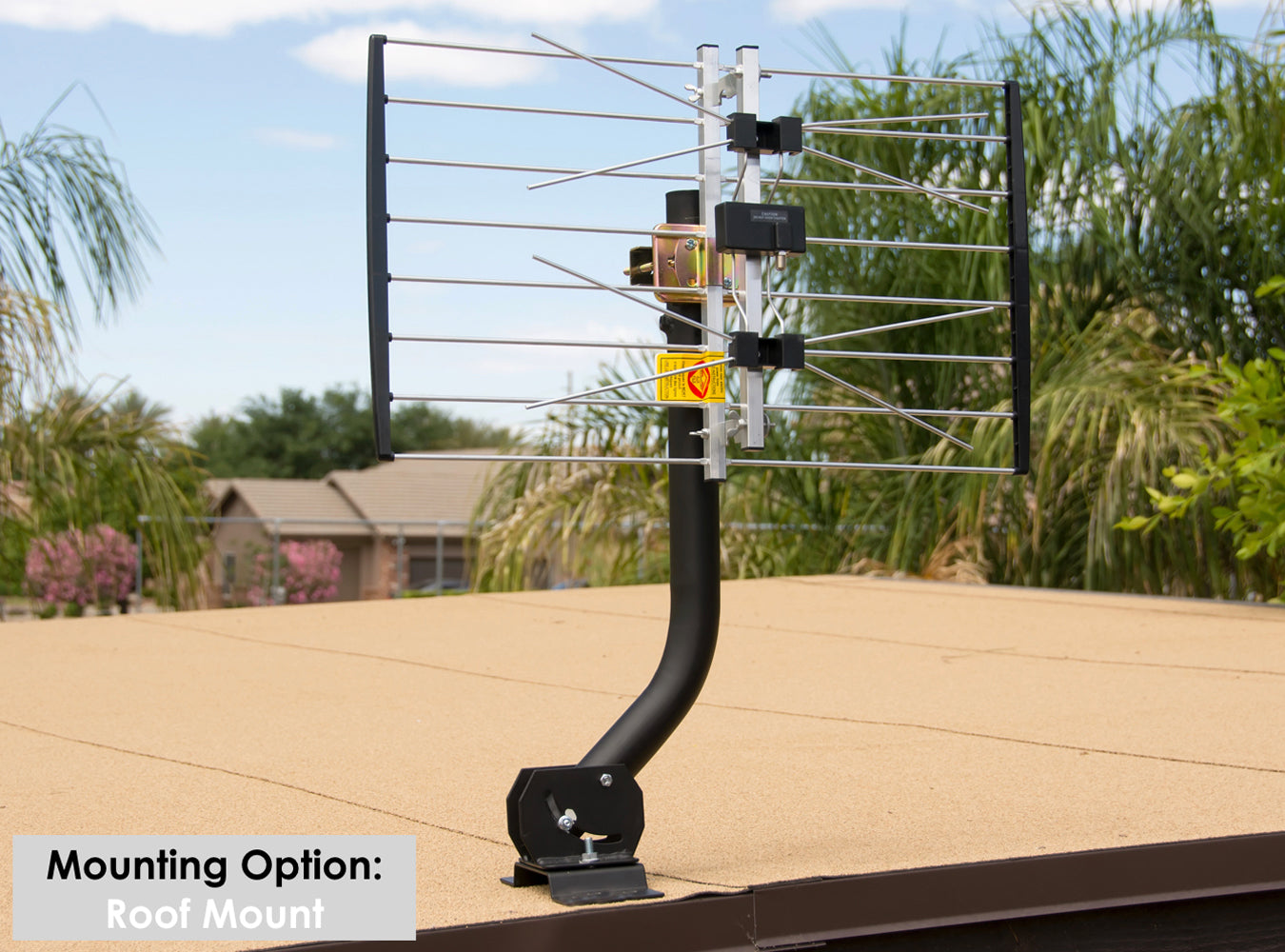

Roof

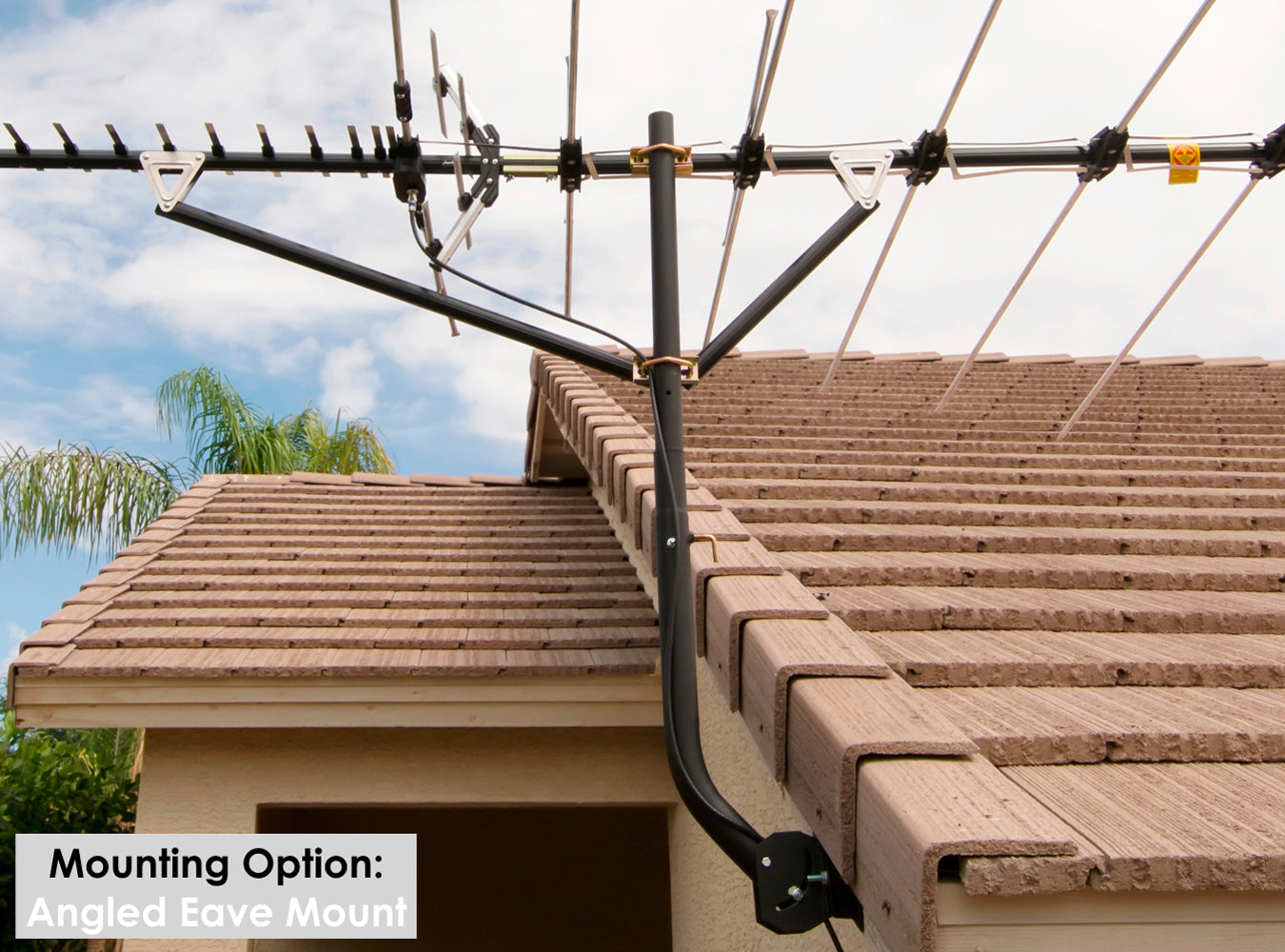

Eave
Mount includes adjustments for:

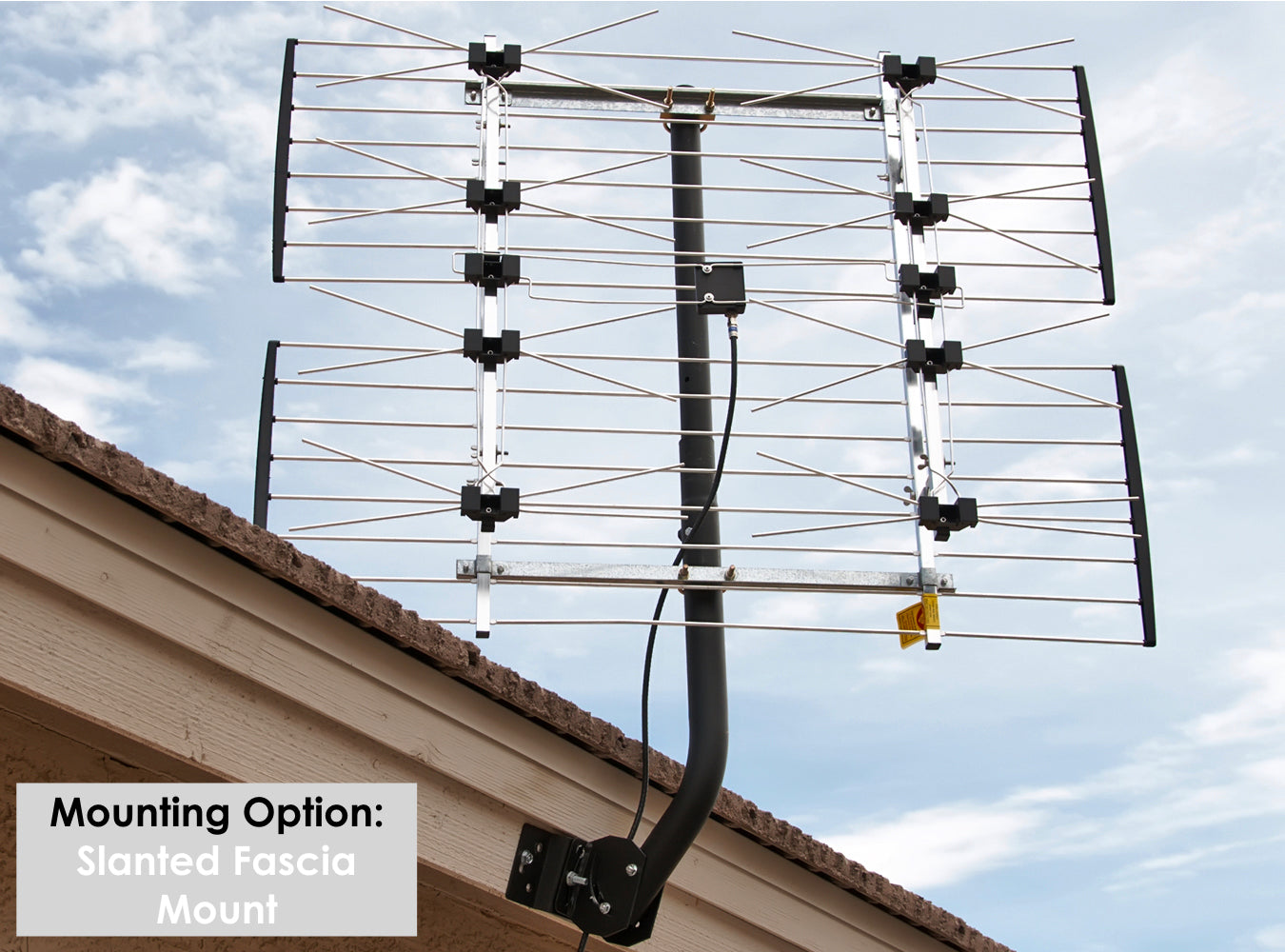

Slanted
Pitched
Vertical and horizontal surfaces.

Installed Lengths:

24”, 34”, 36”, 40”, and 44”

90 days Limited Warranty Limited Warranty

parts and labor 90 days of parts and labor
support 90 days of support through phone, online chat and/or e-mail
Average Customer Review: 5 of 5 Total Reviews: 20 Write a review.

Accessories
Masterpiece 100
Price: $159.00
CM 5020 Masterpiece Antenna 100 mile Outdoor TV Antenna
4” Wall Mount
Price: $14.00
CM 3079 TV Antenna Wall Mount
EXTREMEtenna 80
Price: $109.00
CM-4228HD
Amplify Adjustable Gain Preamplifier
Sale Price: $69.00
Television Antenna Booster CM 7777HD
100' Coaxial Cable White
Price: $18.00
100' Coaxial Cable White


  0 of 0 people found the following review helpful:

Universal Atenna mount November 20, 2017
Reviewer: William Raymond from Phoenix, AZ United States
I bought this mount to hold a small radio communication antenna. Antenna only ways maybe 5 lbs and is 8 ft tall. So no strain for the mount. It seems well made and was easy to assemble. Mounted on the eve at the rear of our home and it worked out great!

Was this review helpful to you?

  0 of 0 people found the following review helpful:

Small, discrete and easy to install. November 20, 2017
Reviewer: Wedge from NE United States
Pros. I was worried about the hassle of mounting a tripod on my roof, running the cable through the attic, and and then having to look at the ugly thing.  This mount was the perfect solution since I could easily mount it to my fascia.  The black looks pretty sharp and does not stick out like a sore thumb.  Very sturdy.  Only needed to drill 4 holes and get a 10 mm socket to mount.  Also needed an 11 mm and 13 mm wrench.  Goes together very easy.  Instructions are very clear although with a little common sense they are probably not needed.

Cons.  This isn't going to be tall enough if your worried about getting a good signal.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

Good Quality Mount July 31, 2017
Reviewer: Bob from Fort Collins, CO
I purchased this mount for a long boom UHF/VHF-Hi antenna and mounted it to the fascia near the peak of the roof.  I found two problems with the provided mounting hardware.  The lag screws provided are 2" x 1/4" while the mating holes in the mounting plate are drilled to accept 5/8" bolts and the 1/4" would almost pop through.  Also, to get through the fascia, siding, sheathing and into the truss, I needed 3".  So I replaced the lag screws with 3"x5/8" and it was solid as a rock.  The carriage bolts used to lock down the angle adjustment are just long enough to get the nut on and tighten it.  However, these nuts want to pull through the adjustment slot when tightened and really need a washer, but the bolt is too short to add one and engage the threads.  So I replaced them with 1" and added a washer, and it I was able to tighten it up solid.
Bottom line - replace those two fasteners and you'll have a very adjustable, very solid antenna mount.  Thanks.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

Nice Design July 24, 2017
Reviewer: Mark from Seattle area
I mounted a Channel Master 4228HD antenna on this mast. The combo looks and works well together. Mast offers some nice mounting and adjustability options. Suggested improvements: (1) Mast needs a ground connection point in the form of a tapped machine screw painted green. (2) Mast would look more finished with a plastic cap on the end of the mast post instead of having the ends of the tube exposed.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

Heavy Duty Mount/Mast July 7, 2017
Reviewer: Lloyd Harp from Midwest US
Very heavy duty construction, built very sturdy. I am pleased!

Was this review helpful to you?
