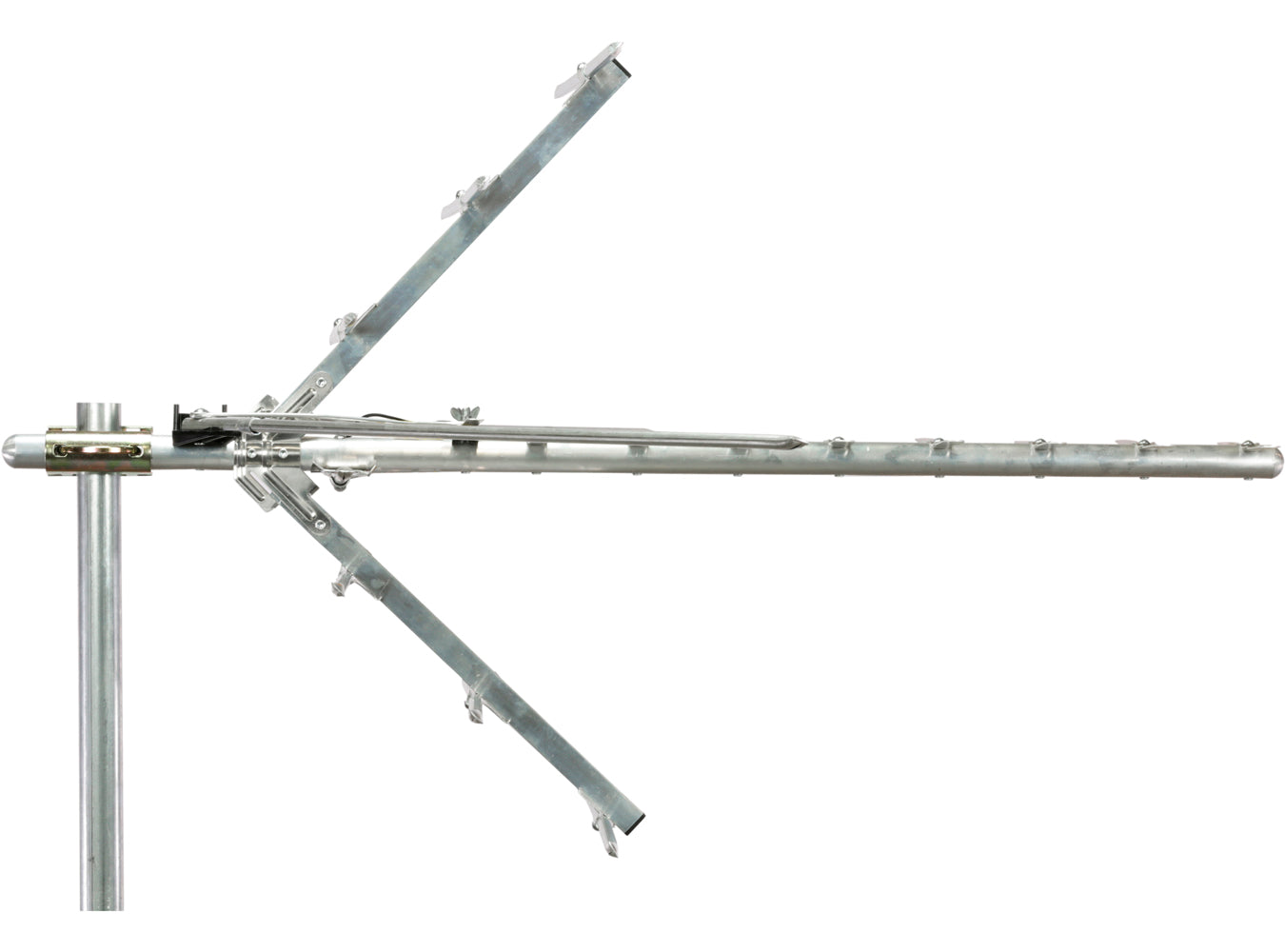

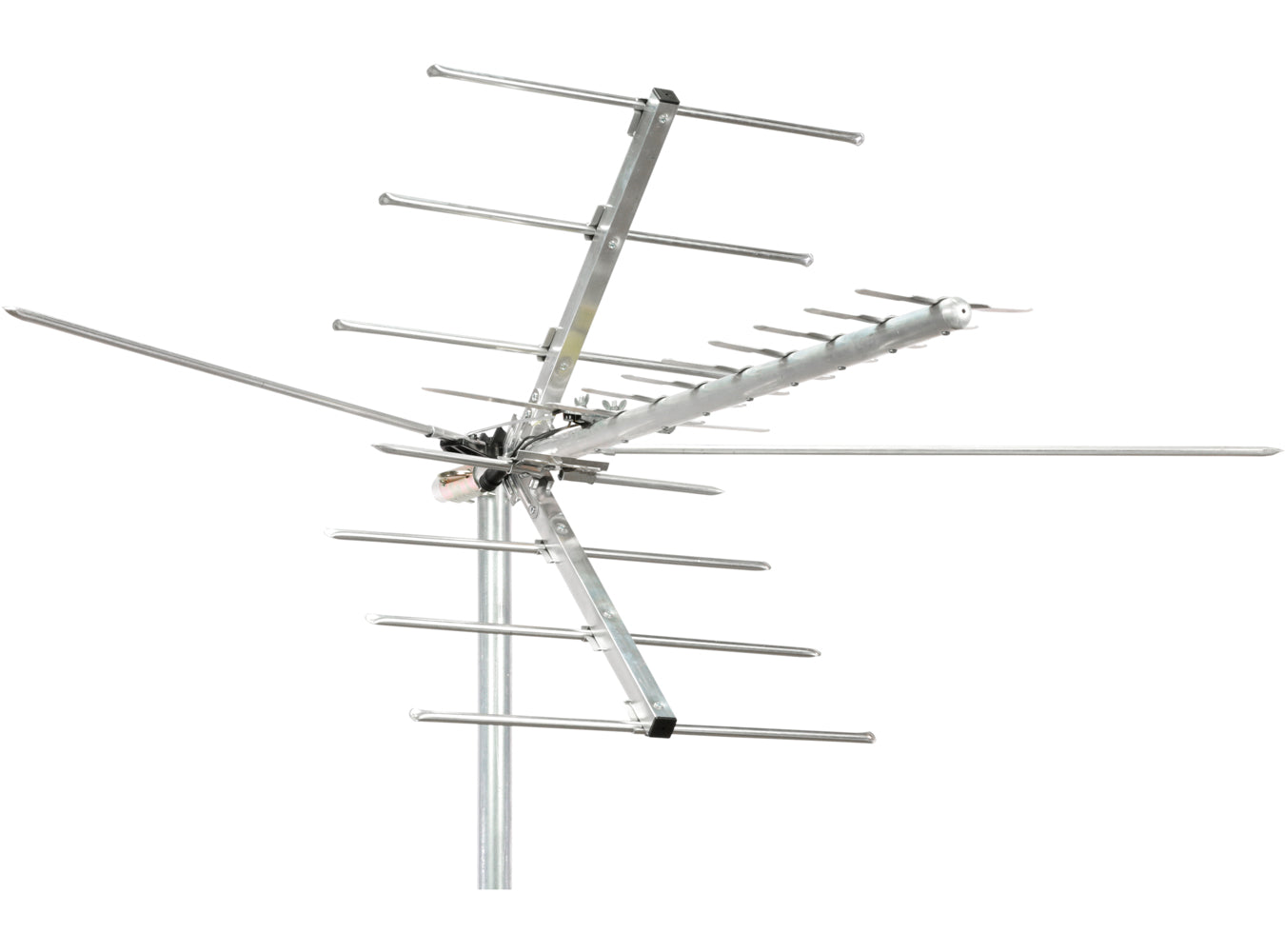

The Digital Advantage 45 is a directional (yagi), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction and is optimized for high VHF and UHF signals. This antenna has a reception range of up to 45 miles.
Recommended Alternative: Pro-Model Antenna The Pro-Model antenna is highly recommended by Channel Master antenna engineers because it will provide a much better customer experience. - It is easier to assemble and mount, it will hold up better in extreme weather, it is upgradable and repairable, and it’s made in the USA. To learn more about the Pro-Model Antenna, Click Here.
Short range directional (line of sight) outdoor TV antenna up to 45 miles.
What’s Included
Digital Advantage 45

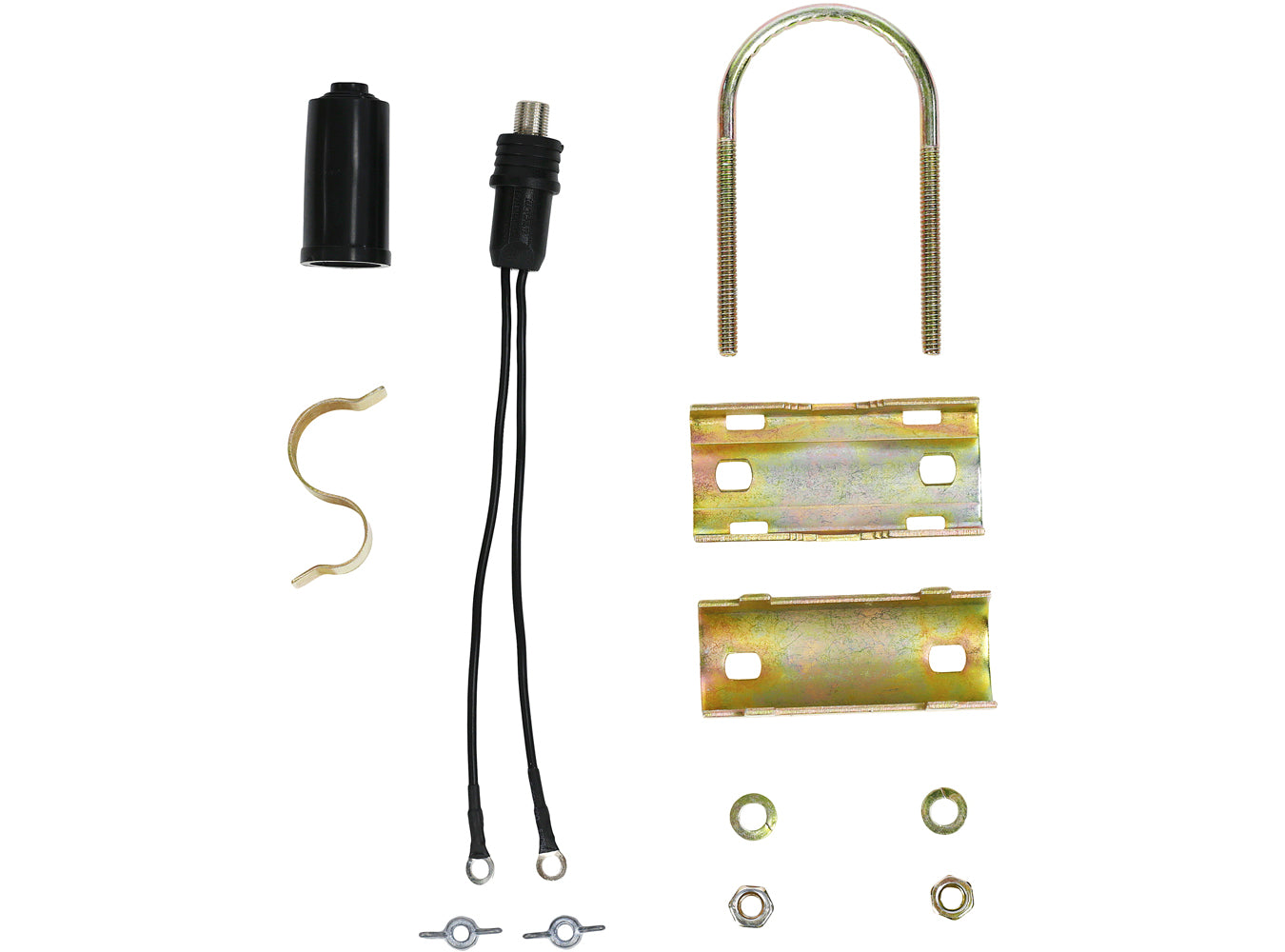

Hardware (Mast, Amplifier and Coax Cable Not Included)
Installation Guide
1-Year Limited Warranty
Features
Reception Range
45 Miles
Type
Outdoor
Reception Pattern
Directional
Built-In Amplifier
No
Installation
Roof, Attic, Mast, Eave, Chimney
Tech Specs
Electrical Specifications
Bandwith
174 to 216 and 470 to 700 MHz
VHF Gain
2.5dB
UHF Gain
8.5dB
Front to Back Ratio
10dB
Return Loss
N/A
Impedance
300 Ohm (75 Ohm balun included)
Mechanical Specifications

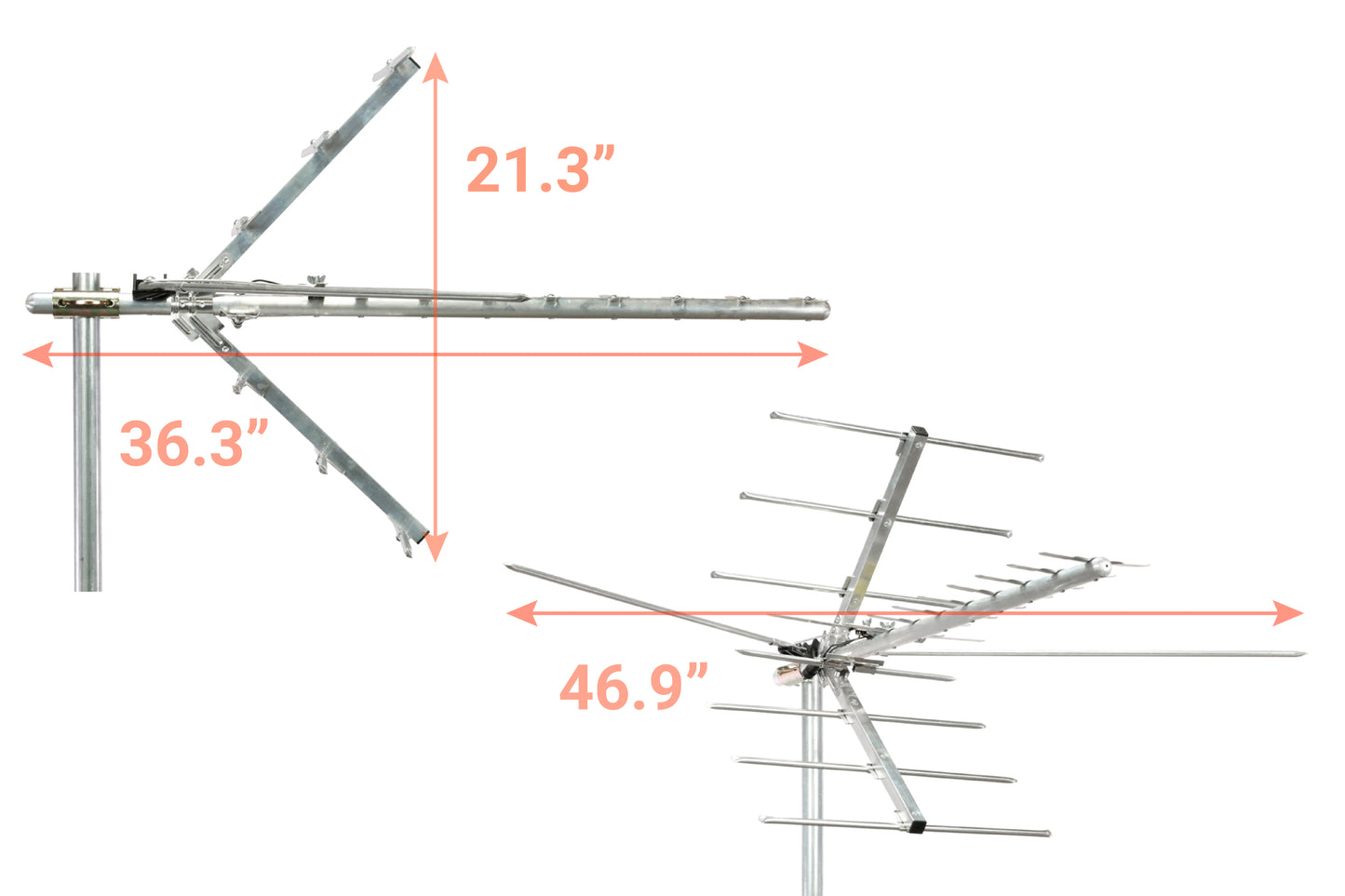

Boom Length
36.5"
Number of Elements
22
Max Element Width
47.5"
Mounting Clamp
U bolt up to 1.75"
Turning Radius
3 ft.
Output Connector
F-type
Size (product)
36.5 x 47 x 22 in
Size (packaging)
37.25 x 5.75 x 5.5 in
Weight (product)
1.5 lb
Weight (packaging)
3.5 lb
Wind Resistance
(at 100 mph, no ice) – 22 lb
