(10-Pack) Coaxial Compression "F" Connector

Coaxial Compression "F" Connector (10-Pack) | Channel Master
CM7170-10

Additional Images:


Price: $6.00

Description Technical Specifications

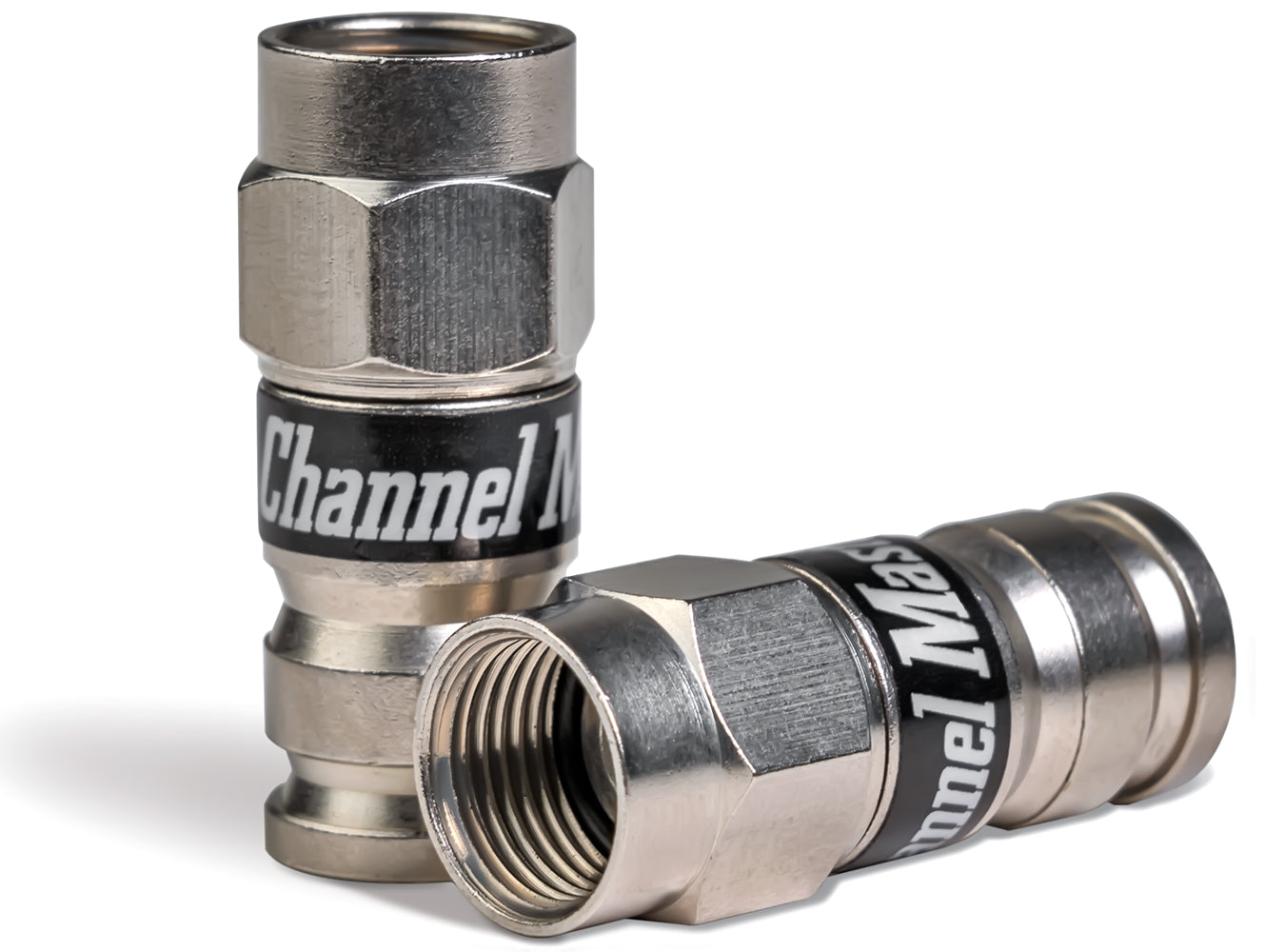

Channel Master Coaxial Compression F-Type Connectors are professional grade connectors designed for High-End systems that demand the highest quality digital audio/video transmissions as well as high-speed data transmissions over coaxial cable.

Leveraging over 60 years of experience building professional-grade television reception products, Channel Master has developed the most robust coaxial connector on the market designed specifically for high-end audio/video systems and professional TV antenna installations. Poor quality coaxial connections are a leading point of failure in cable, satellite and TV antenna systems, taking this into consideration Channel Master has integrated key technical features that will prevent 99.9% of single issues that arise from poor coaxial connections. In addition to industry leading performance, the Channel Master Coaxial Connectors have a high-end nickel-tin finish that looks elegant when the connection to equipment is visible.

Not Your Typical Connector

The Channel Master compression connector is not your typical cheap Gold-Plated connector, instead we put our focus on what really matters.

Digital Signal Future Proofing

Channel Master coaxial connectors deliver enhanced reliability for signal reception of current and future standards such as 4K, Ultra HD and HDR.

Continuous Ground

Provides a continuous ground regardless if the connector is tight or loose. A broken ground path due to a loose connector will cause signal quality issues that could result in intermittent macroblocking of video.

Excellent Shielding Effectiveness

A connector with poor shielding can let unwanted signals penetrate and interfere with your signal. Interference introduced through the connector on the cable will cause signal quality issues resulting in intermittent or complete loss of audio and video.

Indoor/Outdoor Design

Integrated dual o-rings sit on both the front and back sides of the Channel Master compression connector nut. The o-rings are constructed of high tensile strength NBR rubber and provide a superior barrier against moisture intrusion preventing long-term signal issues when moisture makes it's way onto the inner part of the coaxial cable. The 100% brass all metal design delivers maximum cable retention and will hold up over time as opposed to connectors constructed of plastic.

What’s Included

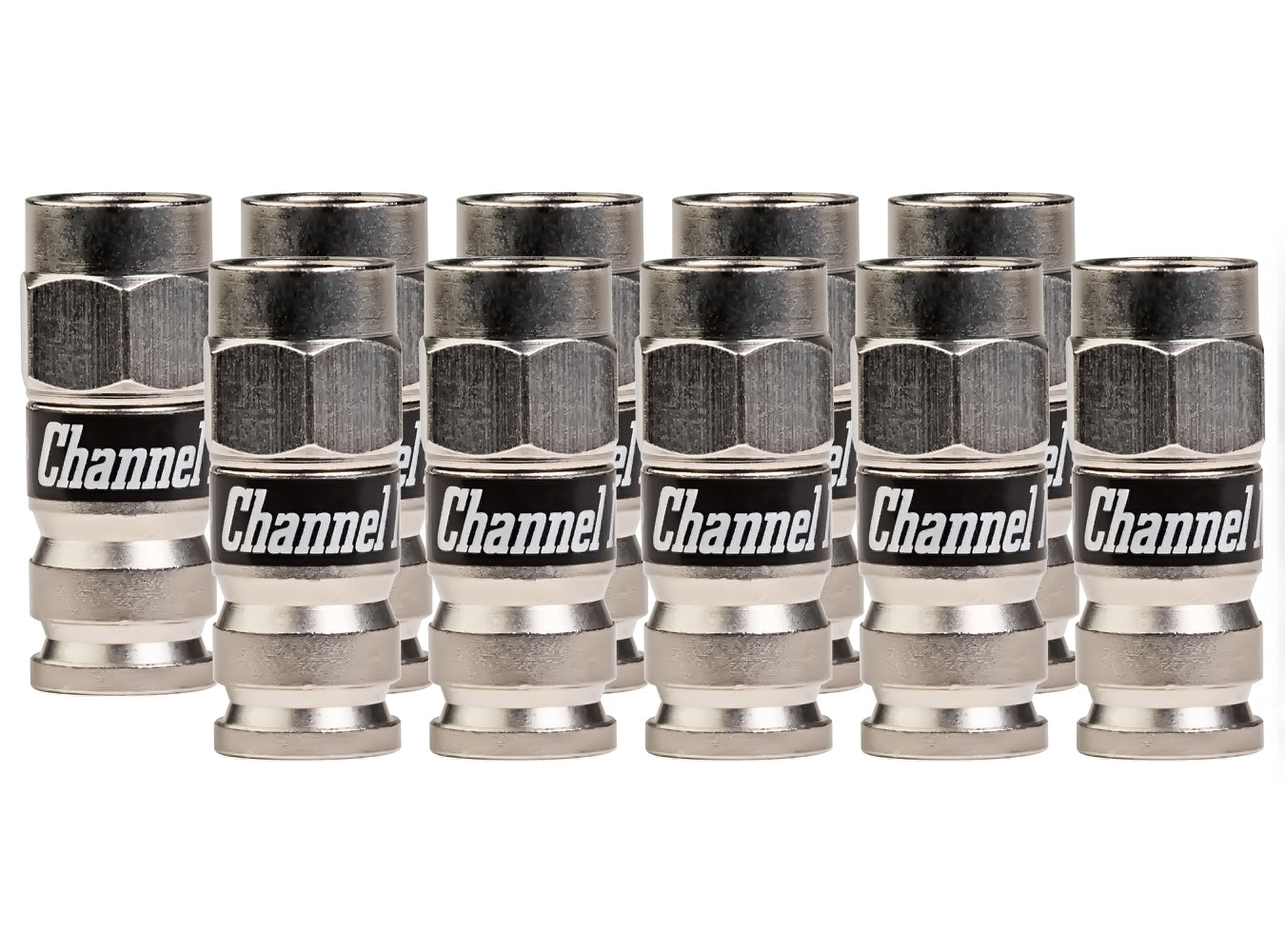

(10) Connectors
Instruction sheet

Features

Universal Cable Support: Easy insertion on RG6 standard, tri and quad shield coaxial cables
Locking Feature: Torque Retaining Nut keeps the connection tight where temperature cycling and vibration will loosen other connectors.
Elegant / High-End Look: Special Nickle-Tin Plating provides a high-end look for those installing luxury A/V systems.
Easy-Spin Nut: Unlike other connectors, once the connector is compressed the nut spins freely for an easy installation.
****Requires an industry standard cable preparation tool such as the CM-1015 and exclusively the CM-1015 compression tool for proper installation.

90 days Limited Warranty Limited Warranty

parts and labor 90 days of parts and labor
support 90 days of support through phone, online chat and/or e-mail
