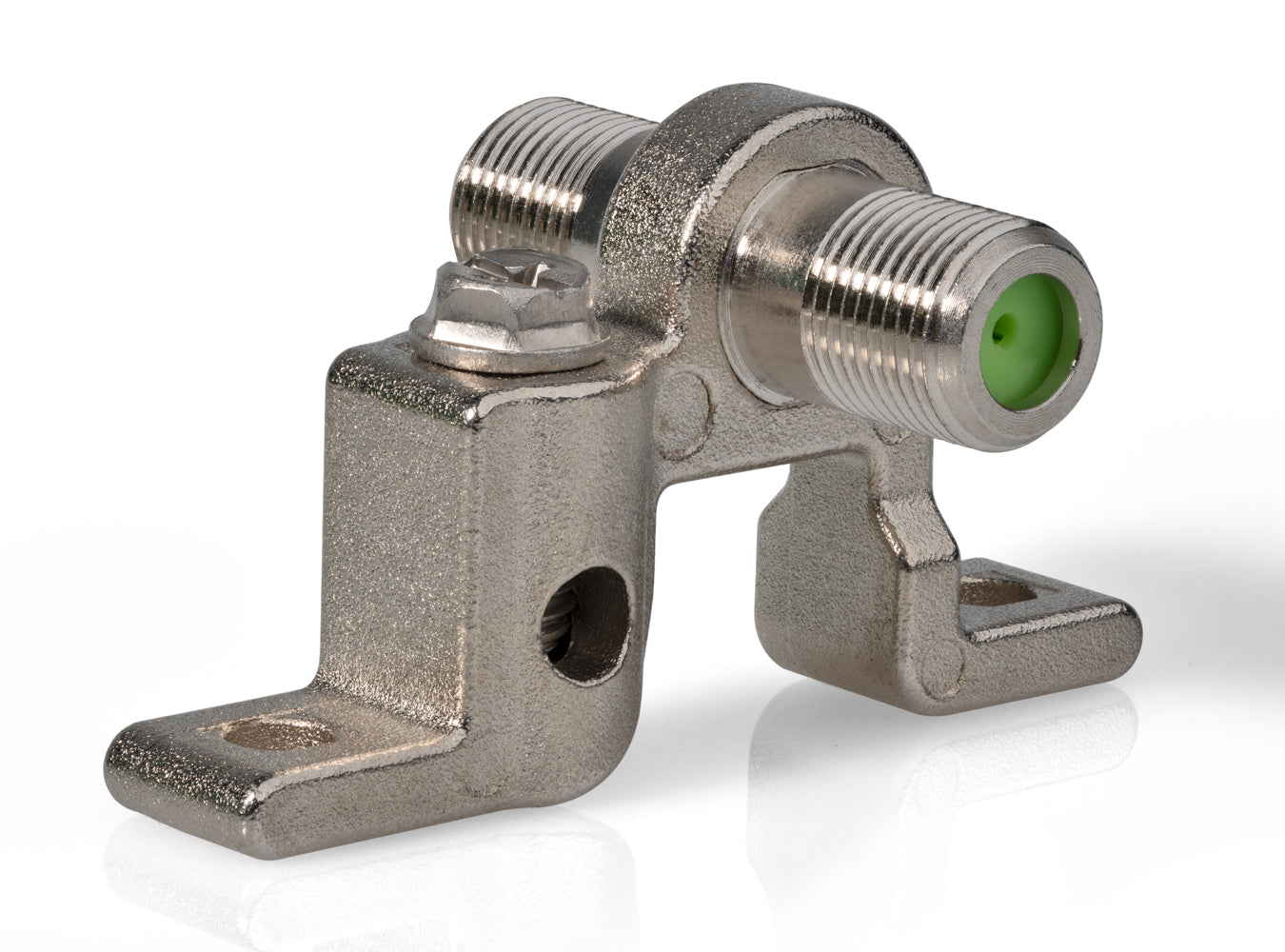

• Channel Master Coaxial Cable Grounding Block, Part Number: CM-3274HD
1 1

Coaxial Cable Grounding Block

Coaxial Cable Grounding Block

Grounds coaxial cables to protect equipment from surges and lightning.

About This Item

CM-3274HD
  • Surge Protection: Safeguards electronic equipment from electrical surges and lightning strikes by grounding coaxial cables.
  • Universal Compatibility: Works with standard coaxial cables, making it suitable for a variety of installations.
  • Enhanced Signal Integrity: Can reduce interference and noise, maintaining signal quality and performance.
  • Weather-Resistant Design: Suitable for both indoor and outdoor use, withstanding various environmental conditions.
  • Easy Installation: Simple to install with standard tools, providing a secure grounding connection.
$5.00
$5.00
Sale Sold out
View full details

Product Information

Overview

The Channel Master Coaxial Cable Grounding Block is designed and optimized for professional grounding of the coaxial cable in over-the-air TV Antenna Installations.

National Electrical Code (NEC) recommends grounding all outdoor TV Antenna installations and specifically that the antenna mast and the coaxial cable be bonded to the home's ground electrode system.

The Channel Master Coaxial Cable Grounding Block will enable you to properly bond your coaxial cable to the home's ground electrode system.

Specifications

What’s Included
Coaxial Cable Grounding Block, (2) Mounting Screws
Warranty
1-Year
Bandwidth
5 to 3,000 MHz
Impedance
75 Ohm
Return Loss
30 dB @ 5 to 1,000 MHz, ≤ 0.3 @ 600 to 3,000 MHz
Ground Wire Gauge
Accepts up to #6 AWG ground wire
Operating Temperature
-40° to +140° F
Size
1.875" x 1.25" x 1.0"
