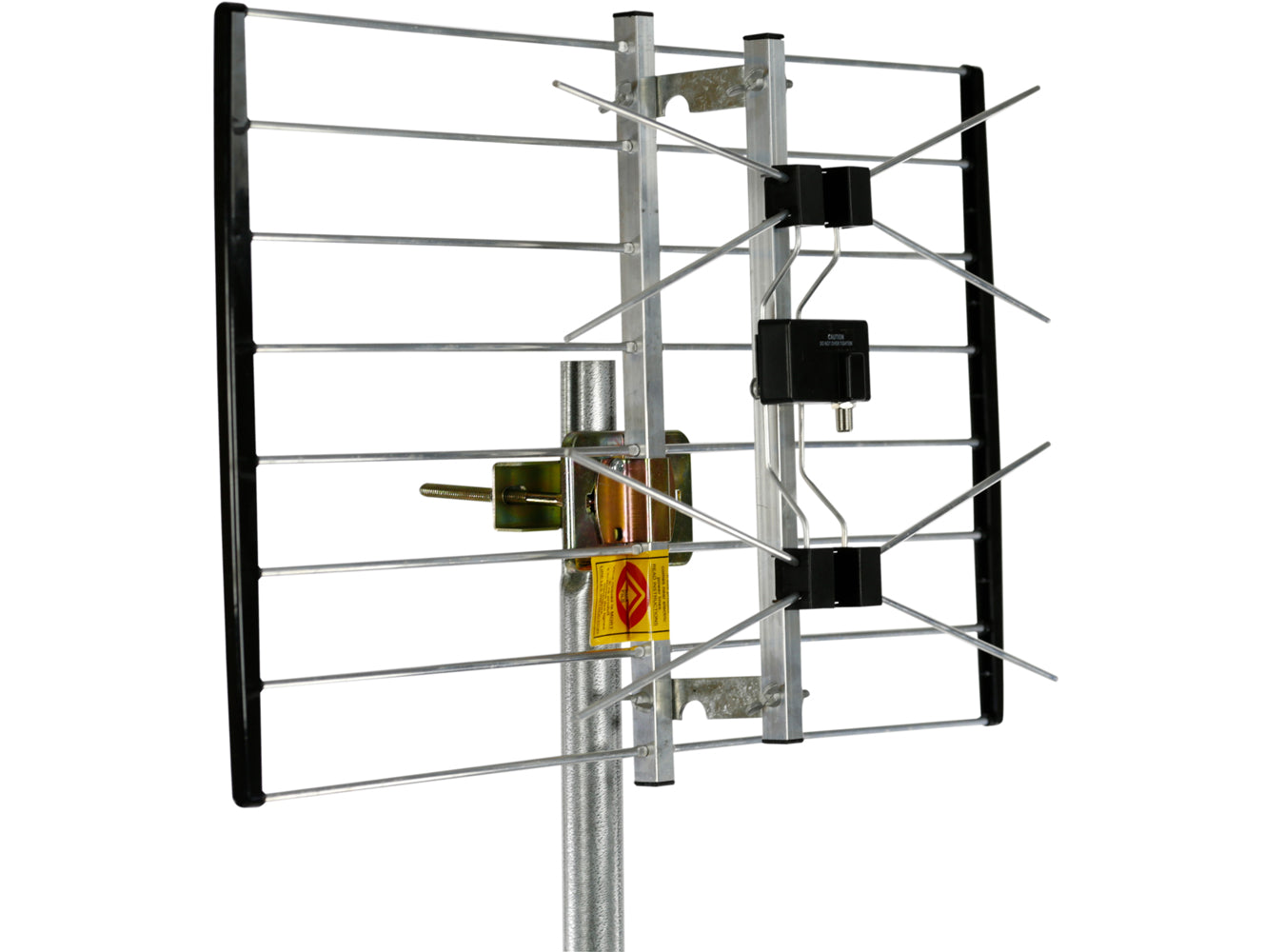

• Channel Master METROtenna 40, Part Number: CM-4220HD

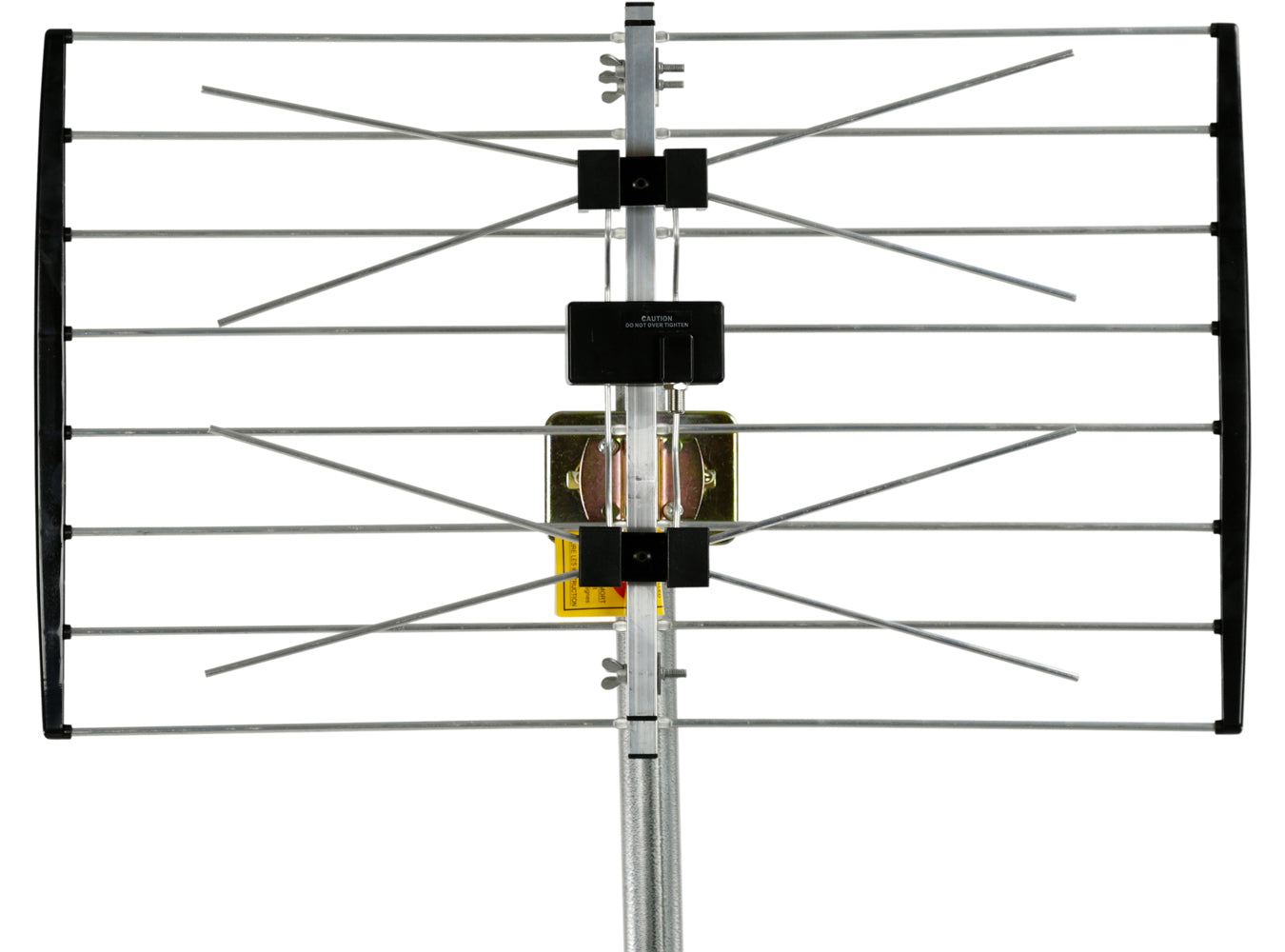

  • Channel Master METROtenna 40 Front, Part Number: CM-4220HD

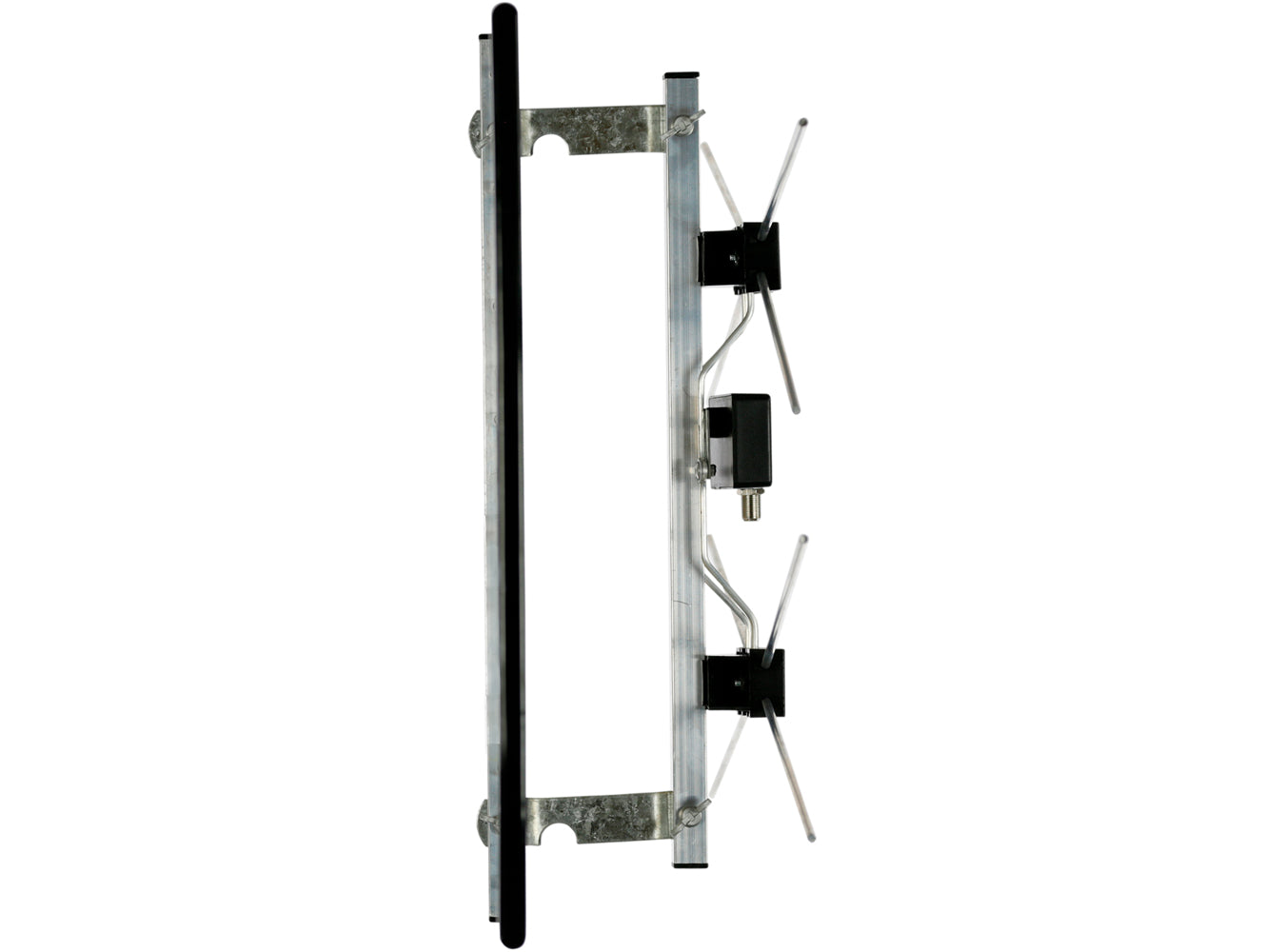

  • Channel Master METROtenna 40 Side, Part Number: CM-4220HD

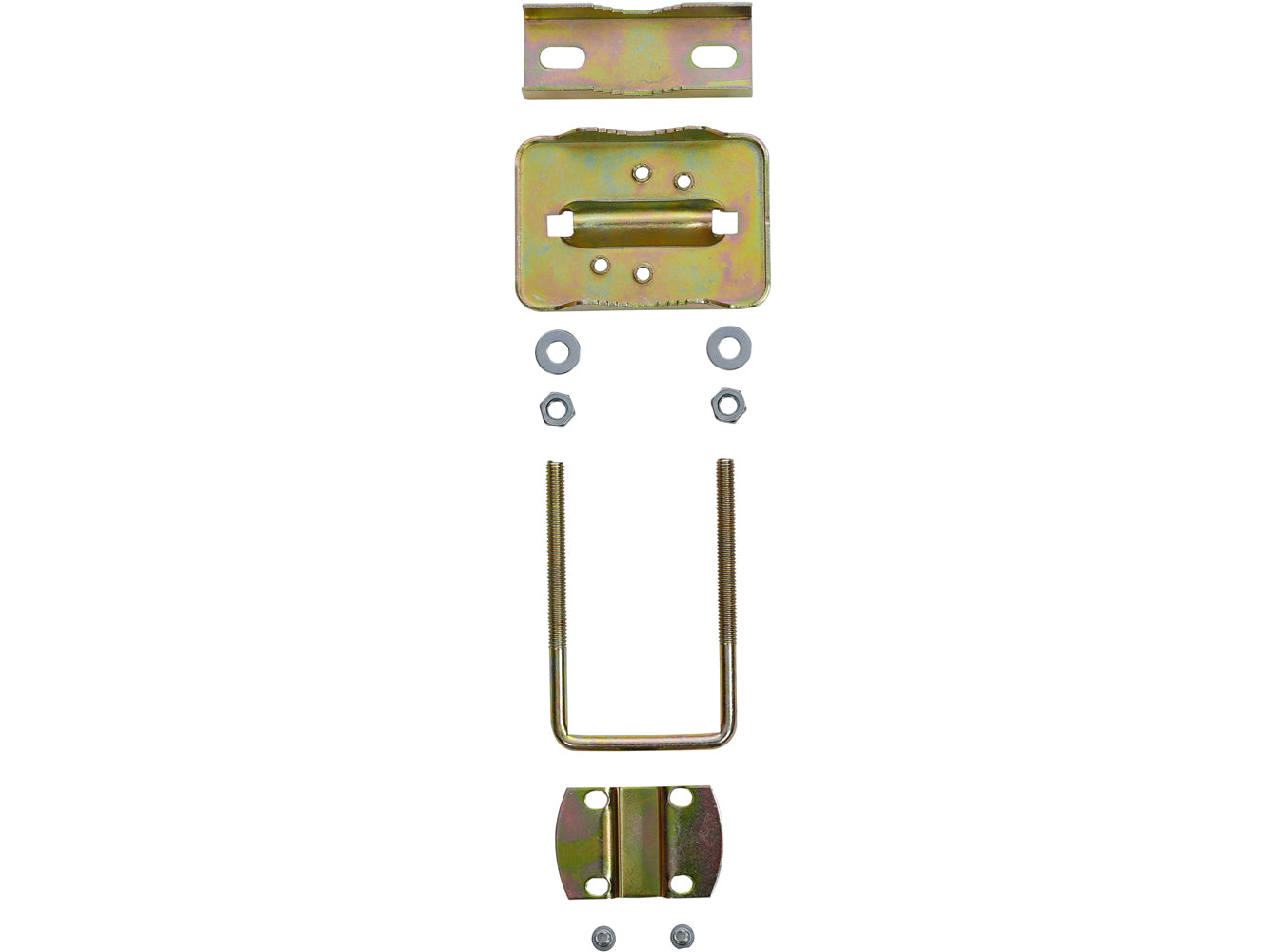

  • Channel Master METROtenna 40 Hardware, Part Number: CM-4220HD

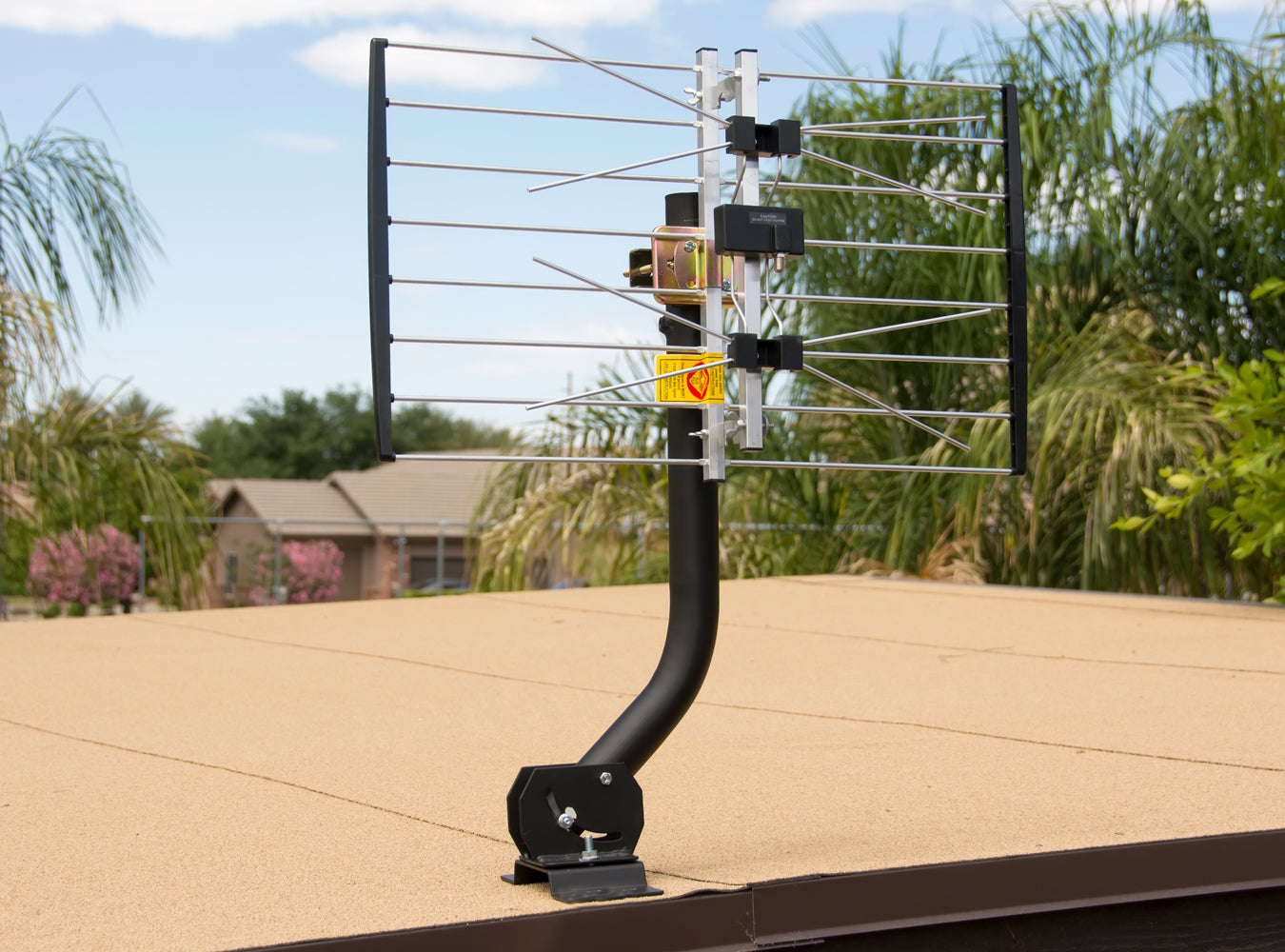

  • Channel Master METROtenna 40 Roof Mount, Part Number: CM-4220HD

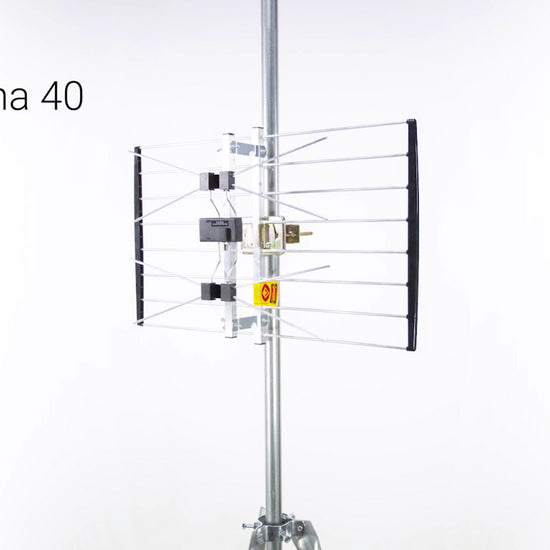

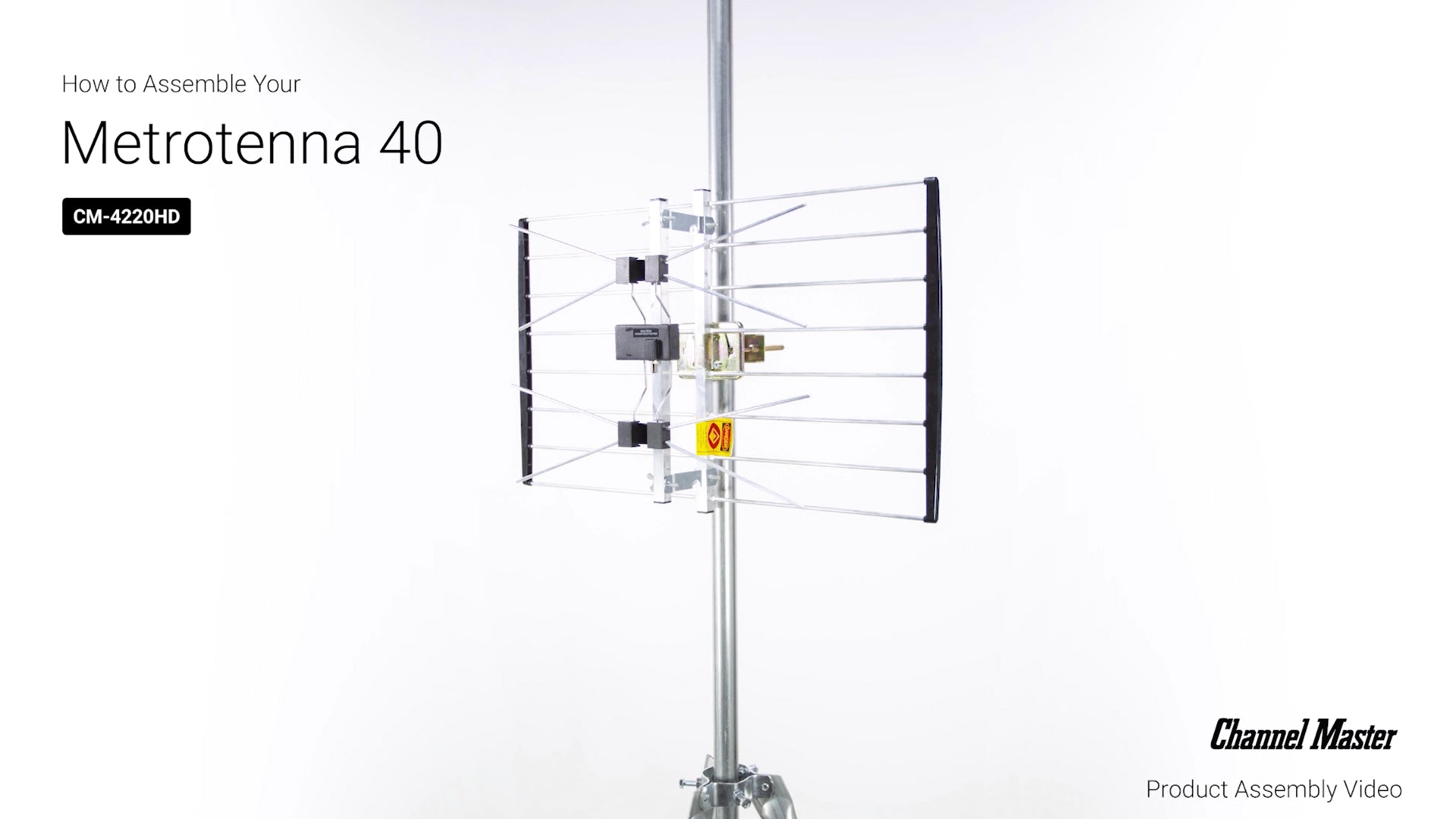

  • Channel Master METROtenna 40 Assembly Video, Part Number: CM-4220HD
1 7

METROtenna 40

METROtenna 40

Multi-directional (180-degree range) outdoor TV antenna up to 40 miles

About This Item

CM-4220HD
  • Superior Reception Range: Captures signals up to 40 miles away, ensuring you get the best quality TV broadcasts.
  • High VHF and UHF Performance: Optimized for receiving both high VHF and UHF signals for comprehensive coverage.
  • Wide Beam Width: Multi-directional design with a 180° reception range, allowing it to receive signals from multiple broadcast towers simultaneously.
  • Built-In Reflectors: Enhances signal strength and reduces interference for more reliable reception.
  • High Definition Clarity: Receives digital HDTV signals for crystal-clear picture quality from major networks like CBS, FOX, ABC, NBC, PBS, Univision, and Telemundo.
  • Built to Last: Constructed from durable materials to withstand extreme weather and high winds, offering long-term reliability.
  • Easy Installation: Includes mounting hardware and a step-by-step guide. (Mast and Wall-Mount Not Included)
  • Future-Ready: Supports ATSC 3.0 and 4K broadcasts, ensuring compatibility with upcoming broadcast standards.

Style: Select a Style

40 Miles 60 Miles 80 Miles
$59.00
$59.00
Sale Sold out
View full details

Product Information

Overview

The METROtenna is a 2-bay, phased array, multi-directional outdoor antenna that receives high definition and digital signals from a span of 180 degrees. This antenna has a reception range of up to 40 miles.

Short range multi-directional (180-degree range) outdoor antenna up to 40 miles.

Specifications

What’s Included
METROtenna (Mast, Amplifier and Coax Cable Not Included), Mounting Brace, U-Bolt with Bracket, Installation Guide
Warranty
1-Year
Bandwidth
174 to 216 and 470 to 700 MHz
VHF Gain
2.5dB
UHF Gain
8dB
Front to Back Ratio
12dB
Impedance
75 Ohm
Boom Length
N/A
Number of Elements
4
Max Element Width
8"
Mounting Clamp
U bolt up to 2"
Turning Radius
1' ft.
Output Connector
F-type

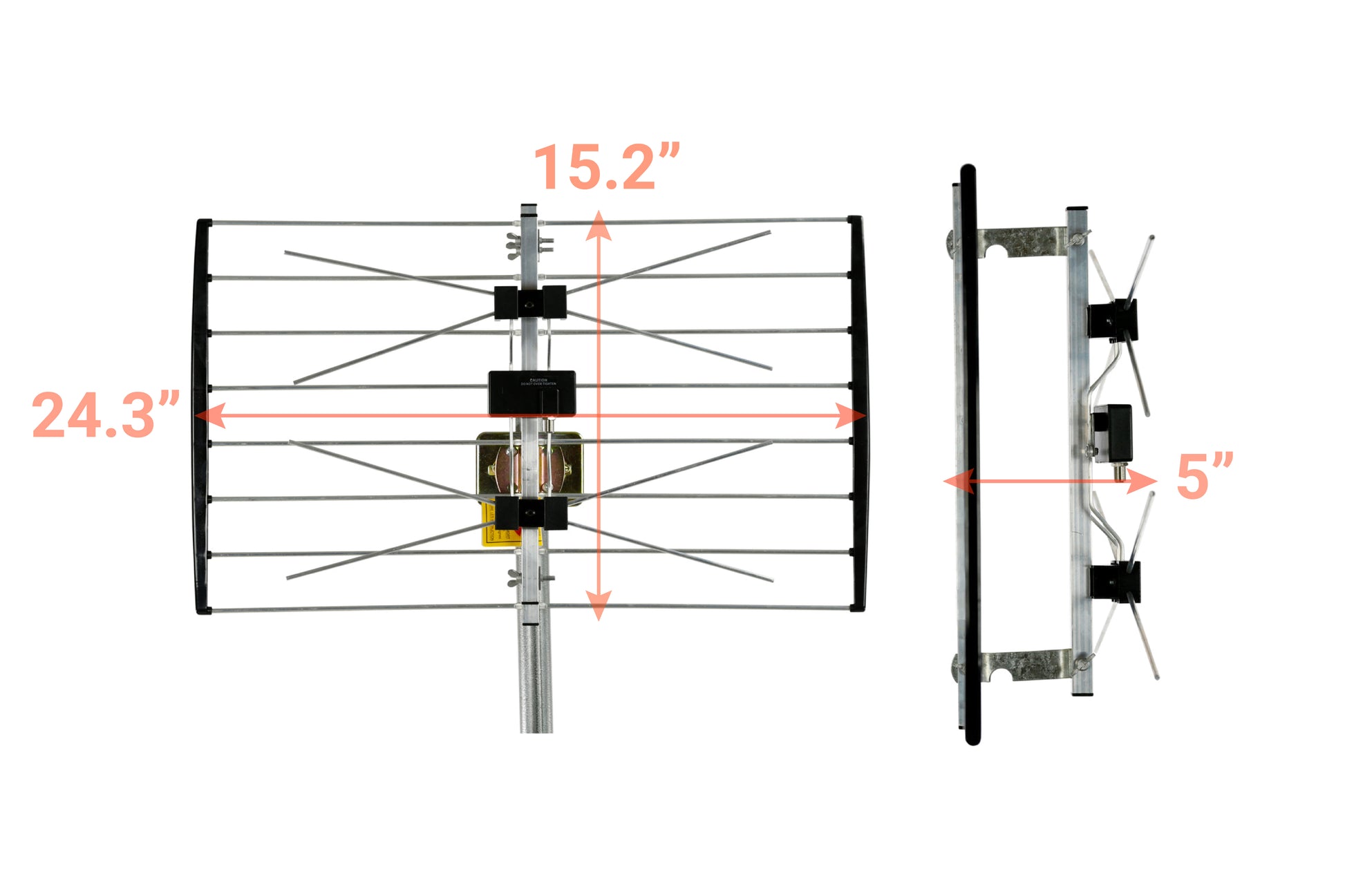

Size (product)
25" x 14" x 5"
Weight (product)
3 lb
Wind Resistance
(at 100 mph, no ice) – 19 lb


Customer Reviews

Based on 21 reviews
86%
(18)
10%
(2)
5%
(1)
0%
(0)
0%
(0)
P
Pawel
Metrotenna 40

I am about 20 to 30 miles from towers, perfect reception in my attic on about 40 or so channels. No need for preamp or amplified splitter. Easy to put up and well made.

T
Tim M
Great reception

Worked perfectly just under the peak of the gable end of my house, angled about 30 degrees of straight, to towers 8 miles away. Perfect reception when combined with the OBTV filter.

R
Robert Freel
Metrotenna Review

Although the Channel Master Flatenna did a great job with 36 of 42 local stations, the Channel Master Metrotenna now allows me to watch all 42 local stations without any fading in and out. It is a great antenna. Wish I had purchased it much sooner.

R
Rick McPherson
Great little antenna

I needed an extra antenna since I had too much coax and way too many splitters on my main antenna to operate my OTA recorder properly. I added this one on a mast, set direction and it's perfect. I get a 100% signal.

D
Deano
Metro 40 Antenna

I put the metro 40 in my attic and it is doing a good job.
