Product Information
Specifications
What’s Included

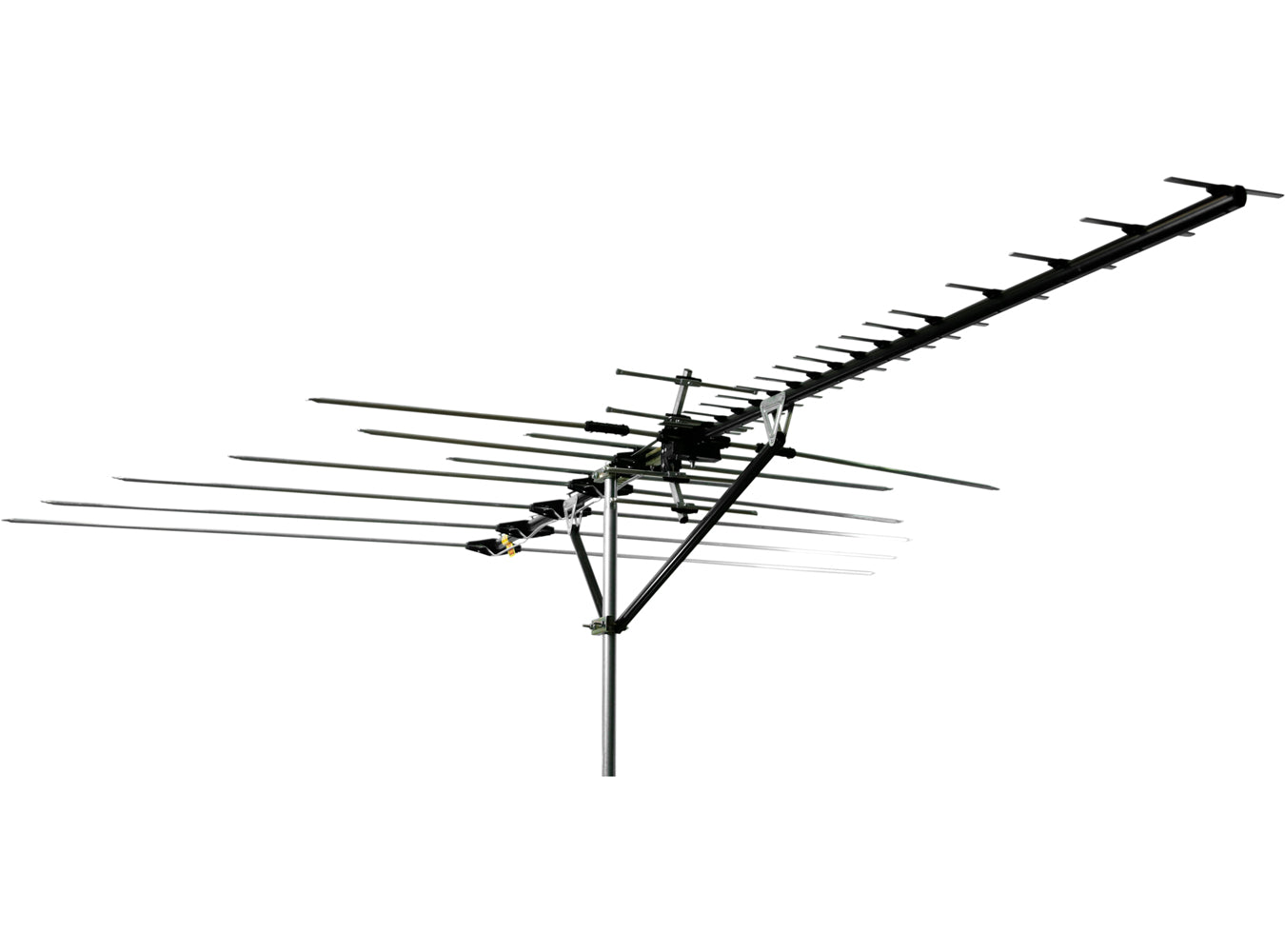

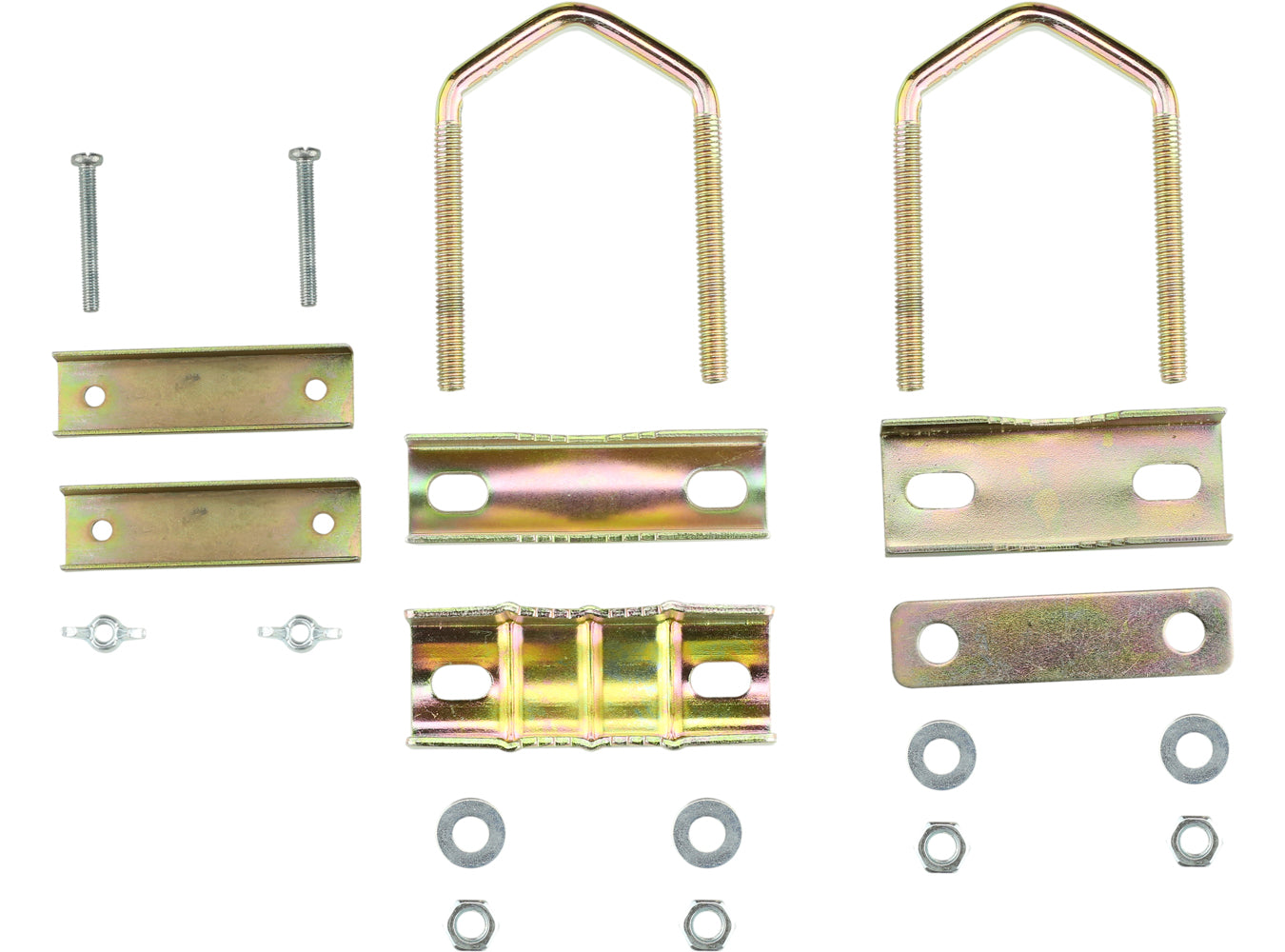

Masterpiece 100, Hardware (Mast, Amplifier and Coax Cable Not Included), Installation Guide
Warranty
1-Year
Bandwidth
54 to 216 and 470 to 700 MHz
VHF Gain
10.0dB
UHF Gain
16dB
Front to Back Ratio
17dB
Impedance
300 Ohm (75 Ohm balun included)
Boom Length
109"
Number of Elements
28
Max Element Width
100.5"
Mounting Clamp
U-bolt up to 2.5"
Turning Radius
72"

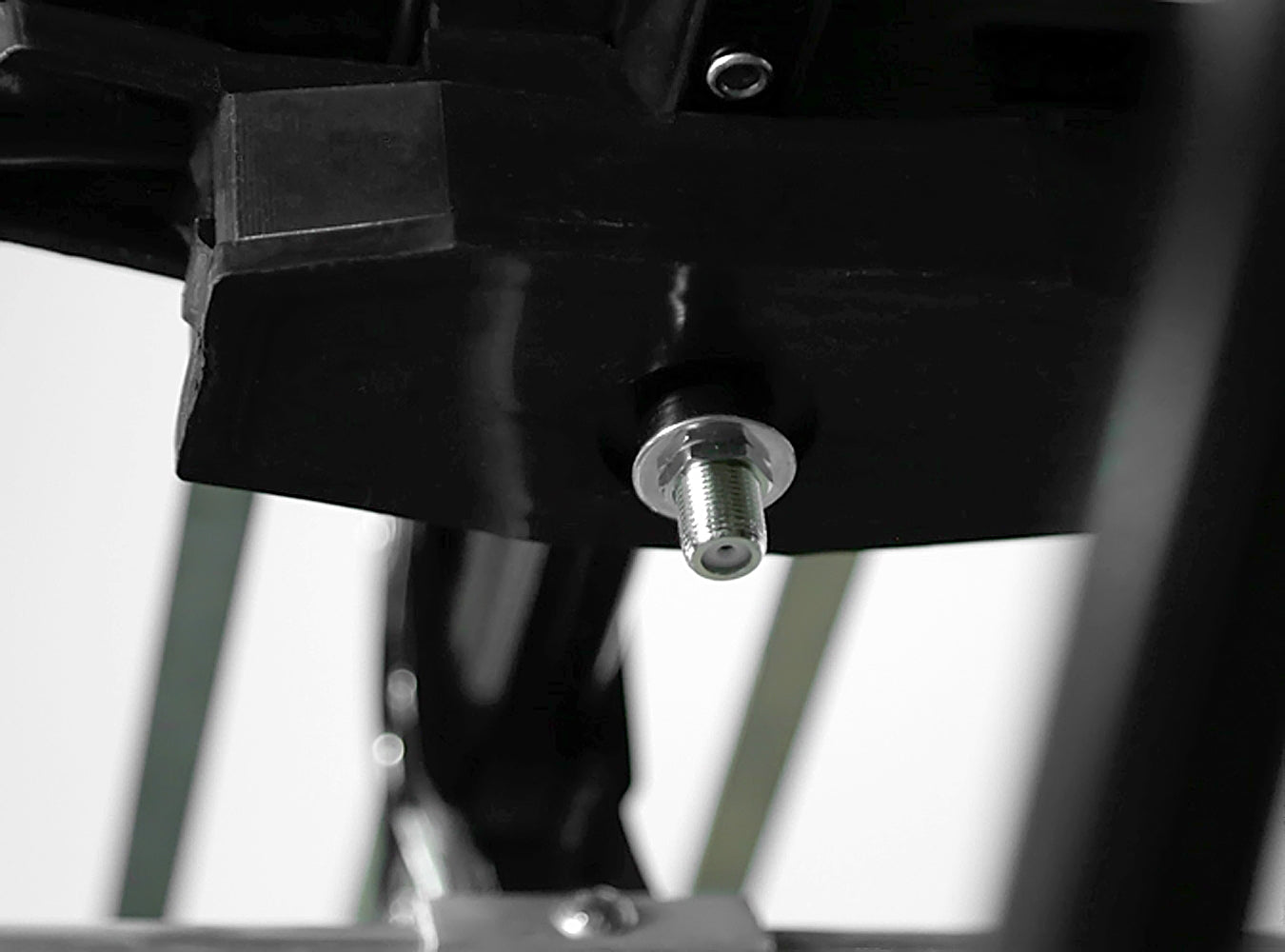

Output Connector
F-type

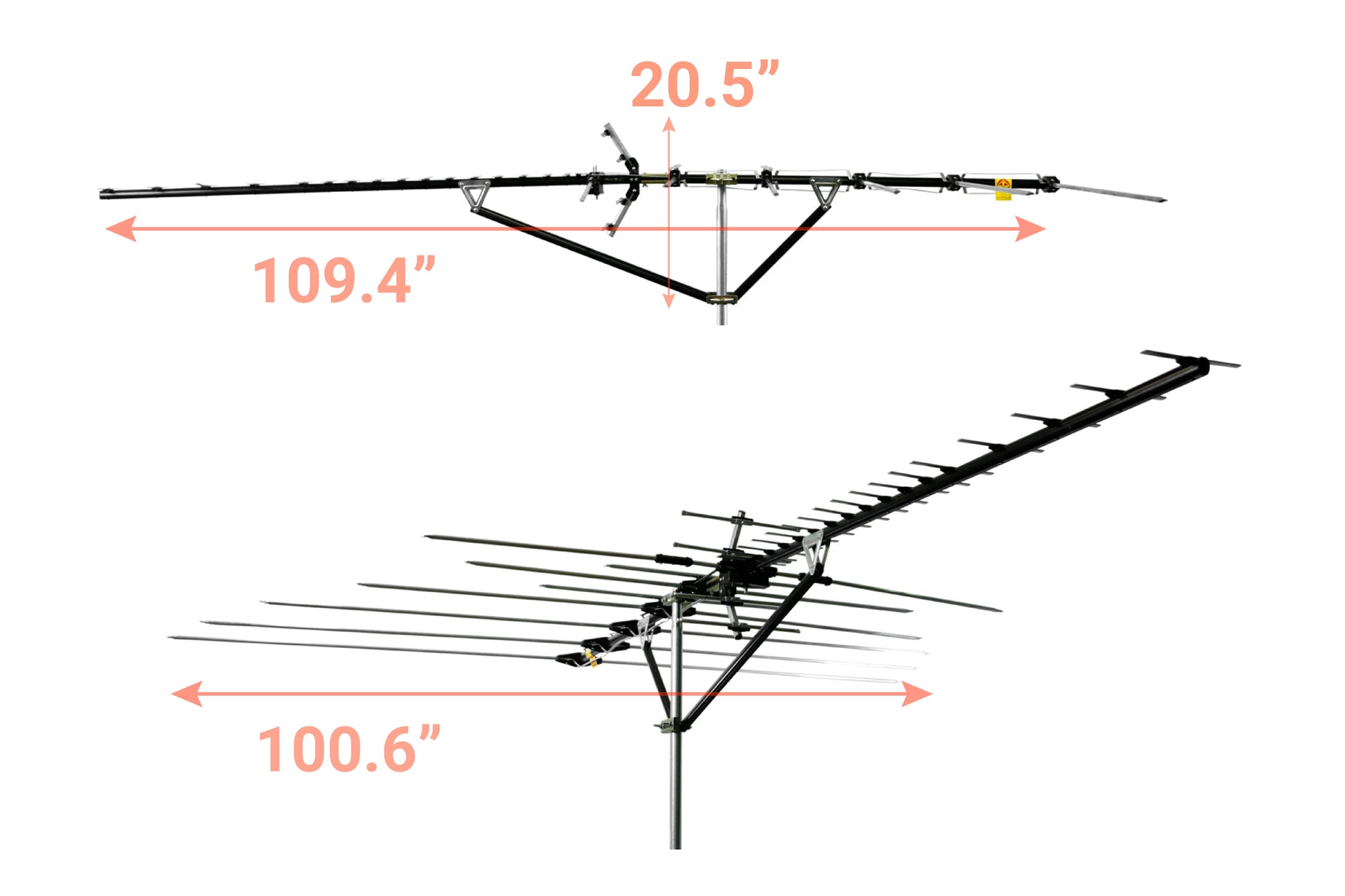

Size (product)
116" x 101.5" x 20"
Weight (product)
11.5 lb
Wind Resistance
(at 100 mph, no ice) – 30 lb
