Channel Master Dual Female Splice Adapters are professional grade splice adapters designed for High-End Systems that demand the highest quality digital audio/video transmissions as well as high-speed data transmissions over coaxial cable. This splice adapter will allow you to connect together coaxial cabling when running new cables is not ideal or possible.
Leveraging 70 years of experience building professional-grade television reception products, Channel Master provides the industry standard for performance connectors and adapters. Sometimes you need to simply connect two cables in your systems signal path. When that need arises Channel Master’s CM-3211 F-Type F81-G Dual Female Splice Adapters are ideal for these connections. Poor quality coaxial connections are a leading point of failure in cable, satellite and TV antenna systems. Using a quality F-81 Splice Adapter can assure the lowest loss and distortion to your video signal path when it's necessary to connect two existing coaxial cables together.
What’s Included
|

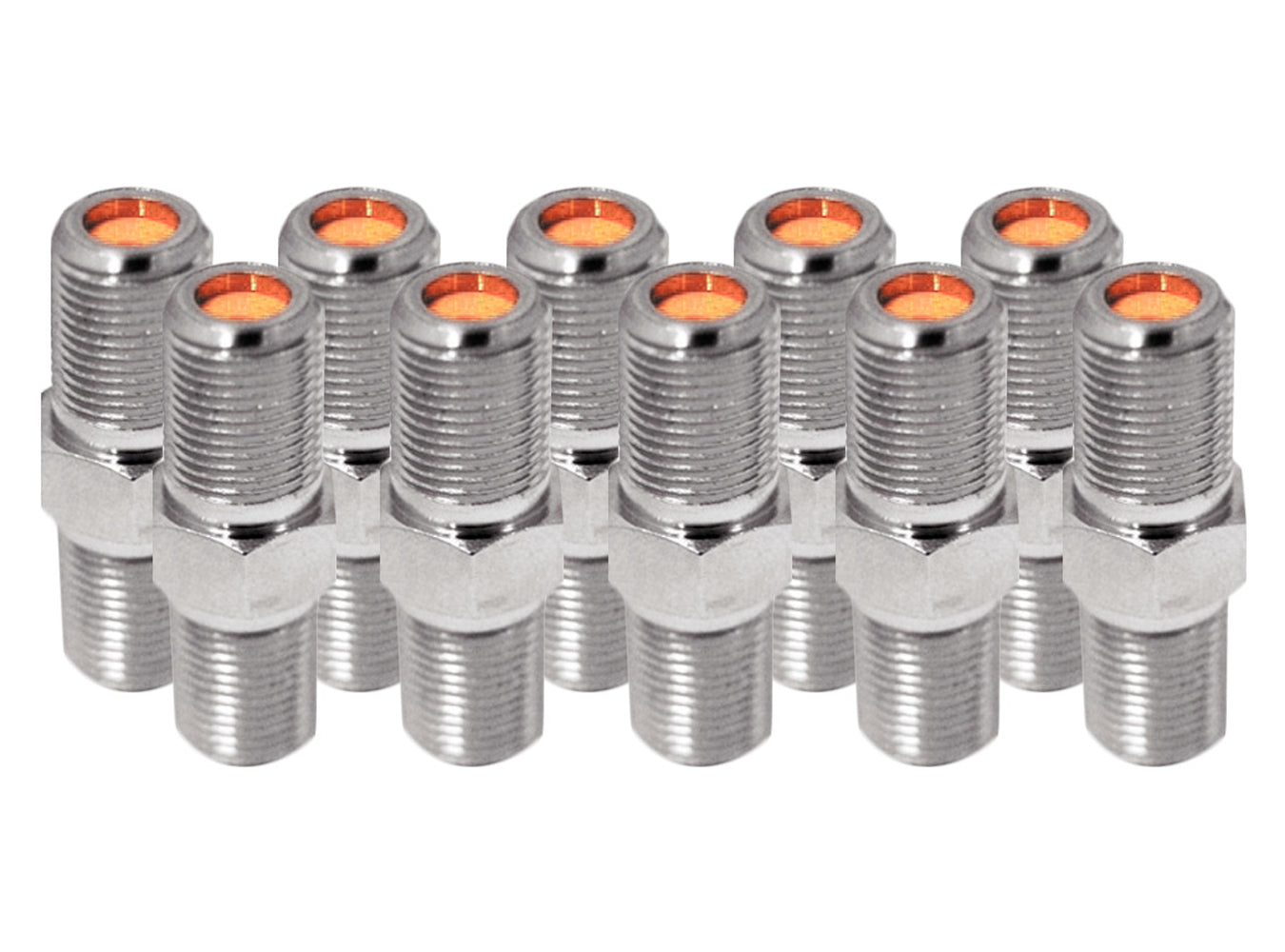

Dual Female Splice Adapters (10-Pack)
|
|
1-Year Limited Warranty
|
Features
|
Built with the highest standards and performance on the market
|
|
3/8 in. – 32 UNEF thread
|
|
Includes patented DSM® seizure for superior center conductor retention, reduced common path distortion, and excellent electrical performance
|
|

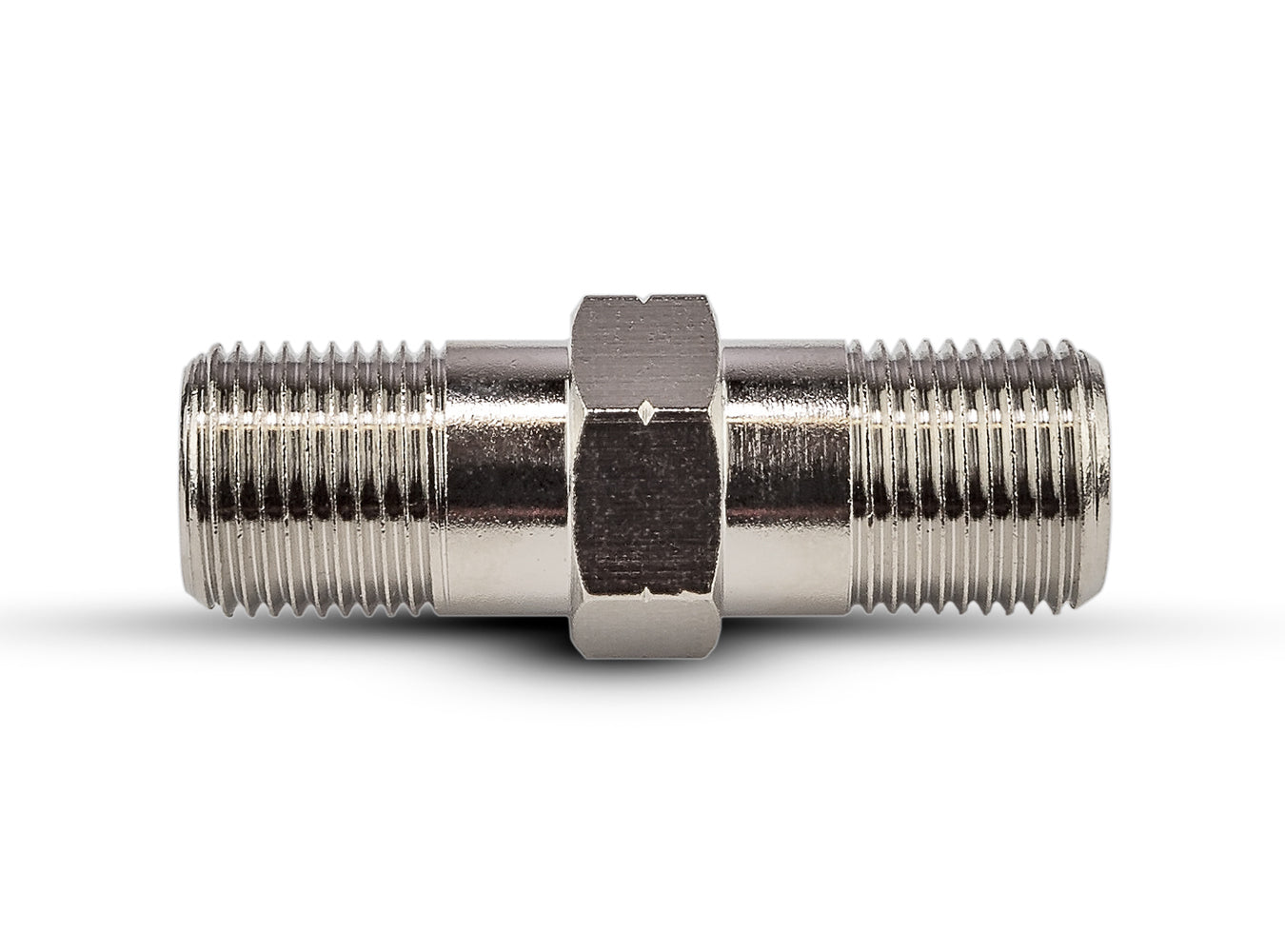

Double flat-ended with wide hex area for easier wrench tightening
|
|
Indoor / Outdoor Design
|
|
Return loss: -30 dB to 1.0 GHz, -20 dB to 3 GHz
|
|
Insertion loss: < 0.1 dB to 600 MHz, < 0.2 dB to 1002 MHz
|
|
Precision machined port ends for superior mating performance of F-connectors
|
Tech Specs
Technical Specifications
|
Bandwidth
|
5 MHz to 3 GHz
|
|
Impedance
|
75 Ohms (Nominal)
|
|
Return Loss
|
5 MHz to 1 GHz 30 dB, 1 to 1.5 GHz 26dB, 1.5 to 3 GHz 20dB
|
|
Insertion Loss
|
5 to 600 MHz ≤ 0.1dB, 600 to 3000 MHz ≤ 0.3dB
|
|
Operating Temperature
|
-40 to +140°F (-40 to +60°C)
|
|
Length
|
1.22 in. (30.9 mm)
|
|
Female Mating
|
3/8" -32 UNEF-2A Thread
|
|
Material
|
Nickel Plated Brass
|
|
Insulator
|
HDPE
|
|
Seizure
|
Gold Plated Beryllium Copper, Patented DSM Digital Seizure Mechanism
|
Coax, Coaxial, Splice, Adapter, Barrel, Barrel Connector, F Connector, Female to Female, Coaxial Cable, Coax Cable, RG6, RG59, RG11, Extender, Combiner, CM-3211, CM3211
Splice Adapter connectors are used to combine two lengths of coaxial cable
