Product Information
Specifications
What’s Included

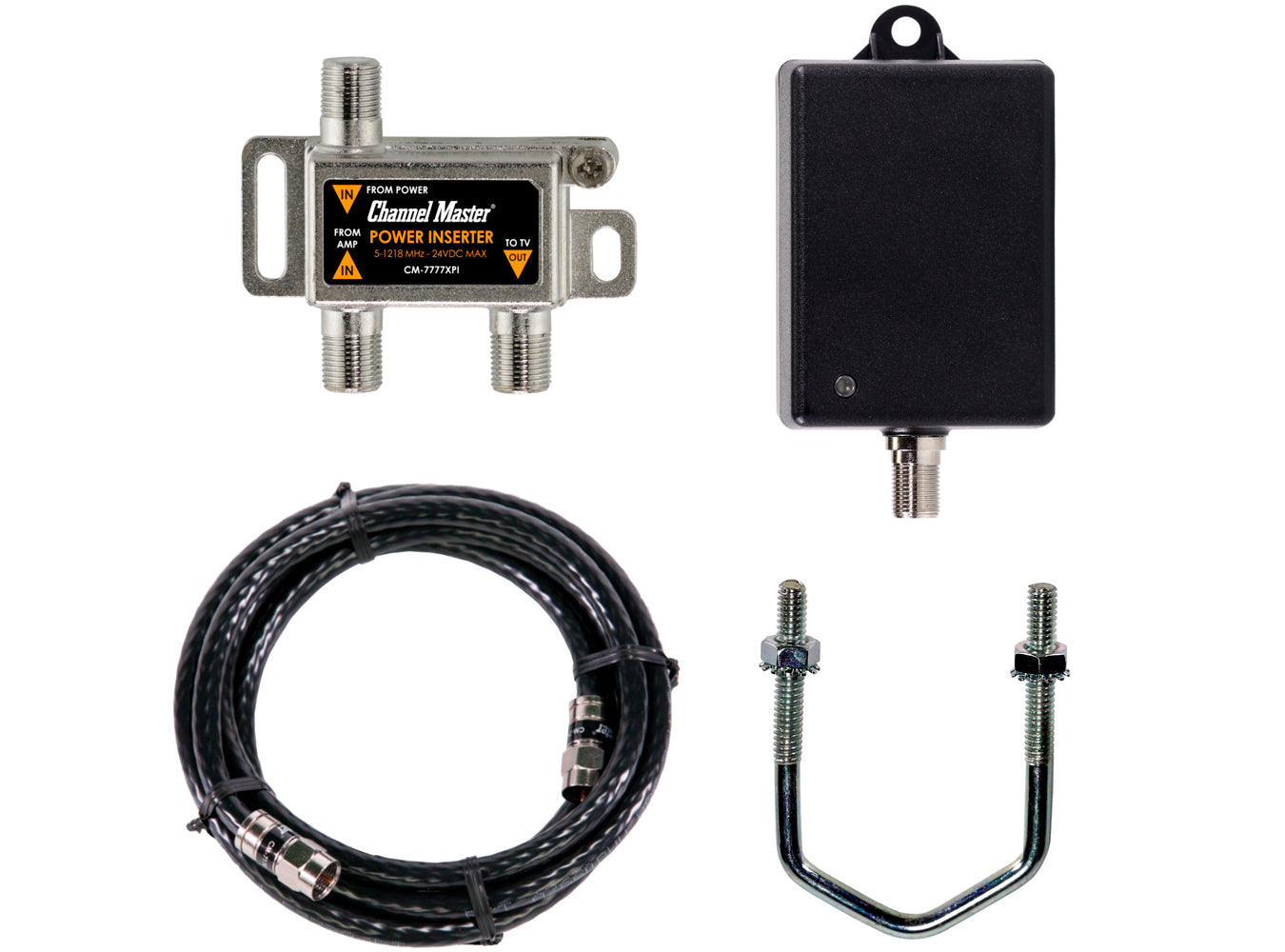

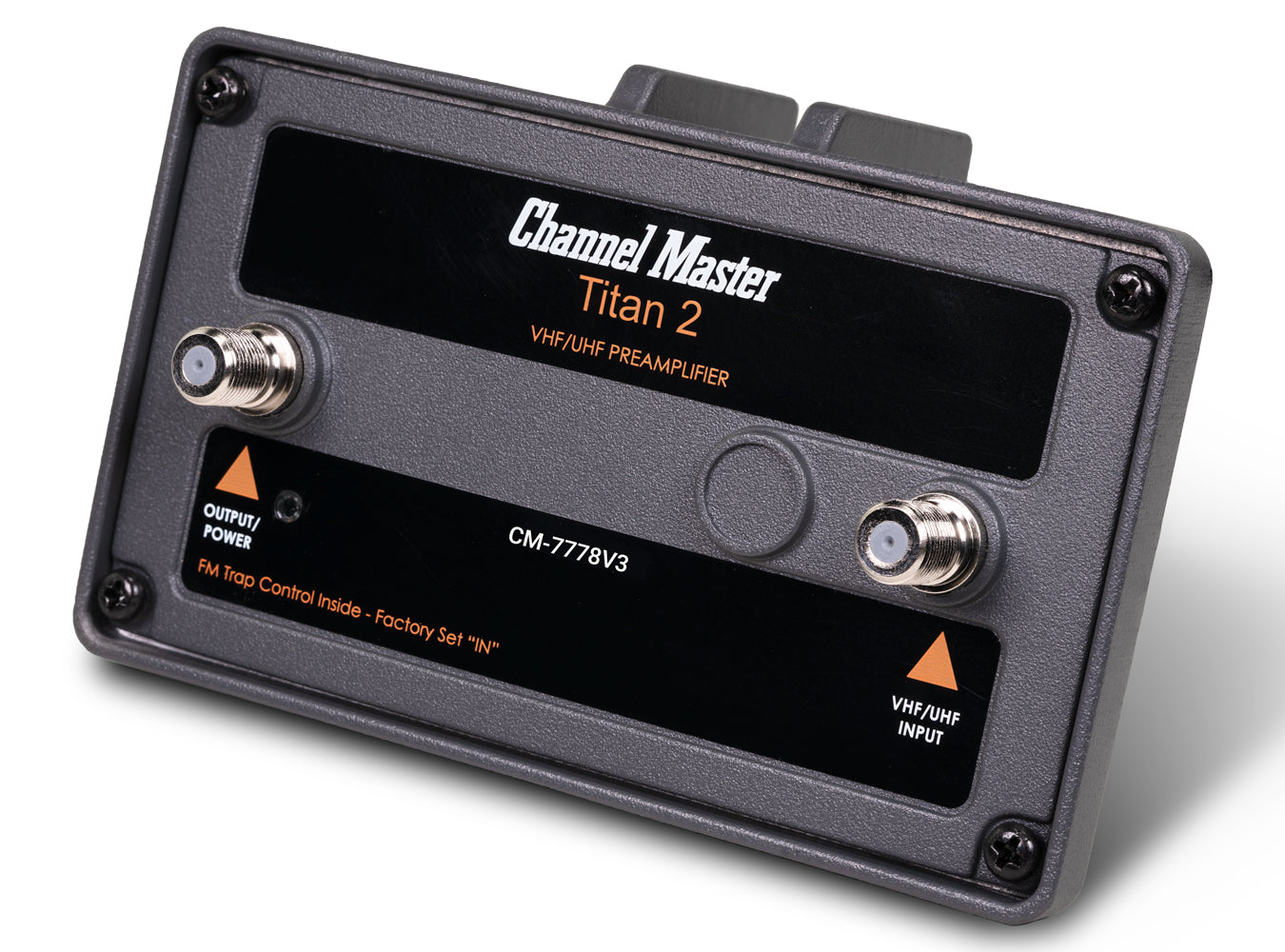

Titan 2 Medium Gain Preamplifier, Power Inserter, Power Adapter, Coaxial Cable, U-Bolt, User Guide
Warranty
1-Year
Power Supply Input Voltage
110-240v, AC ~ 50/60Hz, 200mA (Max)
Power Supply Output Voltage
+13.2v DC, 500mA, 6.6W (Max)
Impedance (Input and Output)
75 Ohm
Connector
F-Type
Frequency Range
54 - 700 MHz
Gain
16dB
Noise Figure
Typically Less than 2dB
UL Listed
Yes
RoHS Compliant
Yes
Input Return Loss
< -15
Output Return Loss
< -15
Max Input Level
34 dBmV
Max Output Level
50 dBmV

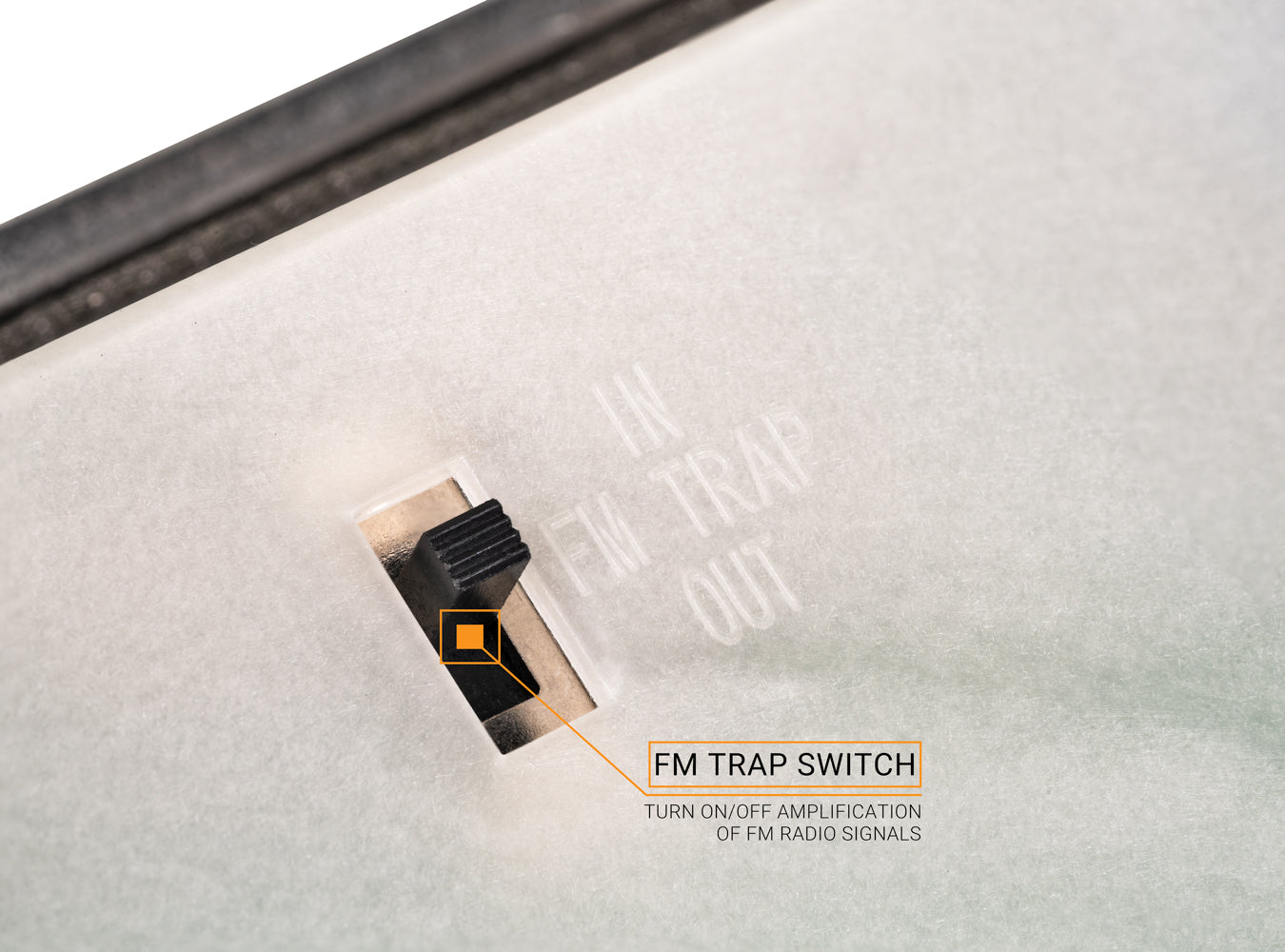

FM Trap
88-108 MHz; > 15dB Down
Power Consumption
< 5W
Operating Temperature
-40 C to 60 C
Size (Product)
5.375" x 3.5" x 3.0"
Size (Packaging)
6.5" x 5.75" x 3.5"
Weight (Product)
12 oz
Weight (Packaging)
2 lb
U-Bolt Diameter (Included)
1.875"
