Antenna Rotator Control Unit

Replacement Antenna Rotator Control Box

About This Item

CM-9521HDXCU

Seamless Compatibility: Works with all Channel Master outdoor rotator drive units (drive unit not included) for remote antenna rotation.

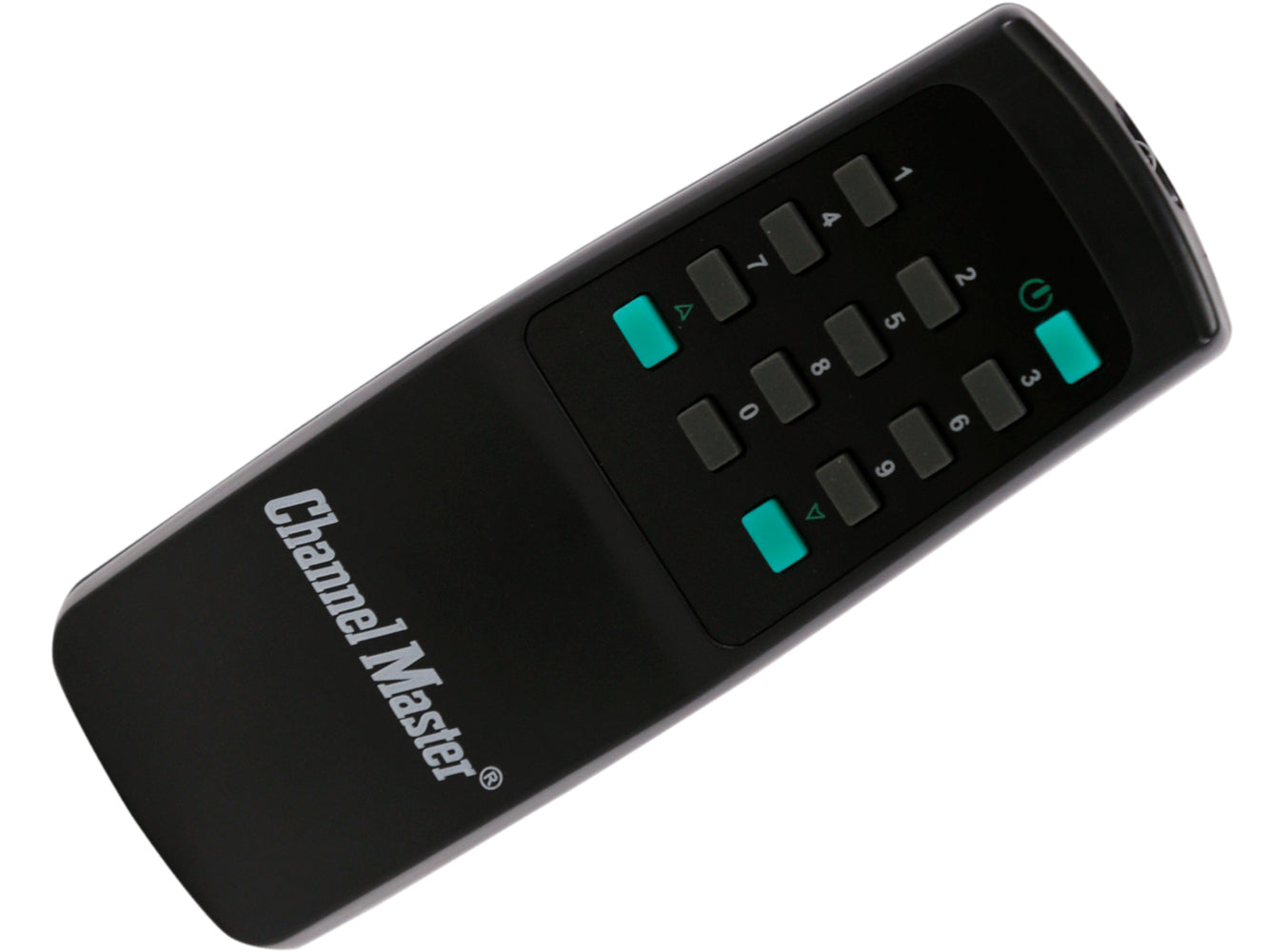

Convenient Remote Control: Enables easy antenna rotation from an indoor location using a hand-held remote control.
Internal Memory: Stores up to 69 pre-programmed positions for automatic tuning and precise antenna alignment.
Ideal Replacement or Upgrade: Perfect for replacing an existing control unit or upgrading to a newer style control unit.
User-Friendly Operation: Simplifies the process of adjusting your antenna for optimal signal reception without the need to manually reposition it.

$139.00

Sale Sold out

View full details

Product Information

Overview

Antenna Rotator Control Unit compatible with Channel Master brand antenna rotator drive units.

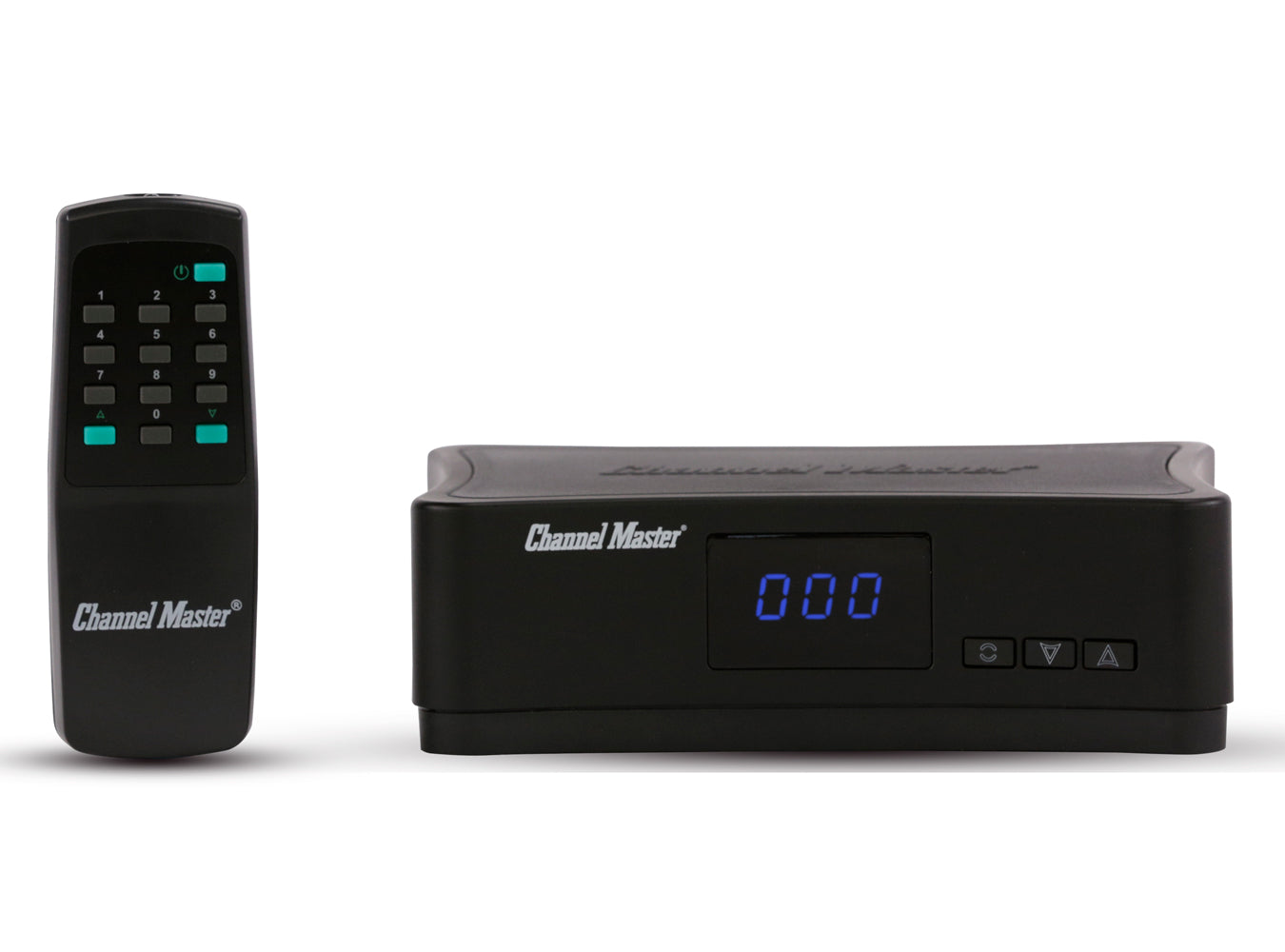

The Channel Master Rotator control unit is designed to work with all Channel Master outdoor rotator drive units (drive unit not included). When the control box is connected to an outdoor drive unit it enables the rotation of an outdoor antenna from an indoor location with a hand-held remote control. The Channel Master control unit has internal memory which will allow the user to auto tune an antenna to rotate to up to 69 pre-programmed positions. The stand alone rotator control unit is perfect for those in need of a replacement control unit for an existing drive unit installation or simply looking to upgrade to the newer style control unit.

Specifications

What's Included

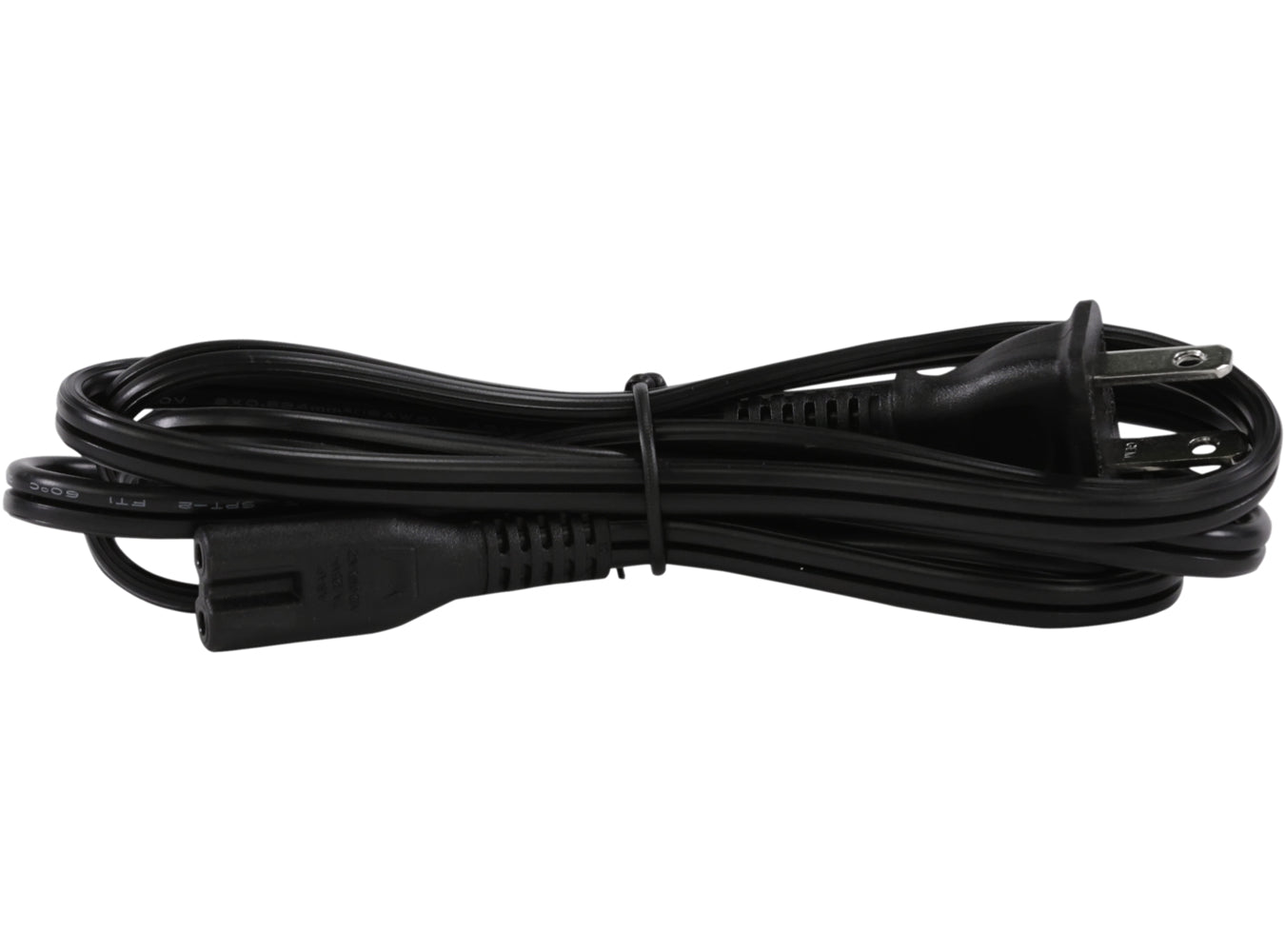

Antenna Rotator Control Unit, Remote, Power Cable

Warranty

1-yr Limited Warranty

Non-Volatile memory

Holds locations during power failures

Power

120 V AC 60Hz only

Size (product)

3.25" x 5.375" x 1.5"

Size (packaging)

3" x 7.5" x 7"

Weight (product)

1.6 lb

Weight (packaging)

2.3 lb

Excellent Replacement for Old Style Controlle

I acquired this controller to replace an old style controller that has a knob to set direction. Unlike the old controller, the new one is quiet, accurate, and doesn’t weigh as much as a small car. The new controller has a feature that can automatically recalibrate the rotator after several rotations. The degree readout on the front panel is invaluable to me. The remote control is really convenient. I use this controller with an old 3-wire rotator sold by Radio Shack many years ago, and it should work with any 3-wire rotator branded by Channel Master, Radio Shack, and others. I use it to position a 1-meter loop receiving antenna with excellent results. Well done, Channel Master!

Antenna Rotator Control Unit

The device arrived quickly and was installed and works great

Fix

Just what I needed. The previous unit stopped working so I was unable to rotate the antenna for best reception and could only bring in one scratchy station. After connecting to the new unit I received 16 channels. A world of difference in a rural community!

replacement for old antenna rotator control u

This new one replaced one from 2000. The box is much larger and has blue numbers which are a little hard to see, it does not have a power supply but a direct plug in which eliminated some of the congestion on the power strip, also the remote is smaller than the old one. No other option other than to get it from Channel Master but they gave me 10% off for being a prior customer. I appreciated that.

Nice upgrade from worn out rotator control un

Bought this to replace an old worn out Radio Shack Archerotor 15-1225B Antenna Rotator Unit that had the movement of the dial partially stripped. Set up was fairly straightforward for me as the existing 3 wires that were being used with the previous rotator unit were plug and play with this unit. Product works exactly as described! Just make sure that your TV antenna is pointed to magnetic north before synchronizing the control unit. If you don't, the control unit will still work, but the compass heading of the TV antenna compared to the displayed compass heading on the control unit will be different/offset.
