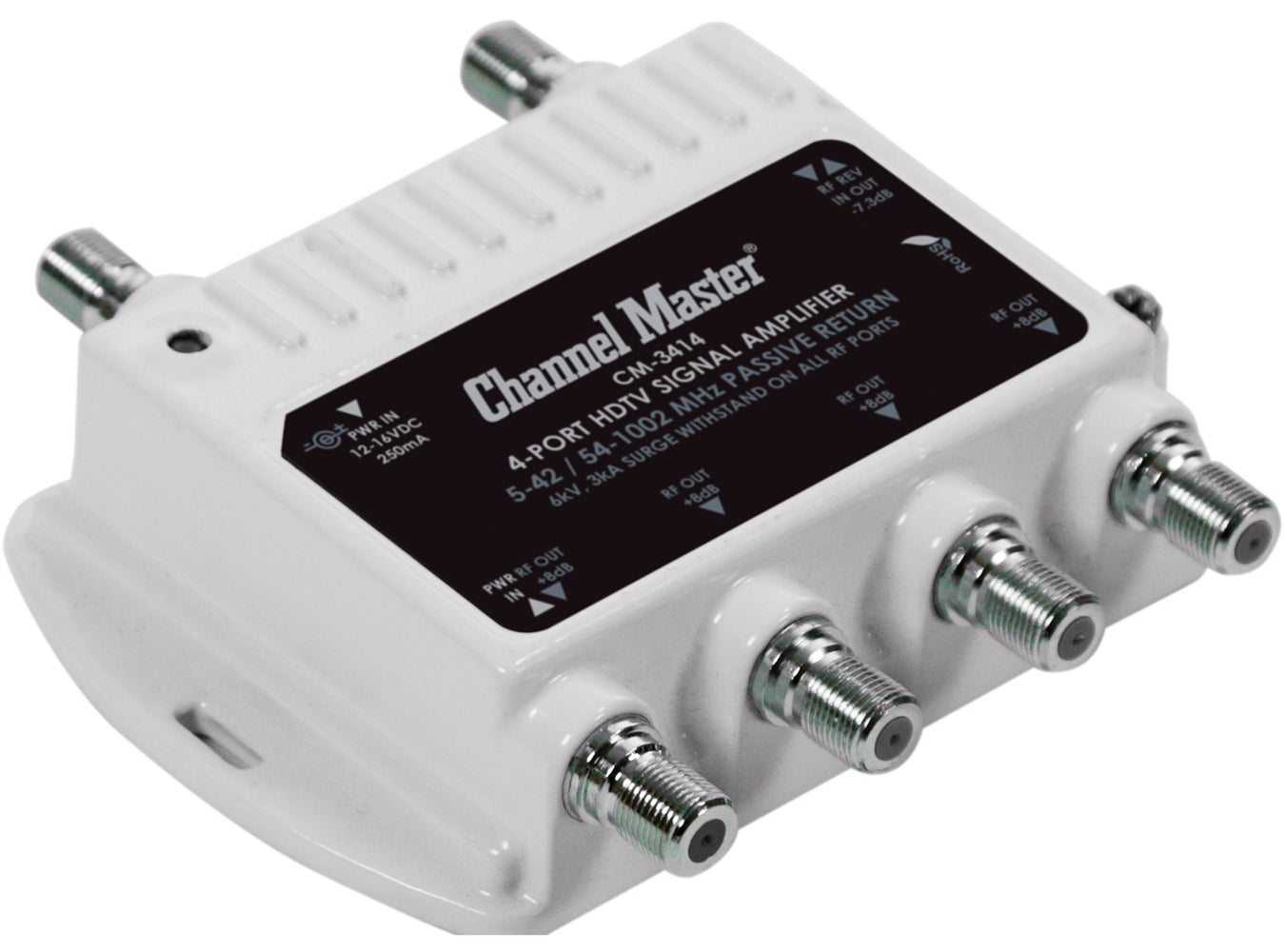

Overview

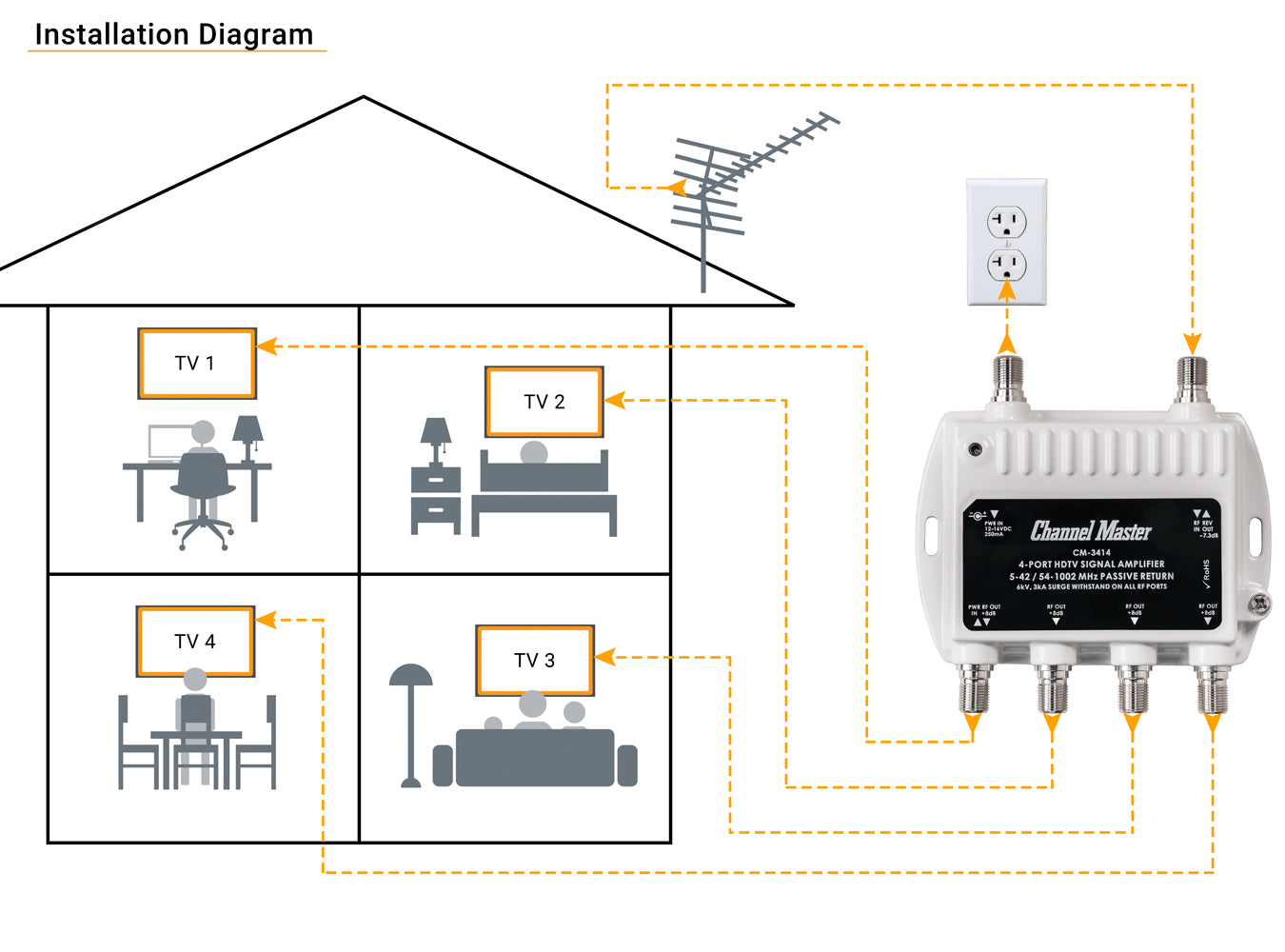

The Ultra Mini 4 distribution amplifier will boost TV signals, increasing the overall signal strength for distribution throughout the home. The Ultra Mini 4 has four output ports and can be used in HDTV, CATV, off-air, analog and digital RF distribution applications where high performance and reliability are required.
What’s Included
| Ultra Mini 4 Distribution Amplifier |
| Power Adapter |
| Coaxial Cable |
| User Guide |
| 1-Year Limited Warranty |

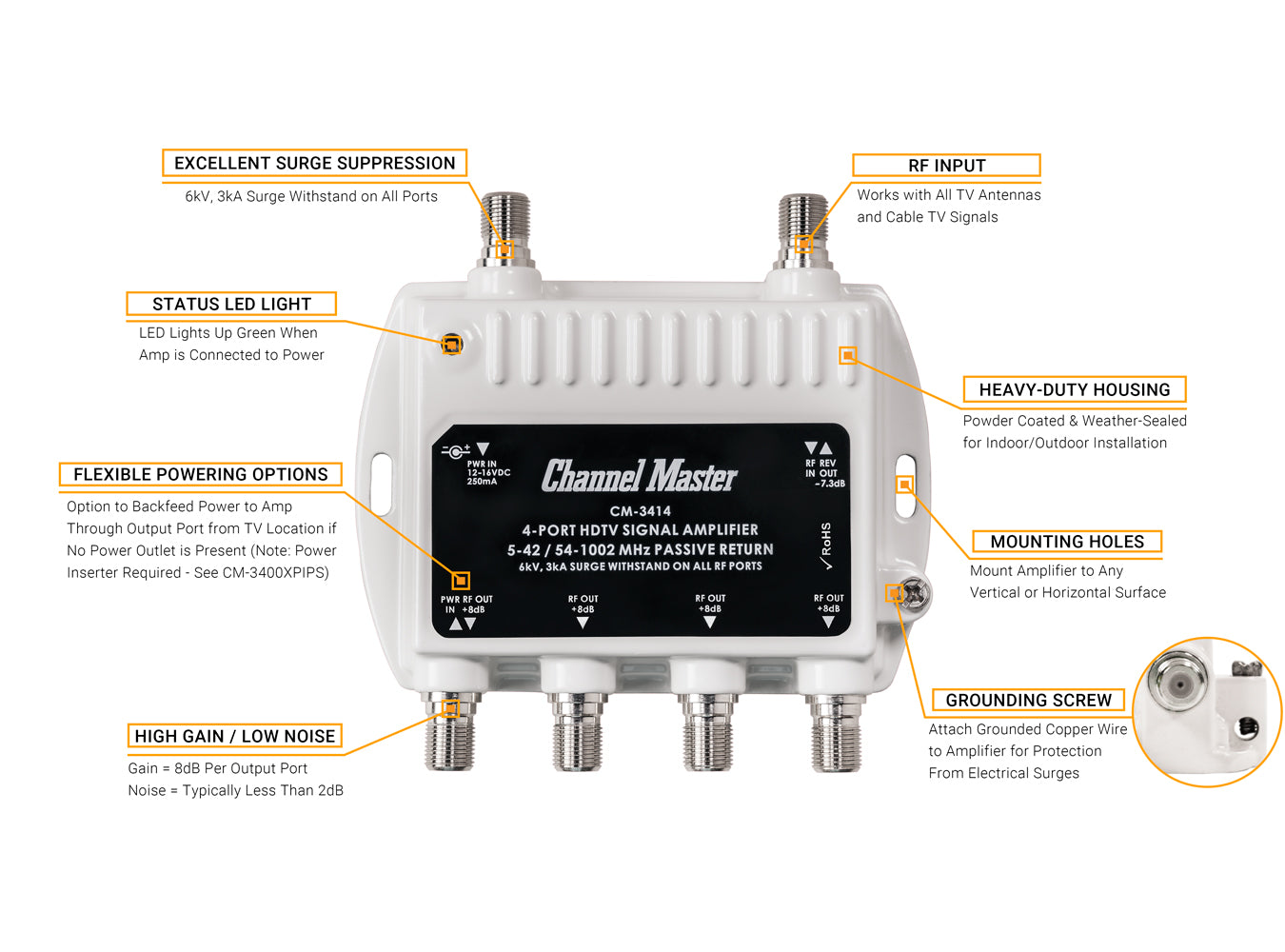

Features
| Miniature Size for Space-Saving Installations |
| Four Output Ports |
| Compatible with All TV Antennas |
| Will Support ATSC 3.0, NextGen TV and 4K Broadcast when Available |
| Professional Grade Performance |
| Powder Coated and Weather-Sealed Housing for Superior Corrosion Protection |
| Excellent Surge Withstand Capability |
| Offers Return Path for Cable Modem Applications |
| Supports Both Analog and Digital Broadcast Signals |
| Patented Digital Seizure Mechanism (DSM) for Superior Center Conductor Retention, Surface Area Contact and Electrical Performance |
Tech Specs
| Power Supply Input Voltage | 110-240v, AC ~ 50/60Hz, 200mA (Max) |
| Power Supply Output Voltage | +13.2v DC, 500mA, 6.6W (Max) |
| Forward Frequency Range | 54 to 1002 MHz |
| Return Path Frequency Range | 5 to 42 MHz |
| Gain | +8dB per Ouput |
| Noise Figure | Typically Less than 2dB |
| Isolation | 24 dB |
| Max Output Level | 18 dBmV |
| Max Input Level | 10 dBmV |
| Passive Return | -8 dB |
| Operating Temperature | -40 C to +60 C |
| Connector | F-Type |
| Size (Product) | 4.5 x 4.5 x 1 in |
| Size (Packaging) | 5.75 x 8.5 x 2.25 in |
| Weight (Product) | 11 oz |
| Weight (Packaging) | 1.75 lb |
