Pro-Mount Adjustable Mast Mount


$49.00

Overview

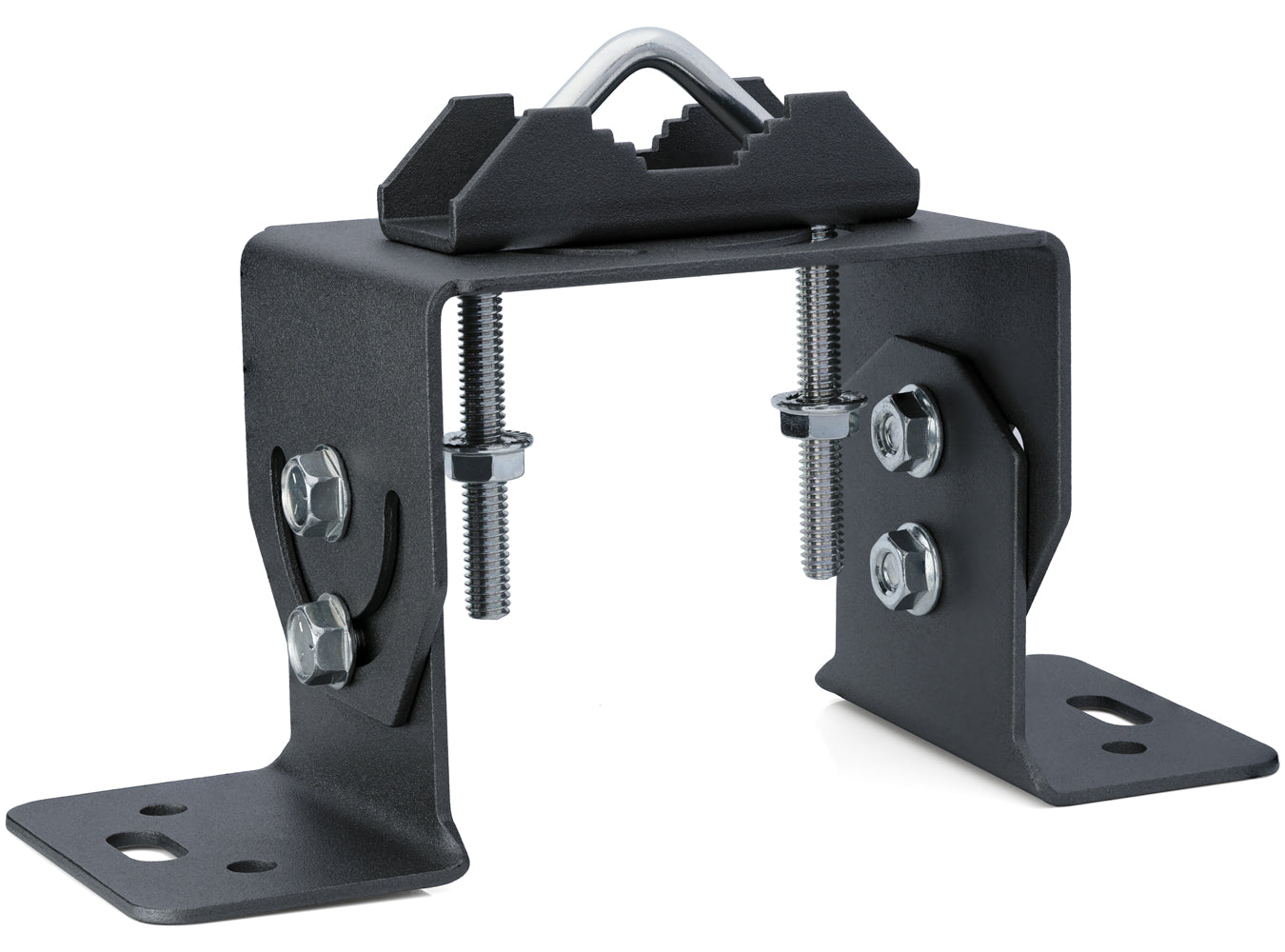

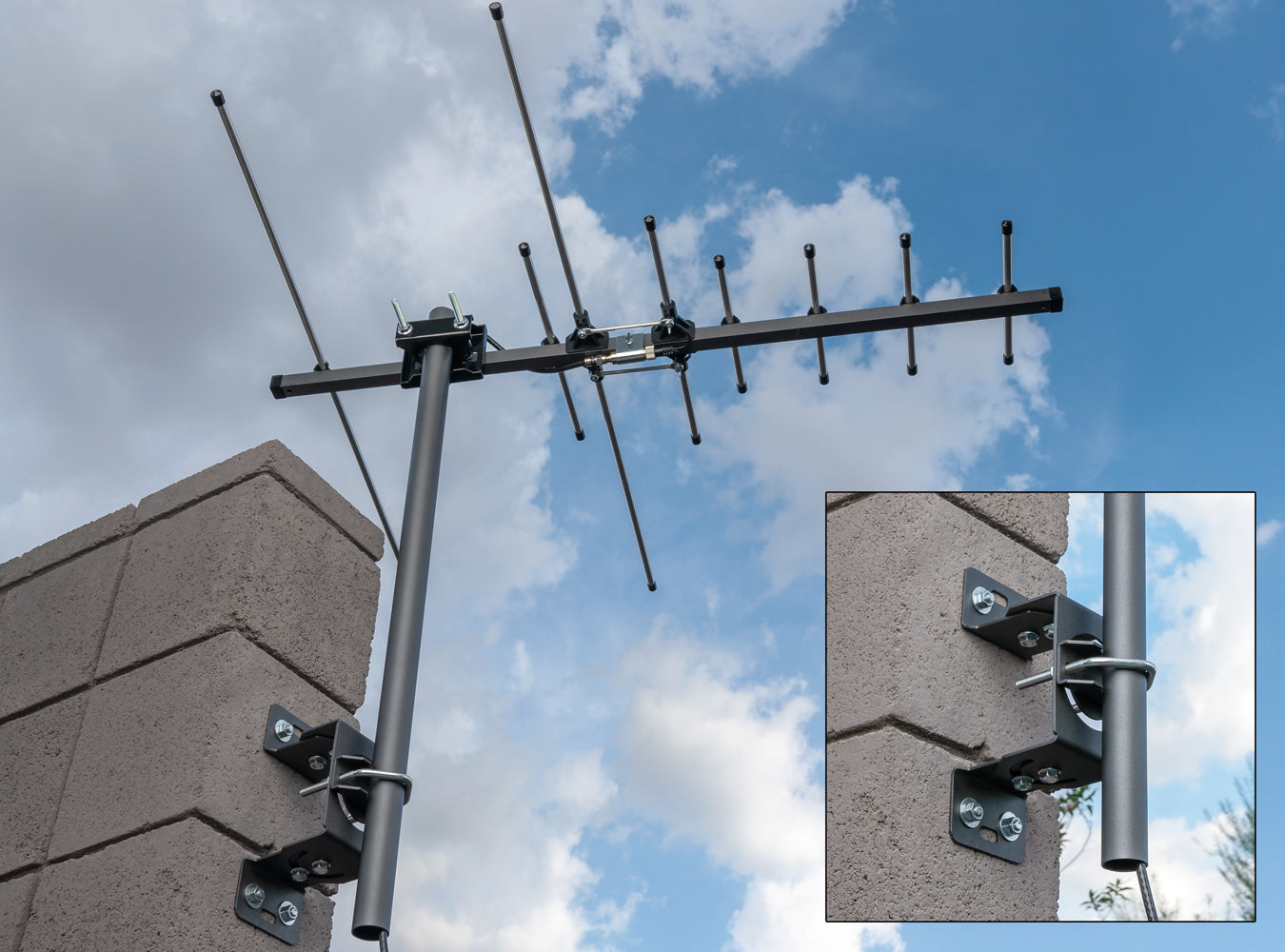

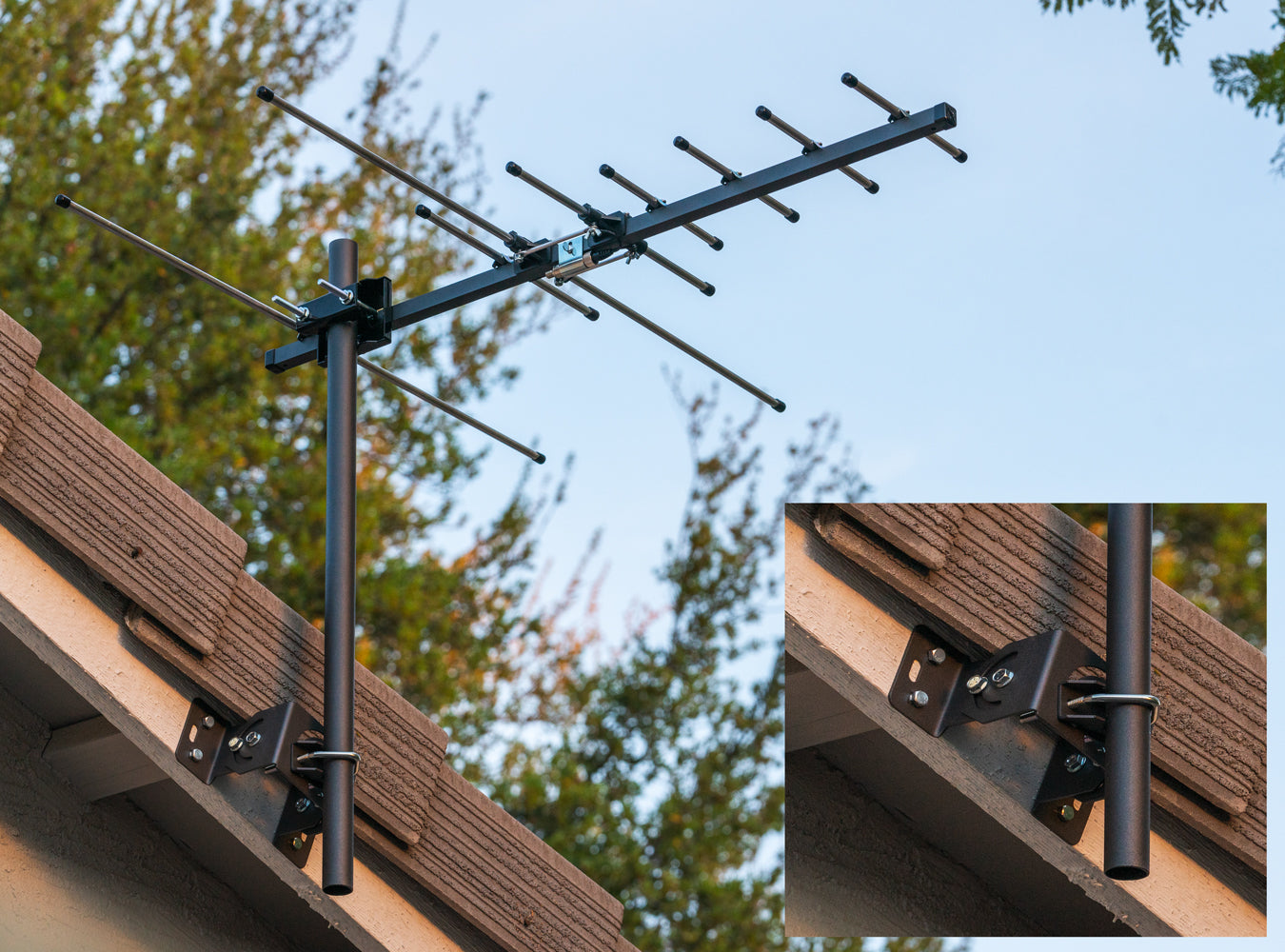

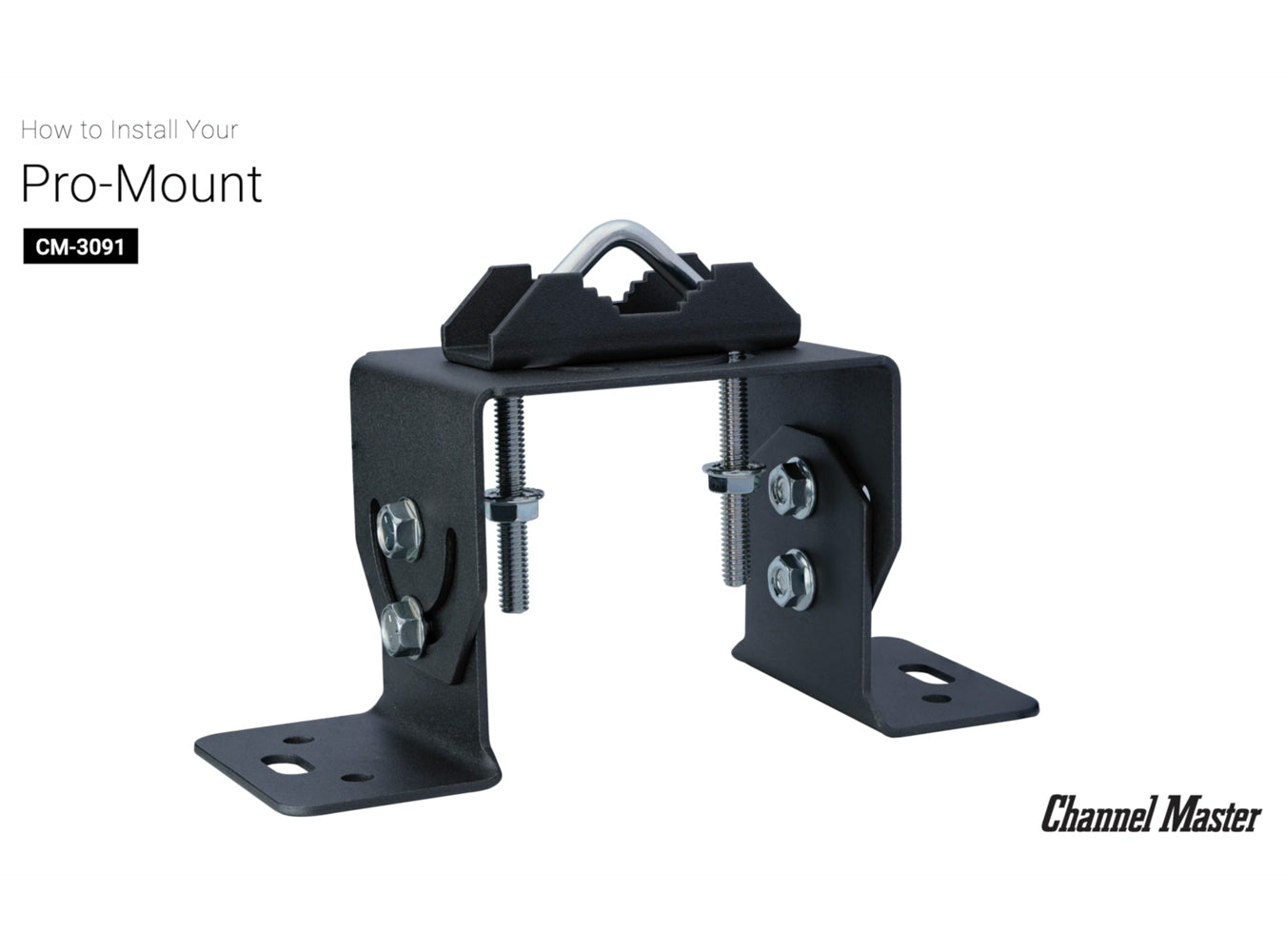

The Pro-Mount Adjustable Mast Mount is a heavy-duty, powder coated mast mount designed for commercial and residential mounting of TV antennas, wifi antennas, cellular antennas, weather stations, and more.  The adjustable design allows the Pro-Mount to be installed in several different orientations and mounting surfaces including on an eave, on a wall, or in the attic. The Pro-Mount will accept masts up to 2" in diameter and is recommended for use with the Channel Master Pro-Tube 30" mast or with any other masts under 5' in length. For masts longer than 5' or for additional strength, multiple Pro-Mounts can be spaced evenly along the length of a mast.  (Mast sold separately) (This mount is most commonly purchased with the Pro-Model Antenna and the Pro-Tube 30" Mast)
- Patent Pending

The included mast clamp (saddle) and V-Bolt provide robust clamping force and help prevent windmilling.  The Pro-Mount Adjustable Mast Mount is constructed of 12 gauge high-tensile steel and powder coated for maximum weather protection and rust prevention. Most other antenna mounts have a raw metal finish giving an unprofessional and unfinished look to an installation. The Pro-Mount textured gray powder coat not only provides an additional layer of protection but also an elegant, finished look for high visibility installations and for higher-end commercial and residential properties.

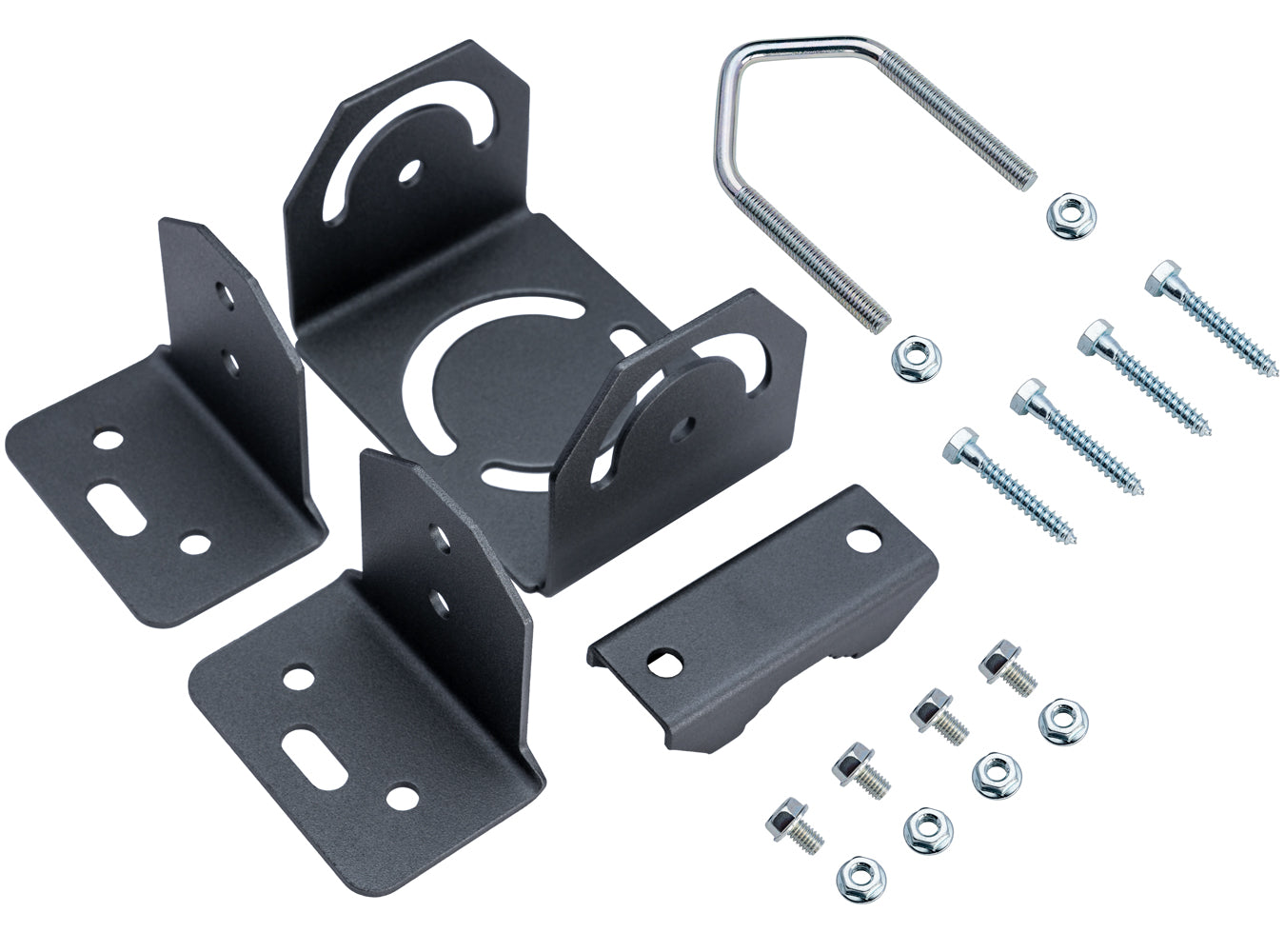

What’s Included

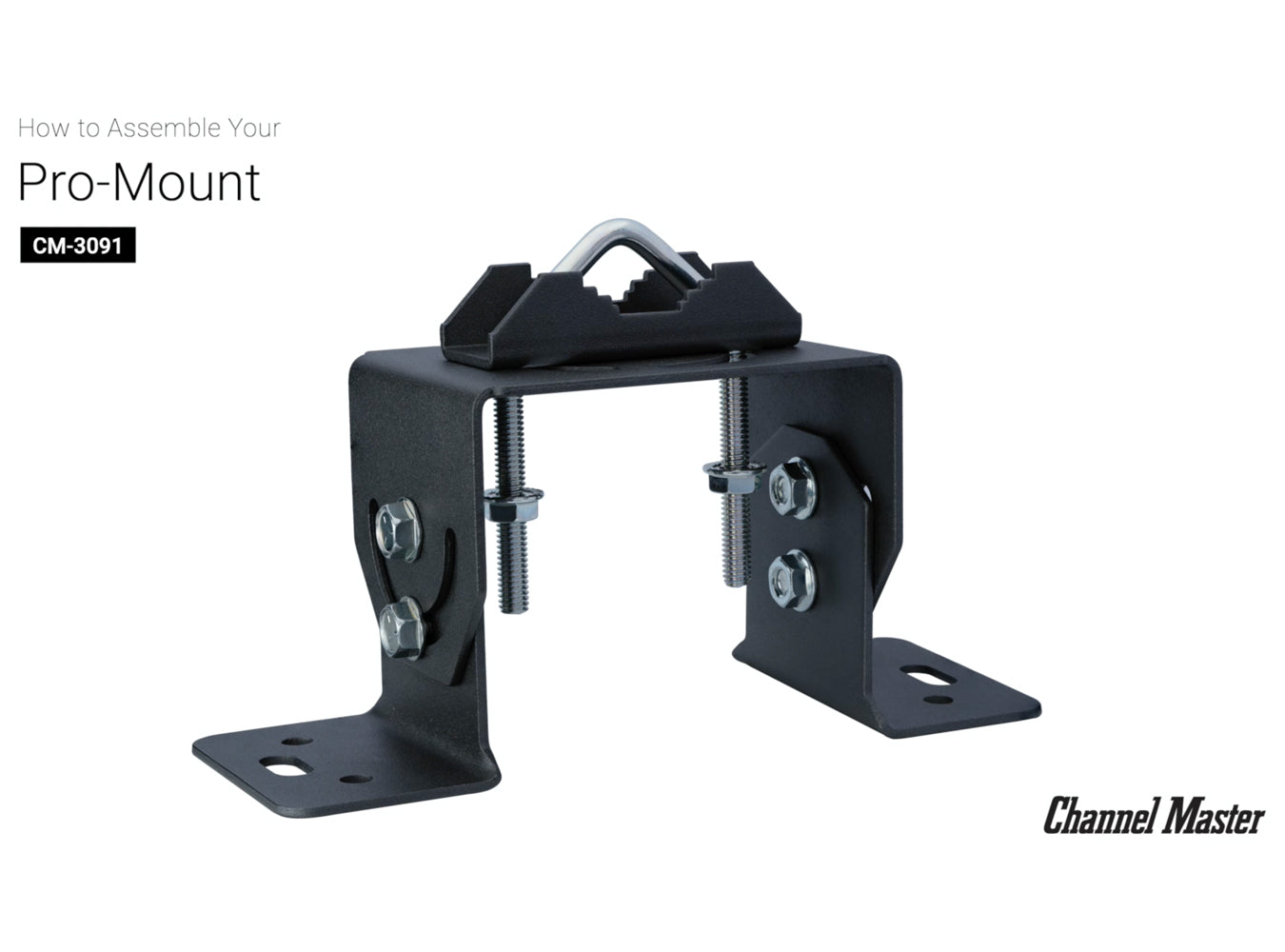

Heavy-Duty Mount (Main and Side Plates)
Assembly Hardware, Lag Screws, Mast Clamp and V-Bolt
1-Year Limited Warranty


Features

12-Gauge High-Tensile Steel
Multiple Mounting Configurations

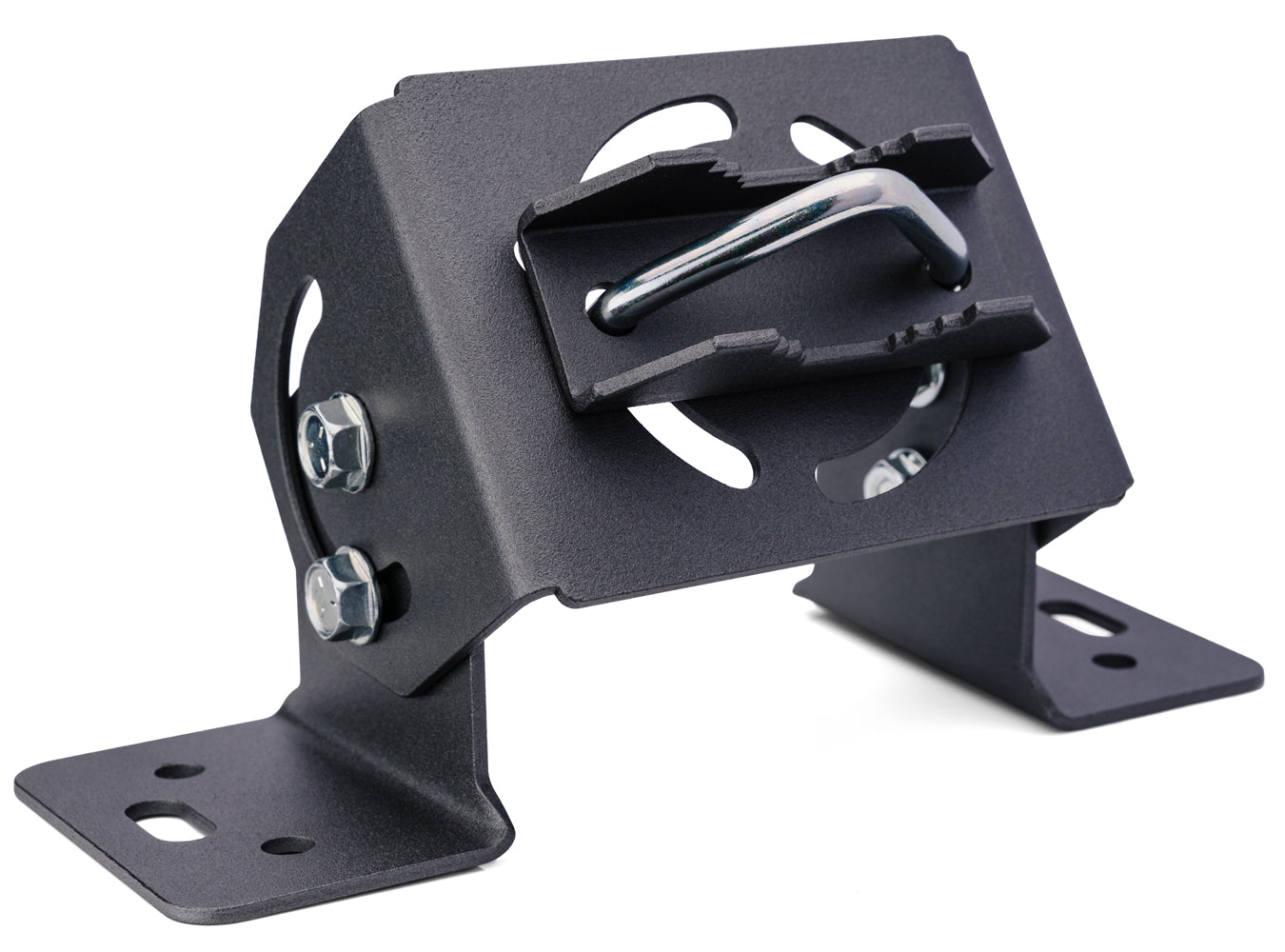

Mast Skew and Elevation Adjustments
SilverTex Gray Powder Coat Finish

Tech Specs

Steel 12-Gauge
Compatible Mast Diameter Up to 2" in.

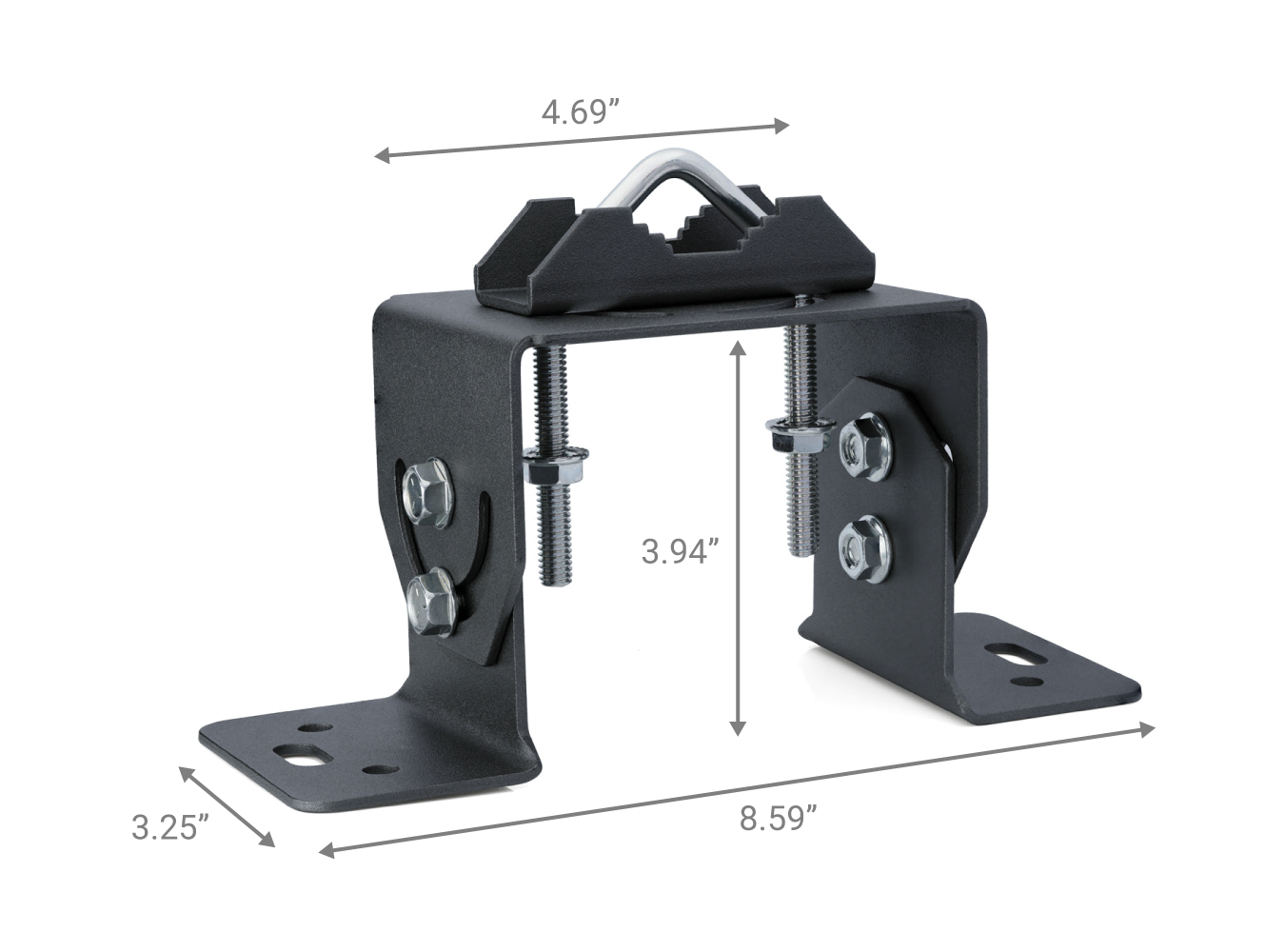

Size (product) 8.6" x 6.33" x 3.5" in.
Size (packaging) 5.75" x 3.75" x 3.5" in.
Weight (product)
2.8 lb
Weight (packaging) 2.8 lb


Customer Reviews

Based on 18 reviews
94%
(17)
6%
(1)
0%
(0)
0%
(0)
0%
(0)
B
Bill Fujimoto
Mounting Bracket

The product quality is very good and appears robust (I've yet to install it). There is a design feature which in my opinion is less than optimal, that is the V-bolt also doubles as the tilt angle clamp. My mast tube is aluminum which begins to crush with modest clamp force on the V-bolt, but this clamp force may be insufficient to clamp the tilt angle in place in the presence of a strong wind. A better design would be to separate the mast clamp from the tilt clamp. I made a workaround by adding 4 additional 3/8" x 1/2" bolts in the same slots adjacent to the mast clamp where the bolt heads butt up against the mast clamp to secure it from rotating in a strong wind.

J
James Rawding
Perfect for my needs

My platform for the Antenna is located in a tree. The platform in not level. This mount was perfect for my needs I could adjust it so the antenna was level. I have a mountain in front of the antenna and the TV towers were located behind the mountain, I was able to tilt the antenna so it was pointing above the mountain. Worked perfectly have a awsome picture .

D
Daniel Leon Jordan
Exactly what I was looking for.

Robust and strong natured design.

J
John Checton
Pro-Mount Adjustable Mast Mount

Excellent quality, versatile & best fit for the job.

M
Mark John Raddatz
Mounting Bracket

Extremely well made bracket. Love the high quality construction.
