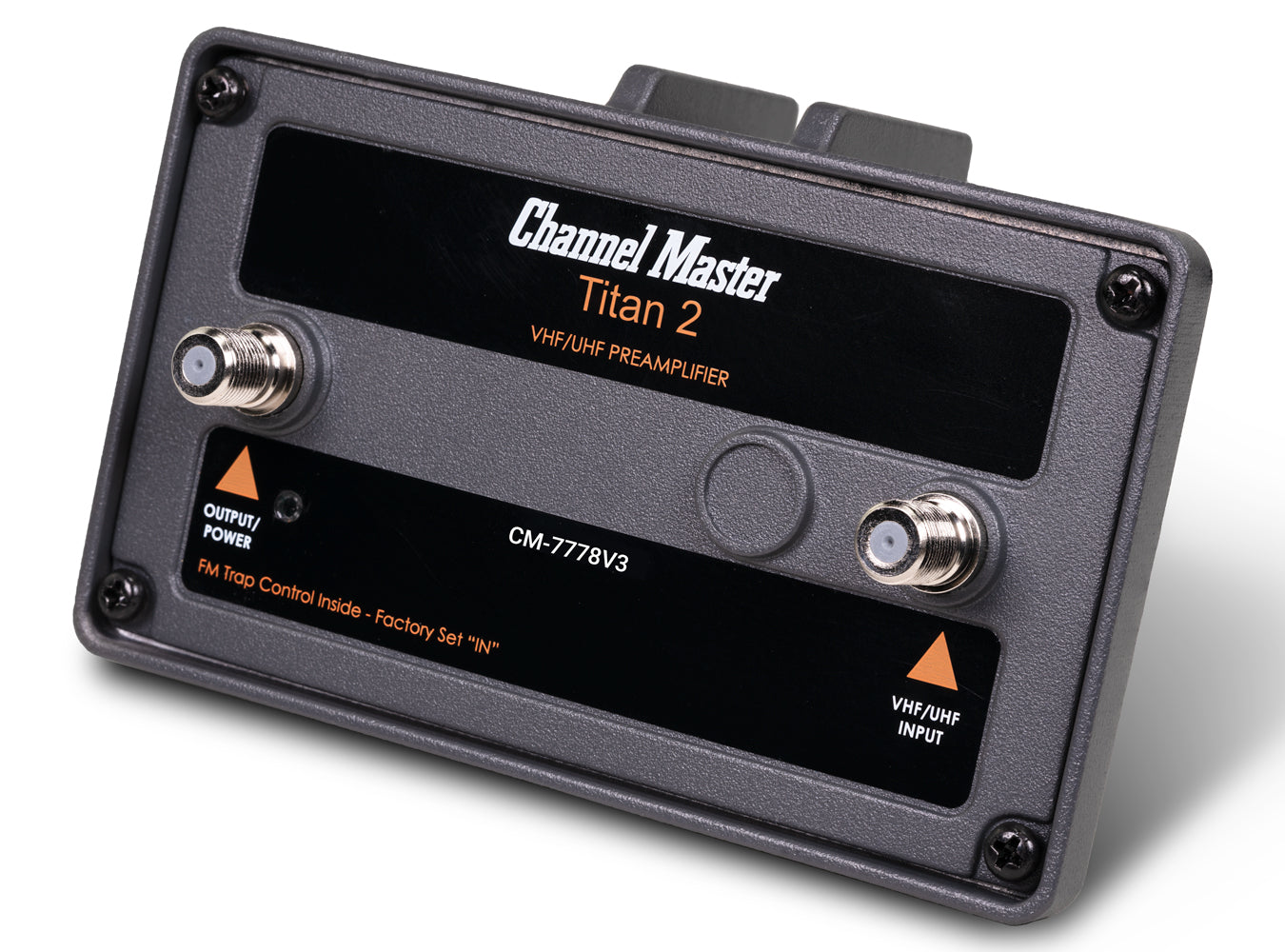

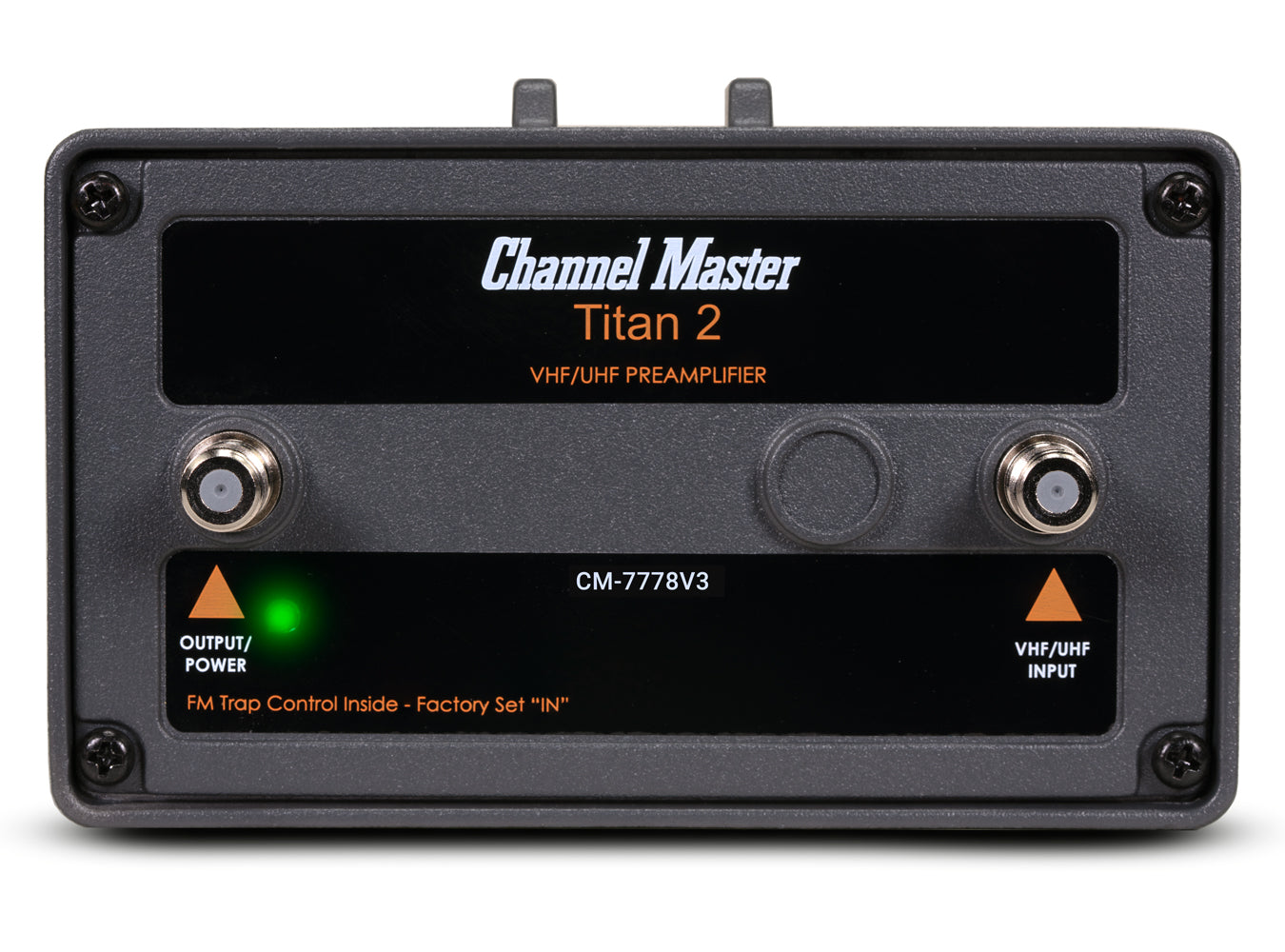

Titan 2 Medium Gain Preamplifier (Version 3)


$79.00

Item out of stock.

Equivalent Alternative Available: TV Antenna PreAmp 1 (CM-7779HD)

Overview

The Titan 2 Medium Gain Preamplifier will amplify signals received by your antenna. This antenna amplifier is a medium gain, low noise preamplifier used to allow weaker signals at the antenna to be amplified to a viewable strength, and is ideal for installations in which broadcast towers are located at widely varying distances. The Titan 2 Medium Gain Preamplifier is a two part unit, an outdoor amplification unit which is mounted on the mast of your antenna system and an indoor unit which powers the outdoor amplification unit. The indoor unit is stationed indoors and connects to the outdoor unit via coaxial cable.  (When installing a splitter with this amplifier it must be a power passing splitter, most common splitters will not pass power.)

Notice: Product Replacement for Unavailable Item

We regret to inform you that this product is currently unavailable. However, we have an excellent alternative (Next Generation Model) that we believe will meet or exceed your expectations—the PreAmp1.



Medium Gain TV Antenna Signal Preamplifier.

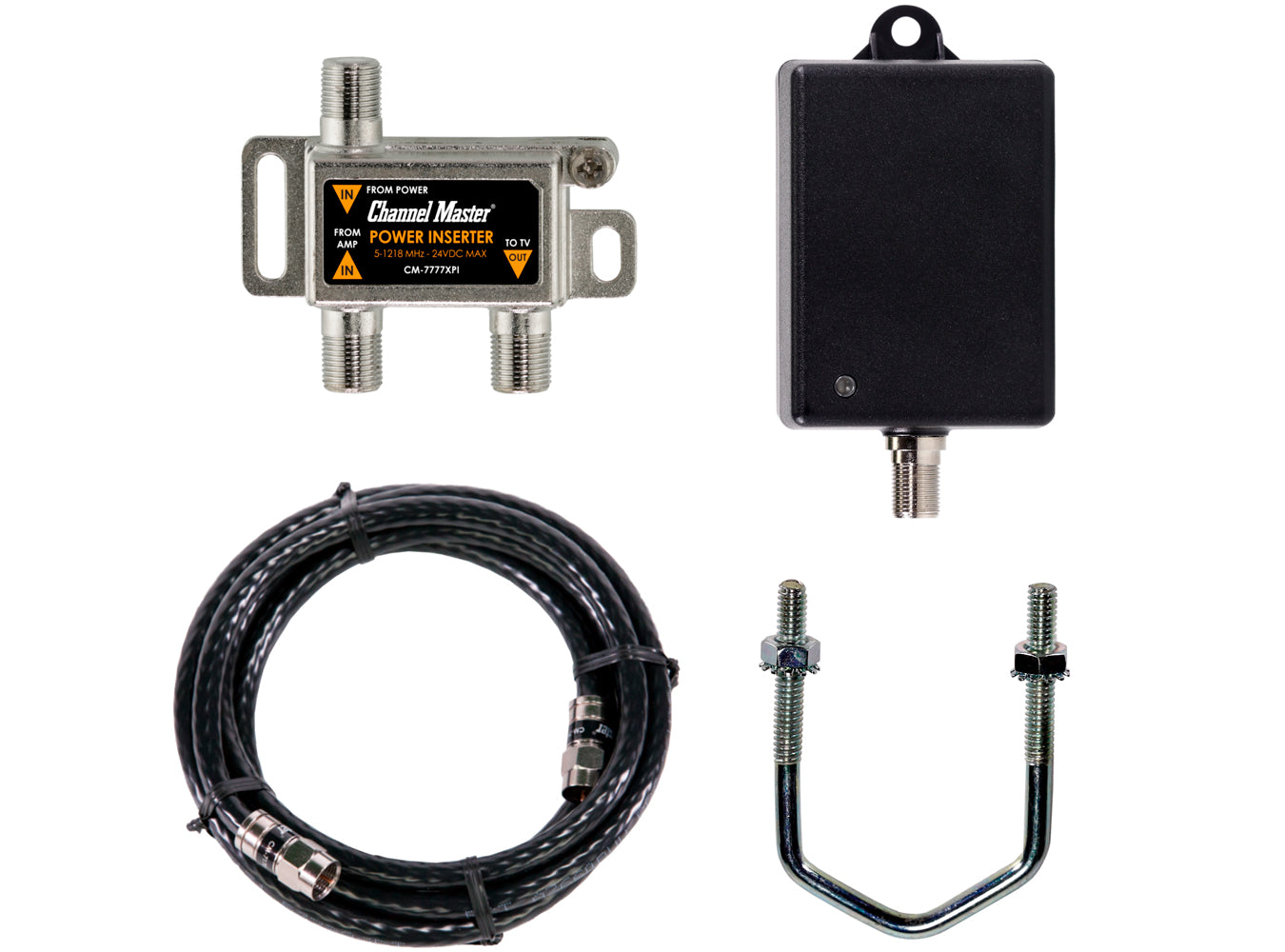

What’s Included

Titan 2 Medium Gain Preamplifier
Power Inserter
Power Adapter
Coaxial Cable
U-Bolt
User Guide
1-Year Limited Warranty

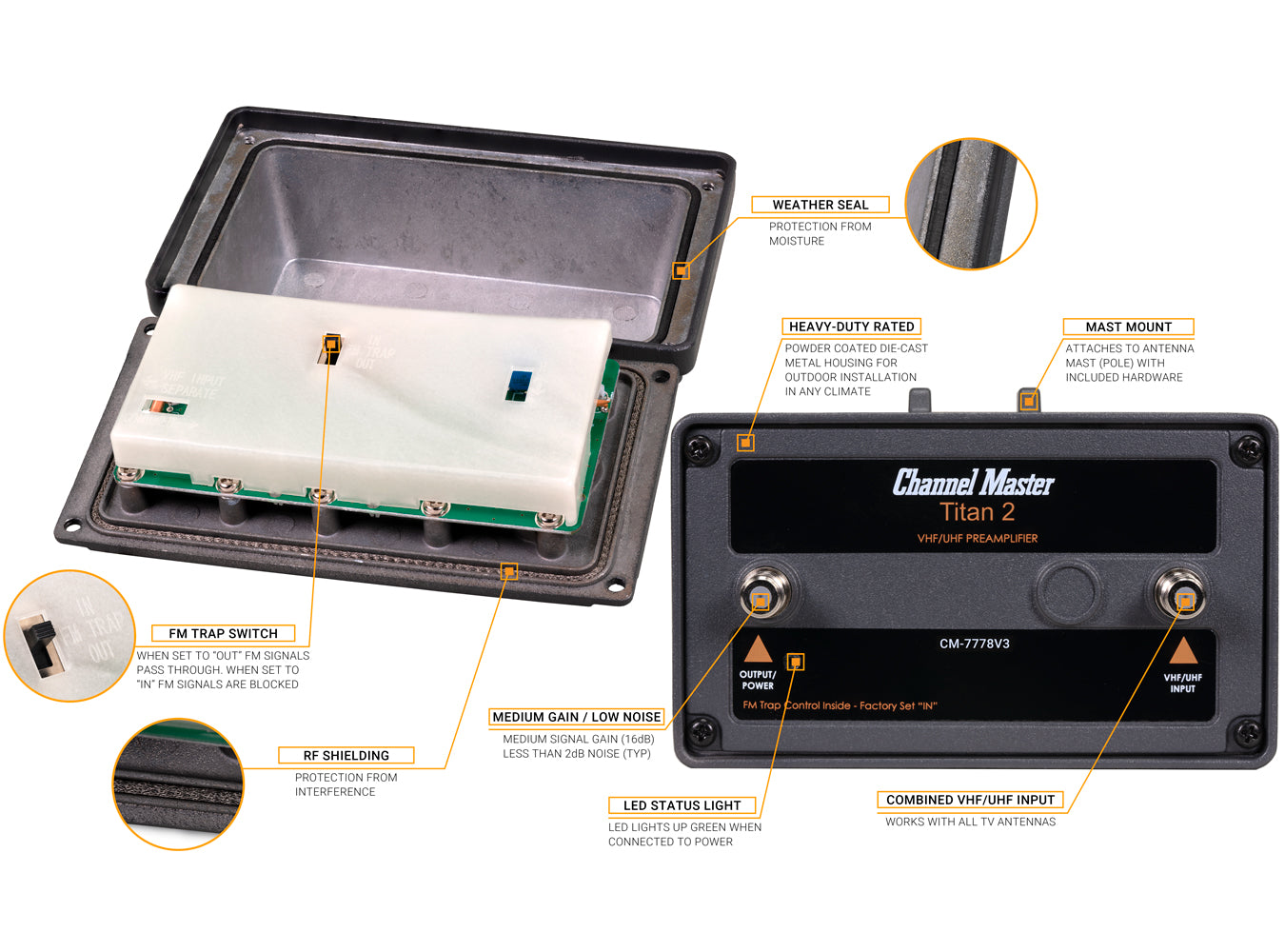

Features

Improves Signal Quality
Decreases Pixilation
May Increase Number of Channels
Blocks LTE Interference from 3G/4G/5G Smartphones and Transmitters
Will Support ATSC 3.0, NextGen TV and 4K Broadcast when Available

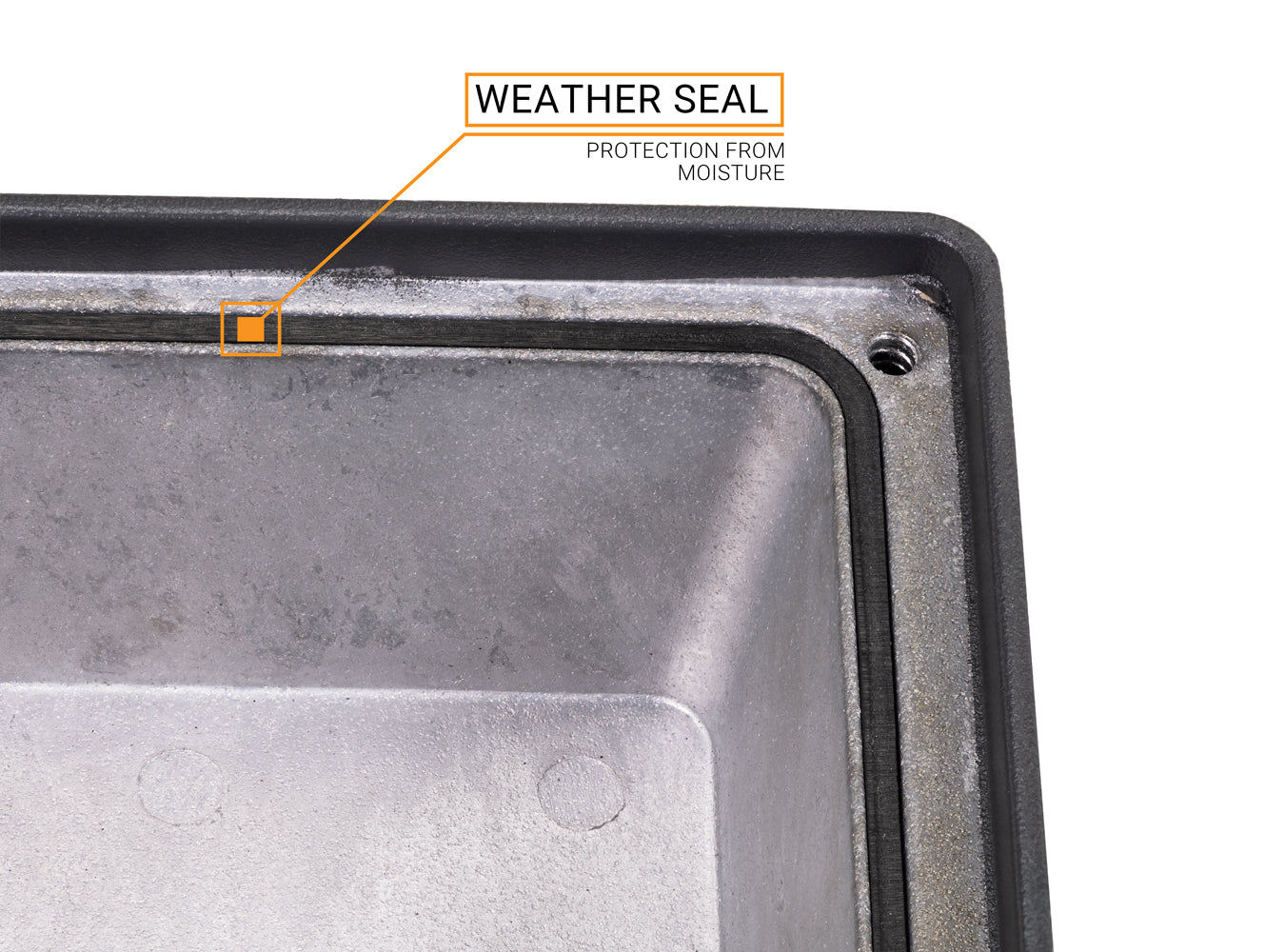

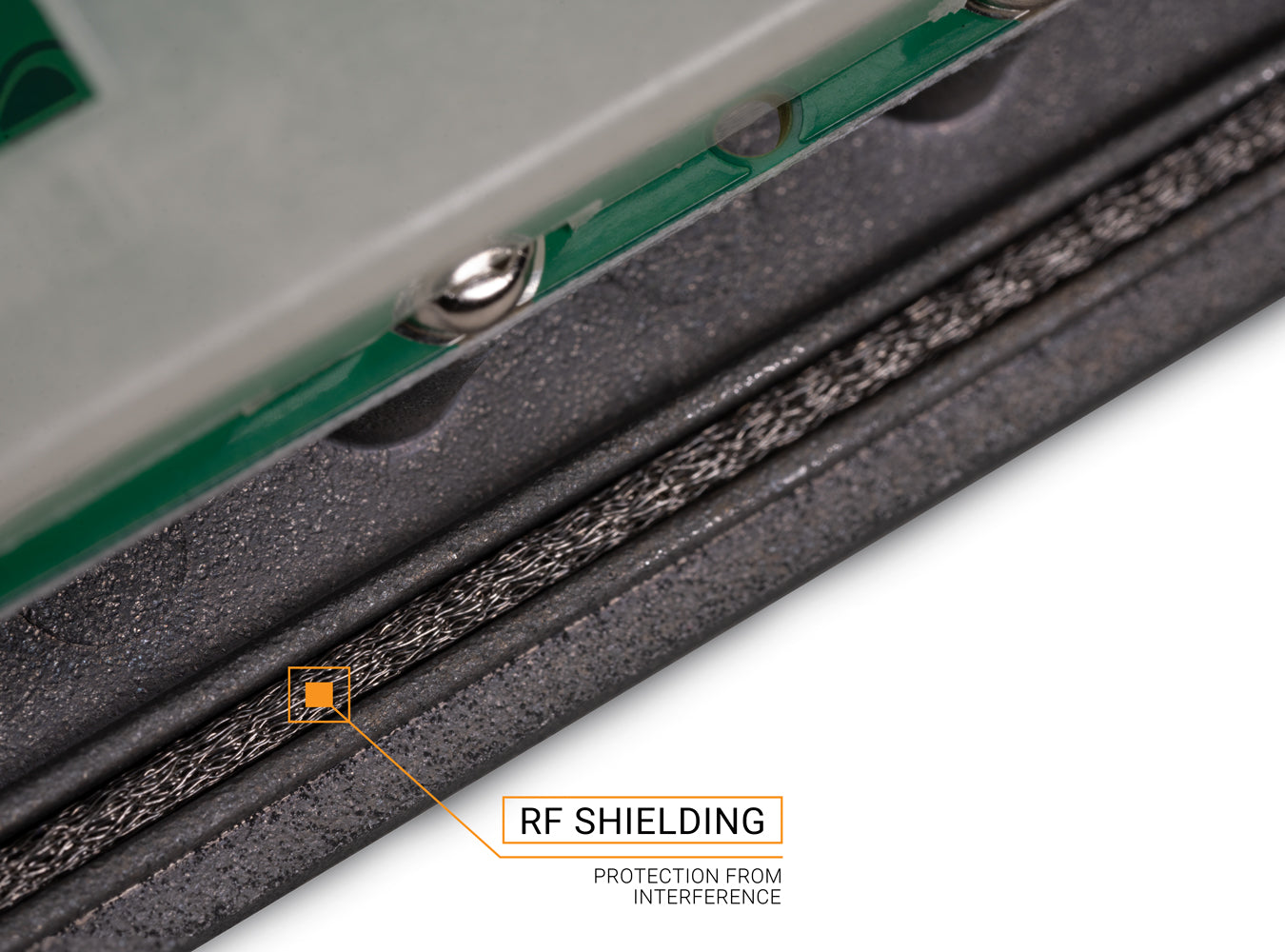

Housing Offers RF Shielding for Reducing Interference
Ultra Low Noise
Gain: +16dB

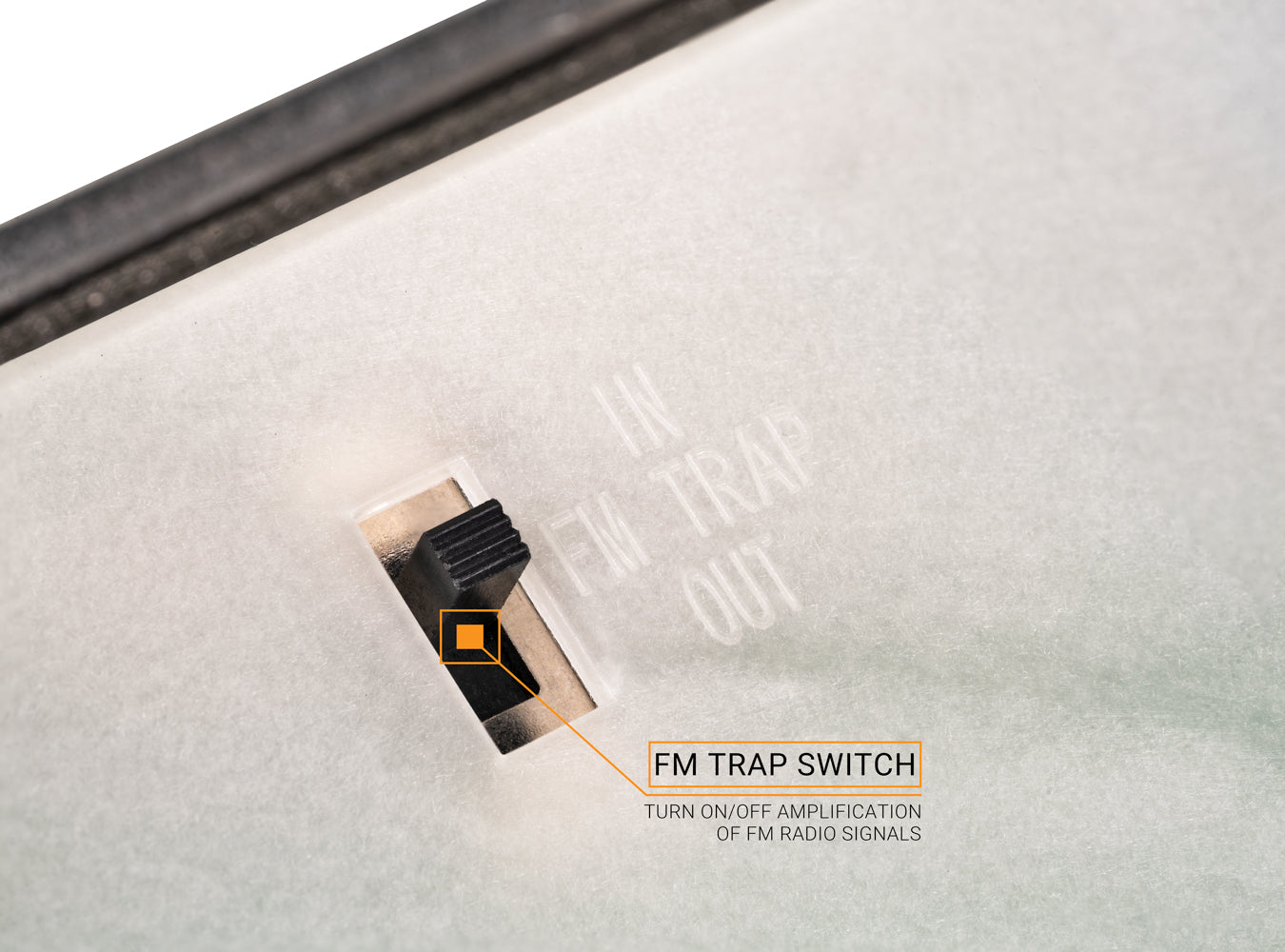

Selectable FM Signal Pass-Through
Heavy-Duty Rating for Outdoor Use

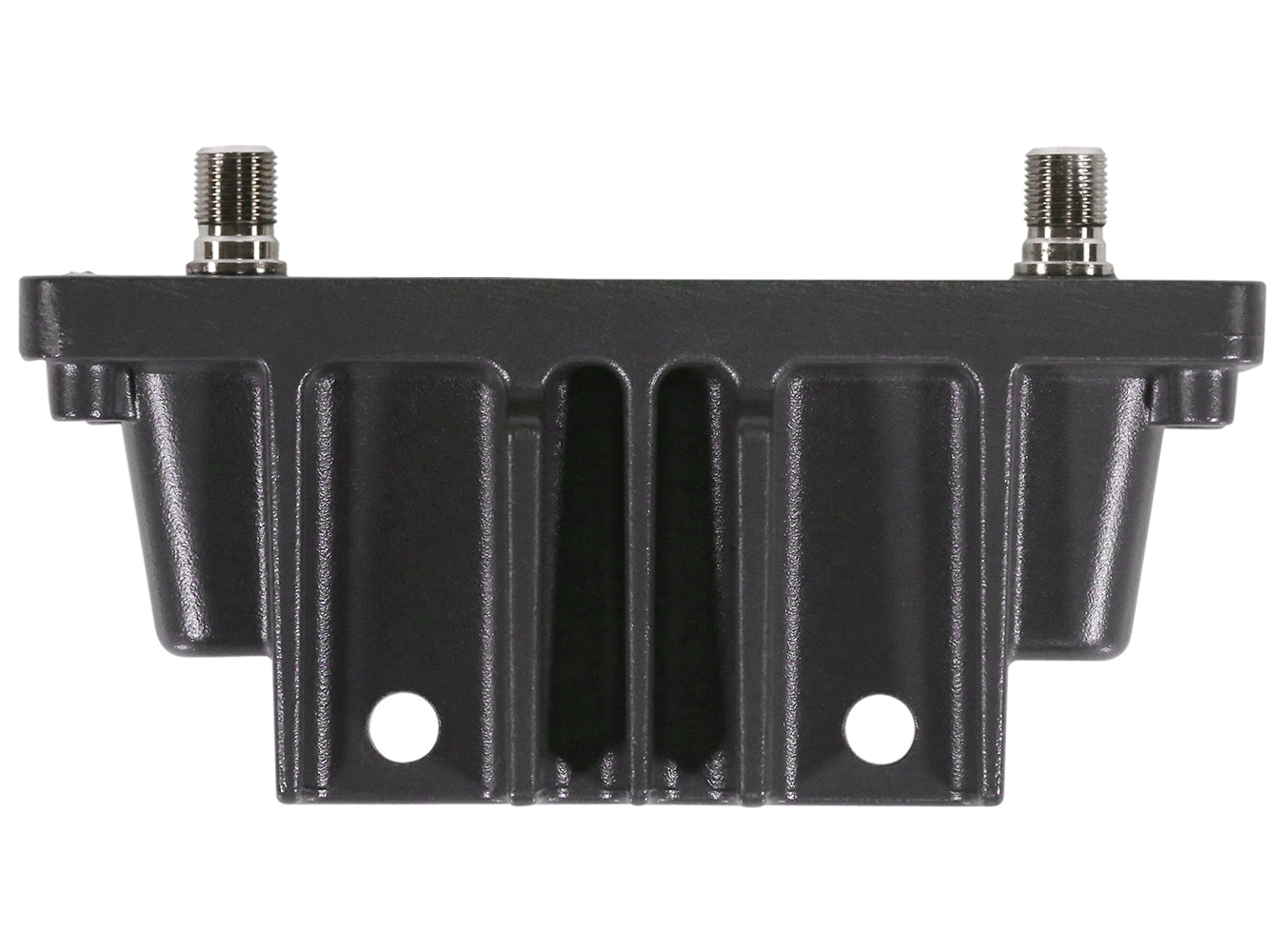

Mast Mounted for Close Proximity to Antenna


Tech Specs

Power Supply Input Voltage 110-240v, AC ~ 50/60Hz, 200mA (Max)
Power Supply Output Voltage +13.2v DC, 500mA, 6.6W (Max)
Impedance (Input and Output) 75 Ohm
Connector F-Type
Frequency Range 54 - 700 MHz
Gain 16dB
Noise Figure Typically Less than 2dB
UL Listed Yes
RoHS Compliant Yes
Input Return Loss <-15
Output Return Loss <-15
Max Input Level 34 dBmV
Max Output Level 50 dBmV
FM Trap 88-108 MHz; >15dB Down
Power Consumption <5W
Operating Temperature -40 C to 60 C
Size (Product) 5.375 x 3.5 x 3.0 in
Size (Packaging) 6.5 x 5.75 x 3.5 in
Weight (Product) 12 oz
Weight (Packaging) 2 lb
U-Bolt Diameter (Included) 1.875 in
