Rotator System


$199.00

Item temporarily out of stock.

Email me when back in stock


Overview

The Channel Master Antenna Rotator System is an easy to use, all in one system that will enable the rotation of an outdoor antenna from an indoor control box and a hand-held remote control. The indoor control unit has internal memory which will allow the user to auto tune an antenna to rotate to up to 69 pre-programmed positions. The Channel Master Rotator System can be specifically helpful for those who use a single outdoor antenna but are able to receive signals being broadcast from towers in different directions. In addition to TV antenna use, the Channel Master Rotator System is also popular among ham radio operators and hobbyists for miscellaneous uses requiring remote rotation. The motor and control unit are connected via a 3-conductor wire that carries the electrical voltage and control signals from the indoor control unit to the outdoor drive unit. (Rotator wire not included)

What’s Included

Drive unit (Gray)
Control unit (rotator wire not included)

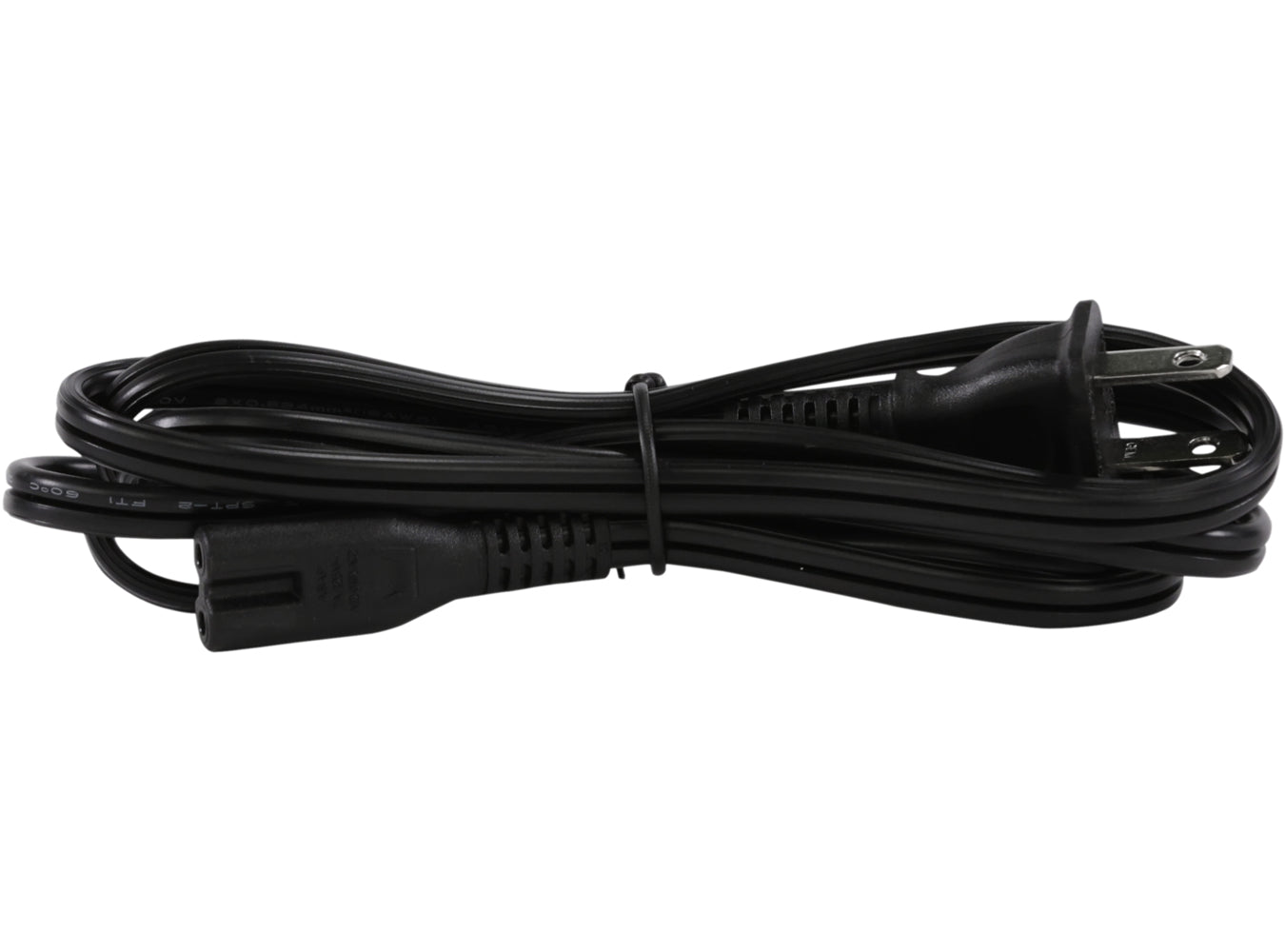

Power cable
Remote Control
1-Year Limited Warranty

Features

Rotator
Improved Mechanical Stability (New)
Enhanced Brake System (New)
New Gray Color (Powder-Coat) (New)
One-piece cast aluminum gray housing
Heavy duty rotator motor
Durable powder coat paint finish
Precision cut gear system
Built-in steel thrust bearings
Easy push tab wire connections
Control Unit
Updated Physical Design (New)
New Flush-Mount Front Panel Buttons (New)
Enhanced Position Reliability (New)
New Blue LED Display (New)
Integrated Power Supply (New)
Non-Volatile memory – Holds locations during power failures
Automatic synchronization ensures pinpoint position accuracy
Directional access control via TV channel number or digital compass location
Unobtrusive control unit blends with any décor
Infra-red remote control
Compatible with most universal remote controls

Tech Specs

Rotation 1 RPM
Gear Ratio 3,200 to 1
Accepts TV antenna mast up to 1.75” in diameter (upper mast)
Power 120 V AC 60Hz only
Operating Temperature -0 Degrees Celsius to + 55 Degrees Celsius
Rotate Torque up to 100 in/lbs
Driving Torque up to 1,000 in/lbs
Overall Height 10.25 in
Lower motor drive housing 5.5 x 4.5 x 7 in
Upper mast mount holes 2.125 in (center to center)
Lower mast mount holes 2.25 in (center to center)
Size (product) 8.5 x 3.75 x 10.25 in
Size (packaging) 7 x 10.5 x 9 in
Weight (product) 6 lb
Weight (packaging) 9.5 lb
